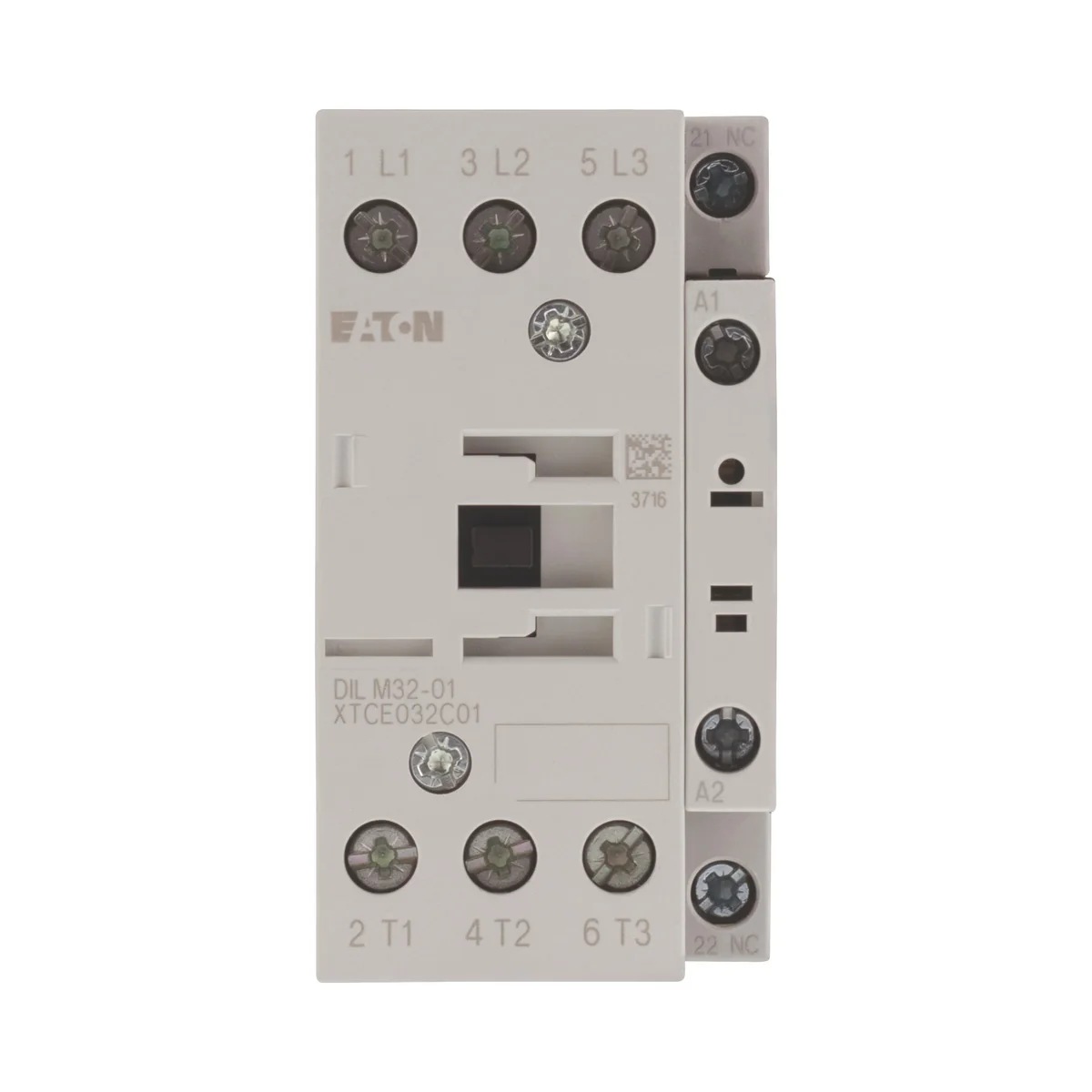

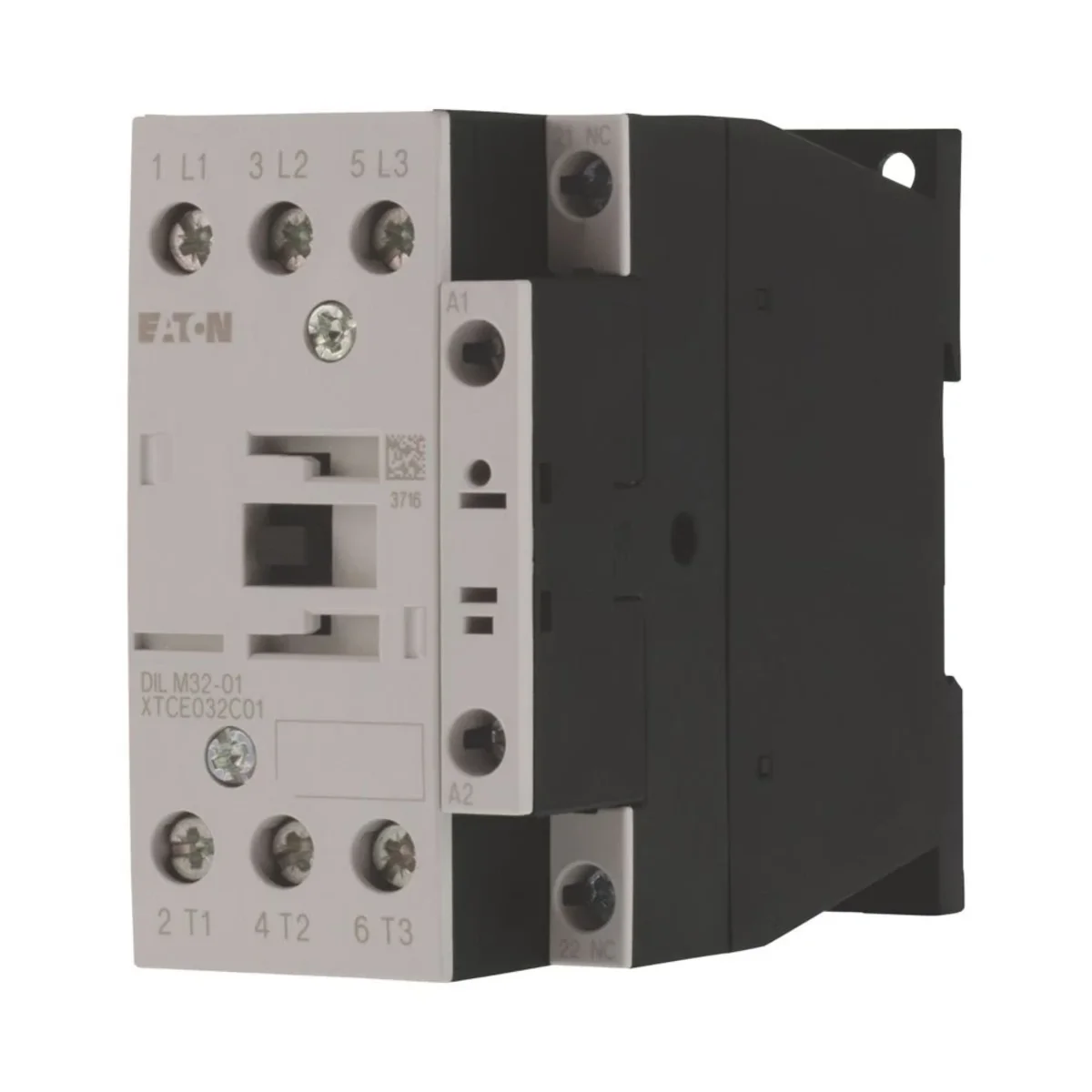

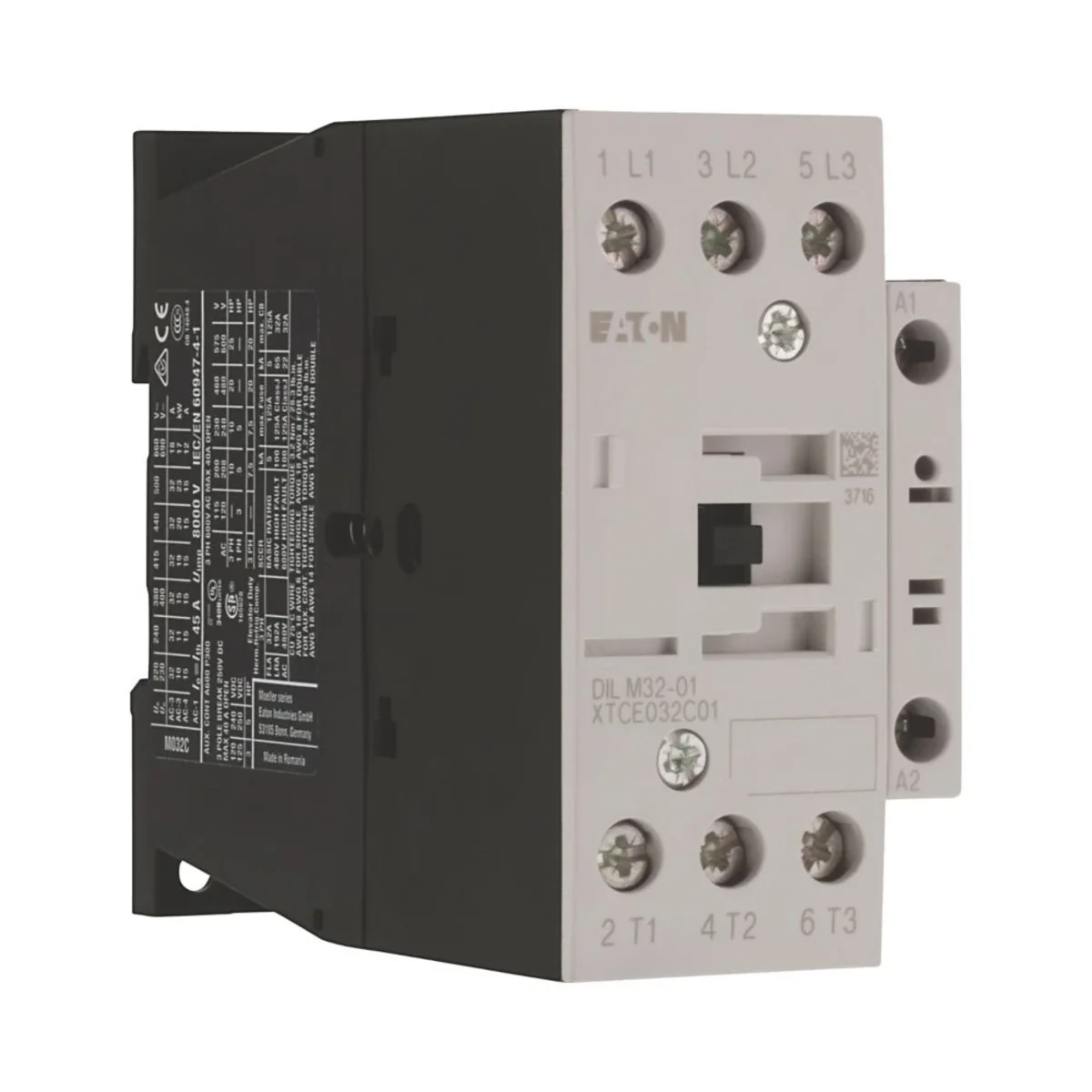

Power contactor, DILM32-01, 32A, 0Z 1R 277292

Name: Power contactor, DILM32-01, 32A, 0Z 1R
Brand: EATON
SKU: ATA192MOEL
Price: 132.88 PLN

local index:

ATA192MOEL

Catalog No:

277292

EAN code:

4015082772925

Click on the photo to enlarge

Manufacturer: EATON

Rated voltage [V]: 230

Rated current [A]: 32

See full description

Price:

132,88 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

DILM power contactors. For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.

Technical data

Rated voltage [V]

230

Rated current [A]

32

Other technical data

Rated control supply voltage AC 50 Hz

230 ... 230 V
Rated control supply voltage DC

0 ... 0 V
Rated operation current Ie at AC-1, 400 V

45 A
Rated operation power at AC-3, 400 V

15 kW
Rated operation power at AC-4, 400 V

7 kW
Modular version

No
Number of auxiliary contacts as normally closed contact

1
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

240 ... 240 V
Voltage type for actuating

AC
Rated operation current Ie at AC-3, 400 V

32 A
Rated operation current Ie at AC-4, 400 V

15 A
Rated operation power NEMA

14.9 kW
Number of auxiliary contacts as normally open contact

0
Type of electrical connection of main circuit

Screw connection
Number of normally open contacts as main contact

3

Manufacturer details

Manufacturer

EATON ELECTRIC SP. Z O.O.
Address

80-299 UL. GALAKTYCZNA 30
E-mail

pl-zamowienia@eaton.com
Tax identification number

5841022327

Bulk packaging

A kind of package		Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	0,428	0,447
Volume (m3)	0,000	0,000
Width (m)	0,045	0,047
Length (m)	0,097	0,099
Depth (m)	0,085	0,087
