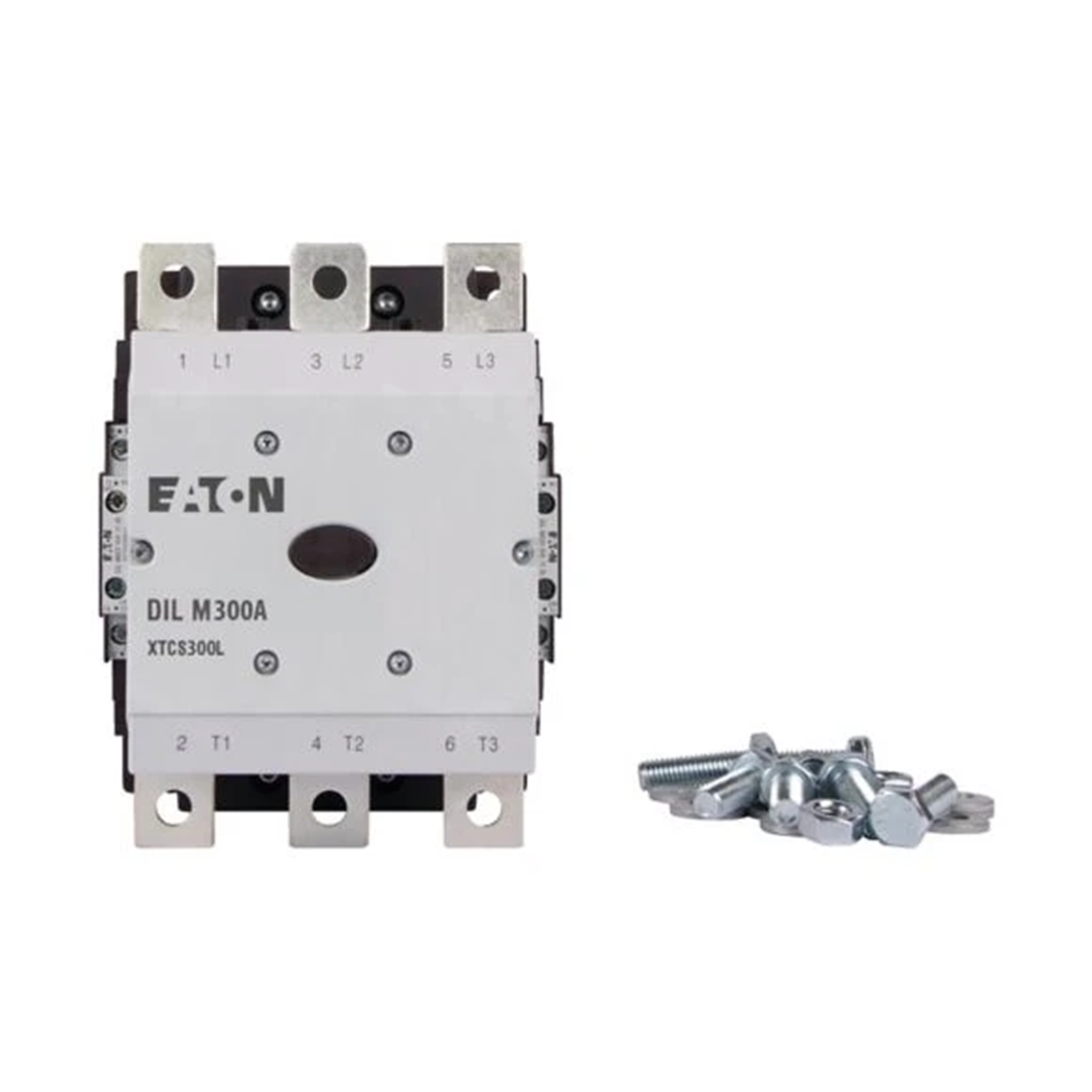

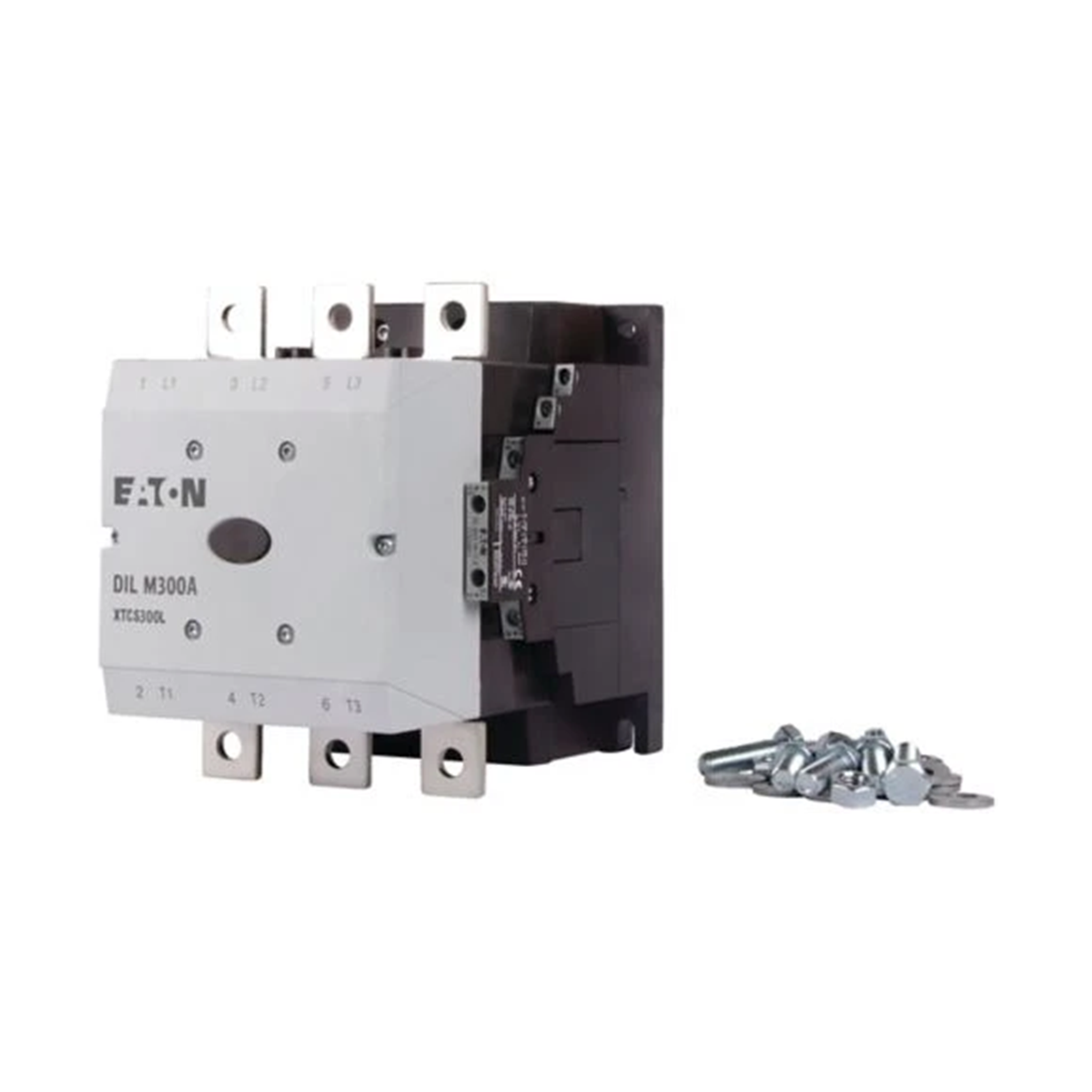

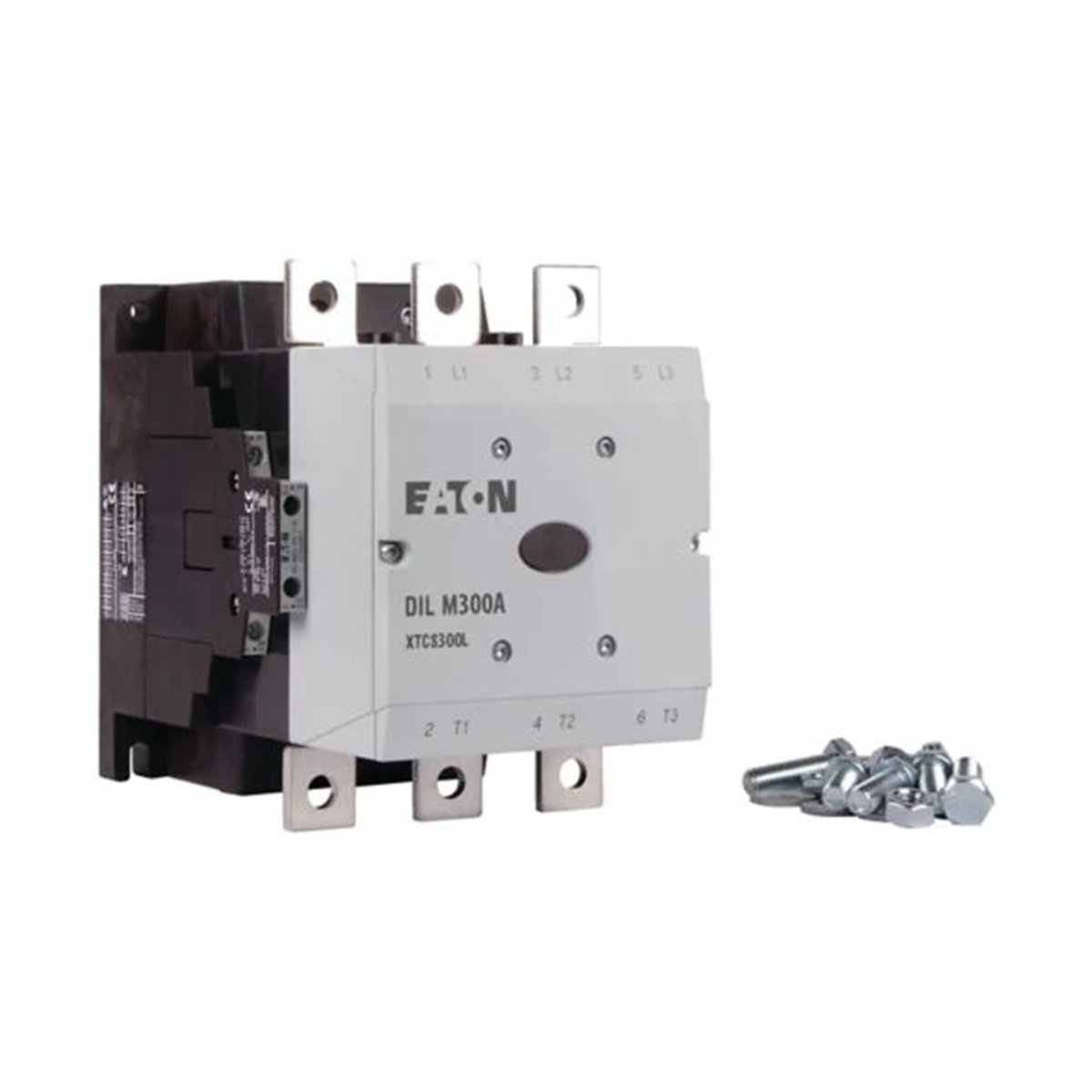

Power contactor, DILM300A-S/22, 300A 139559

local index:
ATA500MOEL
Catalog No:
139559
EAN code:
4015081363377
Manufacturer: EATON
Rated voltage [V]: 230
Rated current [A]: 300
Price:
905,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

DILM power contactors. For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.

Technical data

  • Rated voltage [V]
    230
  • Rated current [A]
    300

Other technical data

  • Rated control supply voltage AC 50 Hz
    220 ... 240 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation current Ie at AC-1, 400 V
    490 A
  • Rated operation power at AC-3, 400 V
    160 kW
  • Rated operation power at AC-4, 400 V
    132 kW
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    2
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    220 ... 240 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    300 A
  • Rated operation current Ie at AC-4, 400 V
    240 A
  • Rated operation power NEMA
    186 kW
  • Number of auxiliary contacts as normally open contact
    2
  • Type of electrical connection of main circuit
    Rail connection
  • Number of normally open contacts as main contact
    3

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 7,542
Volume (m3) 0,010
Width (m) 0,174
Length (m) 0,252
Depth (m) 0,232
