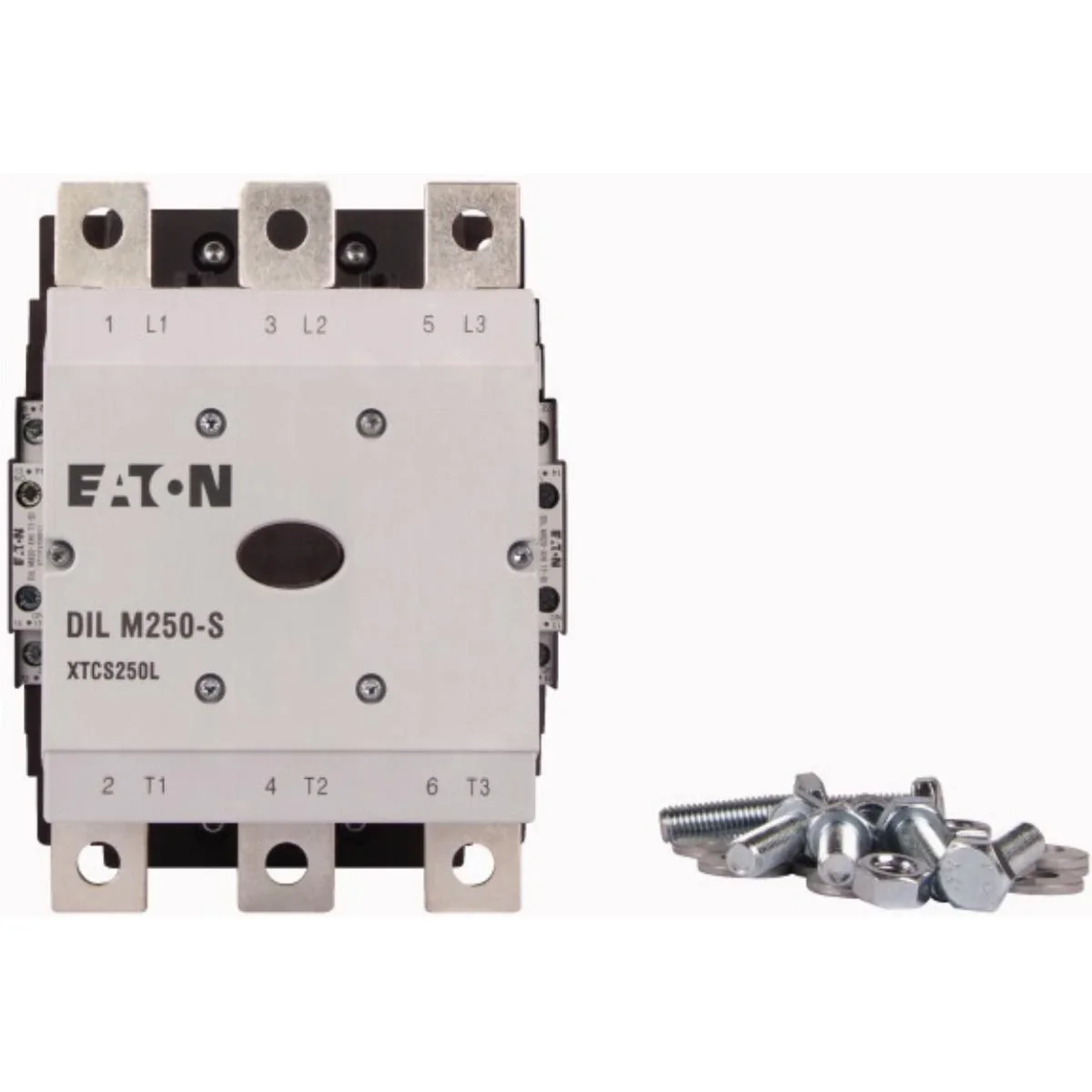

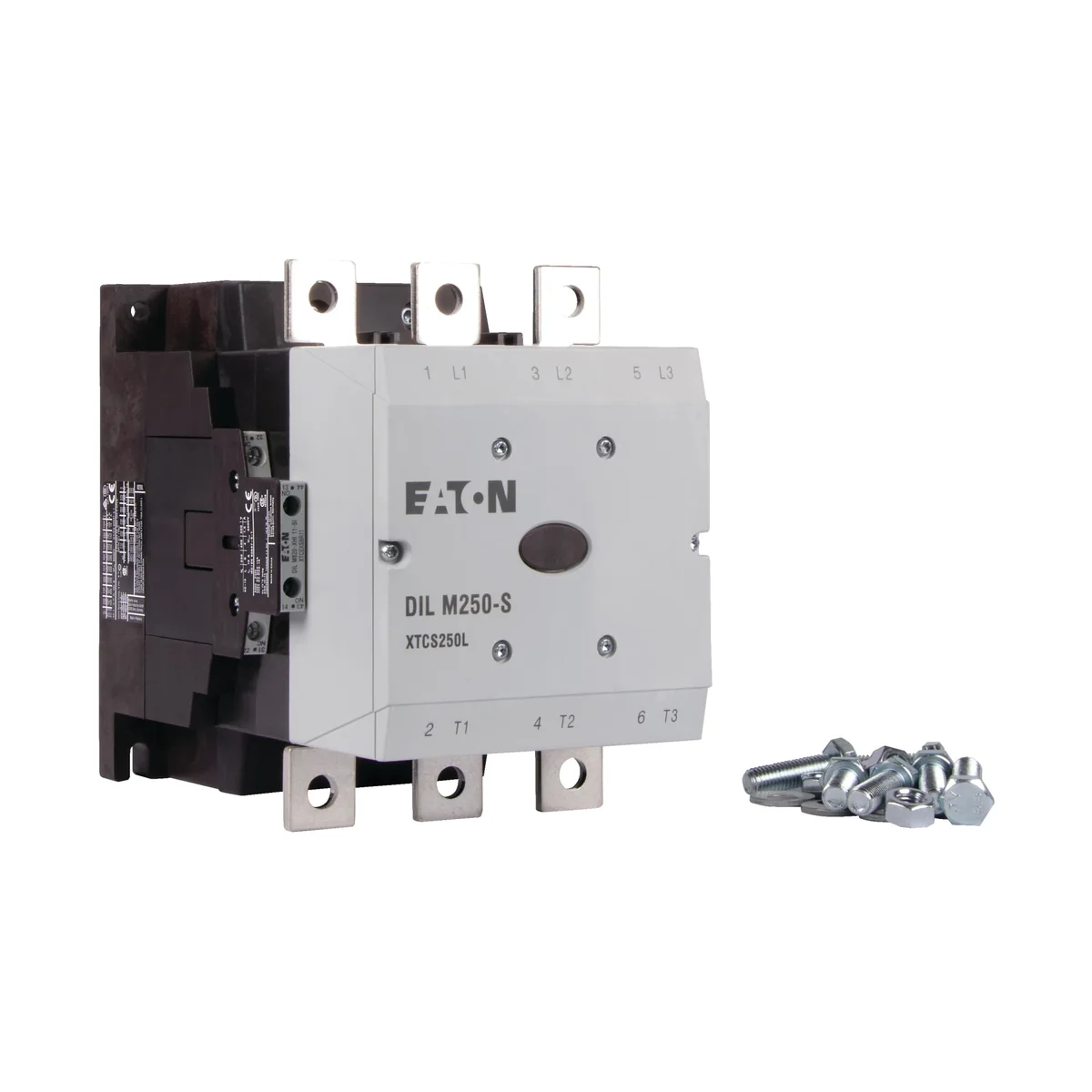

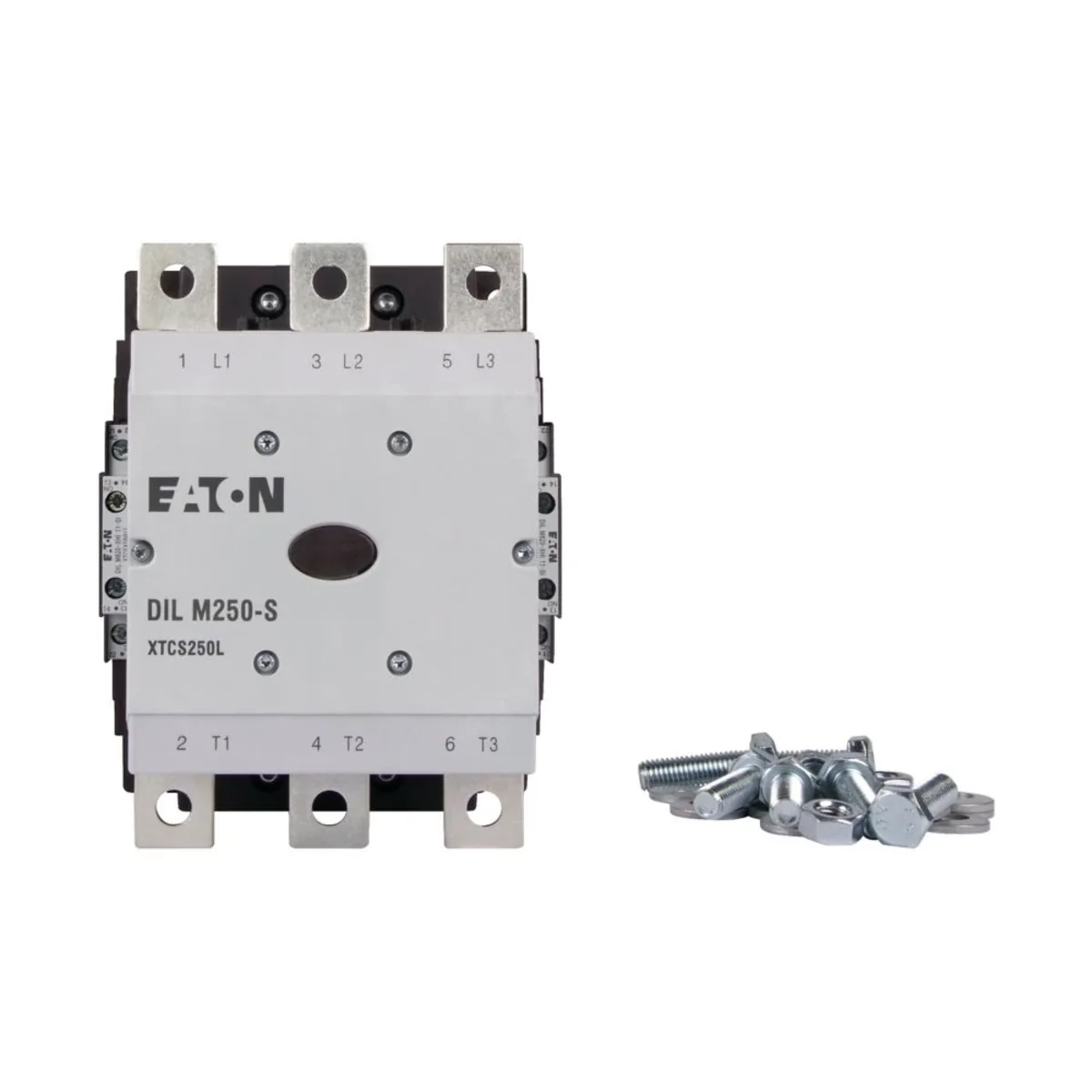

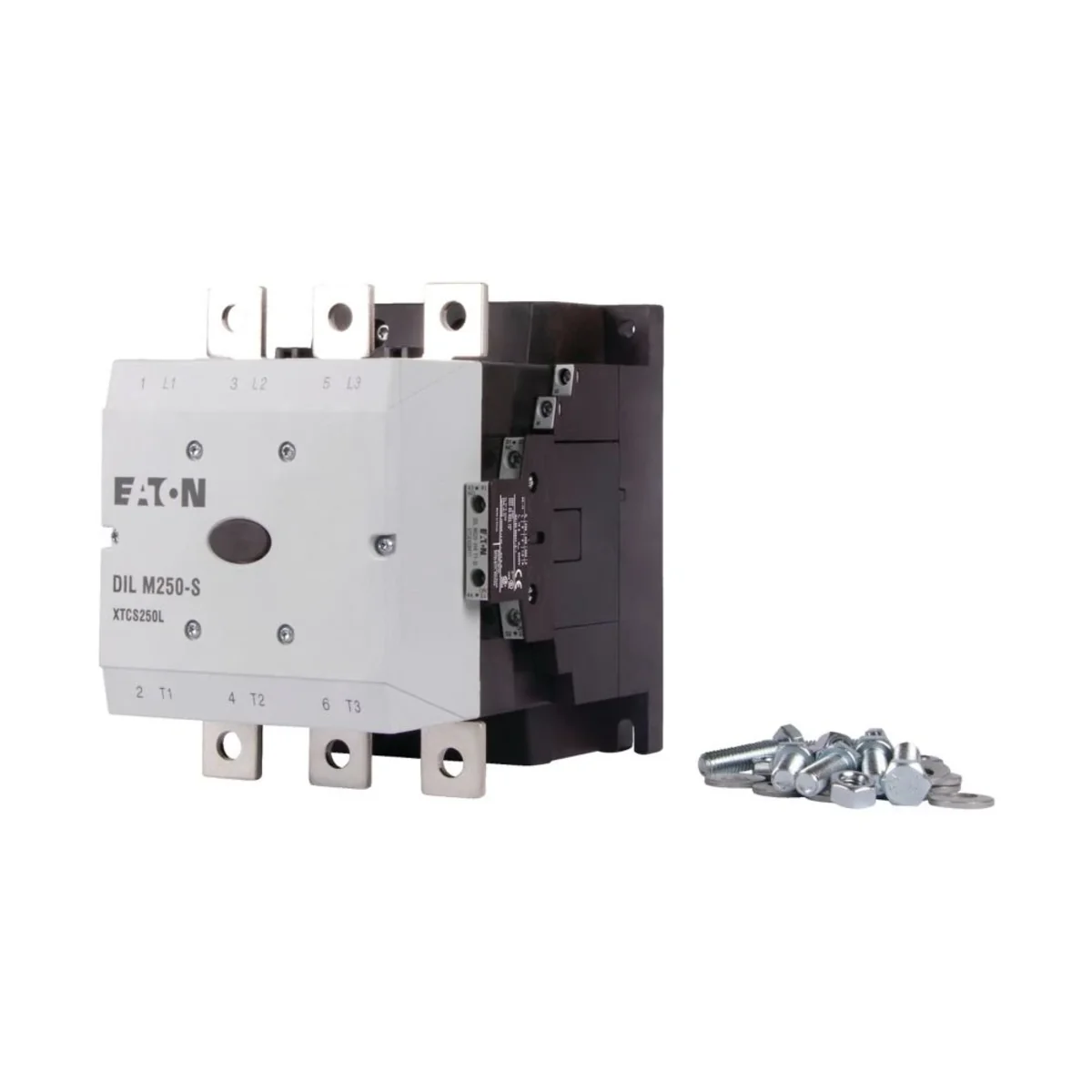

Power contactor, DILM250-S/22 274190

local index:
ATA502MOEL
Catalog No:
274190
EAN code:
4015082741907
Manufacturer: EATON
Rated voltage [V]: 230
Price:
976,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power contactor, DILM250-S/22

Technical data

  • Rated voltage [V]
    230

Other technical data

  • Rated control supply voltage AC 50 Hz
    220 ... 240 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation current Ie at AC-1, 400 V
    429 A
  • Rated operation power at AC-3, 400 V
    132 kW
  • Rated operation power at AC-4, 400 V
    110 kW
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    2
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    220 ... 240 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    250 A
  • Rated operation current Ie at AC-4, 400 V
    200 A
  • Rated operation power NEMA
    149 kW
  • Number of auxiliary contacts as normally open contact
    2
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3

Manufacturer details

  • Manufacturer
    EATON ELECTRIC SP. Z O.O.
  • Address
    80-299 UL. GALAKTYCZNA 30
  • Tax identification number
    5841022327

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs. 1 pcs.
Weight (kg) 6,710 7,152
Volume (m3) 0,006 0,010
Width (m) 0,140 0,174
Length (m) 0,208 0,252
Depth (m) 0,189 0,232
