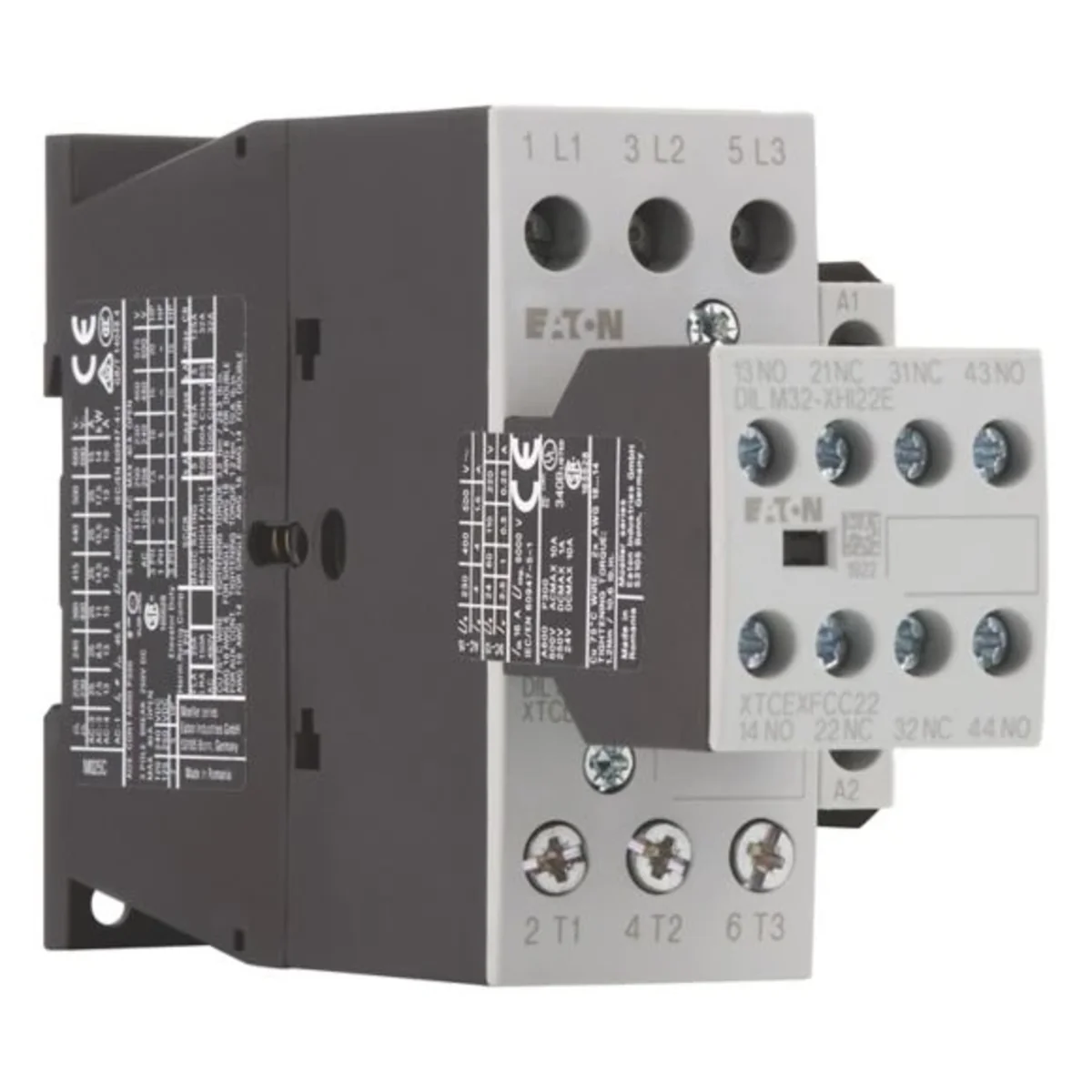

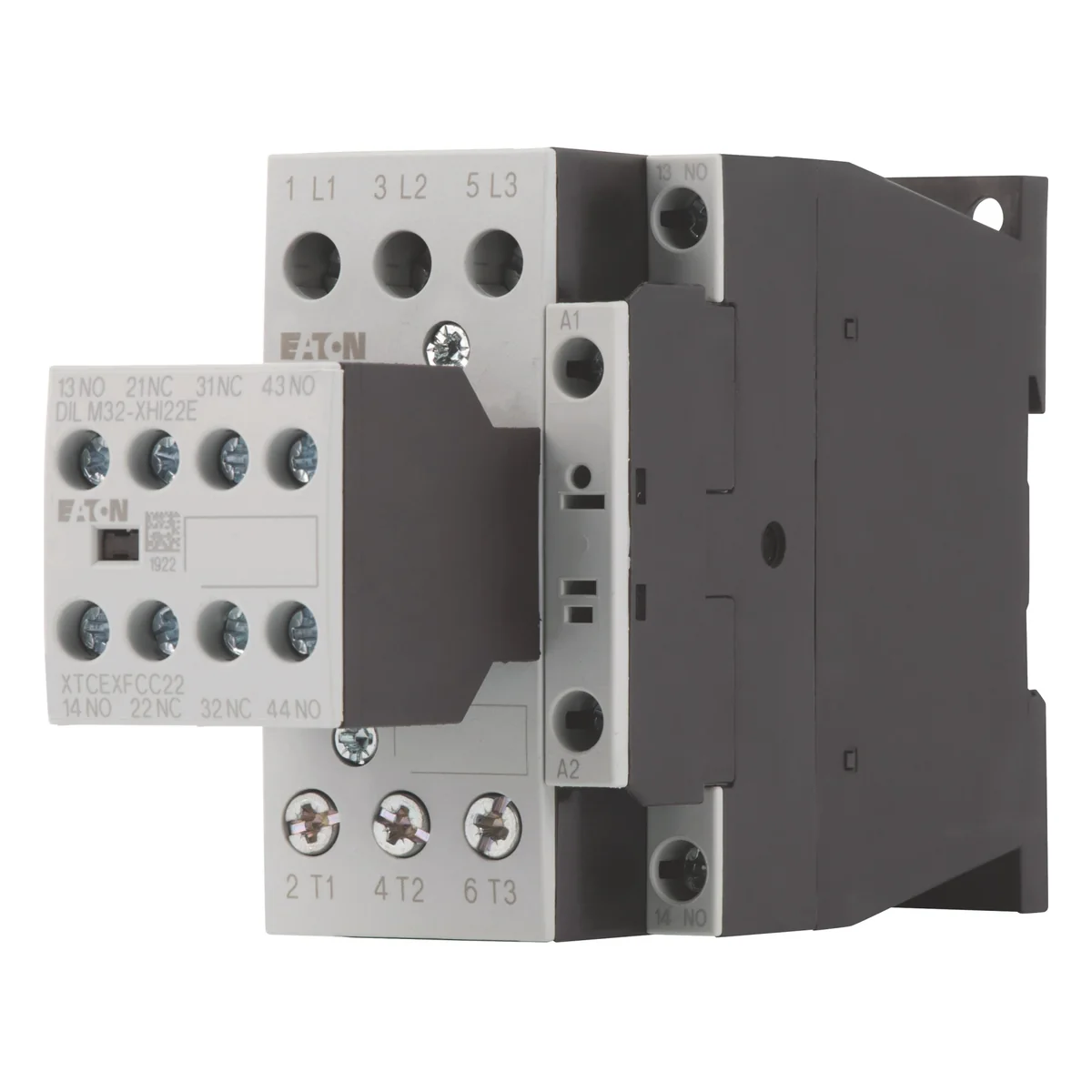

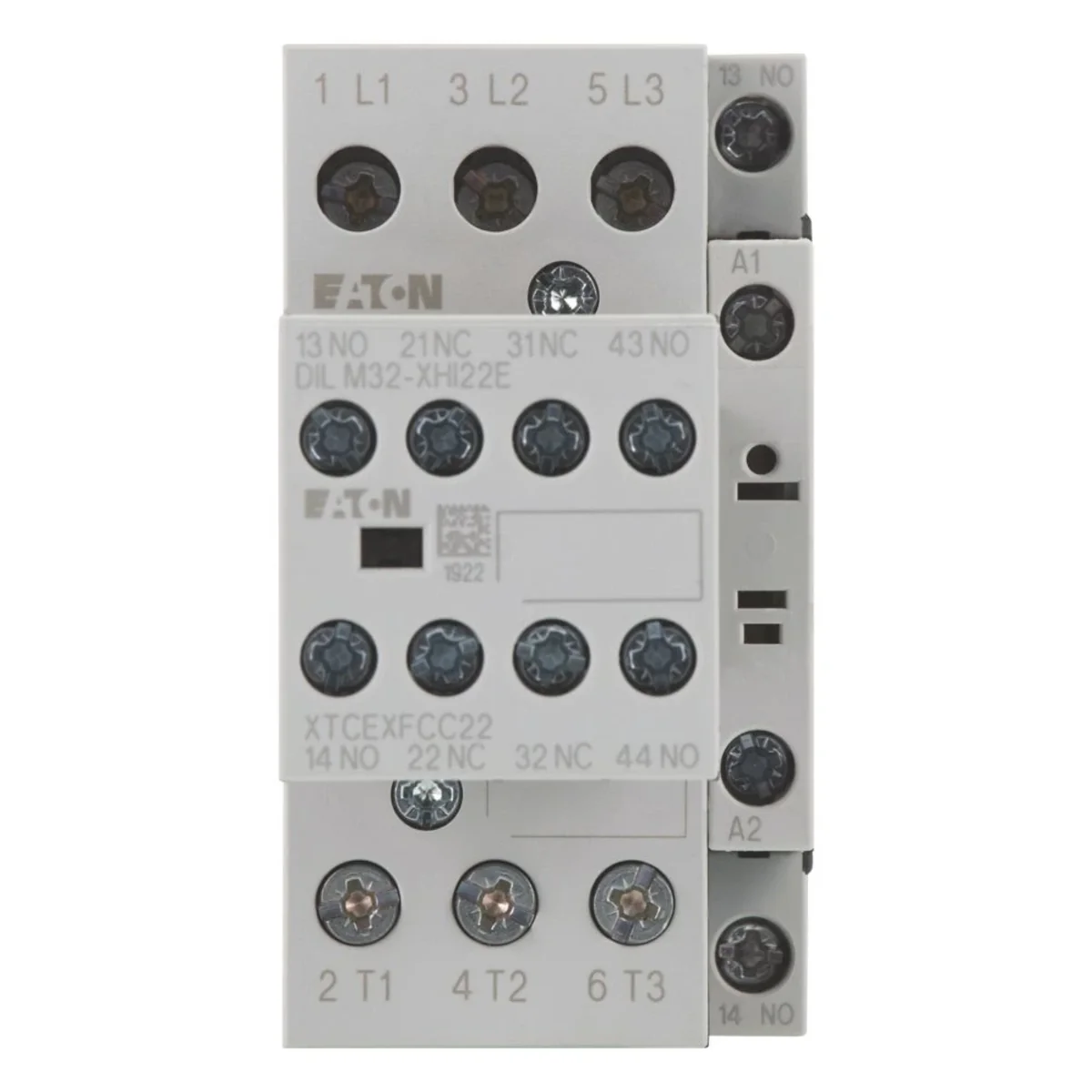

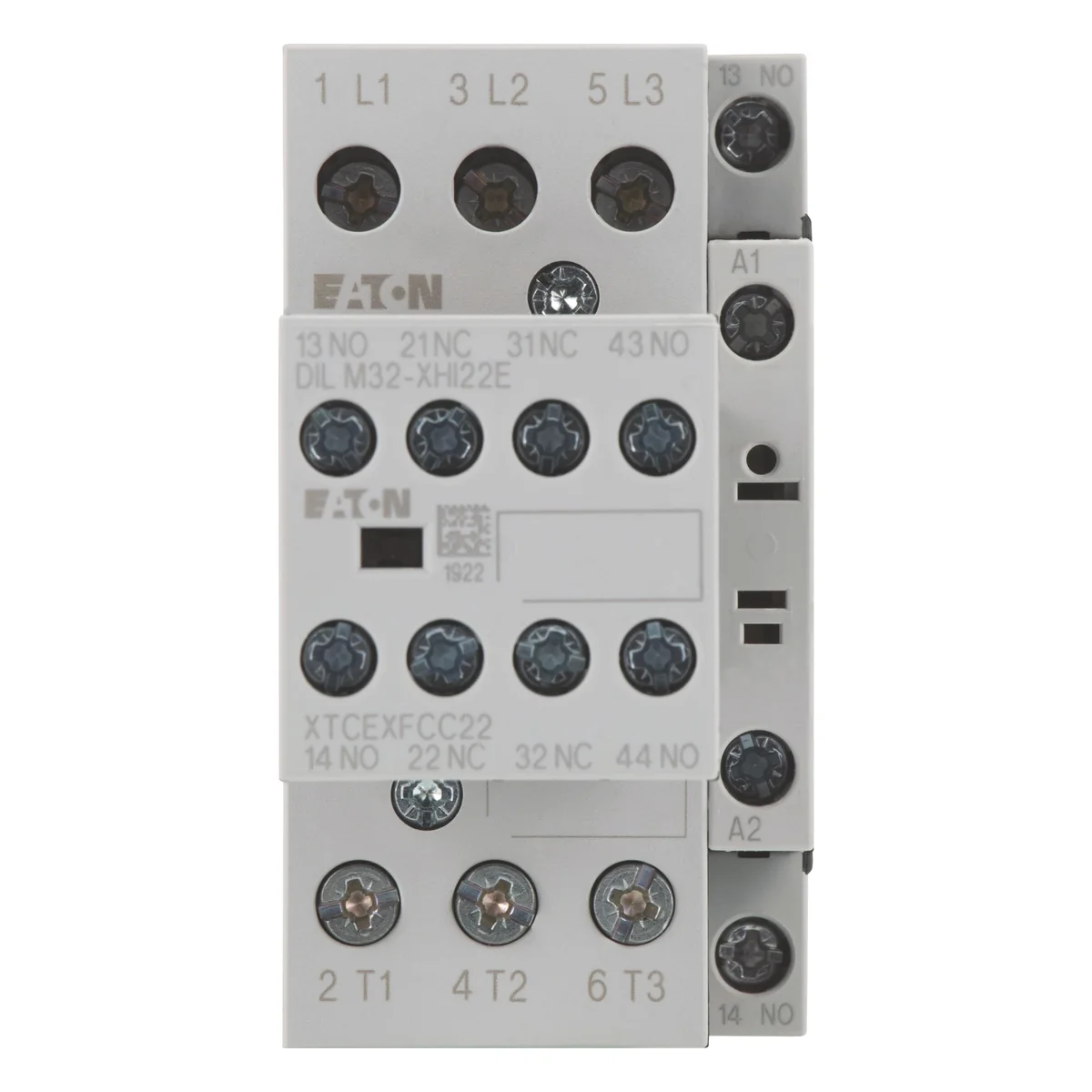

Power Contactor, DILM25-22(RDC24), 25A, 1NC 0R 106372

local index:
ATA102MOEL
Catalog No:
106372
EAN code:
4015081061426
Manufacturer: EATON
Rated current [A]: 25
Price:
159,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power contactor for motors, Complete units up to 170 A,

AC-1: Non-inductive or weakly inductive loads, resistance furnaces,

AC-3: Squirrel-cage motors: starting, shutdown during operation,

AC-4: Squirrel-cage motors: start-up, counter-current brake, reversing mode, impulse mode,

Connection method: Screw terminals, Note: Also suitable for Class A motors energy efficiency IE3., IE3 compatible devices are marked with the appropriate logo on the packaging., Rated operational current AC-3 380 V 400 V: Ie= 25 A, Rated operational current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith =Ie= 45 A, enclosed: Ith= 36 A, Rated operational current AC-1 conventional thermal current 1-pole open: Ith= 100 A, enclosed: Ith= 90 A, rated power of three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 7.5 kW, 380 V 400 V: P= 11 kW, 660 V 690 V: P= 14 kW, Max. rated power of three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 3.5 kW, 380 V 400 V: P= 6 kW, 660 V 690 V: P= 8.5 kW, Equipped with contacts Z = NO contact: 2 NO contacts, Equipped with contacts R = NC contacts: 2 R, Notes: Switching elements according to EN 50012., Built-in protection circuit in the control electronics., With mirror contact., Type of AC/DC current: DC operation

Technical data

  • Rated current [A]
    25

Other technical data

  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    24 ... 27 V
  • Rated operation current Ie at AC-1, 400 V
    45 A
  • Rated operation power at AC-3, 400 V
    11 kW
  • Rated operation power at AC-4, 400 V
    6 kW
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    2
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Rated operation current Ie at AC-3, 400 V
    25 A
  • Rated operation current Ie at AC-4, 400 V
    13 A
  • Rated operation power NEMA
    11 kW
  • Number of auxiliary contacts as normally open contact
    2
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,631
Volume (m3) 0,001
Width (m) 0,048
Length (m) 0,152
Depth (m) 0,089
