EATON

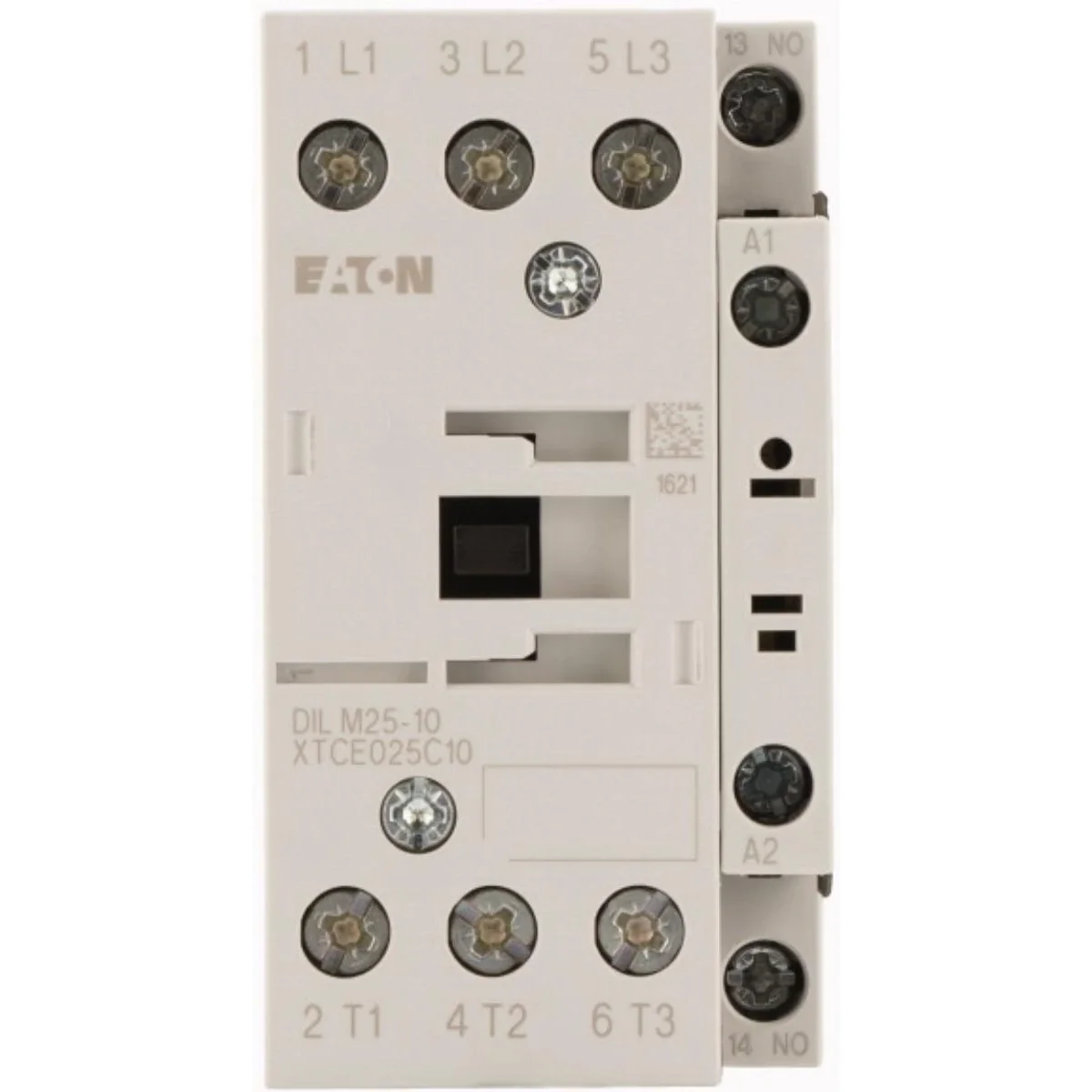

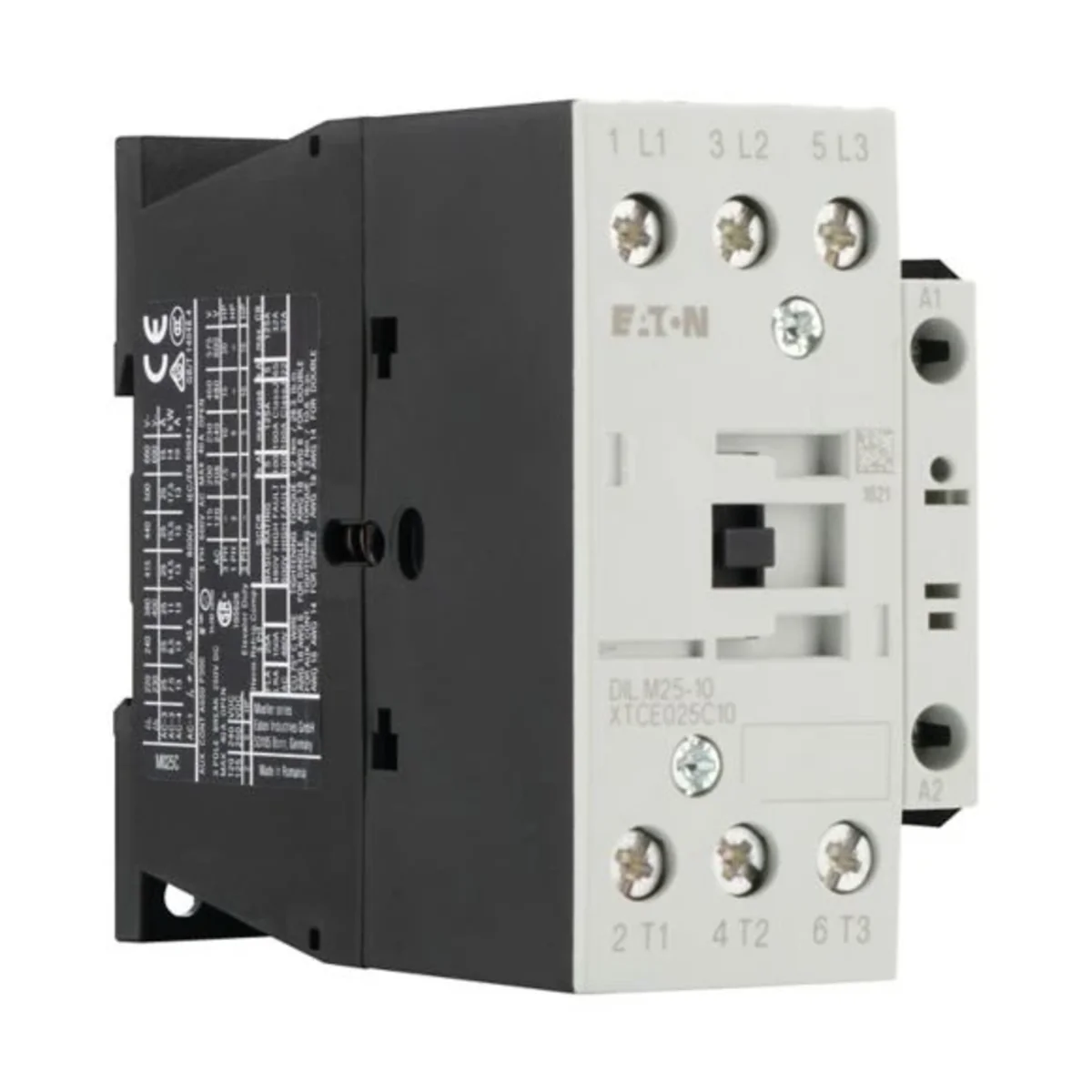

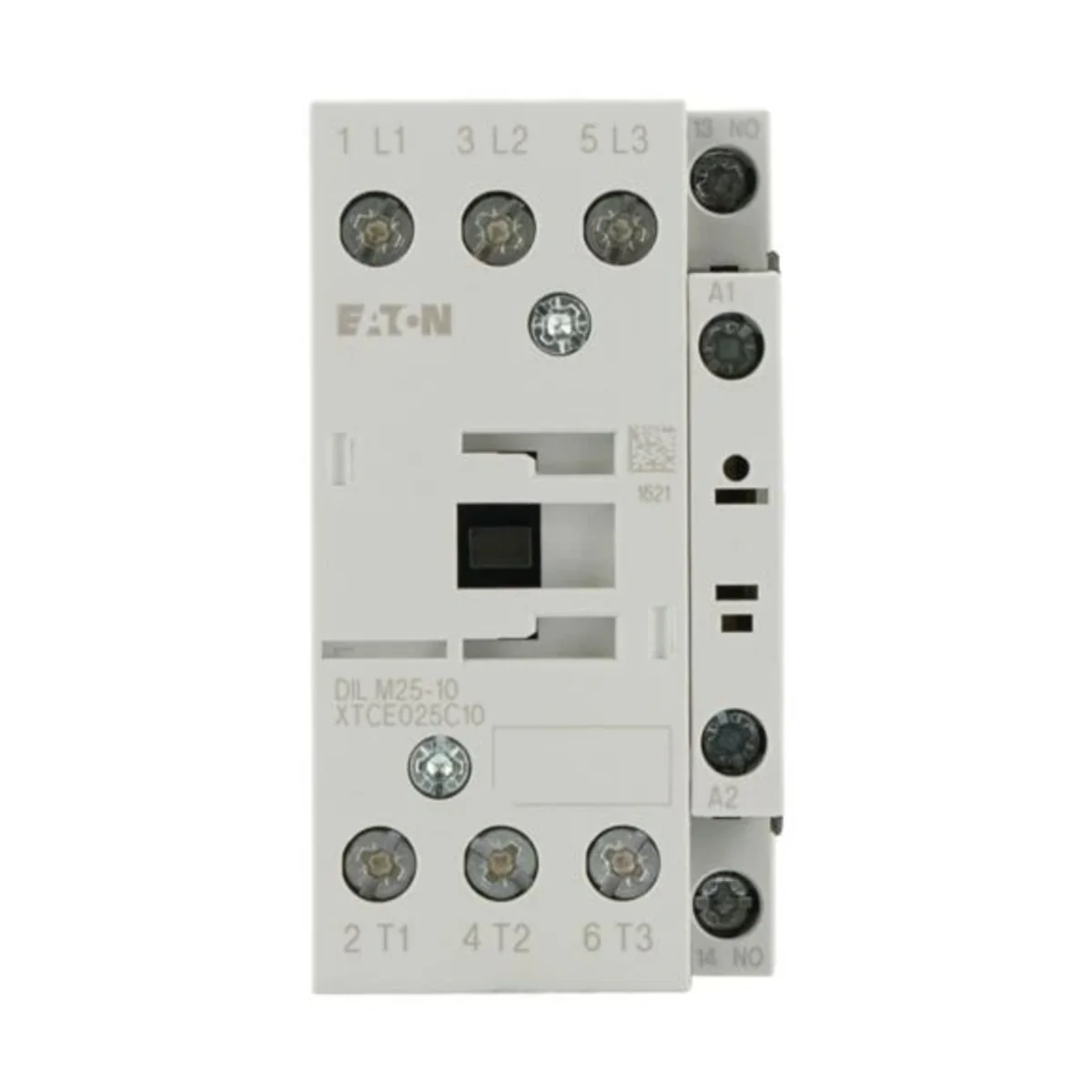

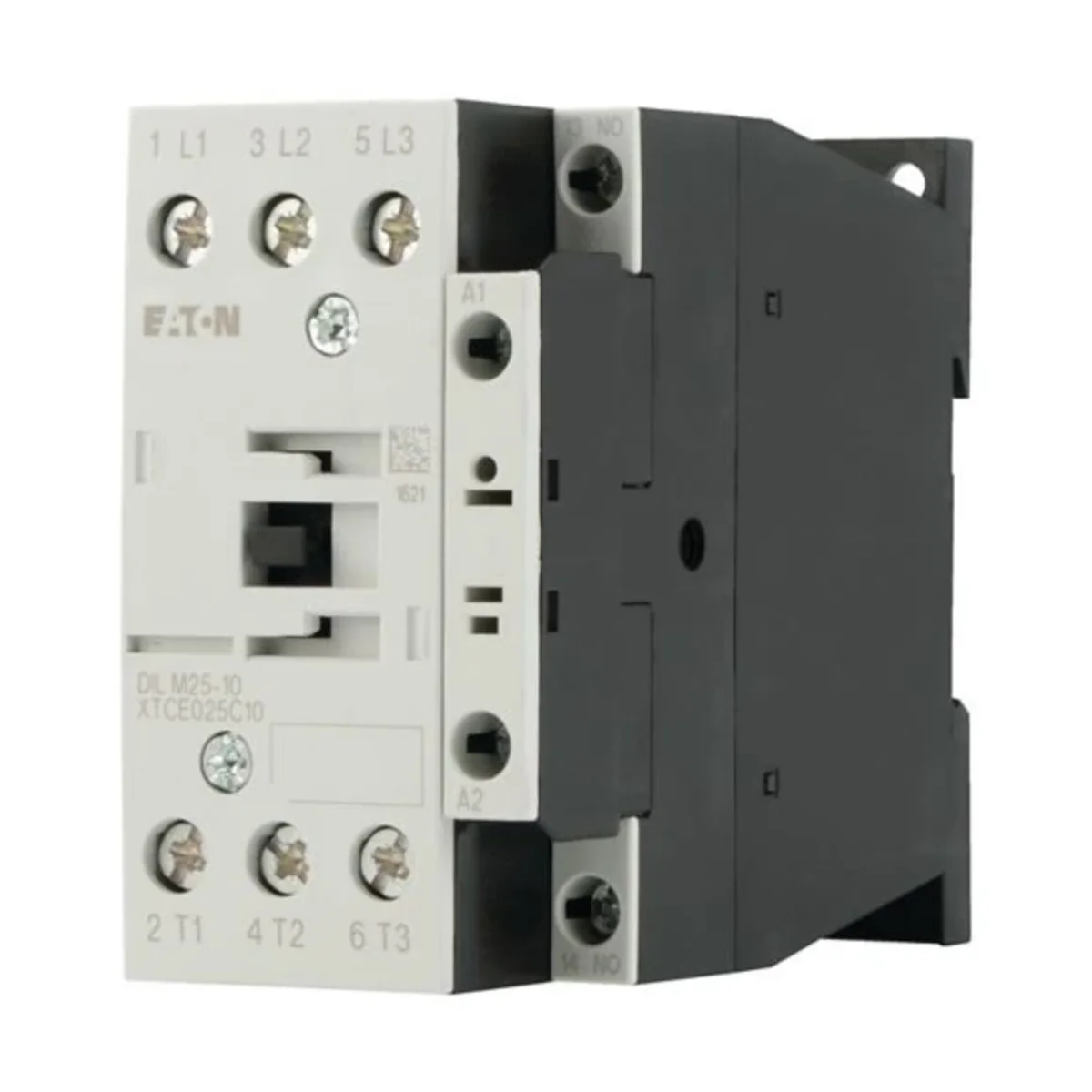

Power contactor, DILM25-10, 25A, 1NC 0R 277148

Name: Power contactor, DILM25-10, 25A, 1NC 0R
Brand: EATON
SKU: ATD160MOEL
Price: 191.13 PLN

local index:

ATD160MOEL

Catalog No:

277148

EAN code:

4015082771485

Price:

191,13 €

gross / pcs.

including VAT 23%

Availability:

up to 2 weeks (business days)

Delivery:

From 3,70 € (prepaid courier) Details

Quantity:

Goods at a promotional price can only be purchased in the quantity available in stock

pcs.

Delivery methods:

details

Payment methods:

details

Go to section:

Product description Technical data

Product description

Power contactor I=25A [AC-3]: 1NO 0R

Report an error

Technical data

Rated voltage [V]

120

Rated current [A]

25

Other technical data

Rated control supply voltage AC 50 Hz

0 ... 0 V
Rated control supply voltage DC

110 ... 130 V
Rated operation current Ie at AC-1, 400 V

45 A
Rated operation power at AC-3, 400 V

11 kW
Rated operation power at AC-4, 400 V

6 kW
Modular version

no
Number of auxiliary contacts as normally closed contact

0
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

0 ... 0 V
Voltage type for actuating

DC
Rated operation current Ie at AC-3, 400 V

25 A
Rated operation current Ie at AC-4, 400 V

13 A
Rated operation power NEMA

11 kW
Number of auxiliary contacts as normally open contact

1
Type of electrical connection of main circuit

Screw connection
Number of normally open contacts as main contact

3
