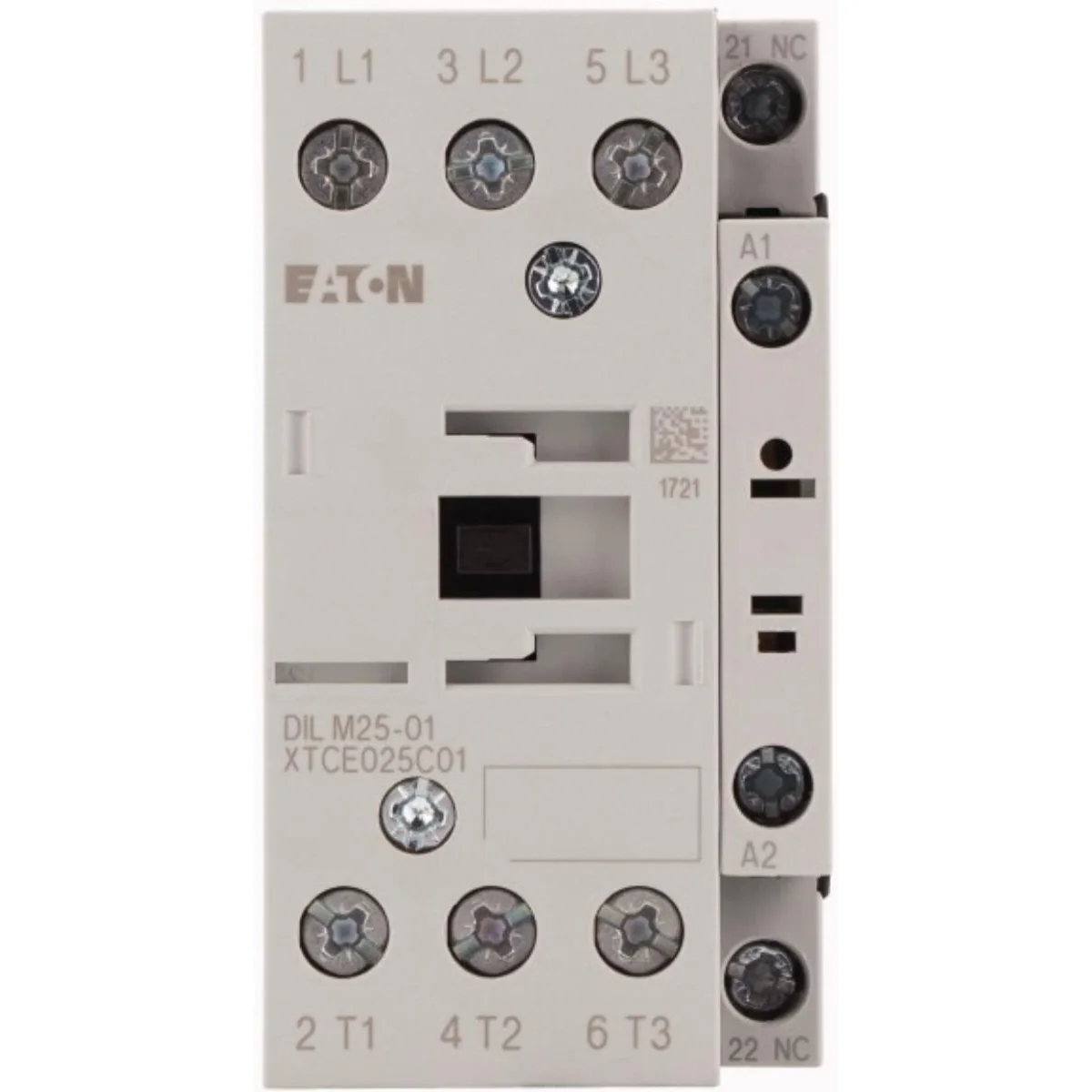

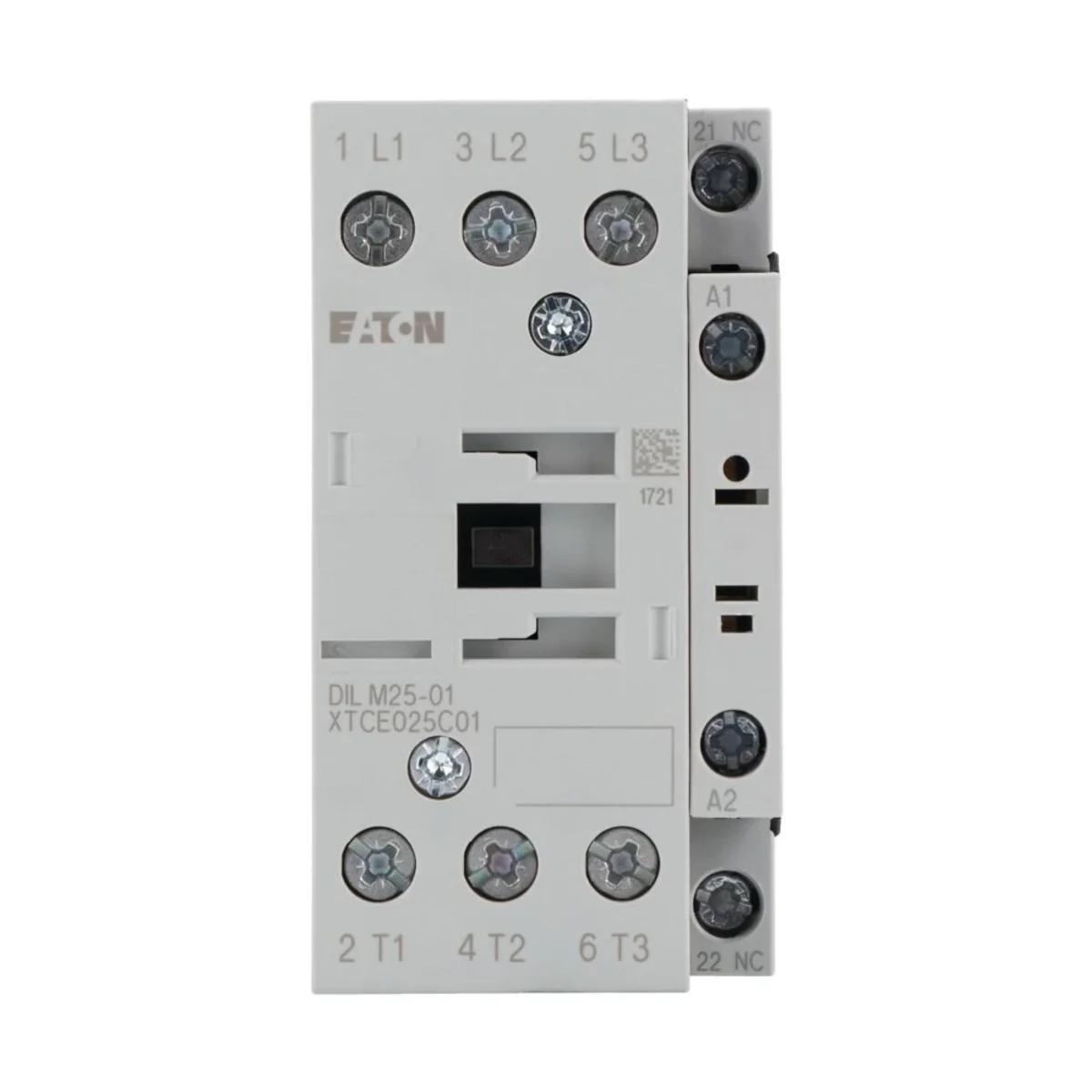

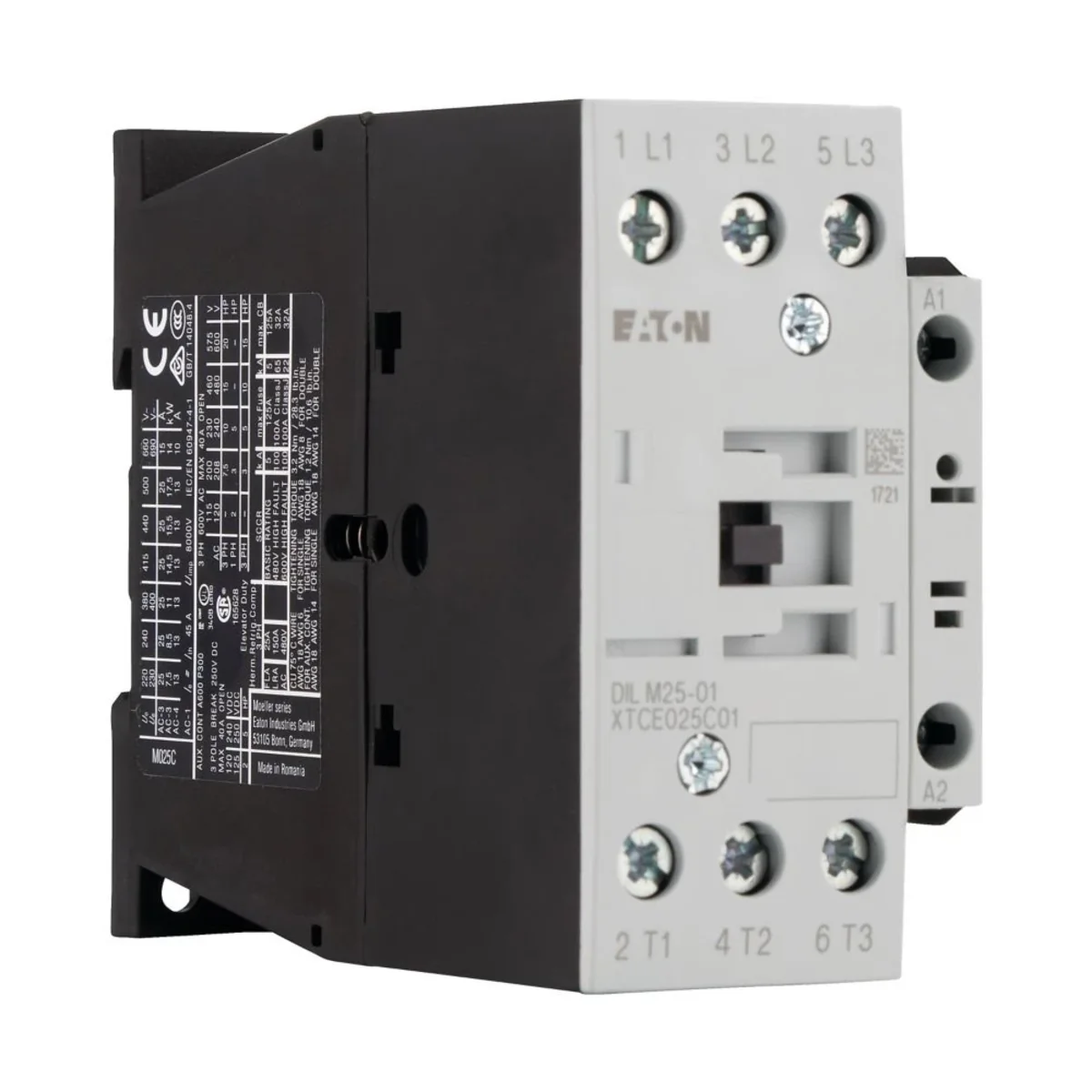

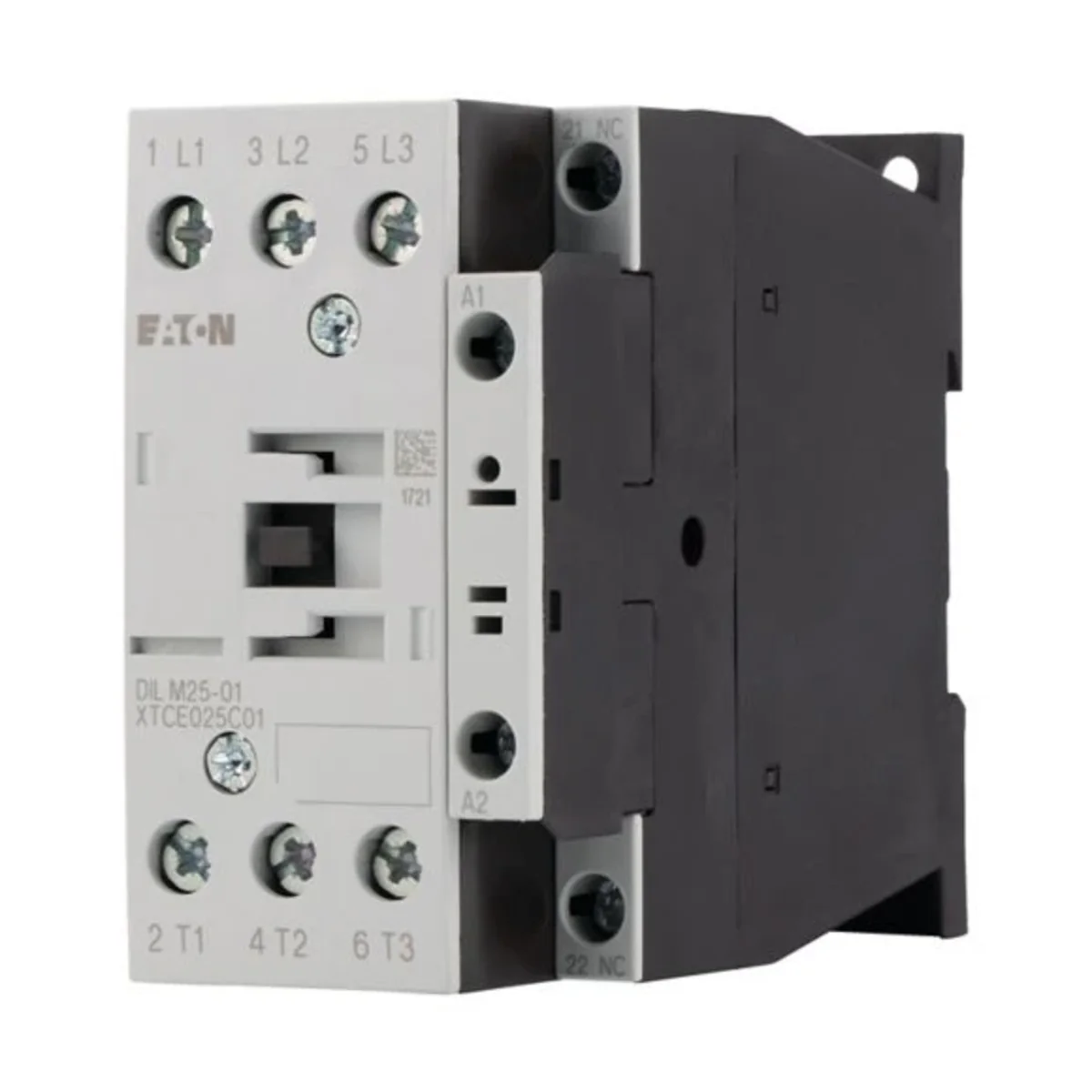

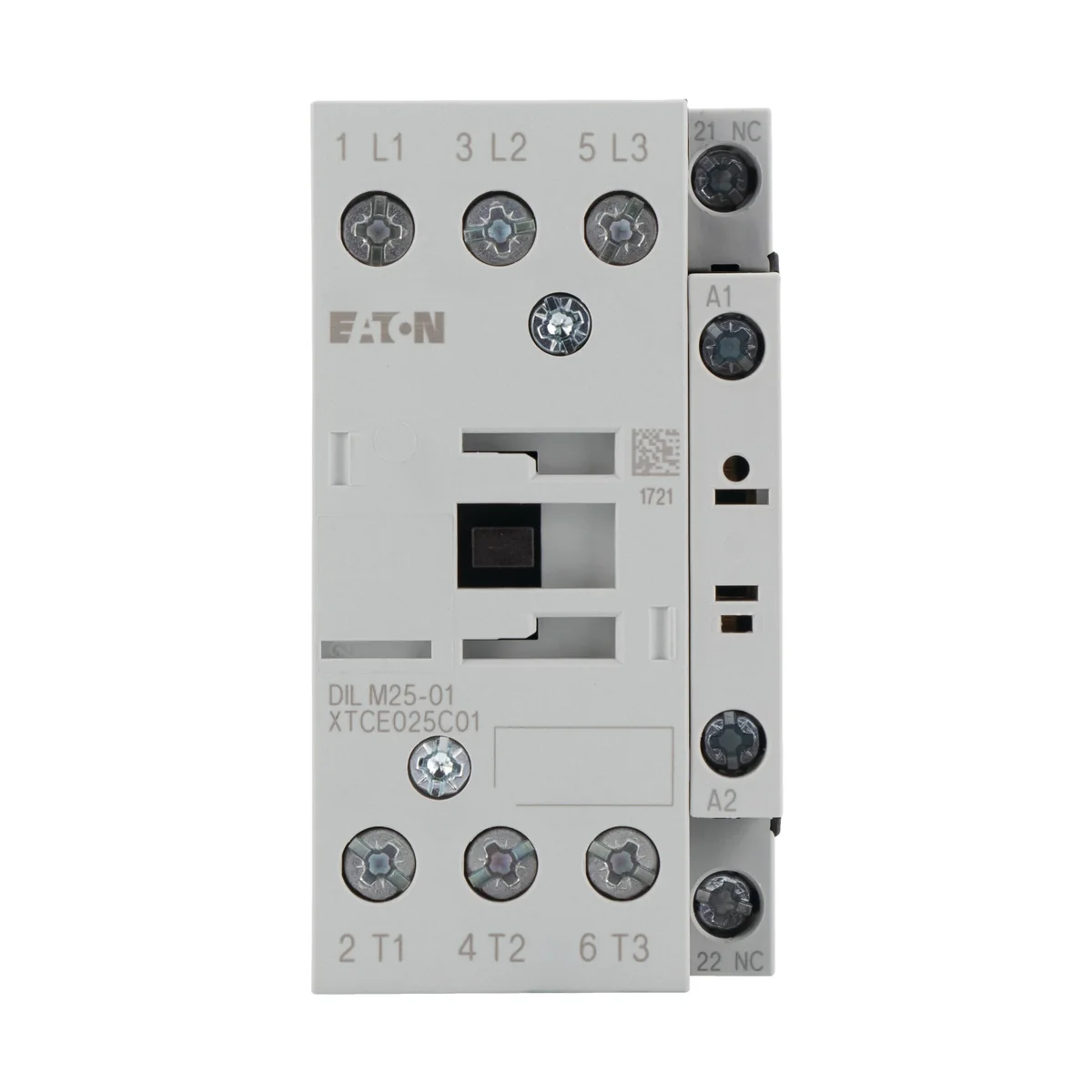

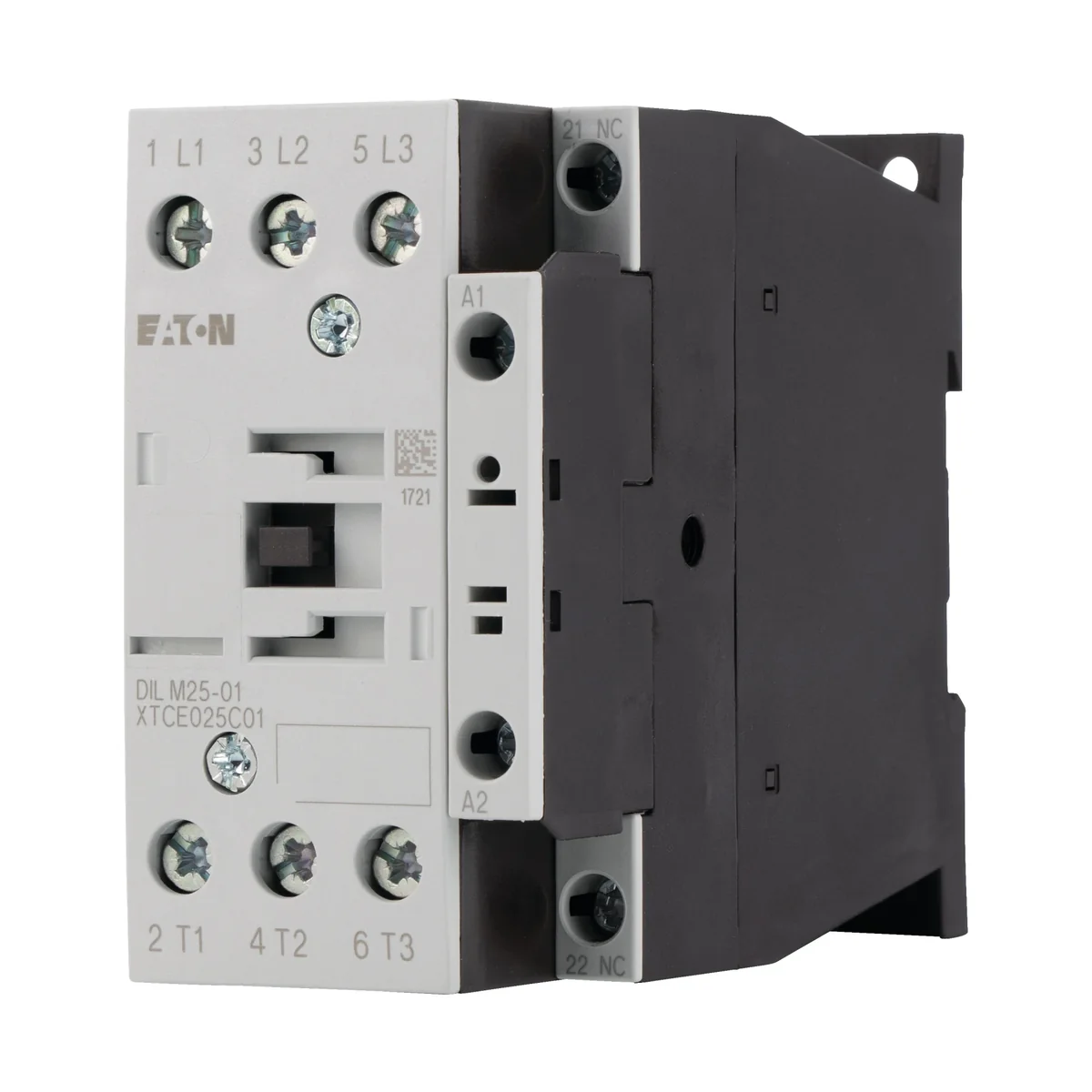

Power contactor, DILM25-01, 25A, 0Z 1R 277168

local index:
ATA158MOEL
Catalog No:
277168
EAN code:
4015082771683
Manufacturer: EATON
Number of contacts: 0NO 1NC
Rated voltage [V]: 24
Rated current [A]: 25
Price:
88,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 1 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

DILM power contactors. For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.

Technical data

  • Number of contacts
    0NO 1NC
  • Rated current [A]
    25
  • Rated voltage [V]
    24

Other technical data

  • Rated control supply voltage AC 50 Hz
    24 ... 24 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation current Ie at AC-1, 400 V
    45 A
  • Rated operation power at AC-3, 400 V
    11 kW
  • Rated operation power at AC-4, 400 V
    6 kW
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    24 ... 24 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    25 A
  • Rated operation current Ie at AC-4, 400 V
    13 A
  • Rated operation power NEMA
    11 kW
  • Number of auxiliary contacts as normally open contact
    0
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,447
Volume (m3) 0,000
Width (m) 0,047
Length (m) 0,099
Depth (m) 0,087
