Power contactor, DILM225A/22 139547

local index:
ATA425MOEL
Catalog No:
139547
EAN code:
4015081363254
Manufacturer: EATON
Rated voltage [V]: 230
Price:
650,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

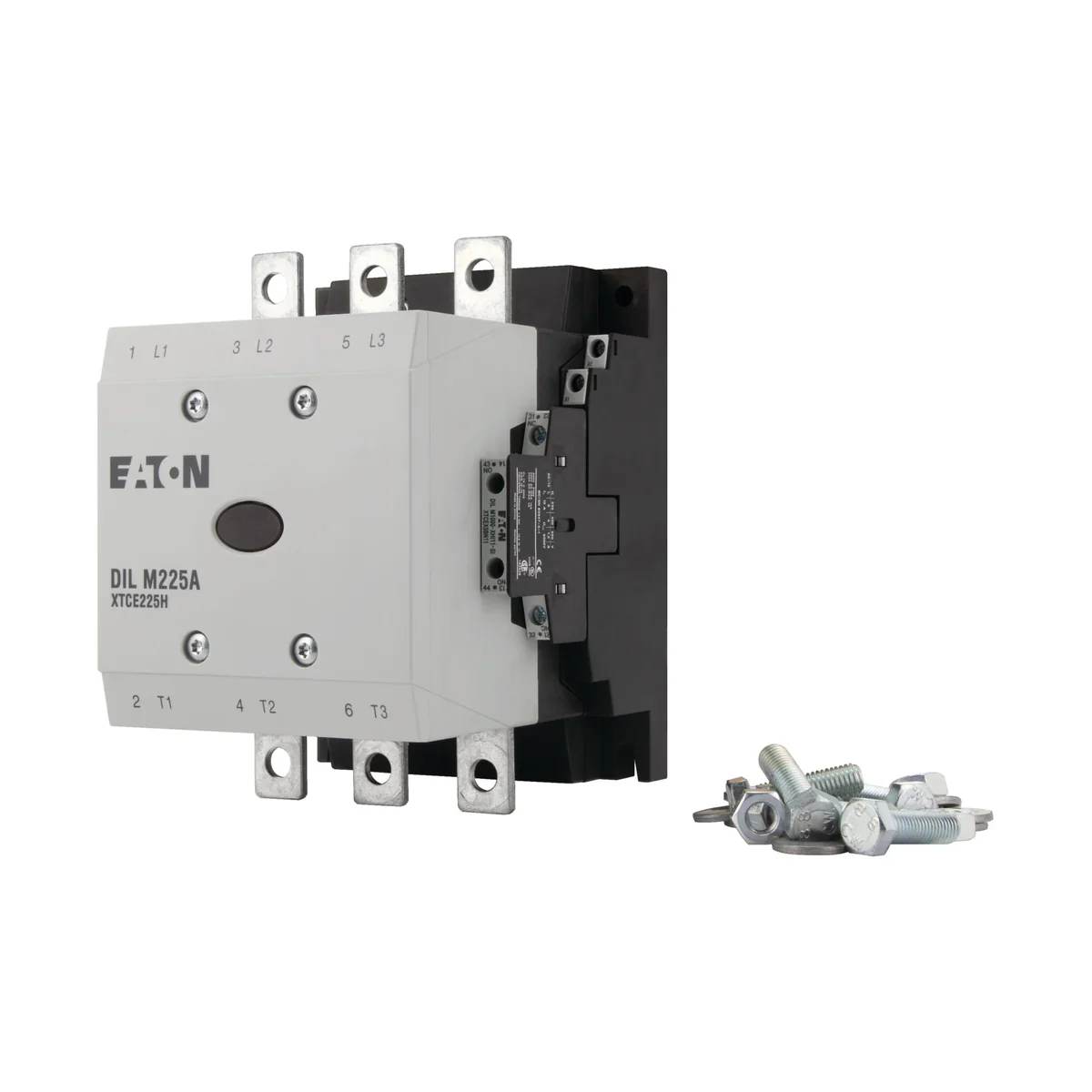

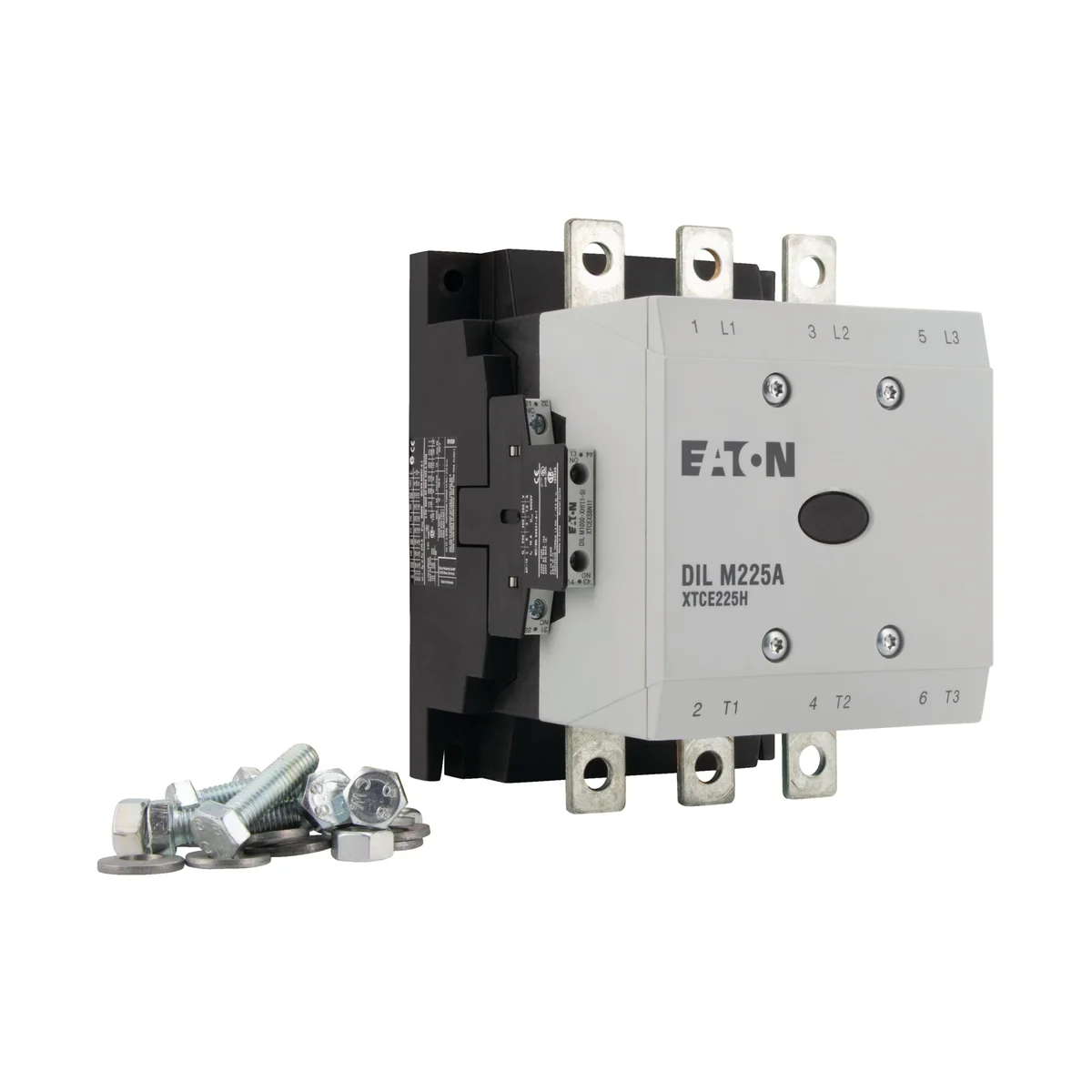

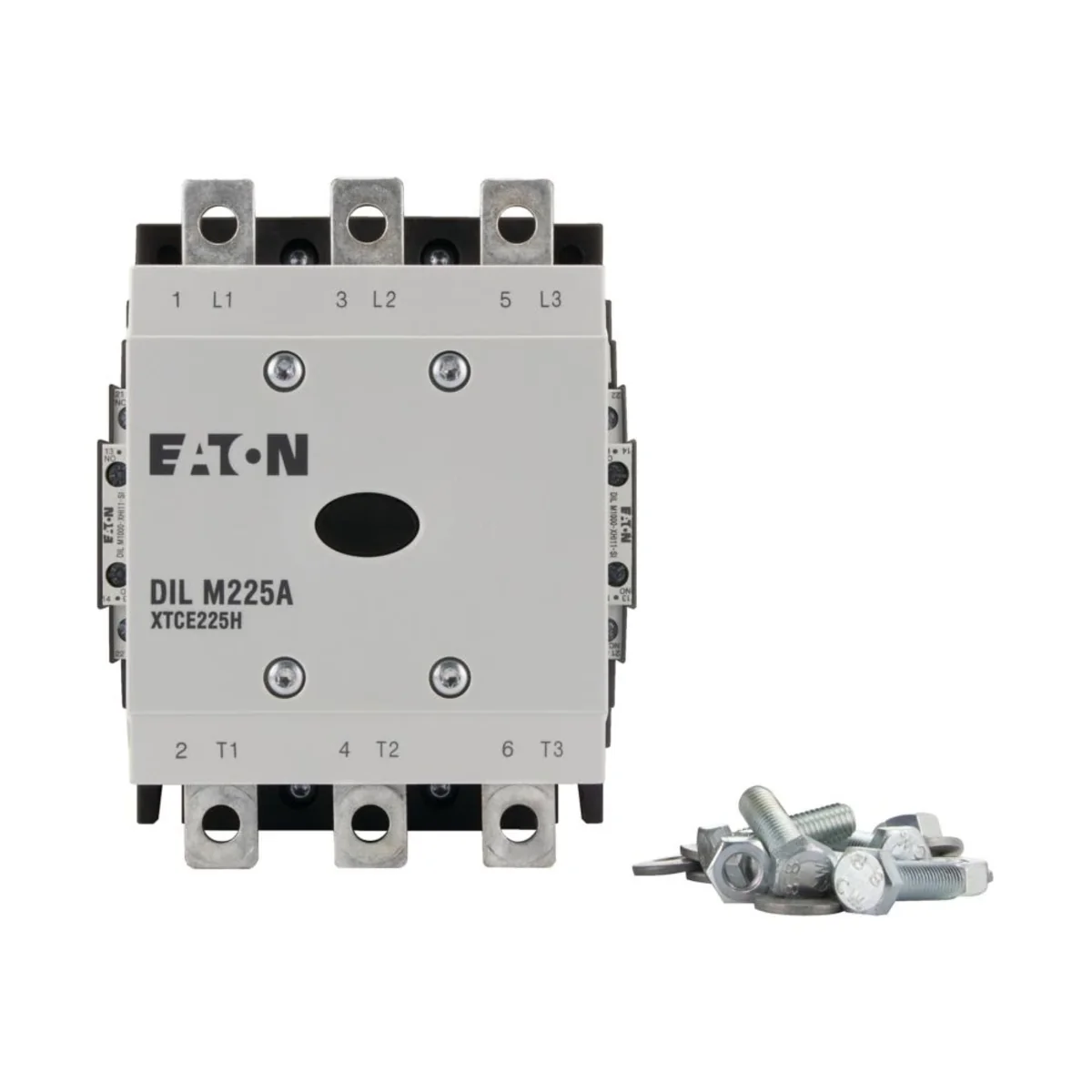

Power contactor, DILM225A/22

Technical data

  • Rated voltage [V]
    230

Other technical data

  • Rated control supply voltage AC 50 Hz
    190 ... 240 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation current Ie at AC-1, 400 V
    356 A
  • Rated operation power at AC-3, 400 V
    110 kW
  • Rated operation power at AC-4, 400 V
    90 kW
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    2
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    190 ... 240 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    225 A
  • Rated operation current Ie at AC-4, 400 V
    164 A
  • Rated operation power NEMA
    111 kW
  • Number of auxiliary contacts as normally open contact
    2
  • Type of electrical connection of main circuit
    Rail connection
  • Number of normally open contacts as main contact
    3

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 3,982
Volume (m3) 0,010
Width (m) 0,174
Length (m) 0,232
Depth (m) 0,252
