Power contactor, DILM17-21, 17A, 2NO 1NC 277068

Name: Power contactor, DILM17-21, 17A, 2NO 1NC
Brand: EATON
SKU: ATA026MOEL
Price: 434.88 PLN
Availability: BackOrder

Index local:

ATA026MOEL

Numéro de catalogue:

277068

Code EAN:

4015082770686

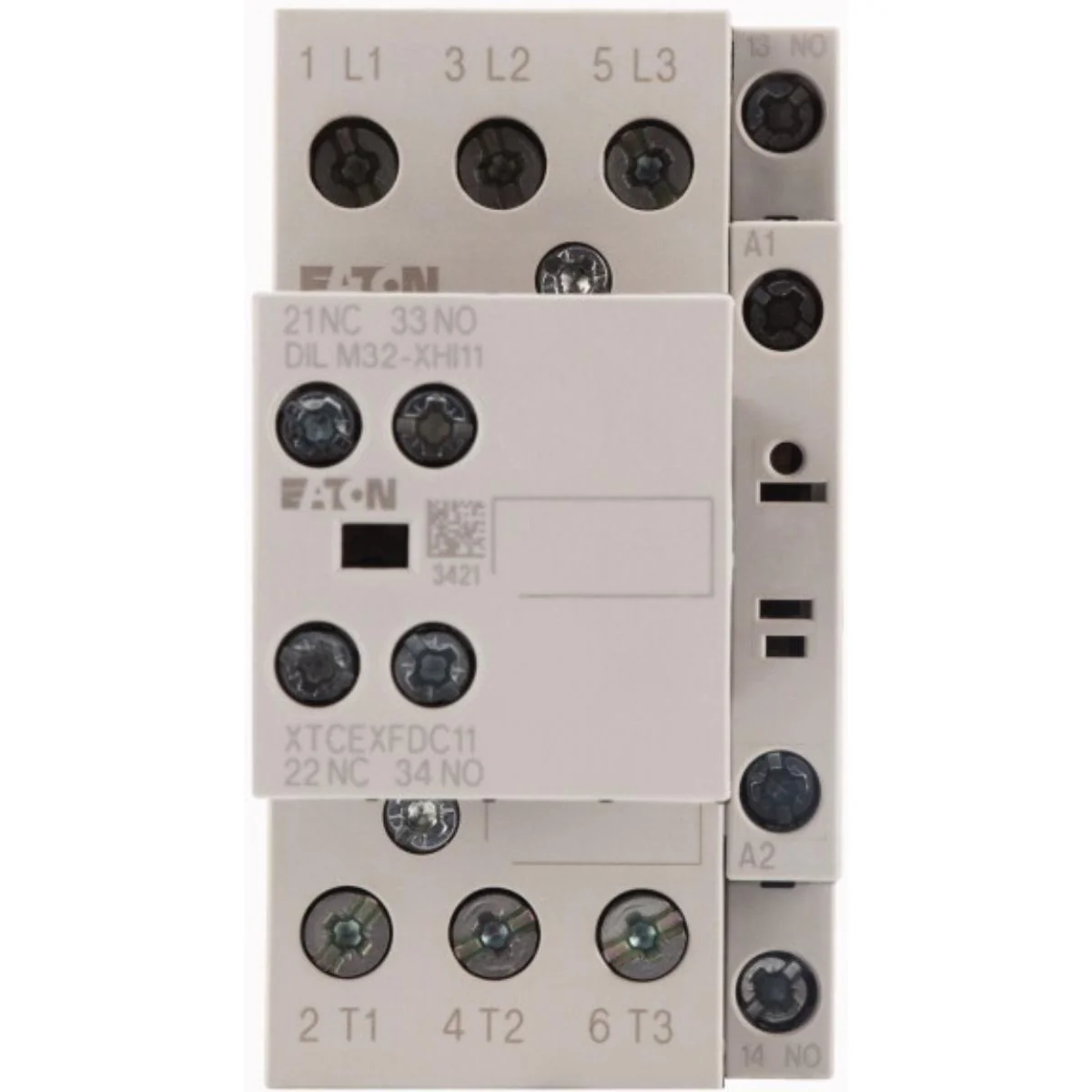

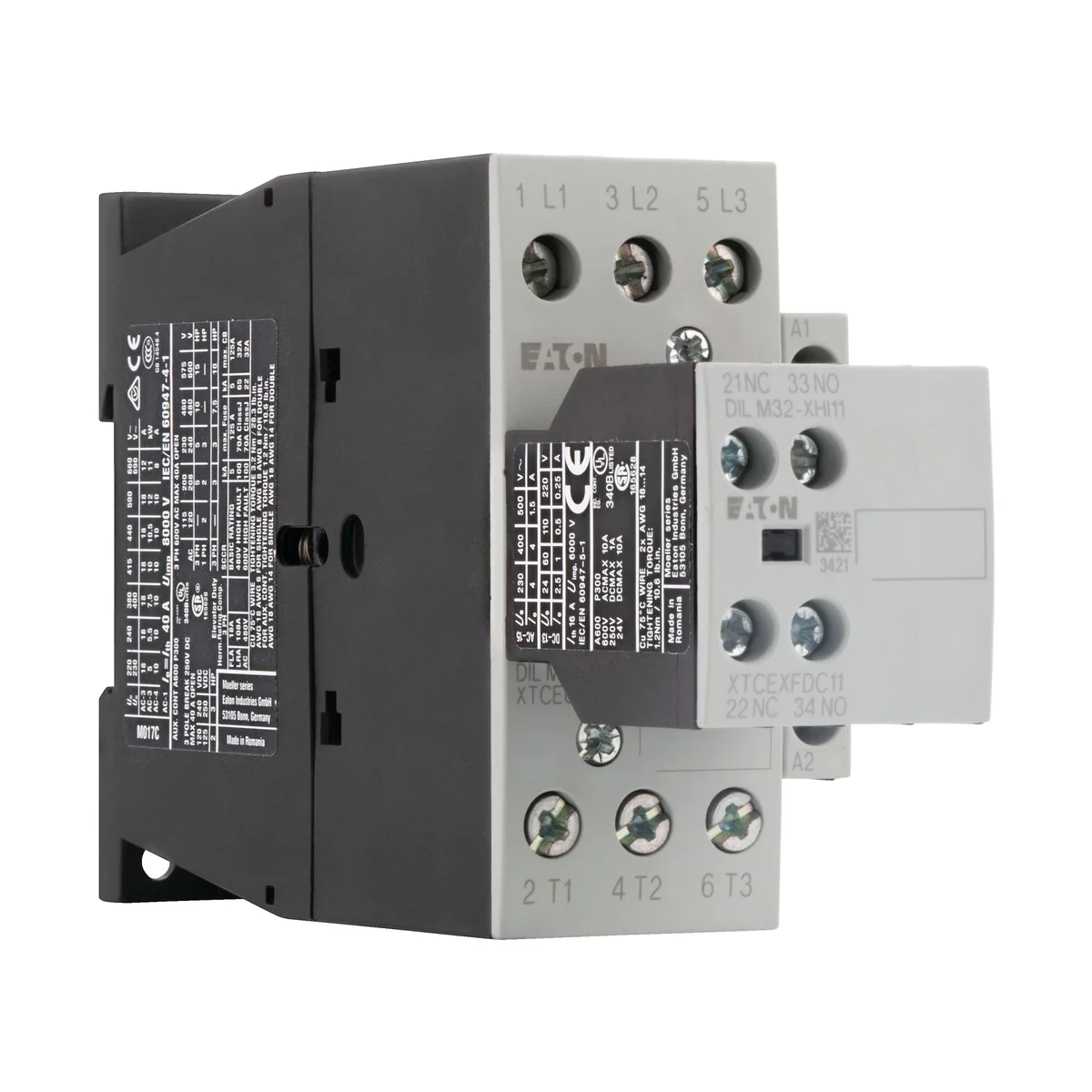

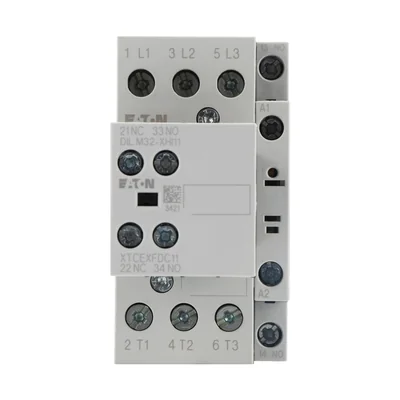

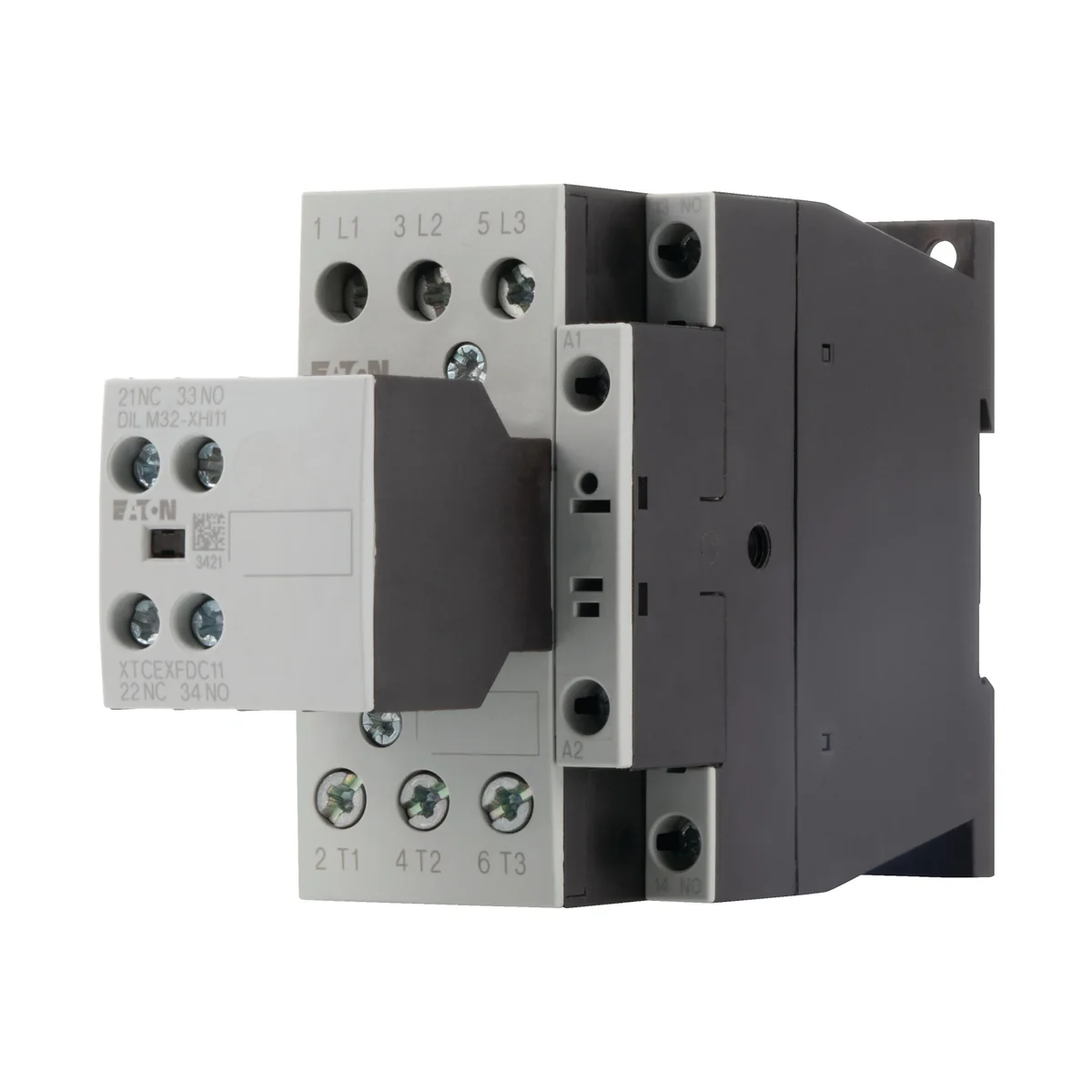

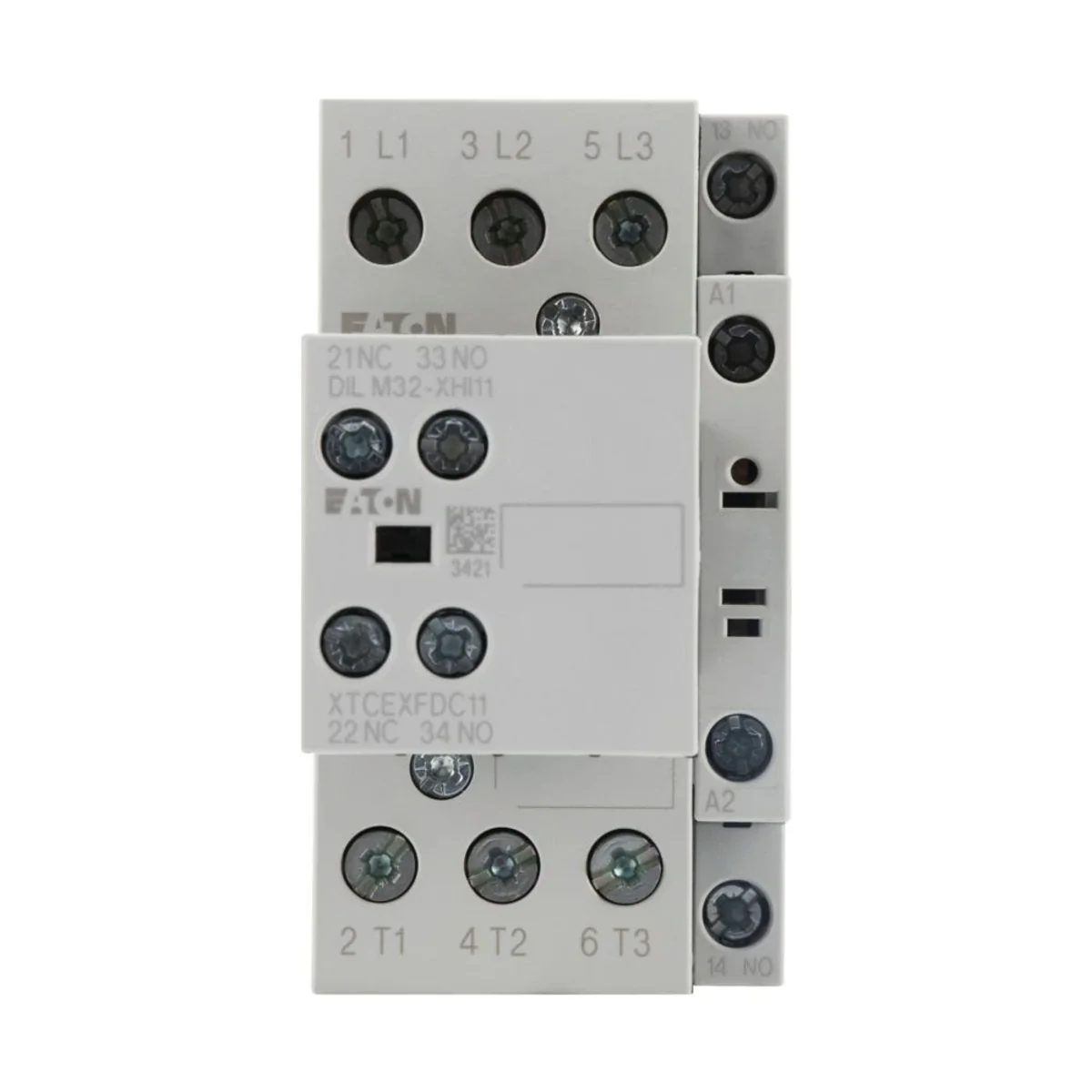

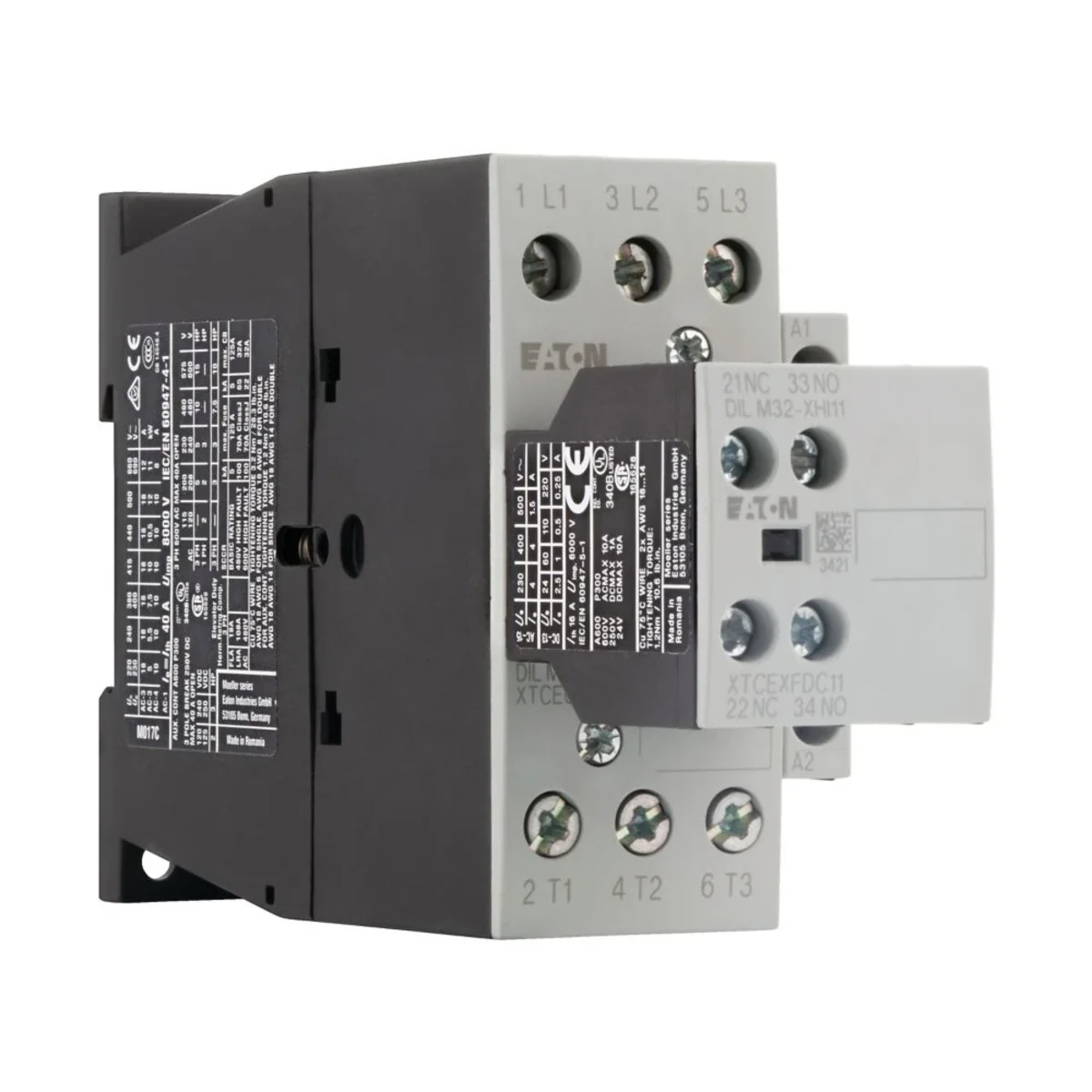

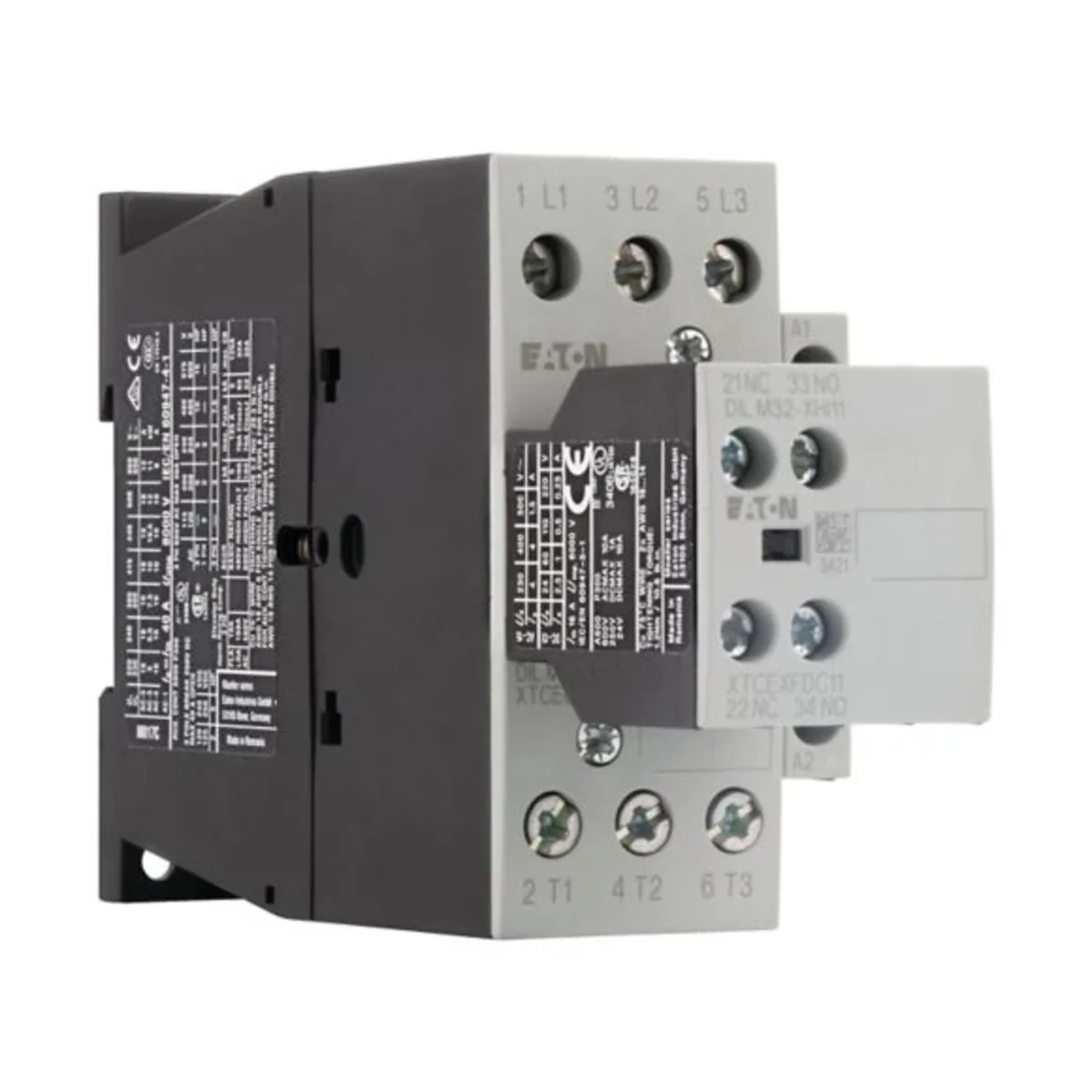

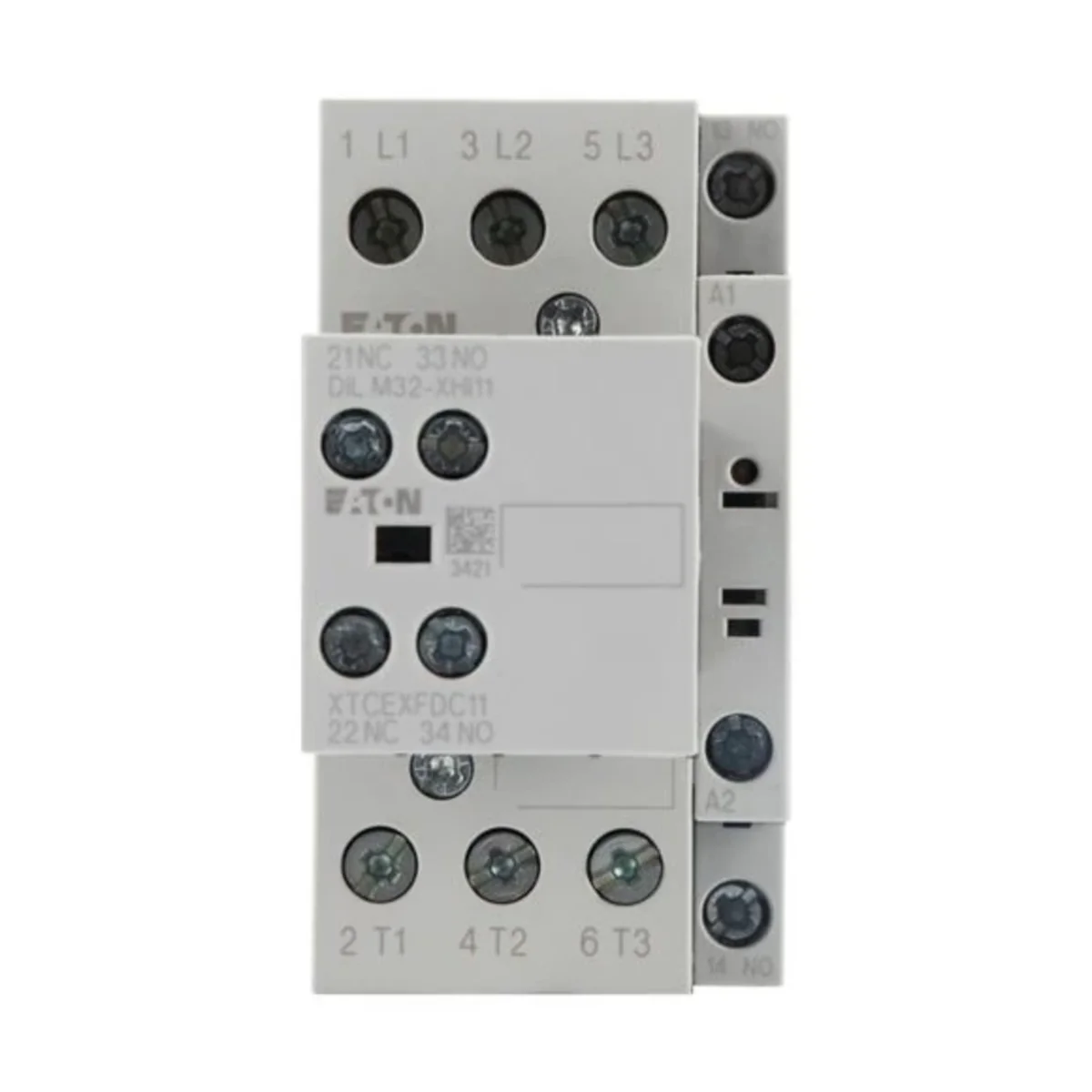

Power contactor, DILM17-21, 17A, 2NO 1NC

Cliquer sur la photo pour l'agrandir

Producteur: EATON

Rated voltage [V]: 230

Rated current [A]: 17

Voir la description complète

Prix:

434,88 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 2 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

DILM power contactors. For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.

Données techniques

Rated voltage [V]

230

Rated current [A]

17

Autres données techniques

Rated control supply voltage AC 50 Hz

230 ... 230 V
Rated control supply voltage DC

0 ... 0 V
Rated operation current Ie at AC-1, 400 V

40 A
Rated operation power at AC-3, 400 V

7.5 kW
Rated operation power at AC-4, 400 V

4.5 kW
Modular version

No
Number of auxiliary contacts as normally closed contact

1
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

240 ... 240 V
Voltage type for actuating

AC
Rated operation current Ie at AC-3, 400 V

18 A
Rated operation current Ie at AC-4, 400 V

10 A
Rated operation power NEMA

7.4 kW
Number of auxiliary contacts as normally open contact

2
Type of electrical connection of main circuit

Screw connection
Number of normally open contacts as main contact

3

Détails du fabricant

Producteur

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Emballage en vrac

Une sorte de paquet	Skrzynia	Karton	Skrzynia	Karton
Quantité	1 pcs.	1 pcs.	1 pcs.	1 pcs.
poids (kg)	0,483	0,511	0,483	0,511
Volume (m3)	0,001	0,001	0,001	0,001
Largeur (m)	0,047	0,048	0,047	0,048
Longueur (m)	0,140	0,152	0,140	0,152
Profondeur (m)	0,087	0,089	0,087	0,089
