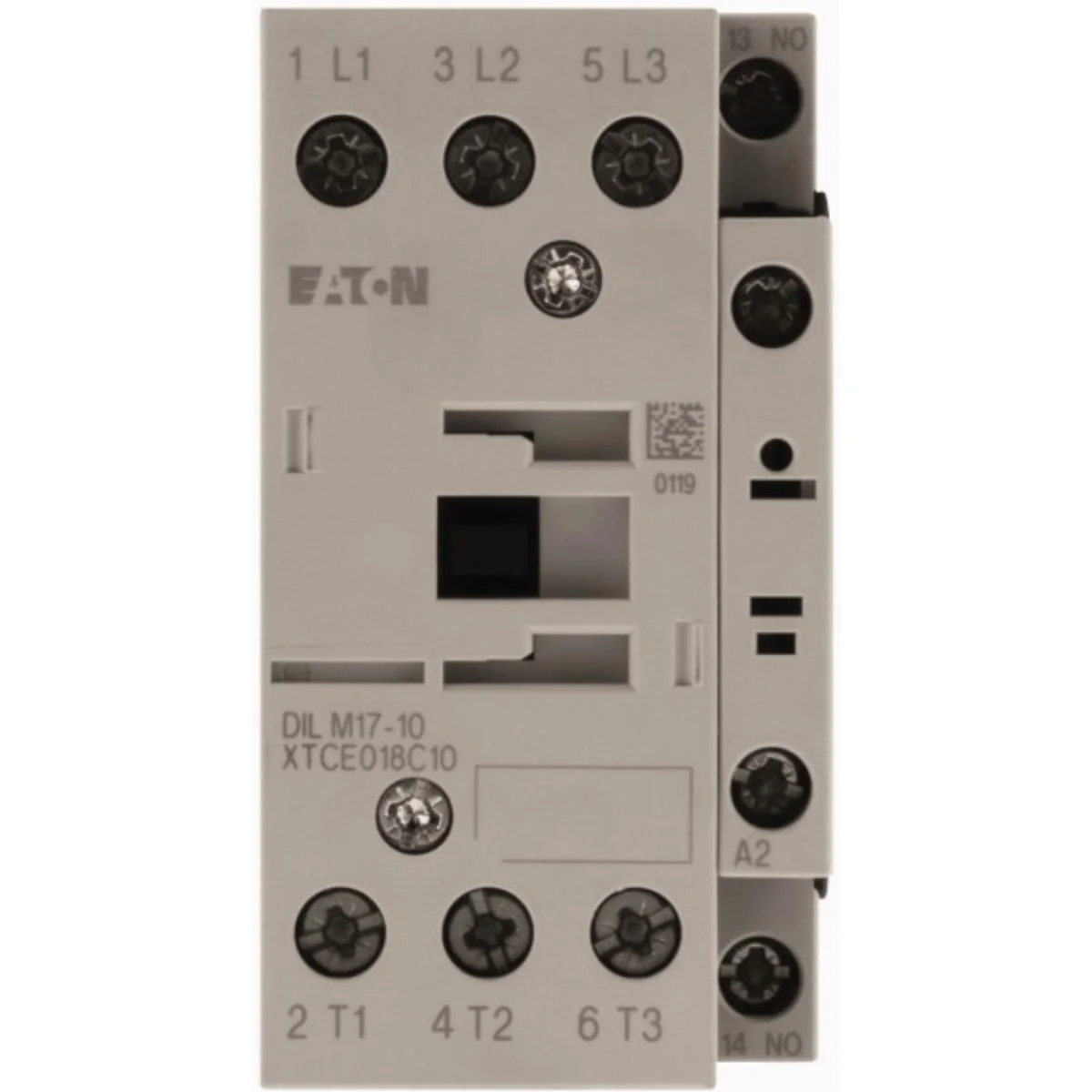

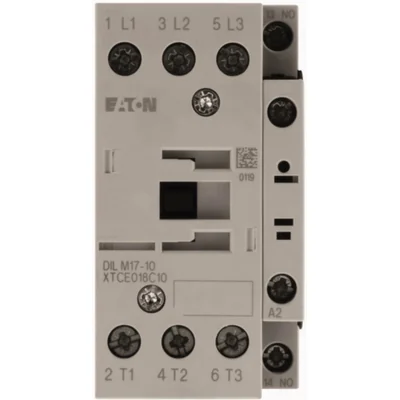

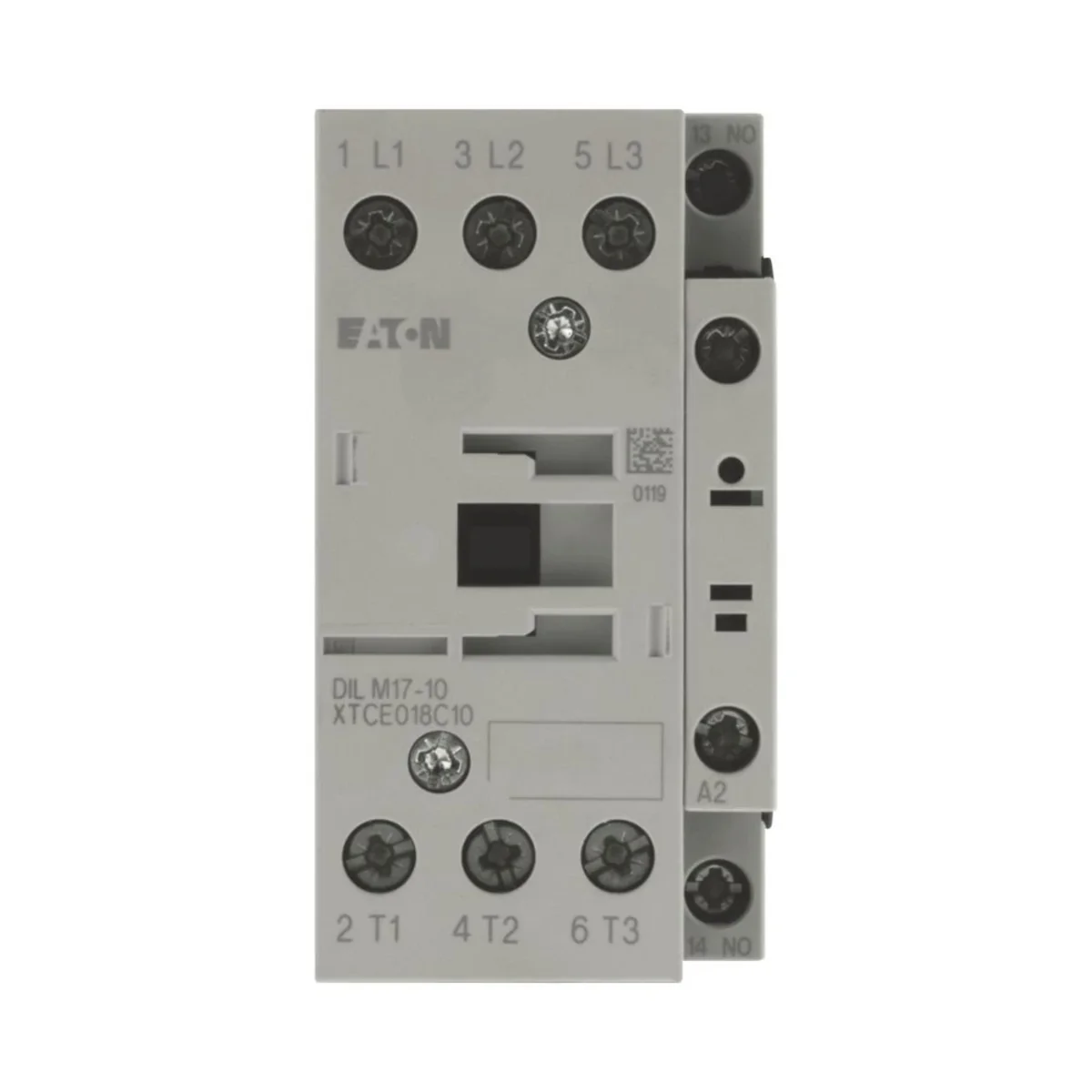

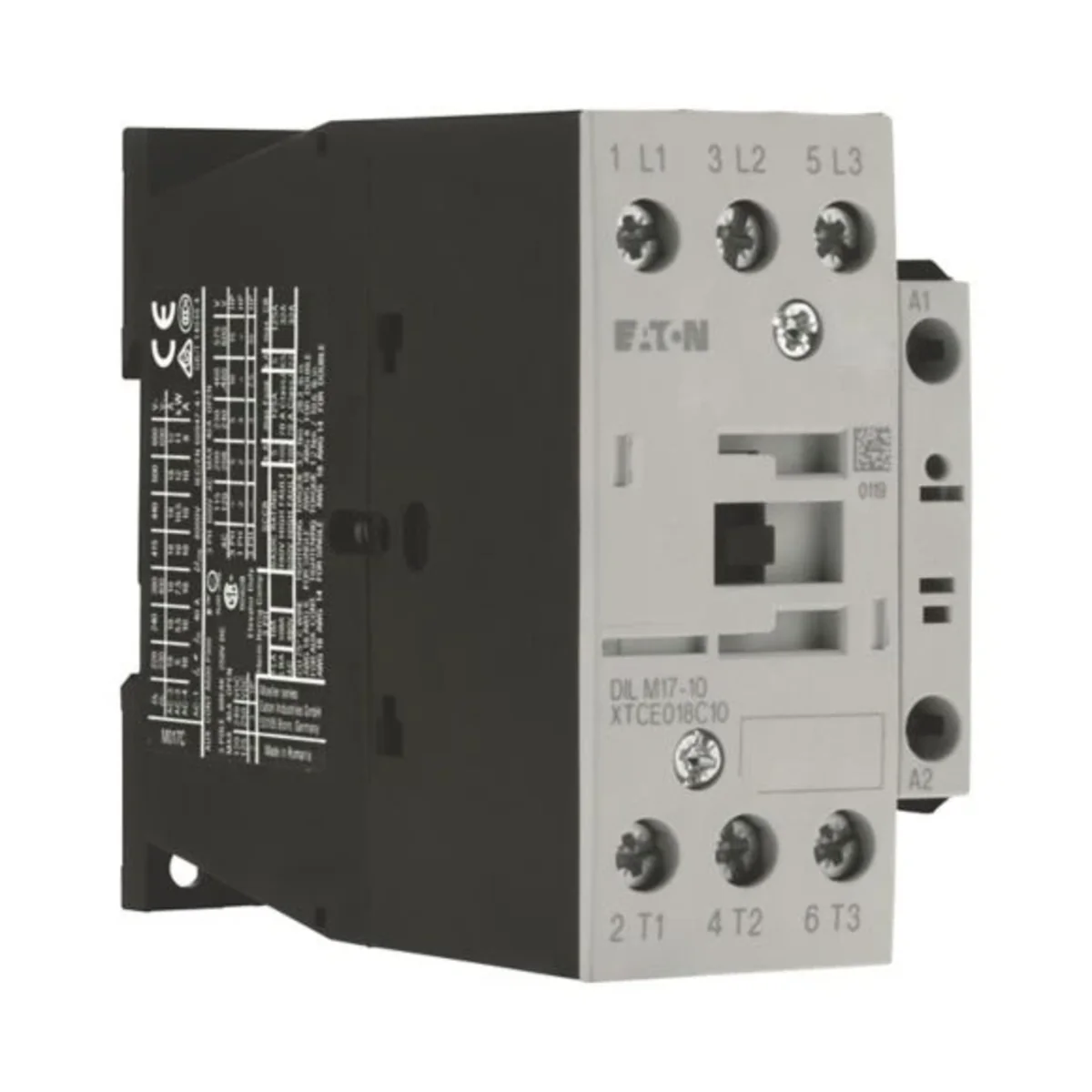

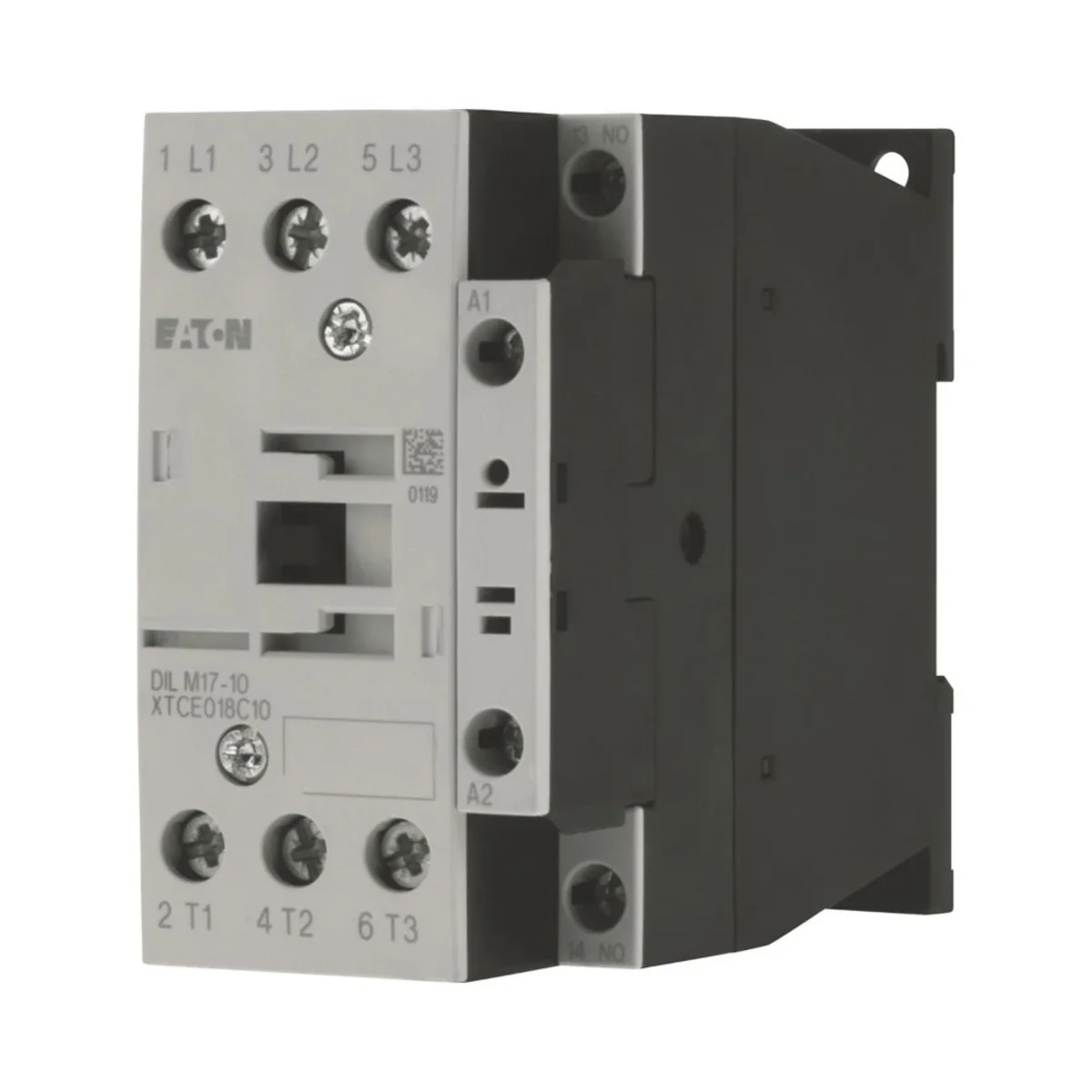

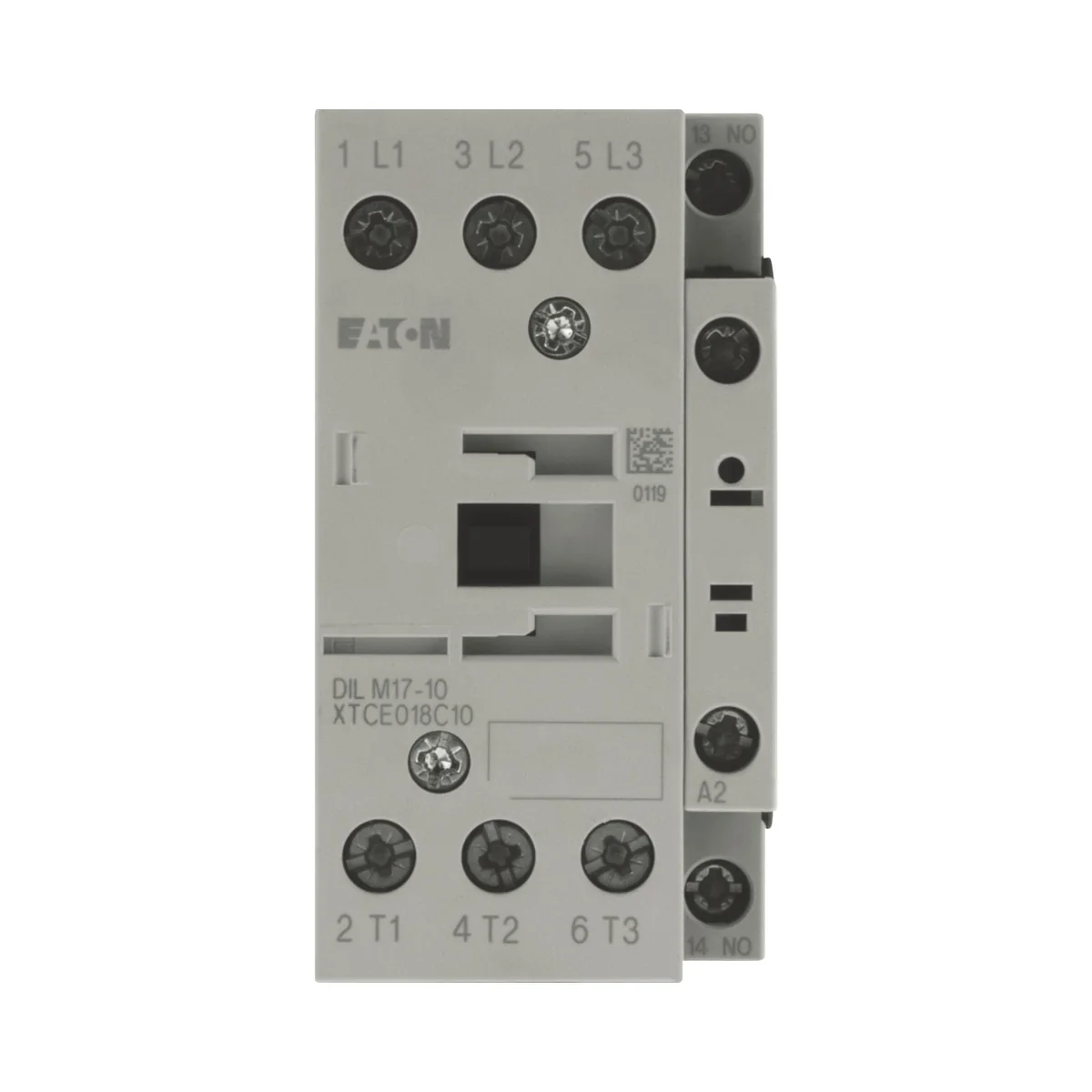

Power contactor, DILM17-10, 17A, 1NC 0R 277006
Lokaler Index:
ATA226MOEL
Katalognummer:
277006
EAN-Code:
4015082770068
Preis:
271,88 zł
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
DILM power contactors. For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.
Technische Daten
-
Rated voltage [V]420
-
Rated current [A]17
Weitere technische Daten
-
Rated control supply voltage AC 50 Hz400 ... 400 V
-
Rated control supply voltage DC0 ... 0 V
-
Rated operation current Ie at AC-1, 400 V40 A
-
Rated operation power at AC-3, 400 V7.5 kW
-
Rated operation power at AC-4, 400 V4.5 kW
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz440 ... 440 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V18 A
-
Rated operation current Ie at AC-4, 400 V10 A
-
Rated operation power NEMA7.4 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
Hersteller-Details
-
HerstellerEaton Electric Sp. z o.o.
-
Adresse80-299 Gdańsk Galaktyczna 30 Polska
-
E-Mail
Großpackungen
| Eine Art Paket | Skrzynia |
| Menge | 1 stk. |
| Gewicht (kg) | 0,447 |
| Volumen (m3) | 0,000 |
| Breite (m) | 0,047 |
| Länge (m) | 0,099 |
| Tiefe (m) | 0,087 |
