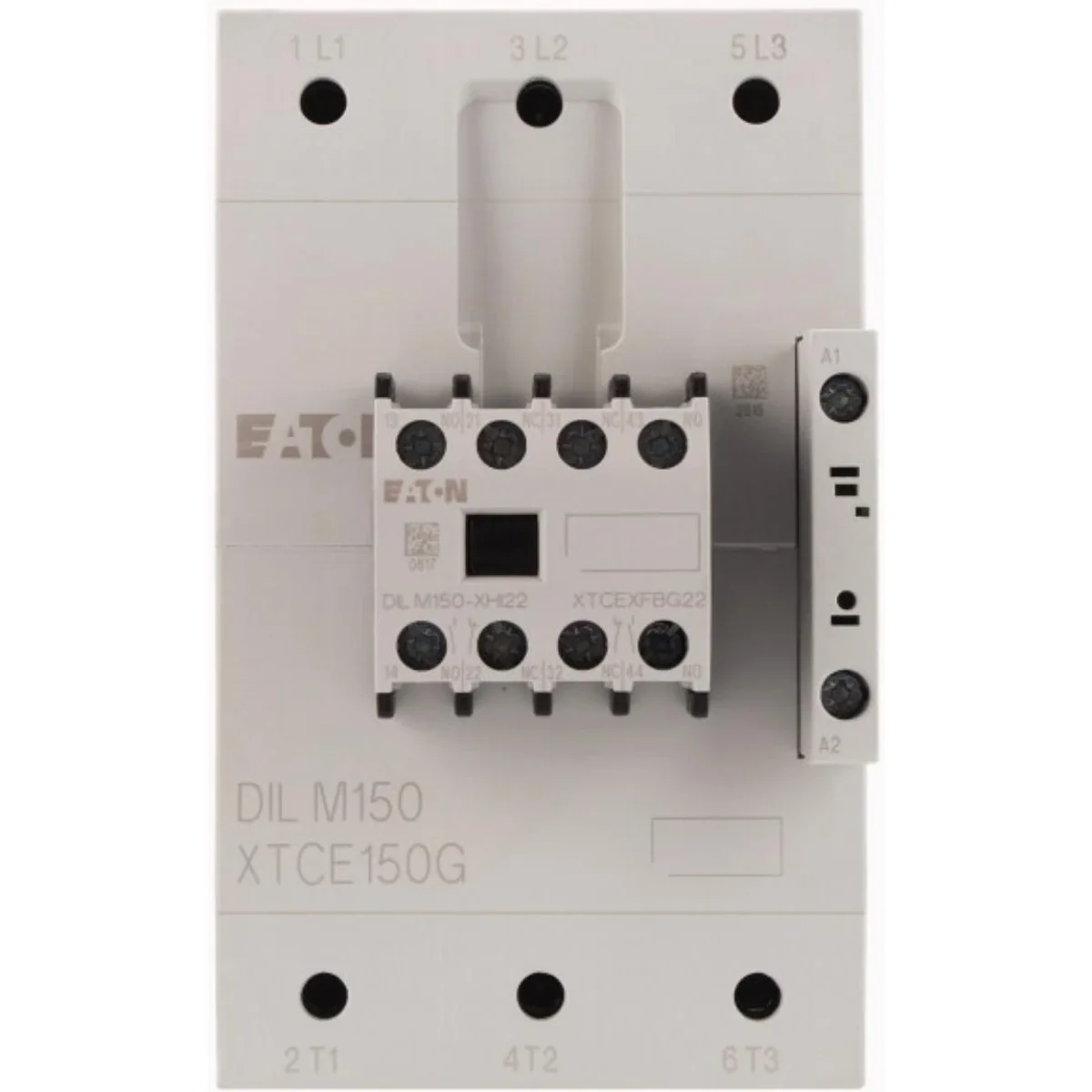

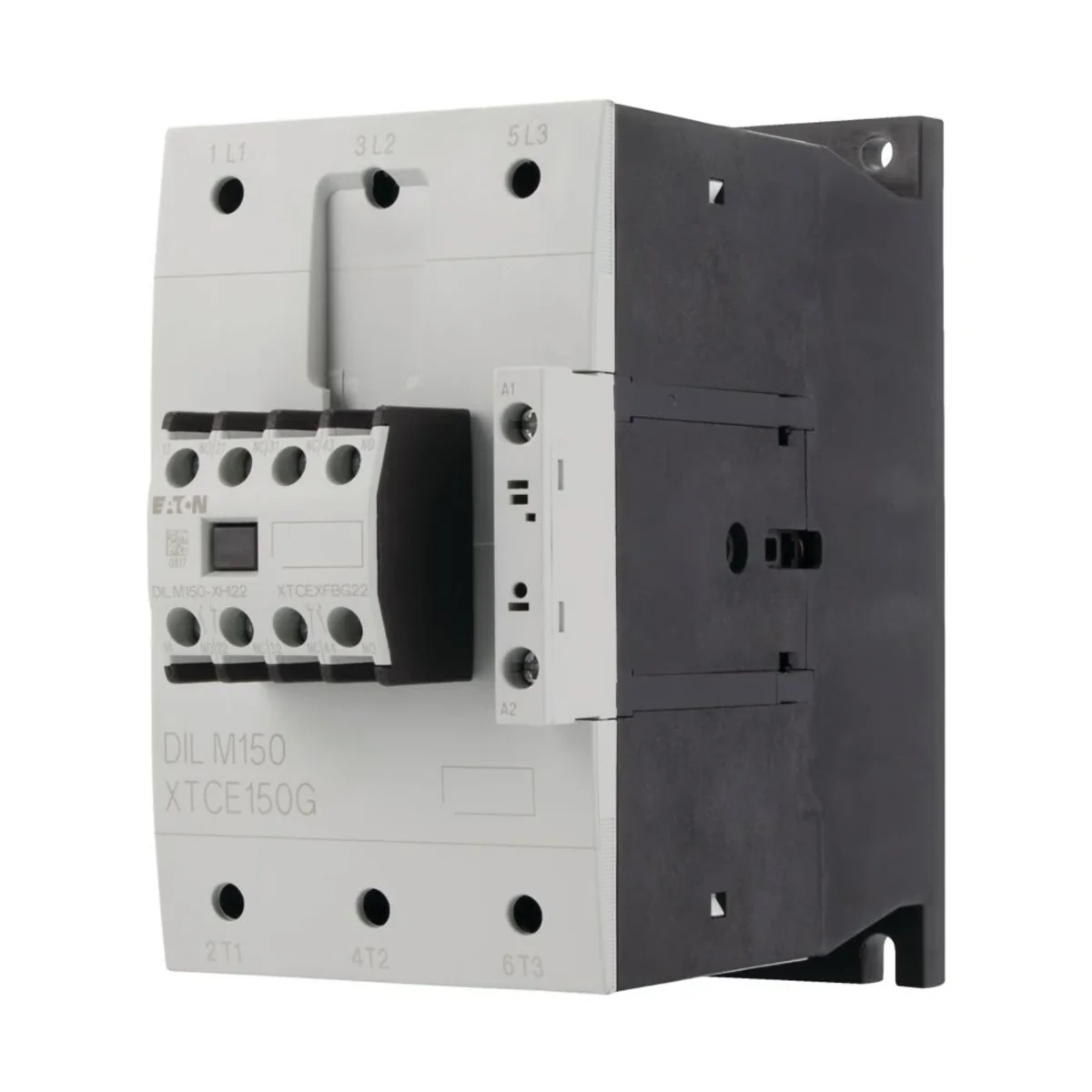

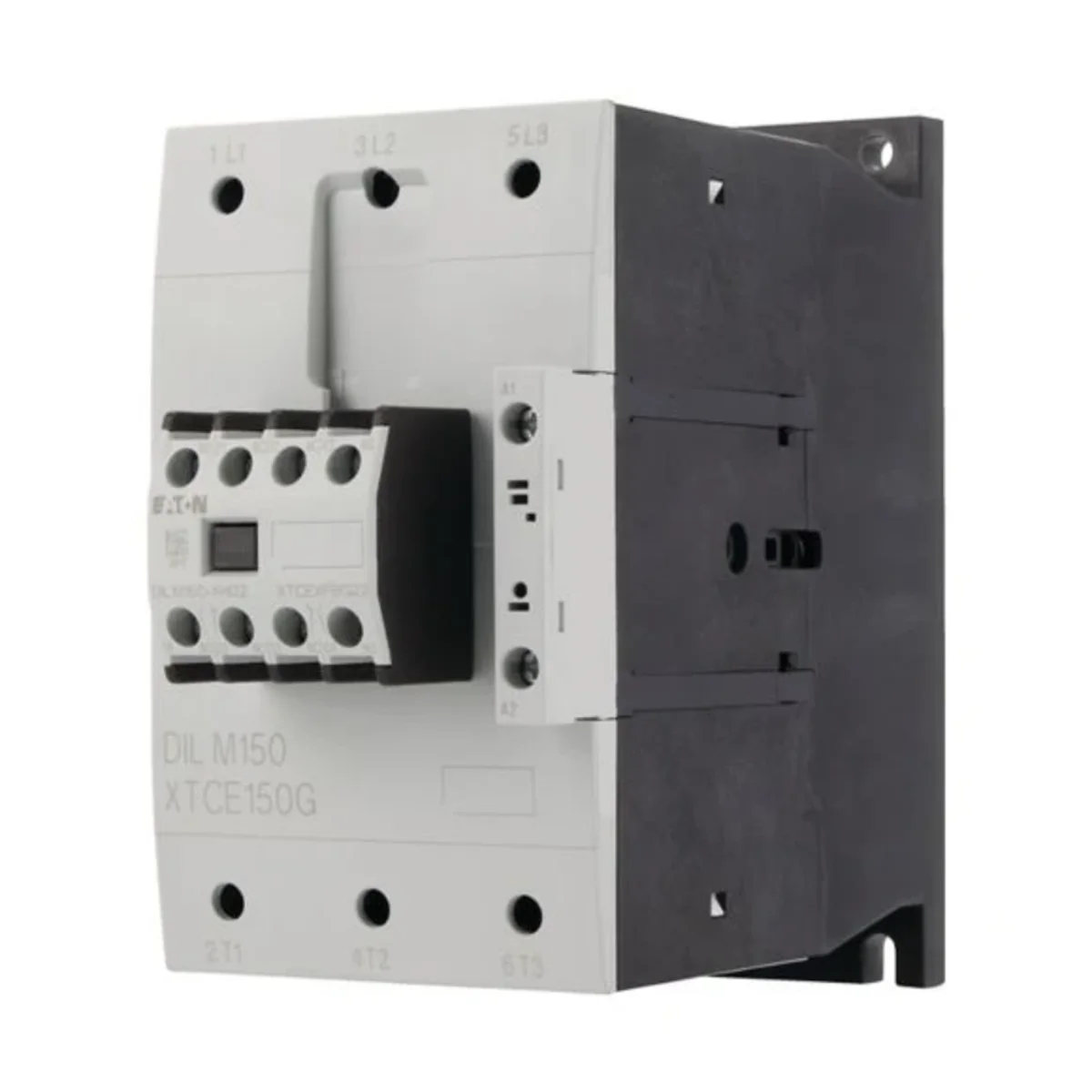

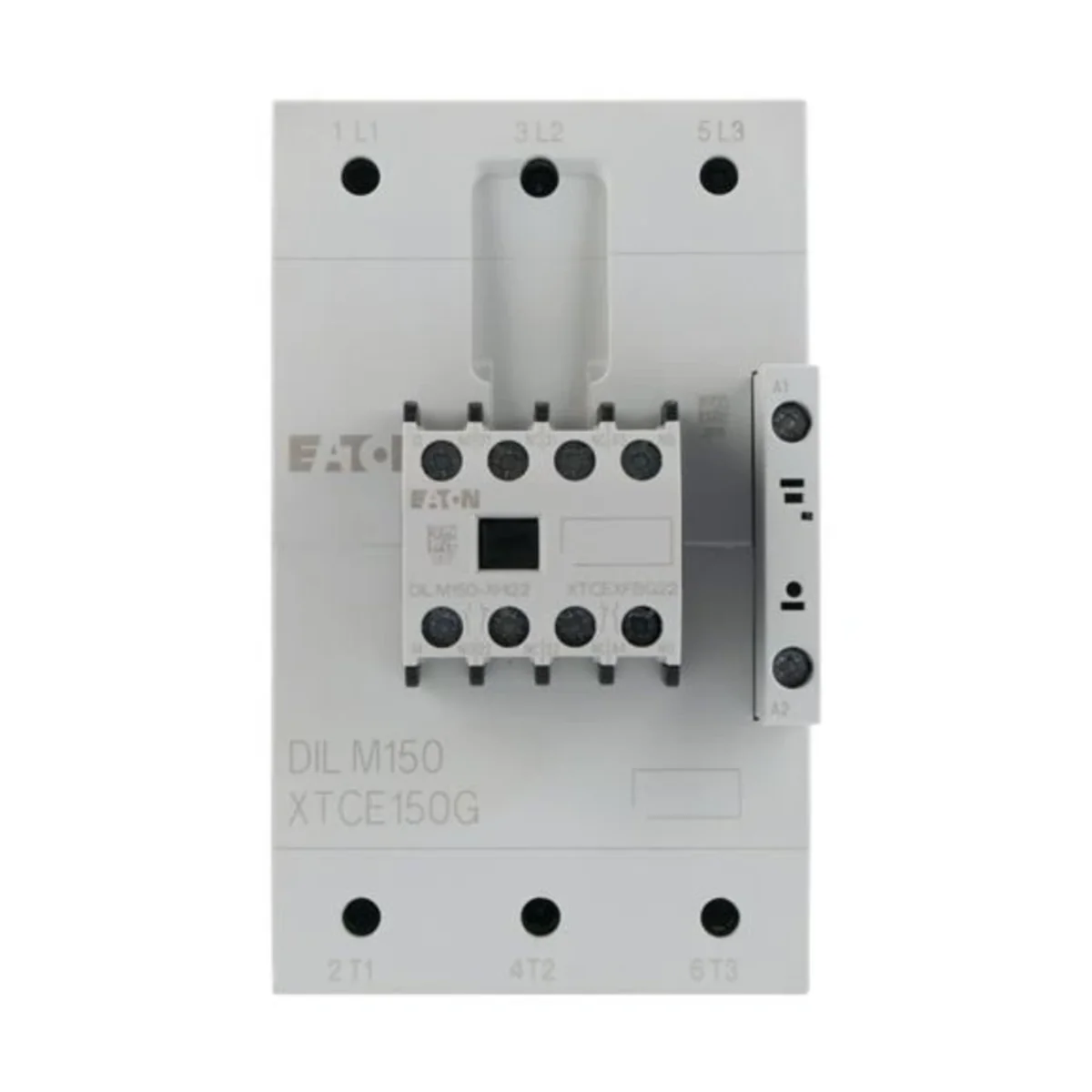

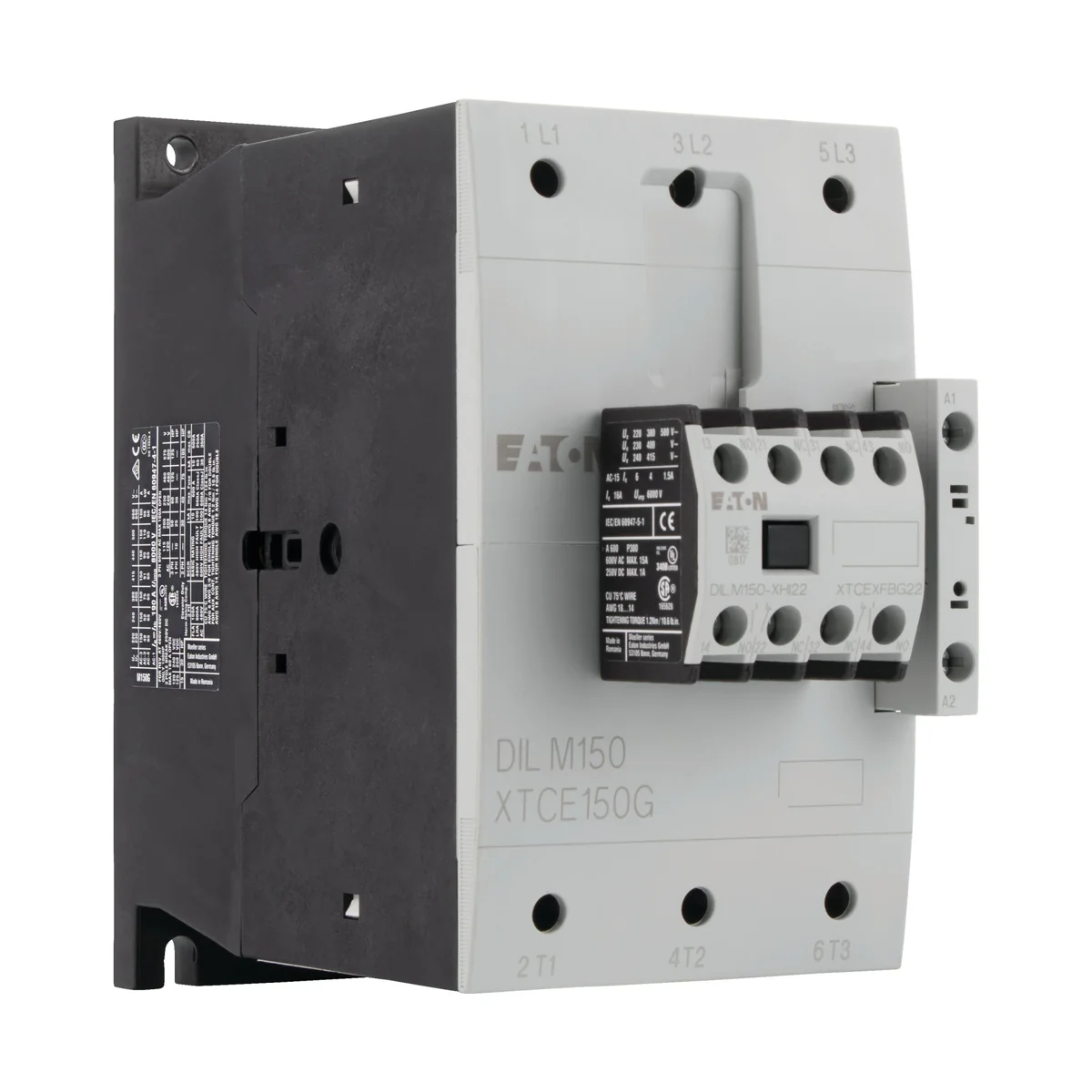

DILM power contactors. Contacts according to EN 50012. For DC operated contactors DILM7 – DILM15 applies: • built-in varistor protection circuit. For DC operated DILM17 contactors – DILM170 applies: • protection circuit built into the control electronics. For AC operated DILM115 contactors – DILM170 applies: • protection circuit built into the electronic control system. For DILM7-01 – DILM38-01 applies: • with mirror contacts.
Dane techniczne
Rated voltage [V]
120
Rated current [A]
150
Pozostałe dane techniczne
Rated control supply voltage AC 50 Hz
190 ... 240 V
Rated control supply voltage DC
0 ... 0 V
Rated operation current Ie at AC-1, 400 V
190 A
Rated operation power at AC-3, 400 V
75 kW
Rated operation power at AC-4, 400 V
33 kW
Modular version
No
Number of auxiliary contacts as normally closed contact
2
Number of normally closed contacts as main contact
0
Rated control supply voltage AC 60 Hz
190 ... 240 V
Voltage type for actuating
AC
Rated operation current Ie at AC-3, 400 V
150 A
Rated operation current Ie at AC-4, 400 V
65 A
Rated operation power NEMA
93 kW
Number of auxiliary contacts as normally open contact
