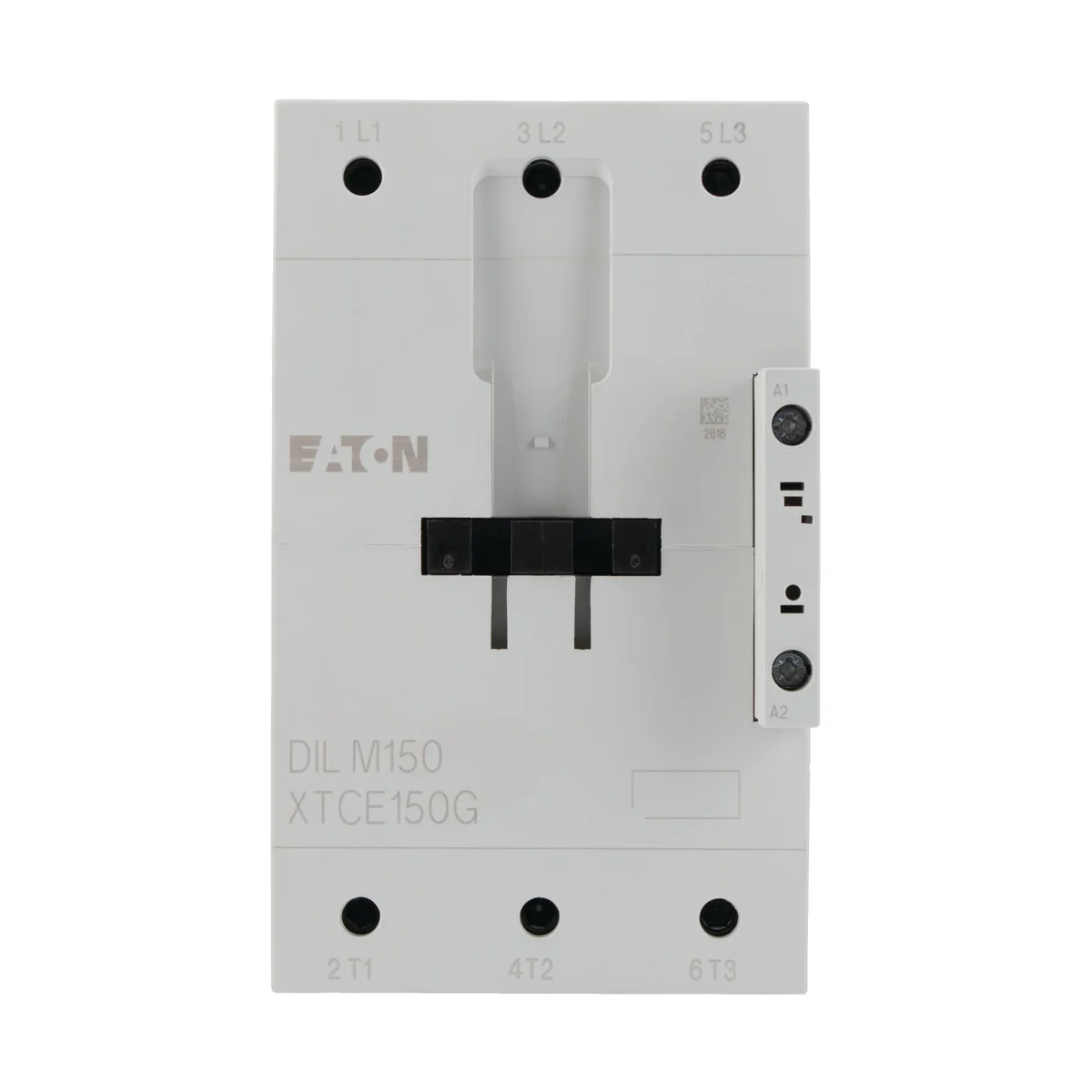

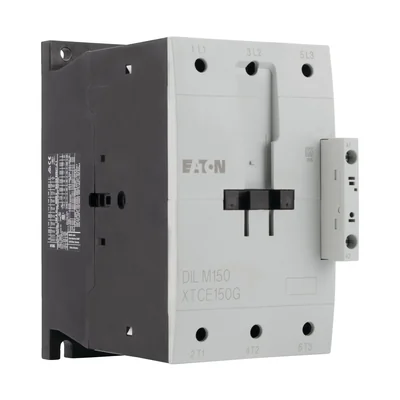

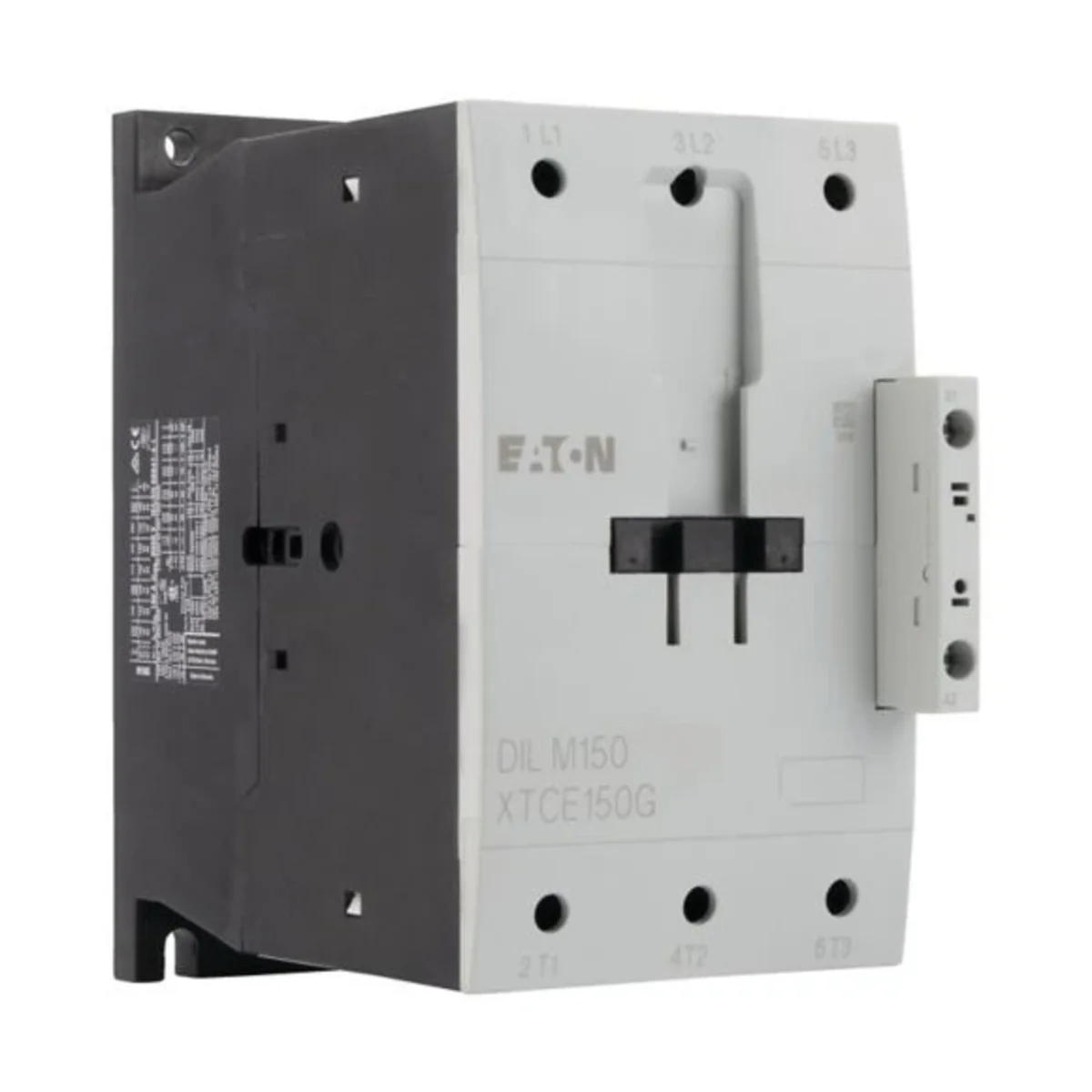

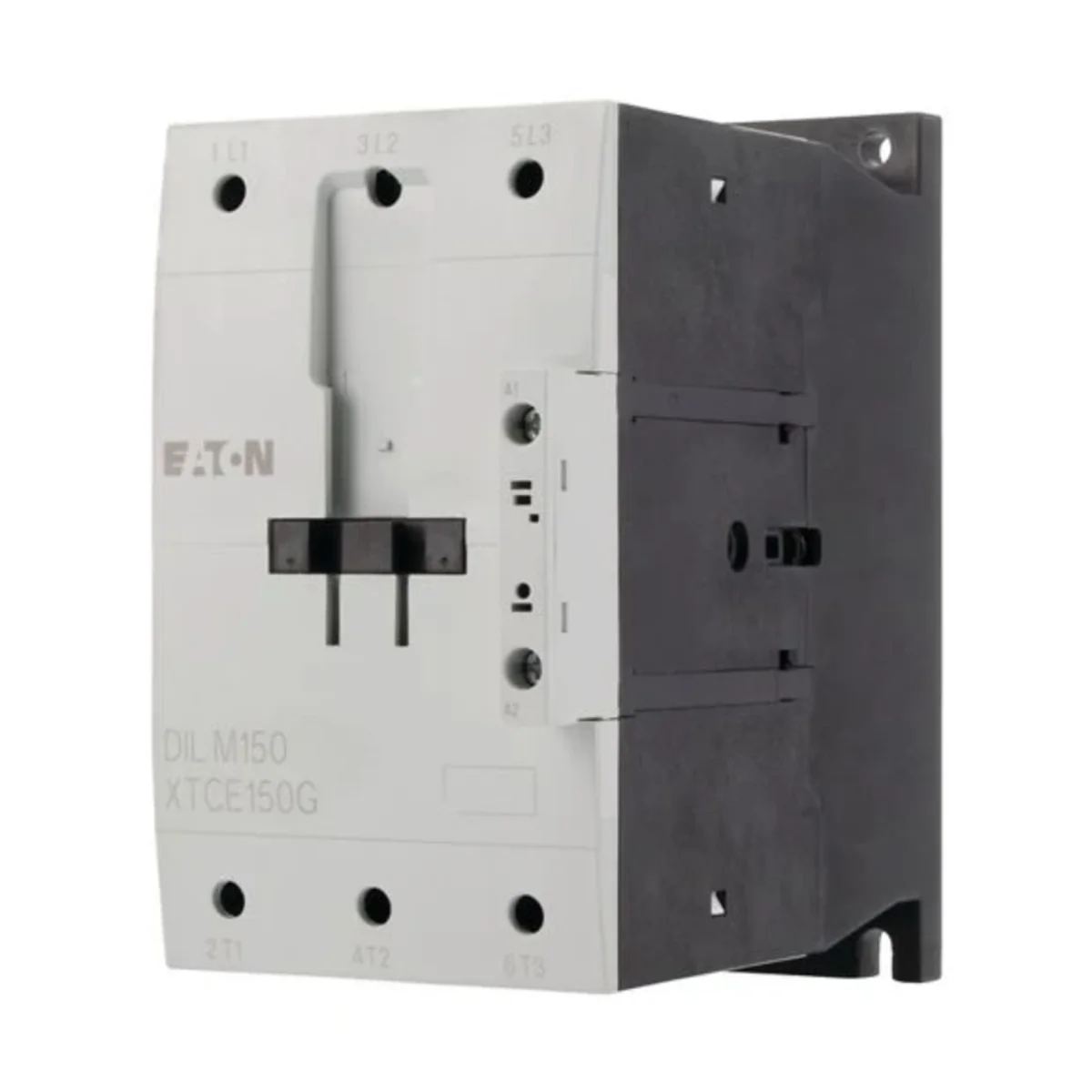

Power contactor, DILM150, 150A 239589
local index:
ATA110MOEL
Catalog No:
239589
EAN code:
4015082395896
Price:
737,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
DILM power contactors. Contacts according to EN 50012.
For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7-01 – DILM38-01 applies:
• with mirror contacts.
For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7-01 – DILM38-01 applies:
• with mirror contacts.
Technical data
-
Rated voltage [V]420
-
Rated current [A]150
Other technical data
-
Rated control supply voltage AC 50 Hz380 ... 440 V
-
Rated control supply voltage DC0 ... 0 V
-
Rated operation current Ie at AC-1, 400 V190 A
-
Rated operation power at AC-3, 400 V75 kW
-
Rated operation power at AC-4, 400 V33 kW
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz380 ... 440 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V150 A
-
Rated operation current Ie at AC-4, 400 V65 A
-
Rated operation power NEMA93 kW
-
Number of auxiliary contacts as normally open contact0
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 2,348 |
| Volume (m3) | 0,005 |
| Width (m) | 0,176 |
| Length (m) | 0,176 |
| Depth (m) | 0,177 |
