Power contactor DILM15-10 1NO 7.5kW 400V 42VAC control 199252
local index:
ATA271MOEL
Catalog No:
199252
EAN code:
4015081973361
Manufacturer:
EATON
Length [mm]: 75
Number of main contacts NO: 3
Number of NC auxiliary contacts: 0
Price:
67,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

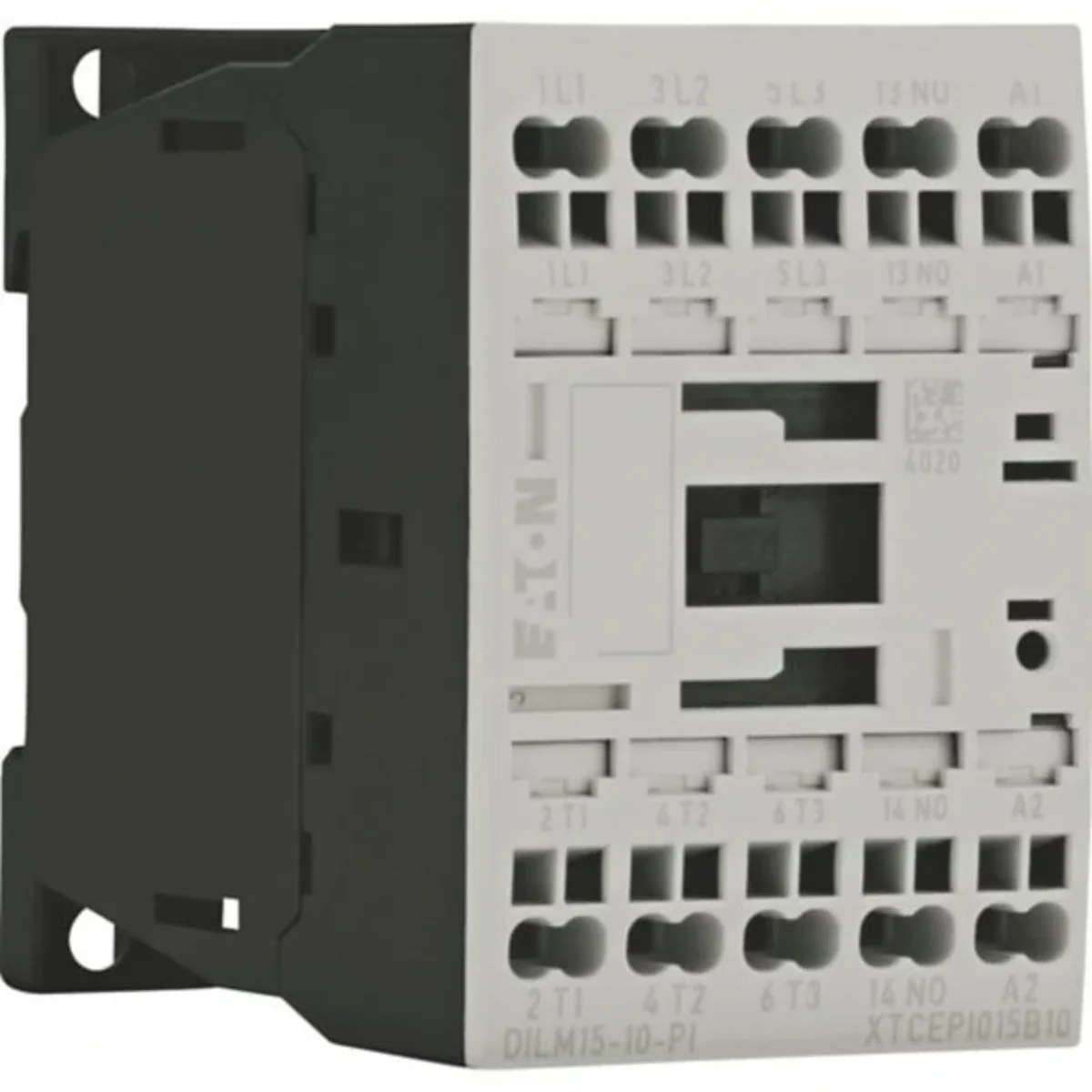

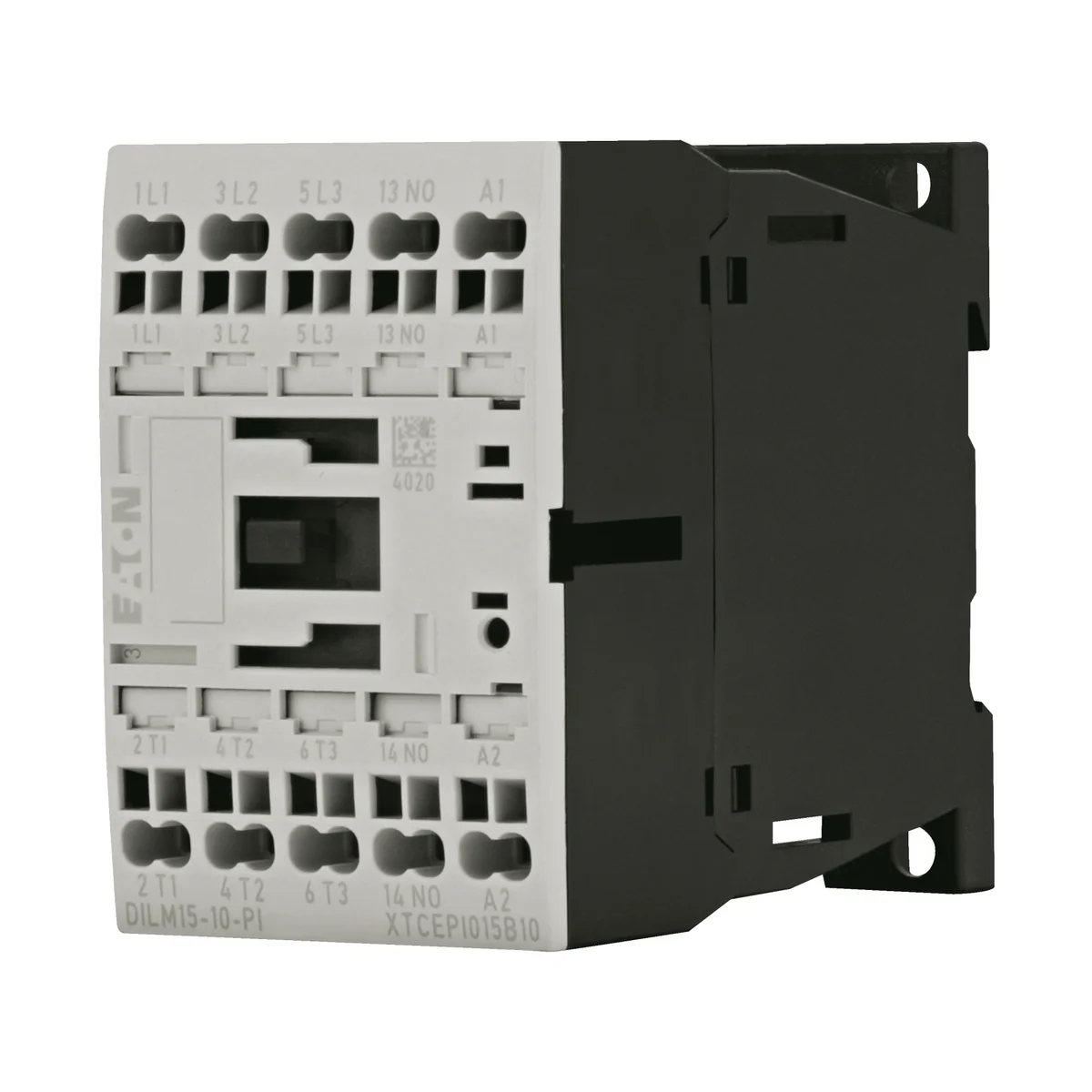

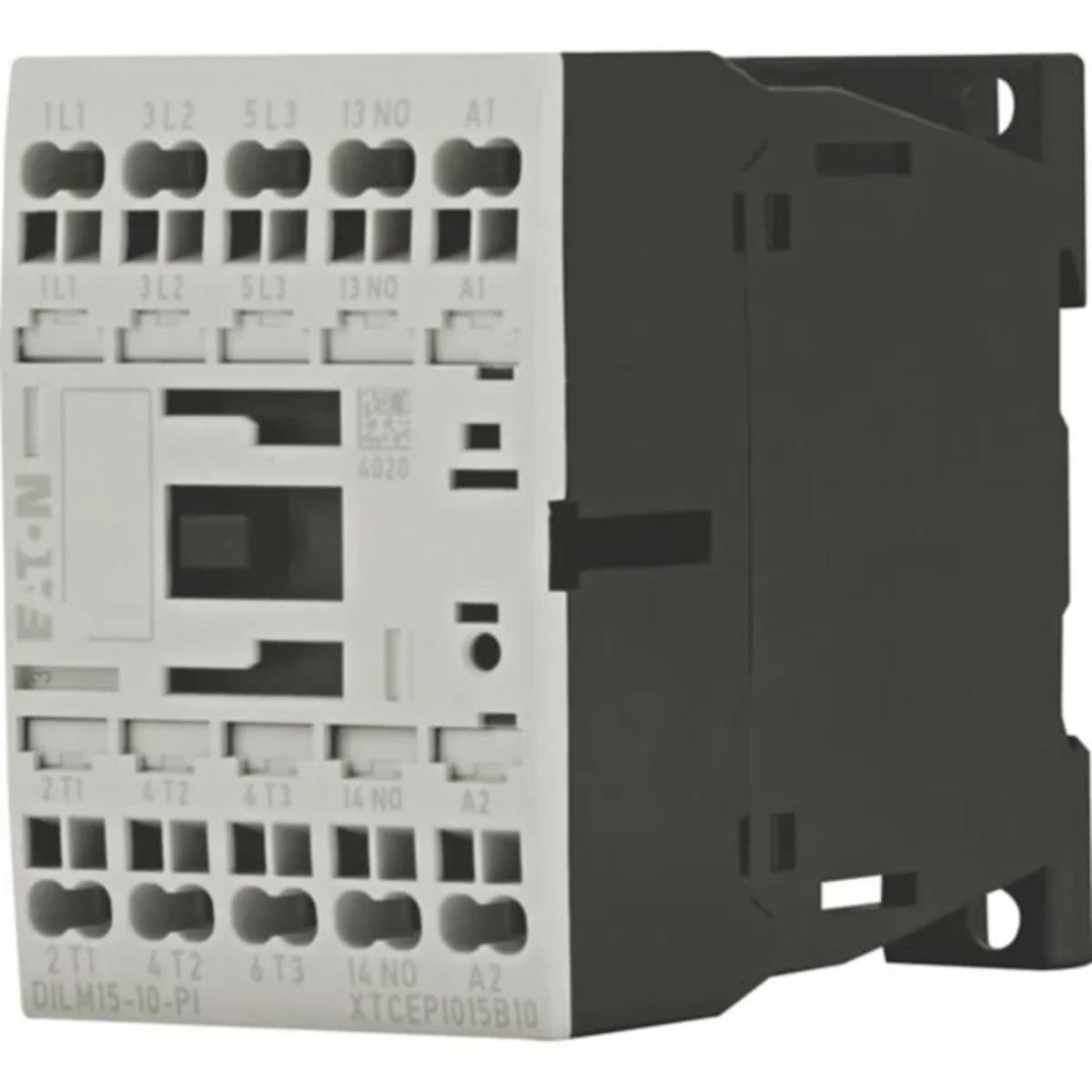

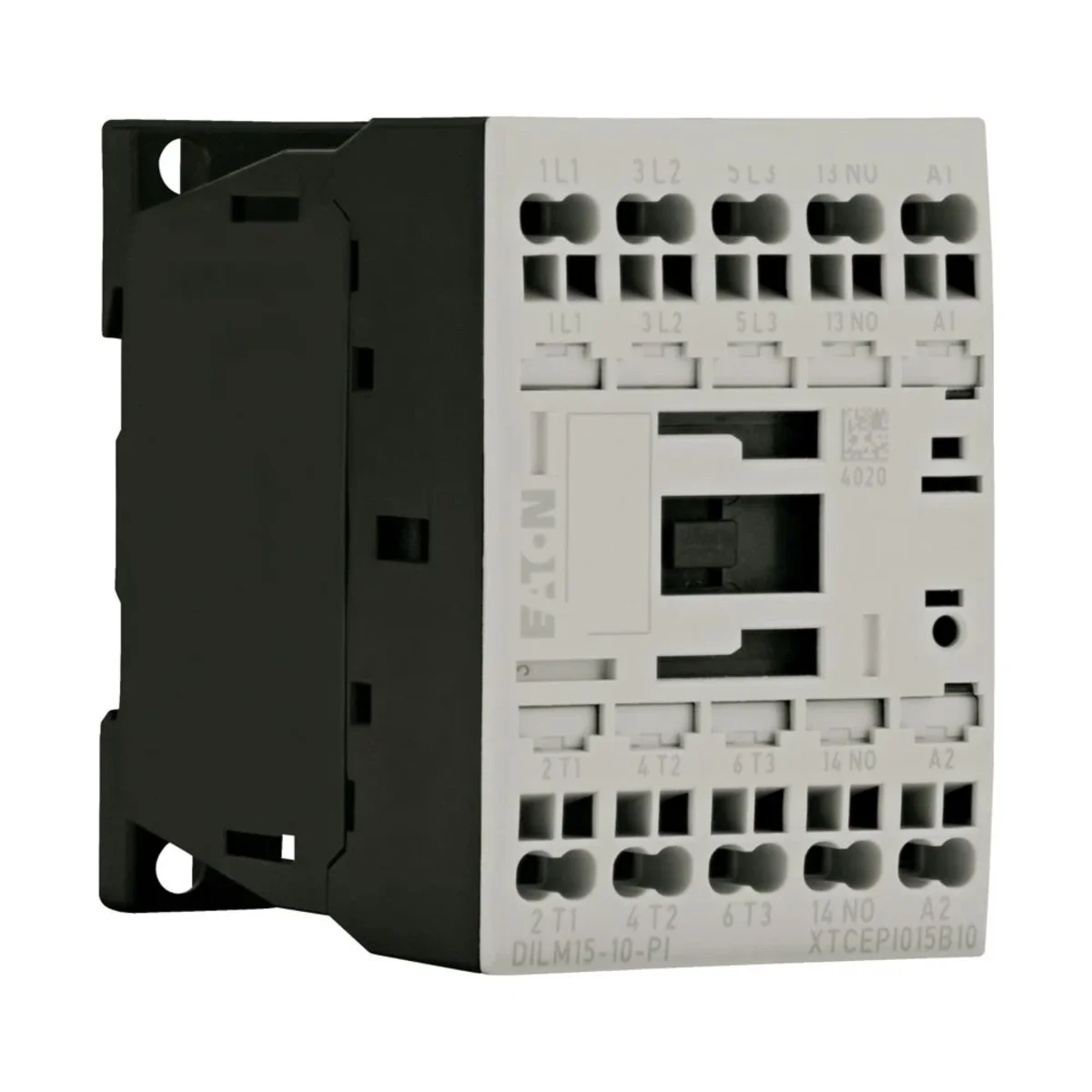

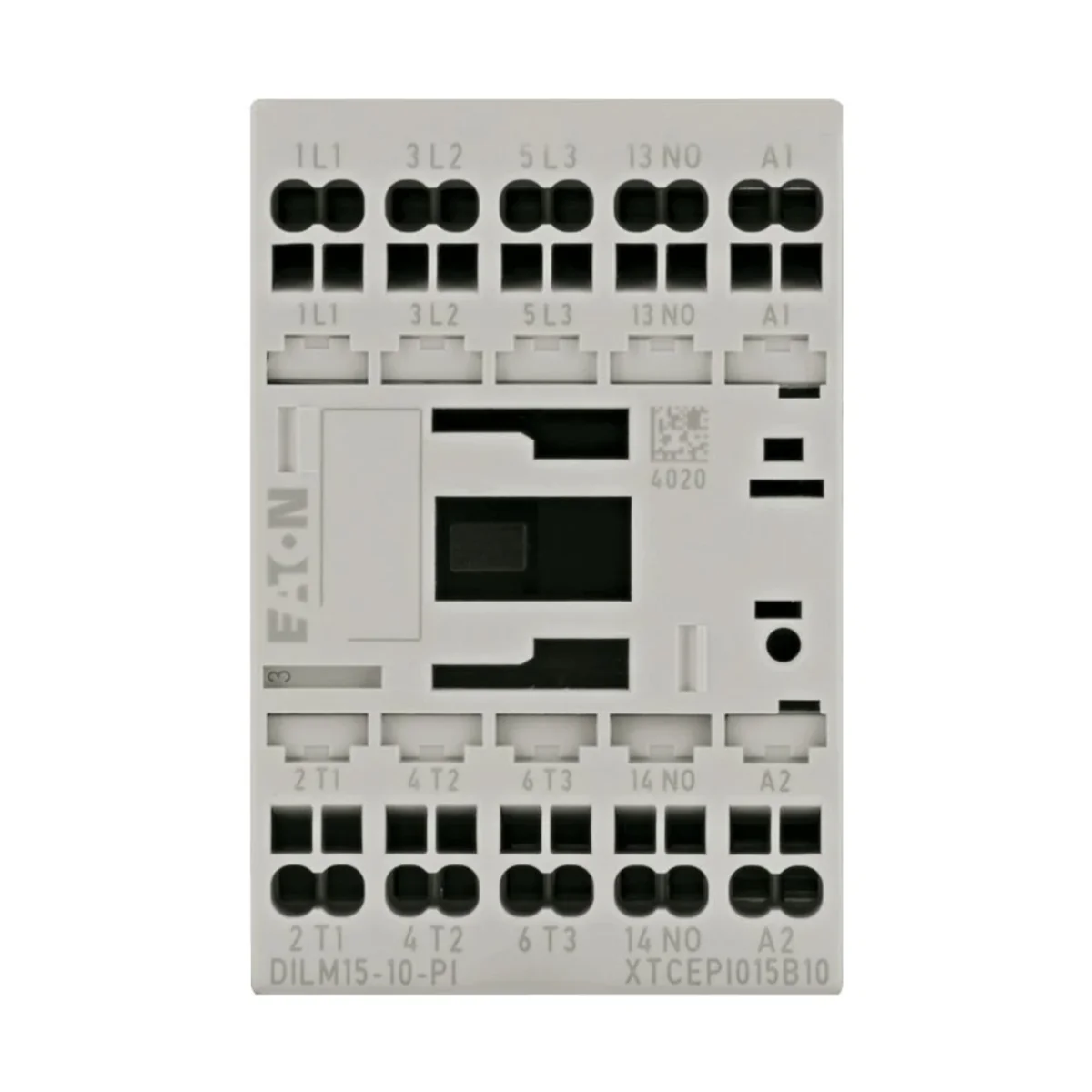

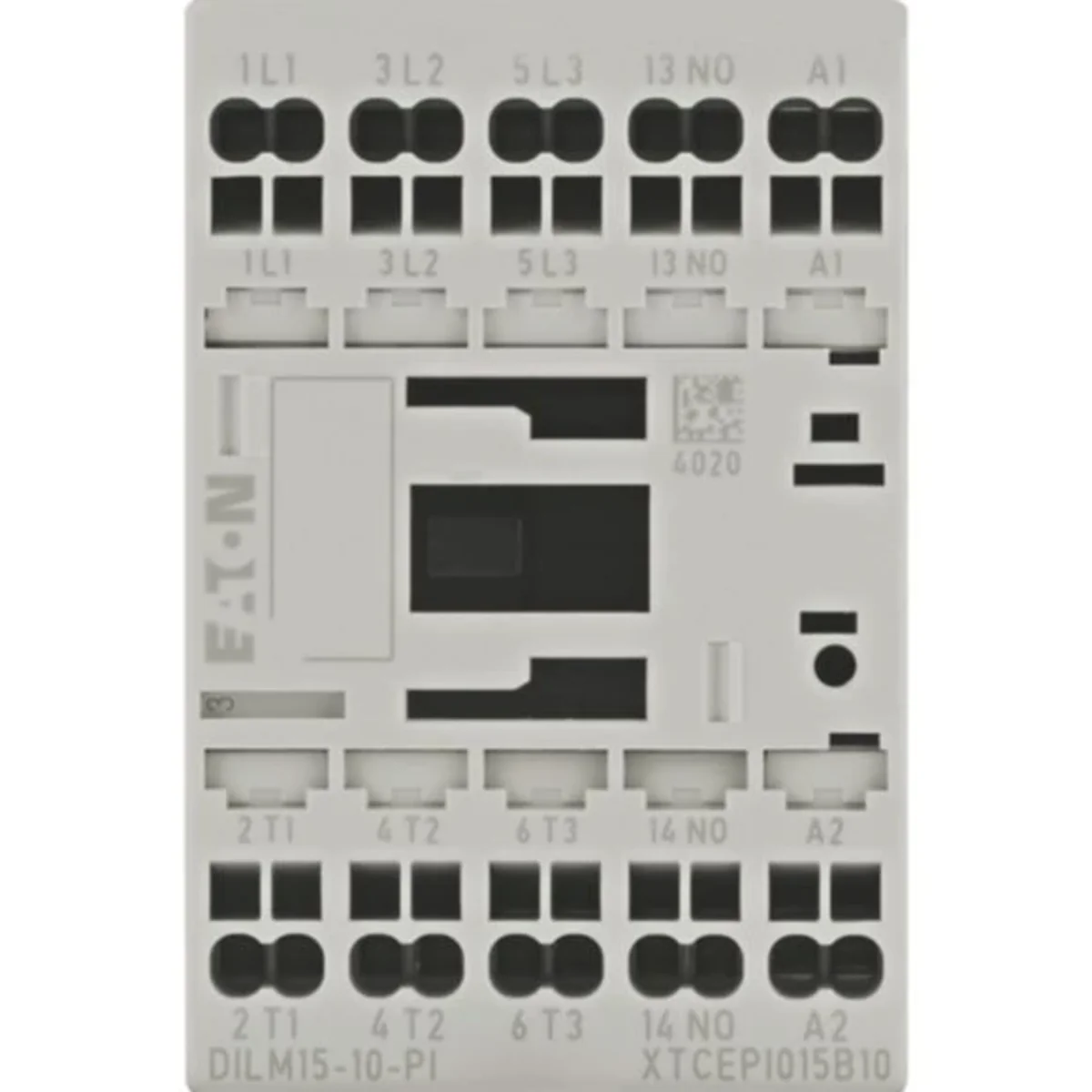

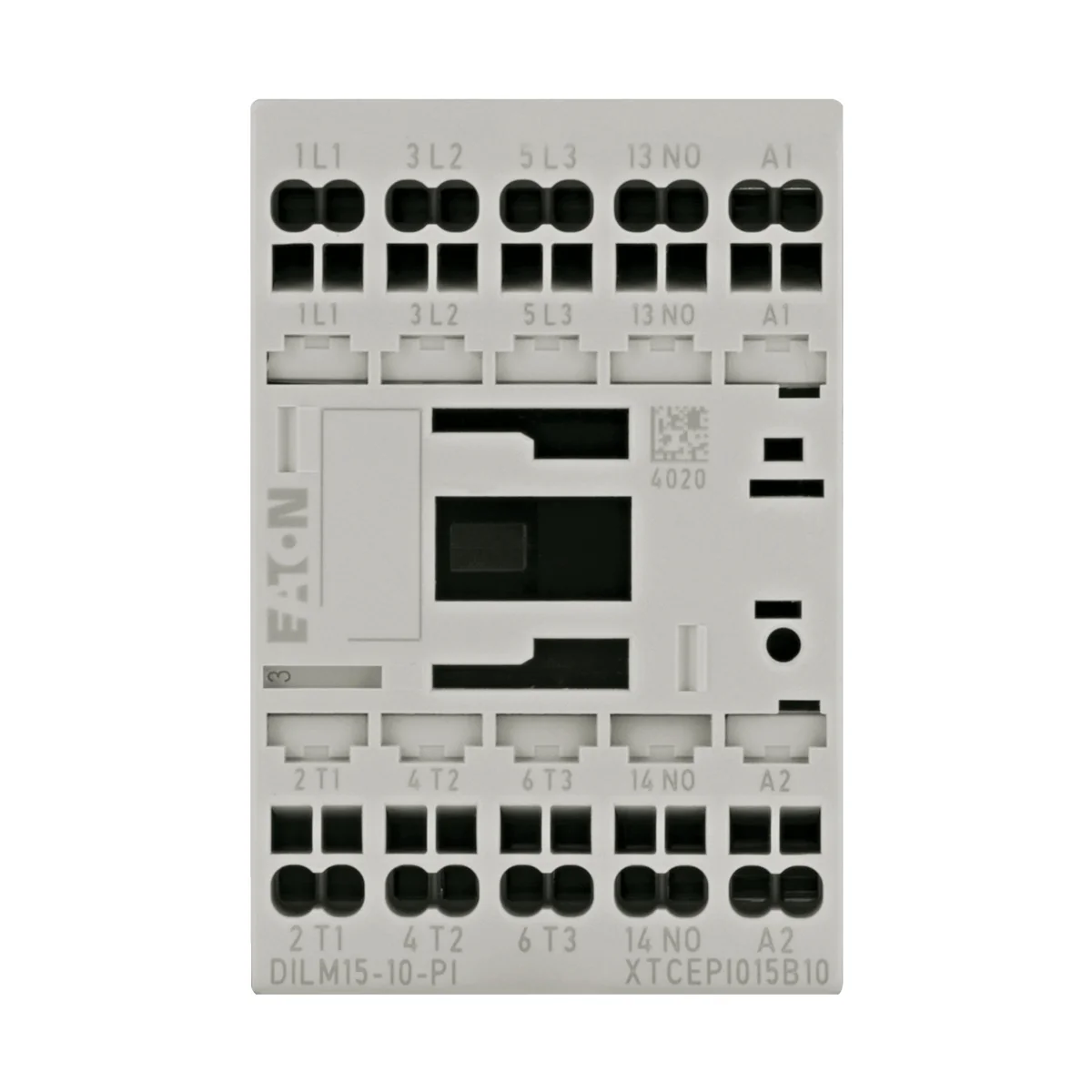

Power contactor DILM15-10 1NO 7.5kW 400V 42VAC control
Technical data
-
Length [mm]75
-
Number of NC auxiliary contacts0
-
Type of voltageAC
-
Connection typeSpring clip
-
Rated control voltage Us for AC 50Hz [V]42
-
Rated operating power for AC-3 400V [kW]7.5
-
Rated operational current Ie for AC-3 400V [A]15.5
-
Rated operating power at AC-4 400V [kW]3
-
Number of main contacts NO3
-
Number of auxiliary contacts NO1
-
Width [mm]45
-
Height [mm]68
-
Number of main contacts NC0
-
Rated operational current Ie for AC-1 400V [A]22
-
Rated operational current Ie for AC-4 400V [A]7
-
Rated control voltage Us for AC 60Hz [V]48
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,225 | 0,238 |
| Volume (m3) | 0,000 | 0,000 |
| Width (m) | 0,045 | 0,046 |
| Length (m) | 0,075 | 0,079 |
| Depth (m) | 0,068 | 0,070 |
