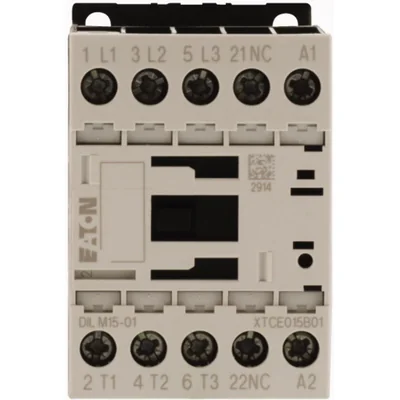

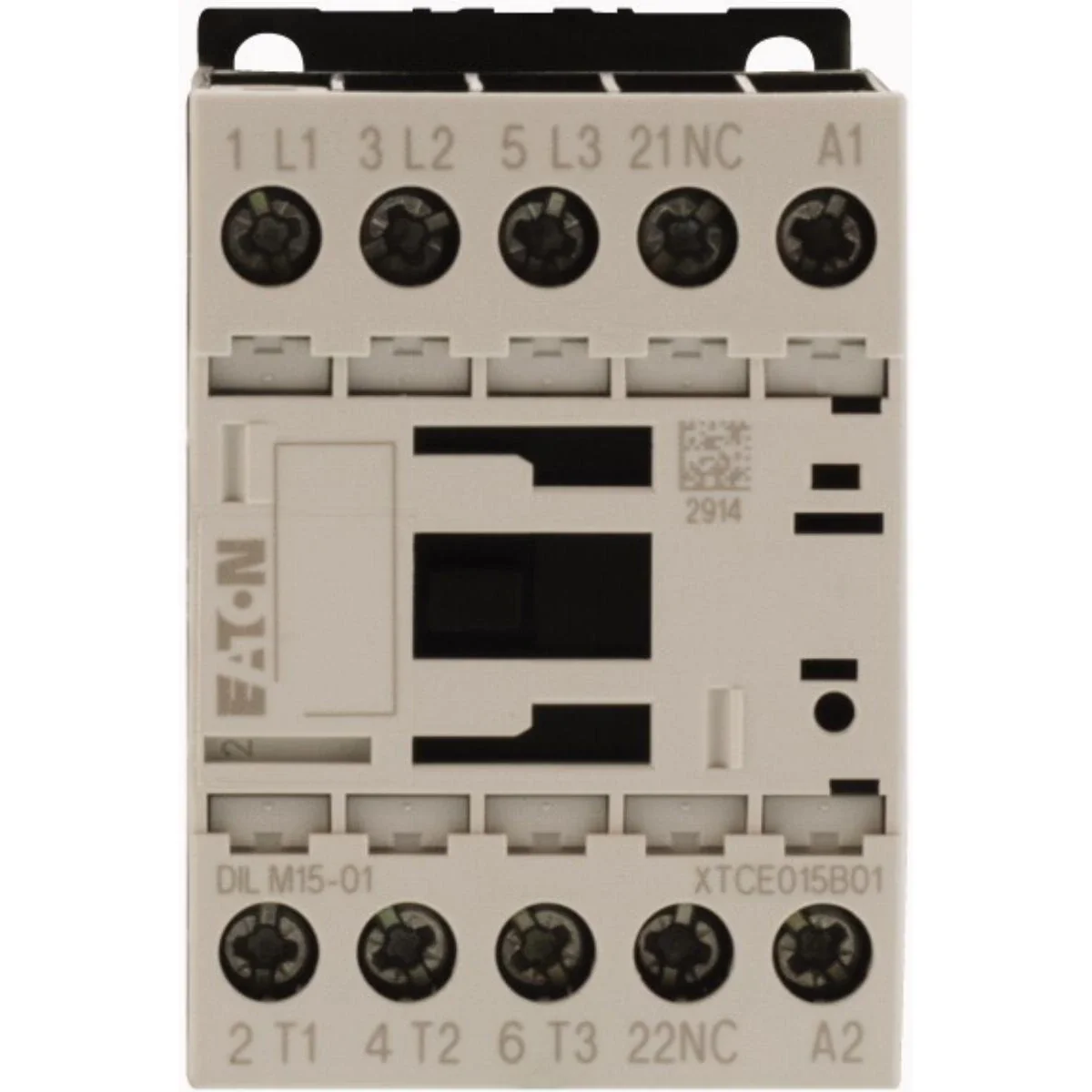

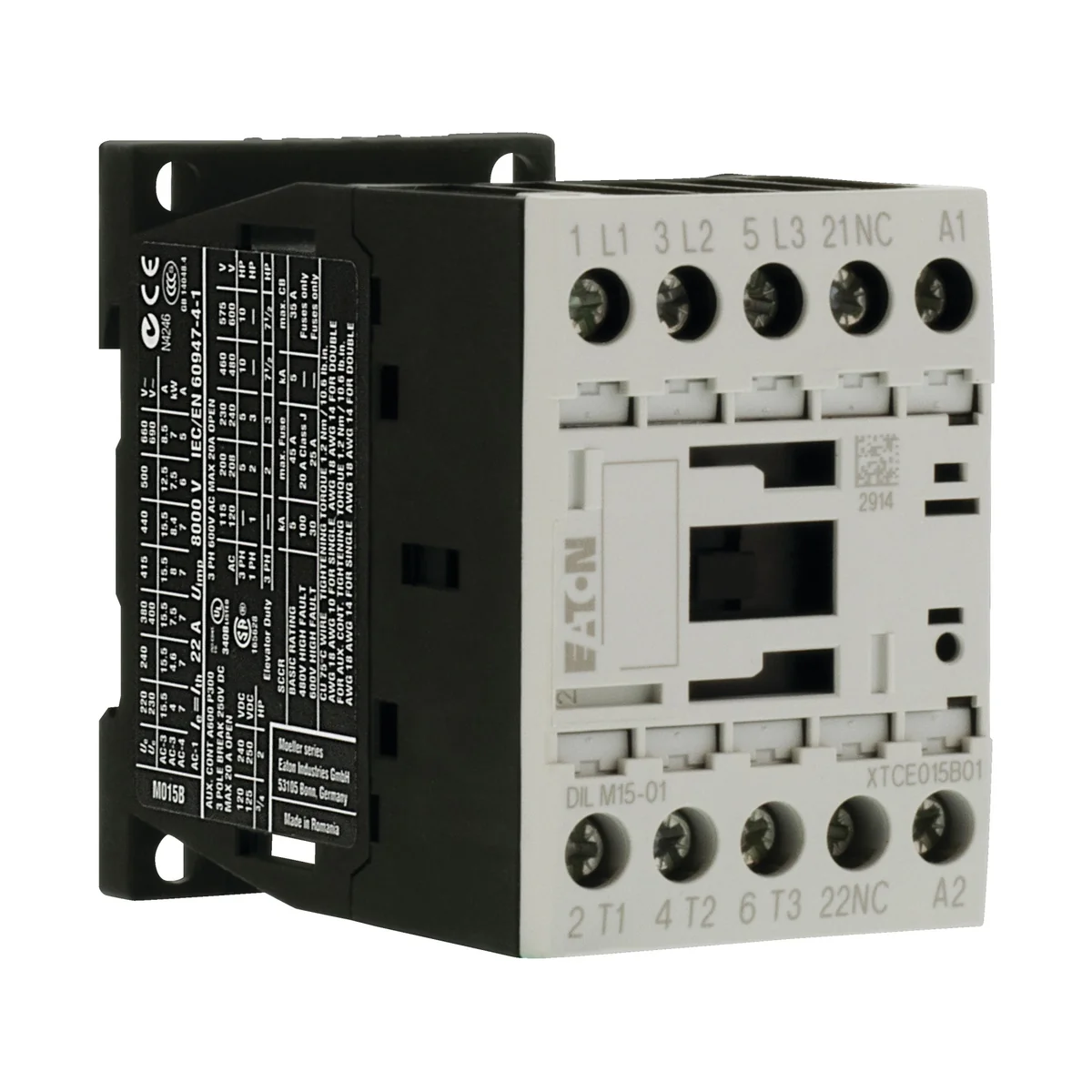

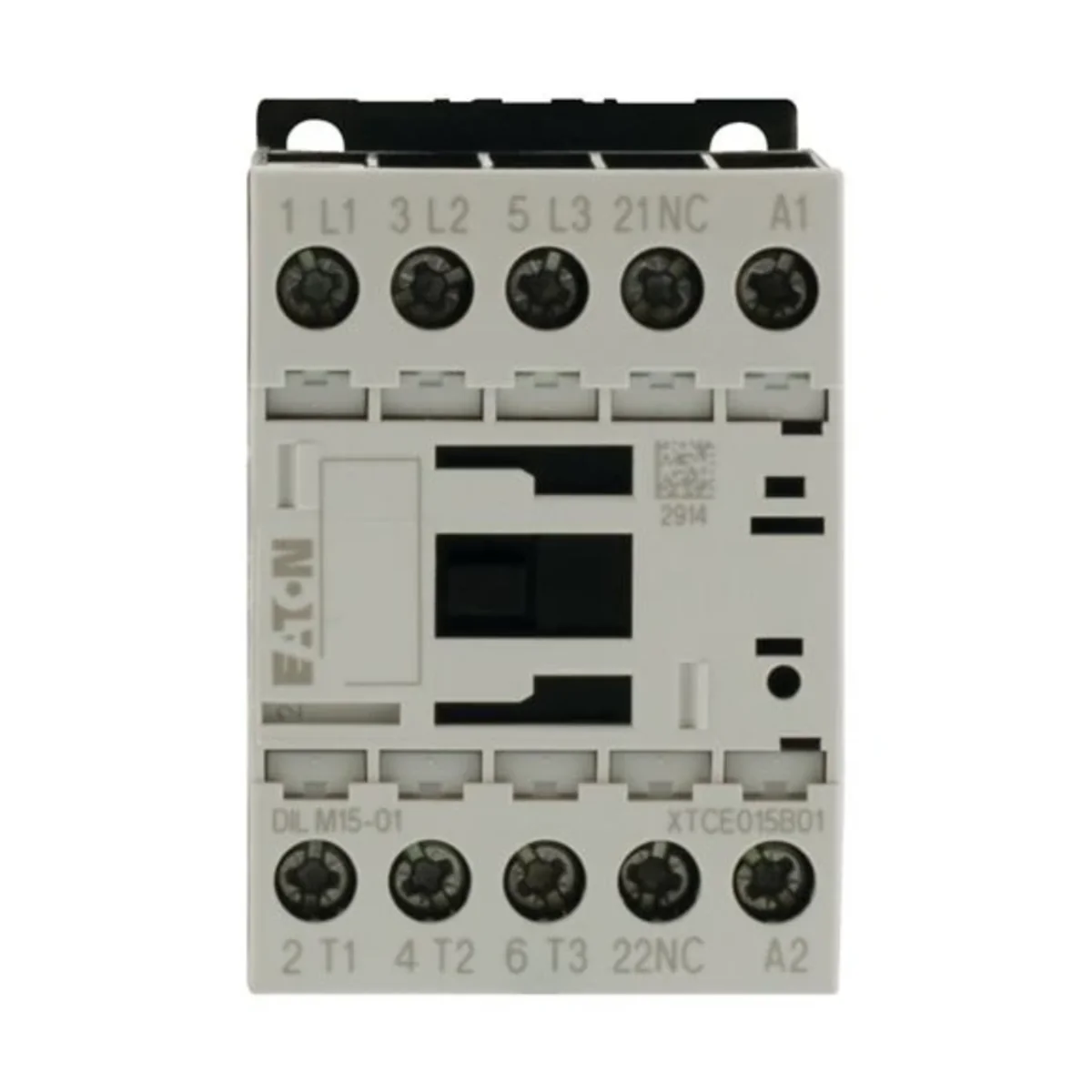

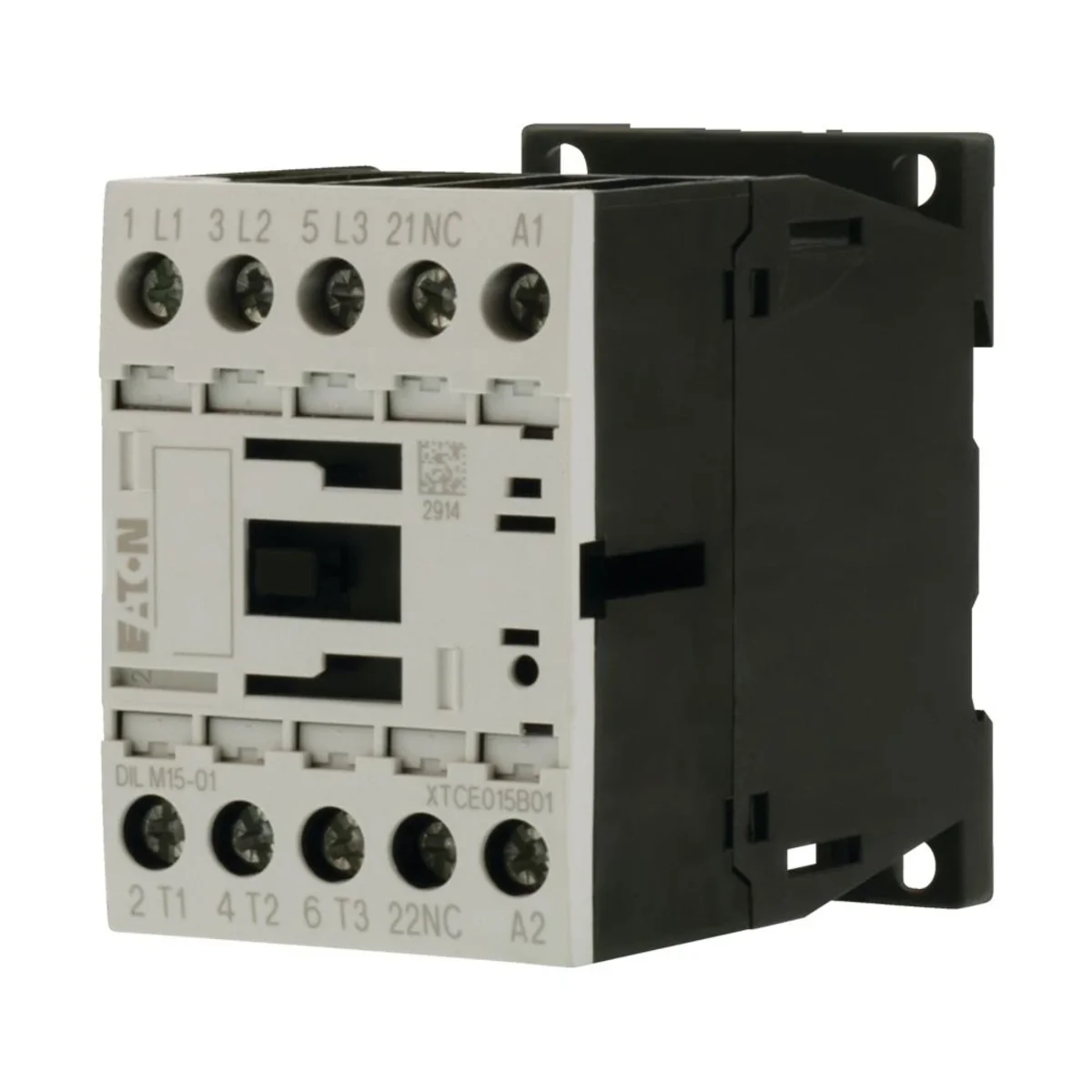

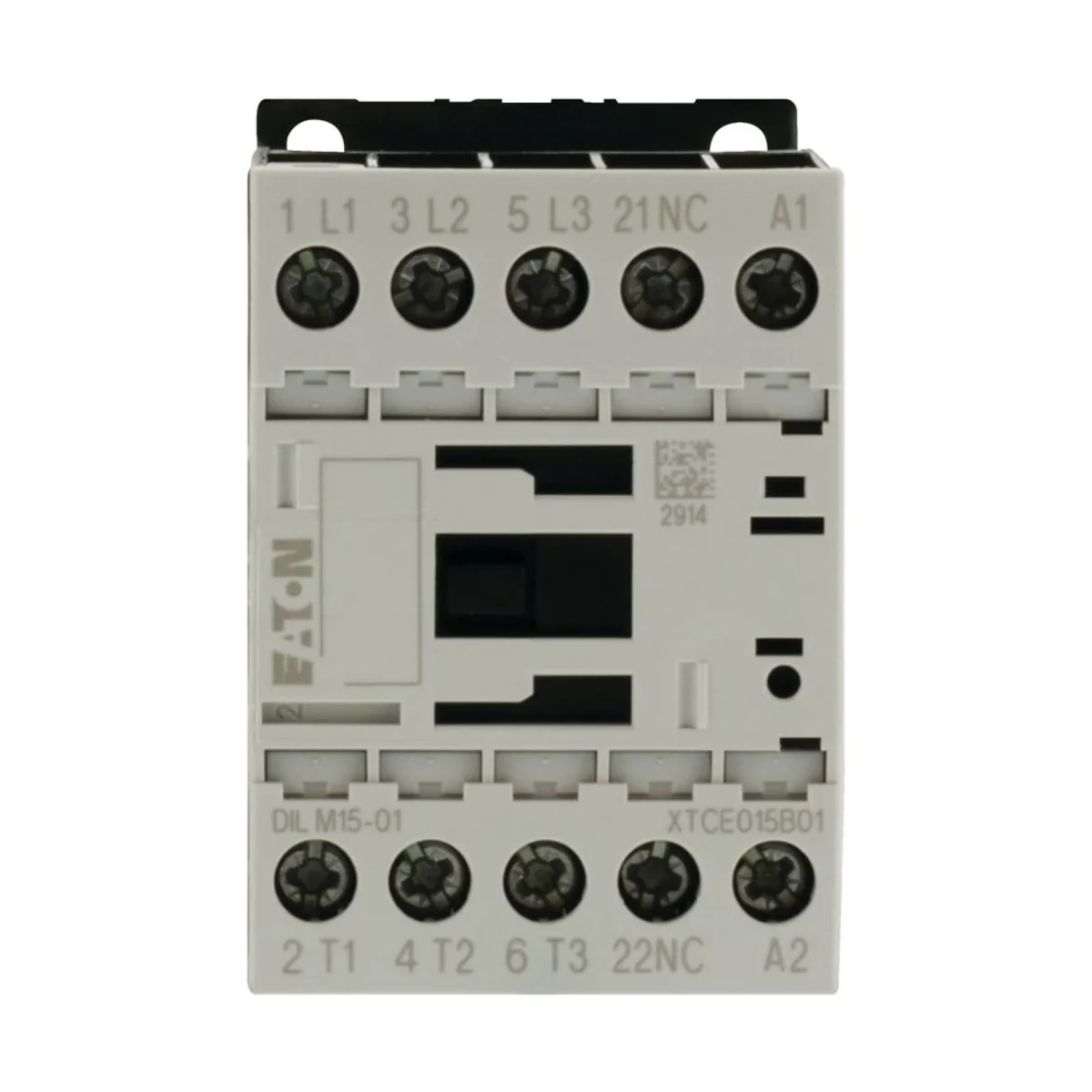

Power contactor, DILM15-01 290097
local index:
ATA408MOEL
Catalog No:
290097
EAN code:
4015082900977
Manufacturer:
EATON
Type of control voltage: AC
Price:
64,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
DILM power contactors. Contacts according to EN 50012.
For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7-01 – DILM38-01 applies:
• with mirror contacts.
For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7-01 – DILM38-01 applies:
• with mirror contacts.
Technical data
-
Type of control voltageAC
Other technical data
-
Rated control supply voltage AC 50 Hz24 ... 24 V
-
Rated control supply voltage DC0 ... 0 V
-
Rated operation current Ie at AC-1, 400 V22 A
-
Rated operation power at AC-3, 400 V7.5 kW
-
Rated operation power at AC-4, 400 V3 kW
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz24 ... 24 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V15.5 A
-
Rated operation current Ie at AC-4, 400 V7 A
-
Rated operation power NEMA7.4 kW
-
Number of auxiliary contacts as normally open contact0
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,253 |
| Volume (m3) | 0,000 |
| Width (m) | 0,046 |
| Length (m) | 0,079 |
| Depth (m) | 0,070 |
