Descrizione del prodotto

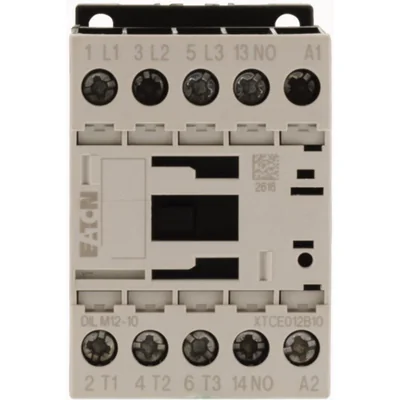

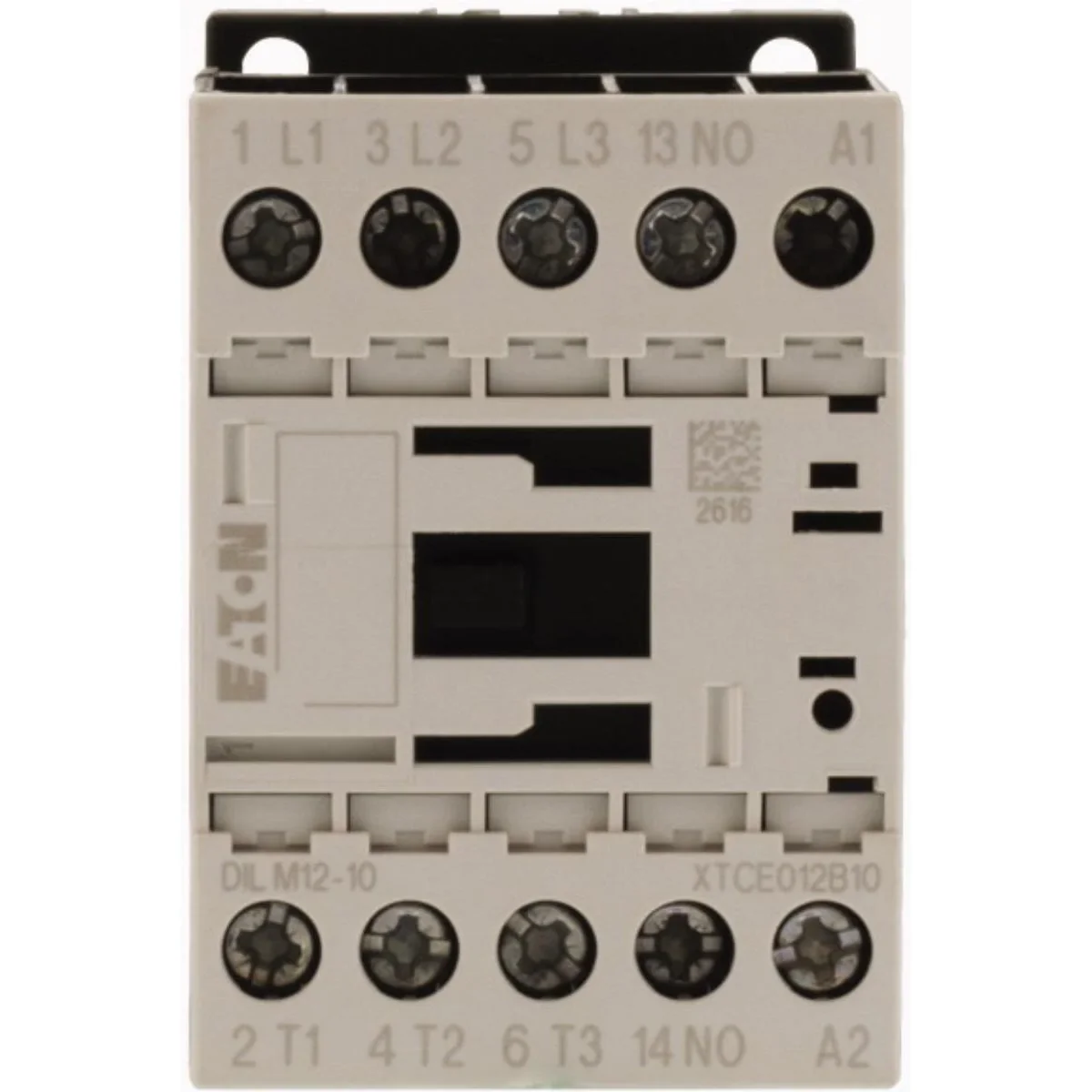

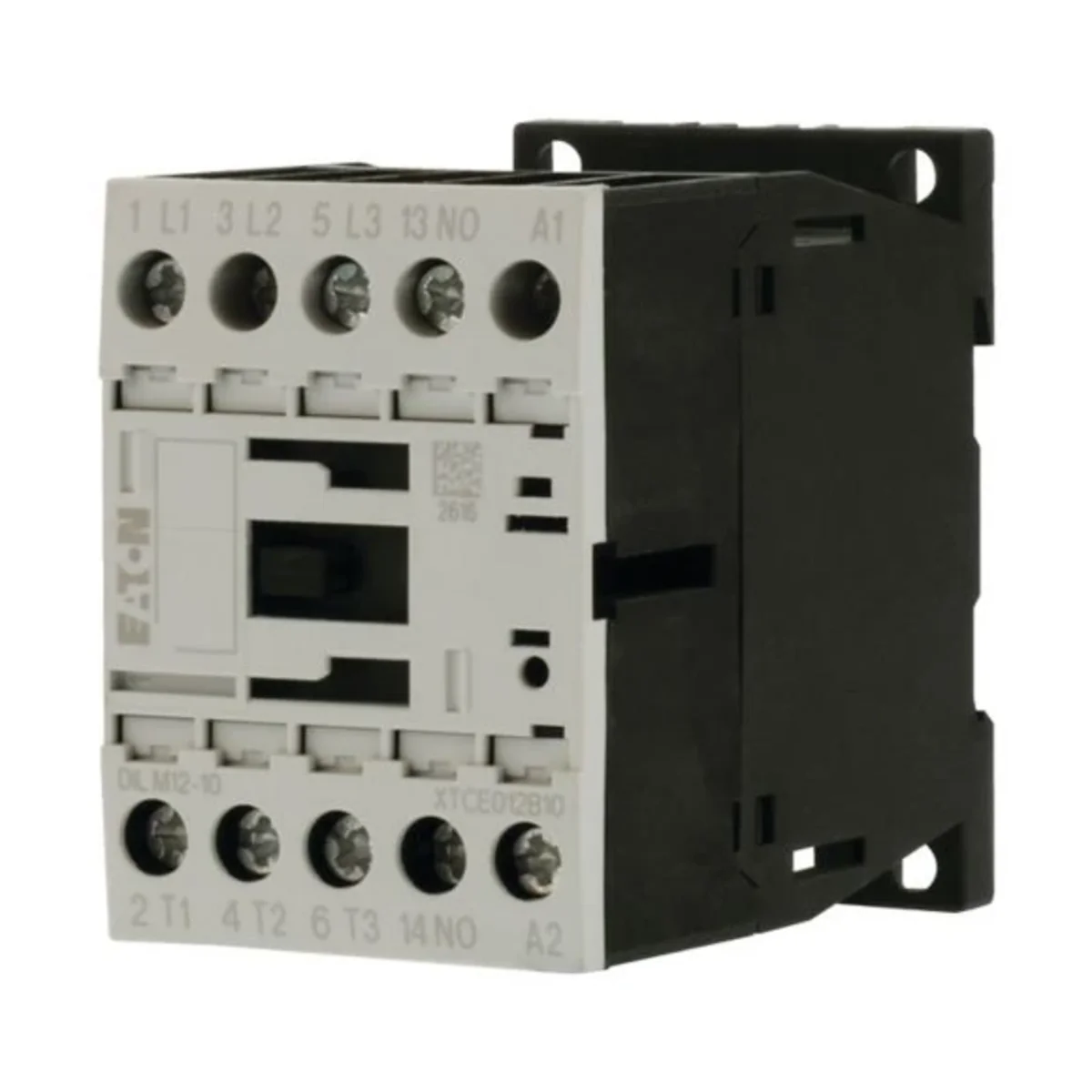

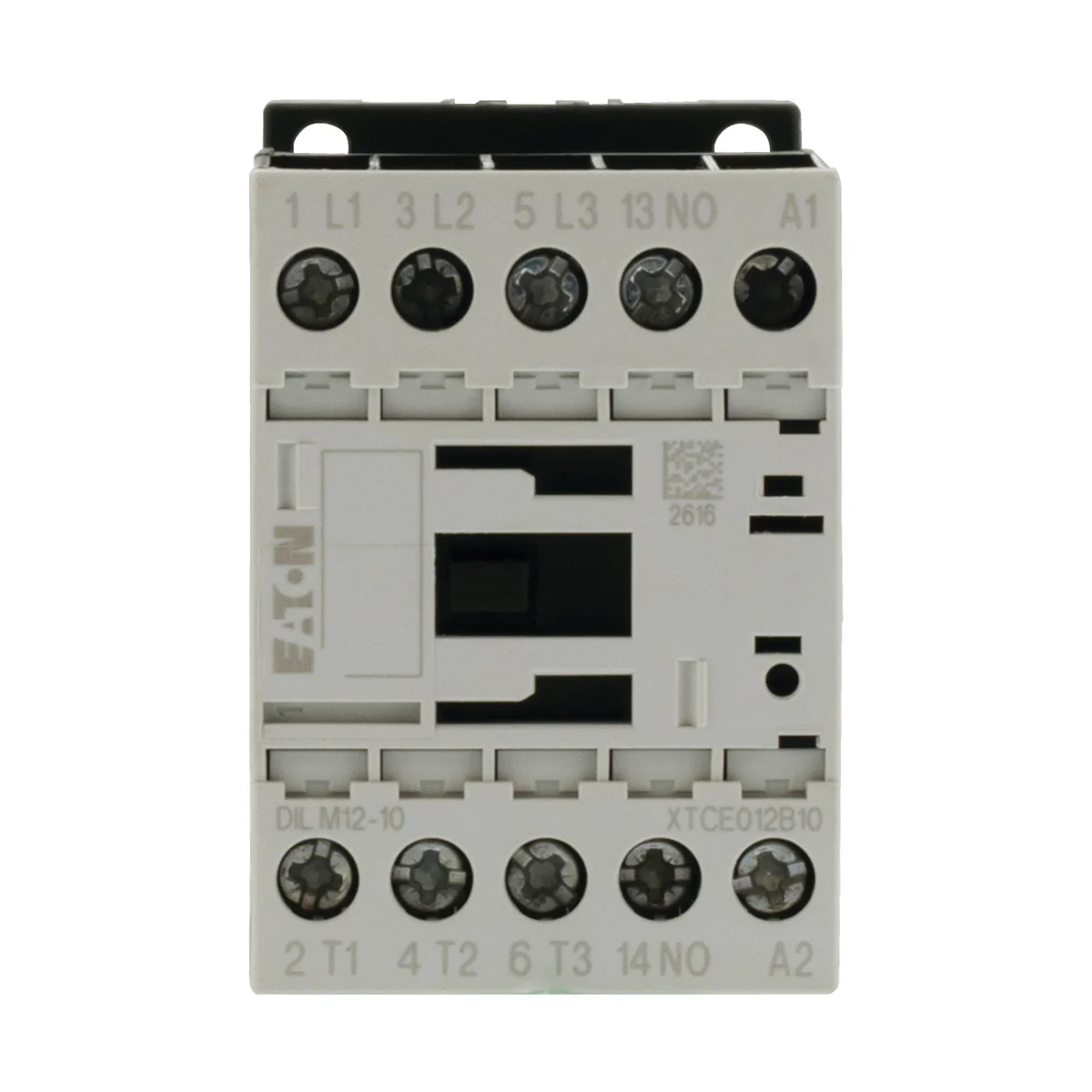

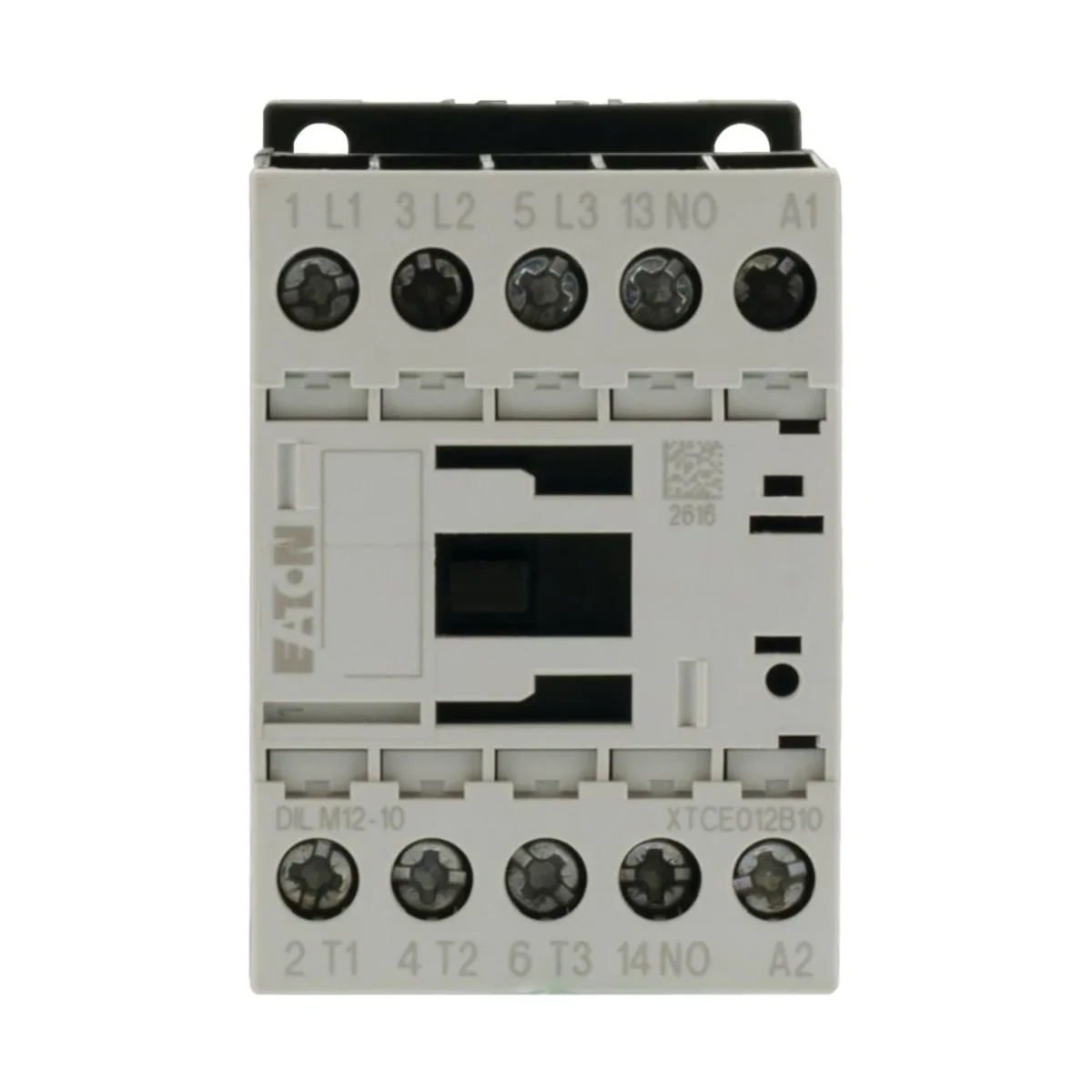

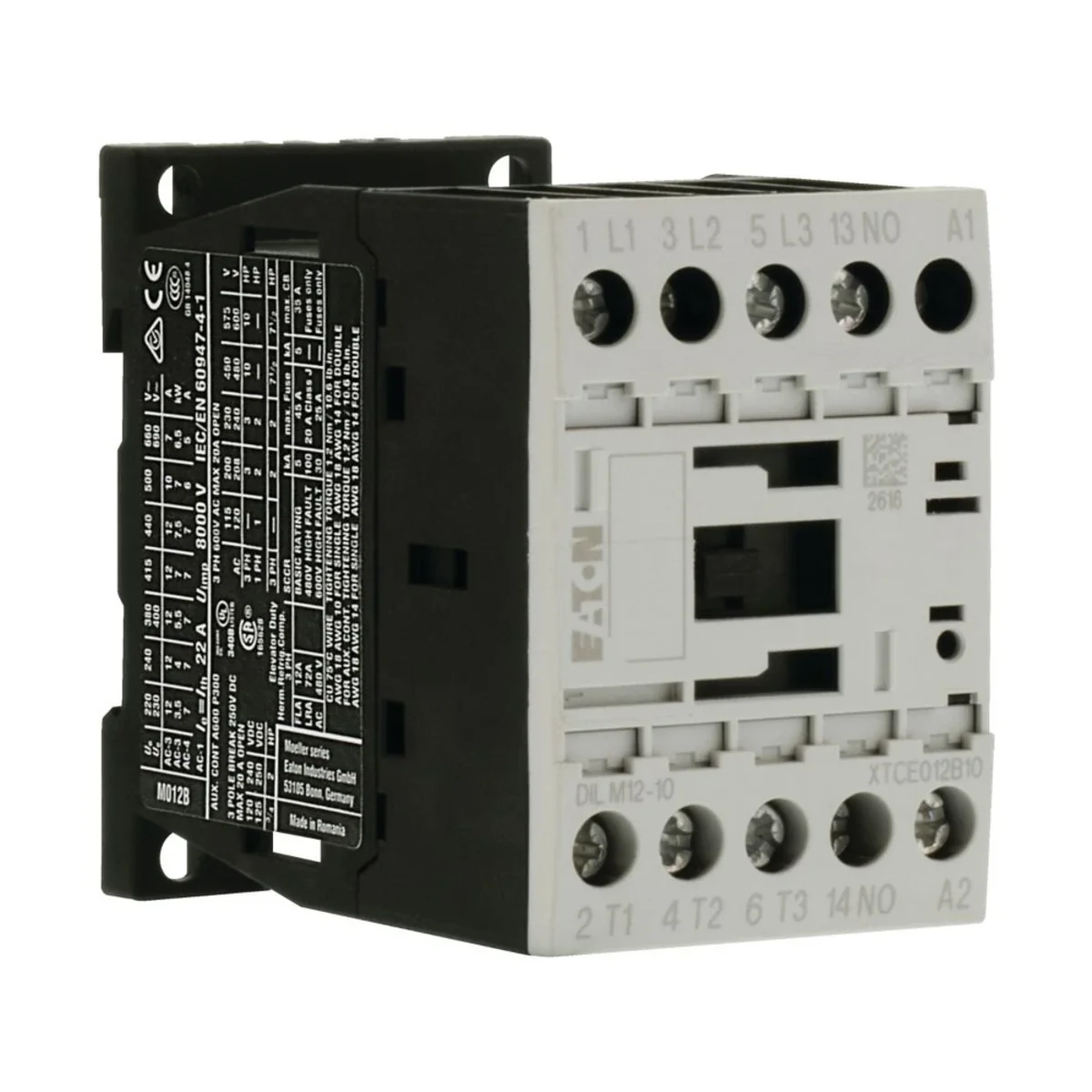

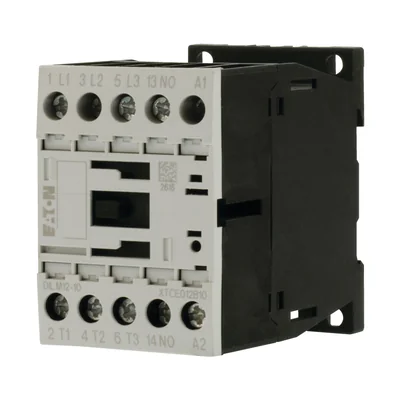

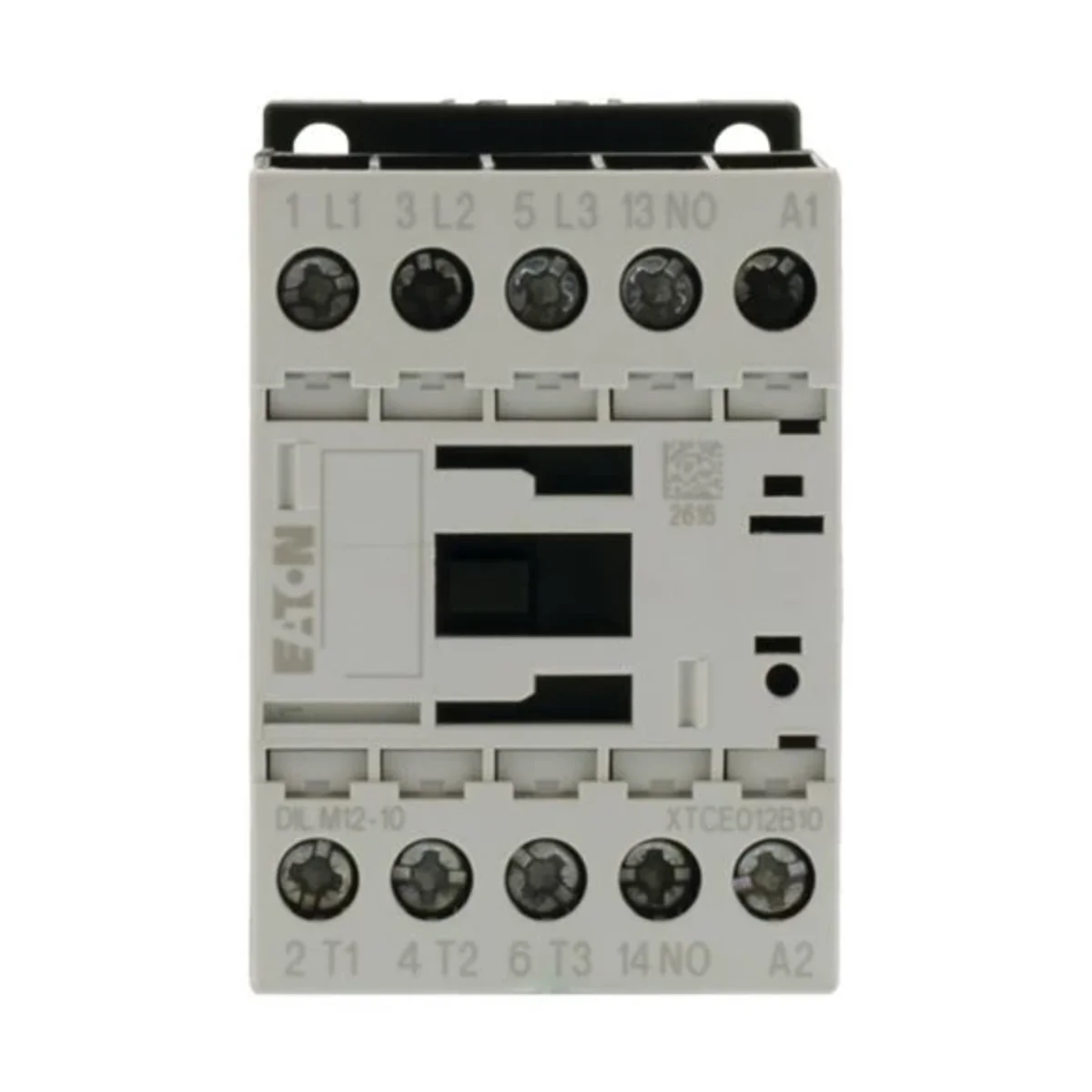

DILM power contactors. Contacts according to EN 50012.
For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7-01 – DILM38-01 applies:
• with mirror contacts.

Number of contacts

1NO 0NC
Rated current [A]

12

Rated voltage [V]

24

Altri dati tecnici

Rated control supply voltage AC 50 Hz

24 ... 24 V
Rated control supply voltage DC

0 ... 0 V
Rated operation current Ie at AC-1, 400 V

22 A
Rated operation power at AC-3, 400 V

5.5 kW
Rated operation power at AC-4, 400 V

3 kW
Modular version

No
Number of auxiliary contacts as normally closed contact

0
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

24 ... 24 V
Voltage type for actuating

AC
Rated operation current Ie at AC-3, 400 V

12 A
Rated operation current Ie at AC-4, 400 V

7 A
Rated operation power NEMA

7.4 kW
Number of auxiliary contacts as normally open contact

1
Type of electrical connection of main circuit

Screw connection
Number of normally open contacts as main contact

3

Dettagli del produttore

Produttore

EATON Electric Sp. z o.o.
Indirizzo

80-299 Gdańsk ul. Galaktyczna 30
Email

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
NIP

5841022327
GLN

5900009970944

Una specie di pacchetto		Skrzynia
Quantità	1 pezzi	1 pezzi
Peso (kg)	0,240	0,253
Volume (m3)	0,000	0,000
Larghezza (m)	0,045	0,046
Lunghezza (m)	0,075	0,079
Profondità (m)	0,068	0,070
