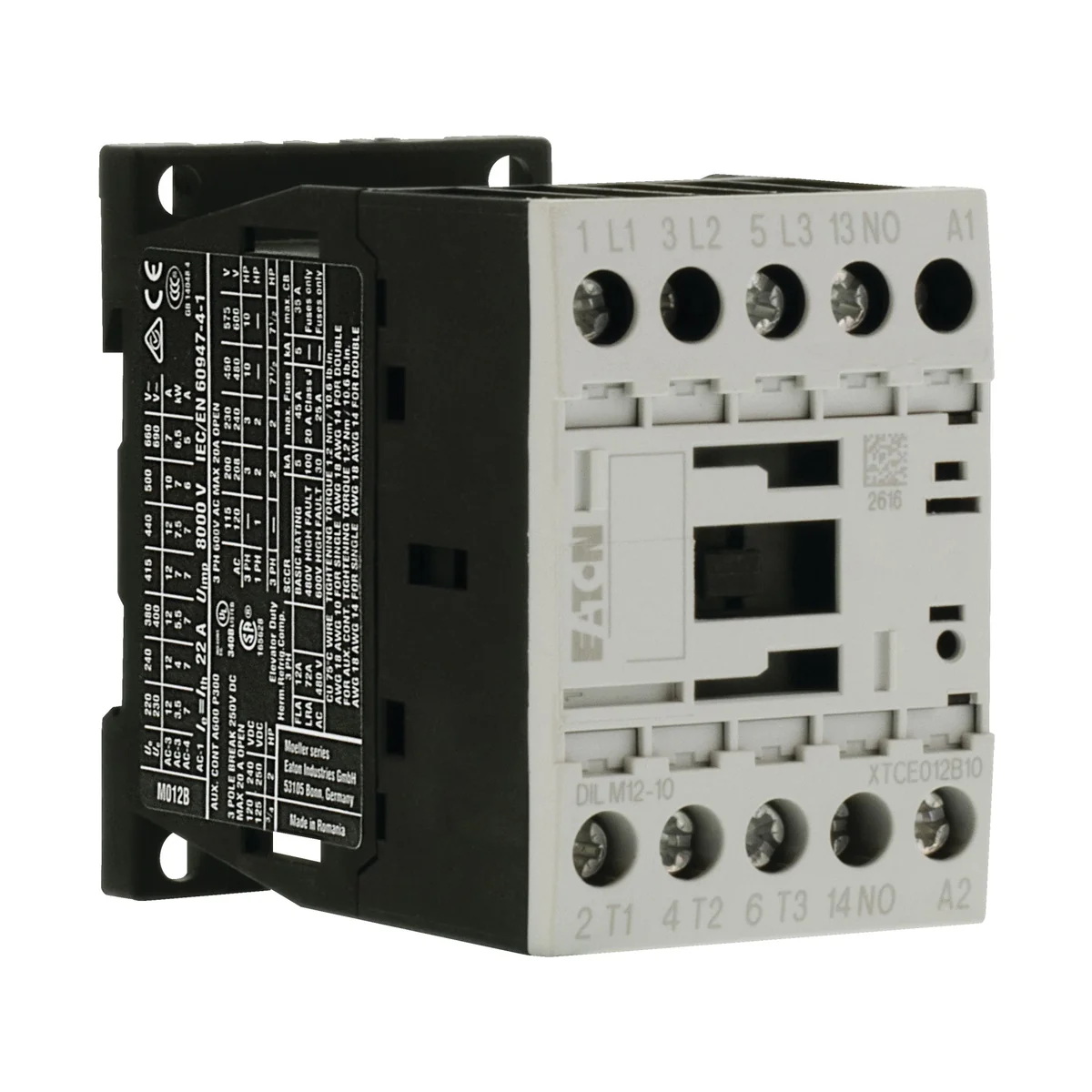

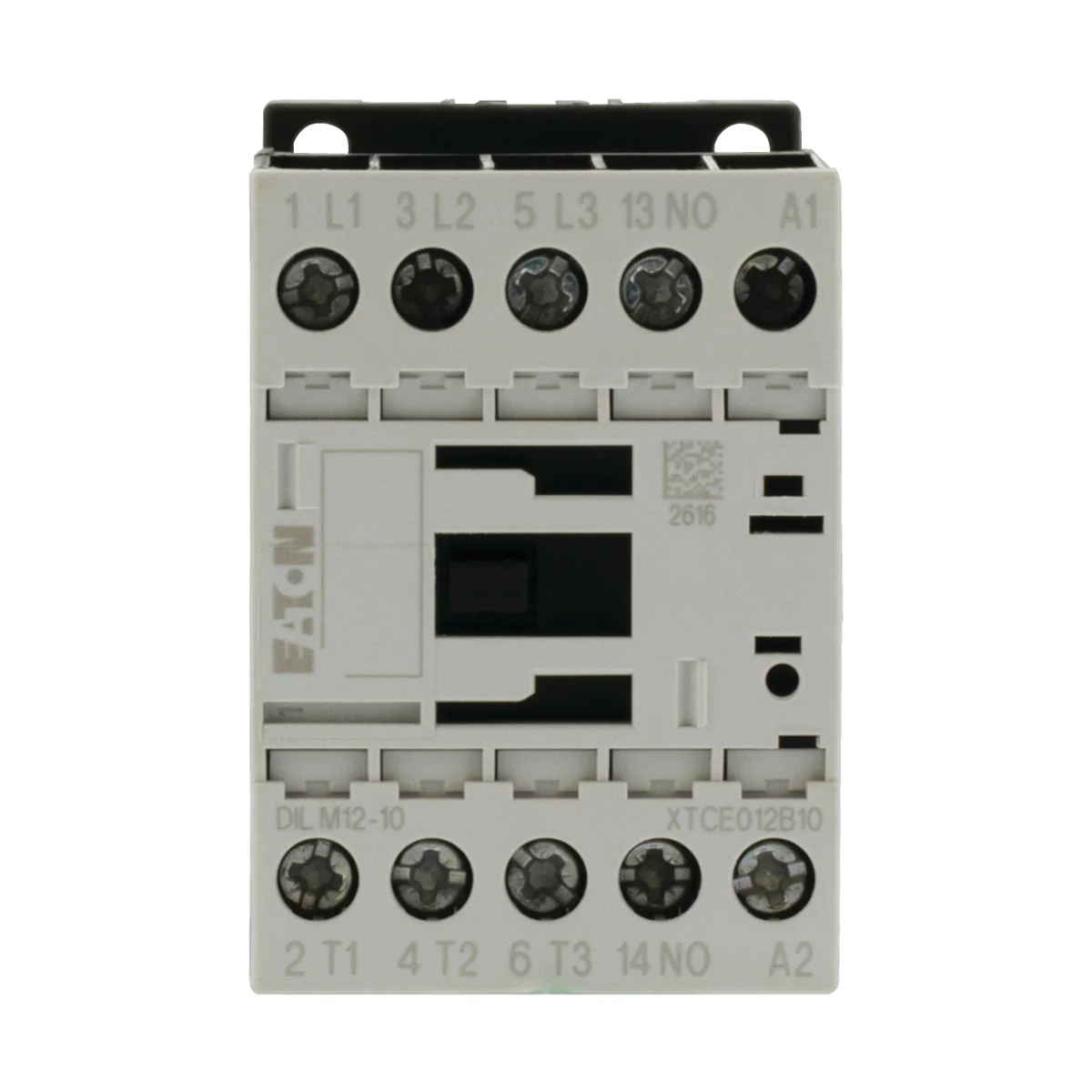

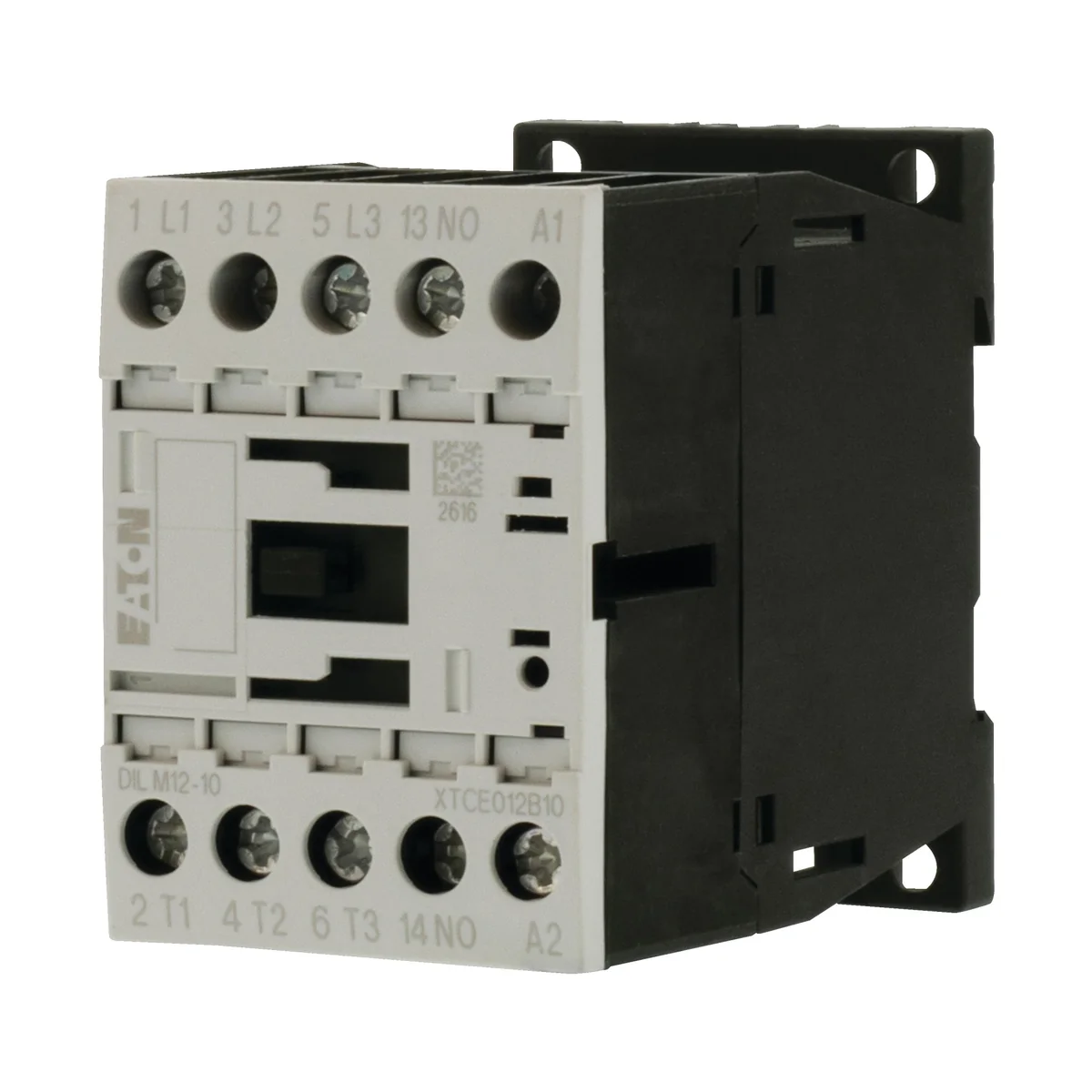

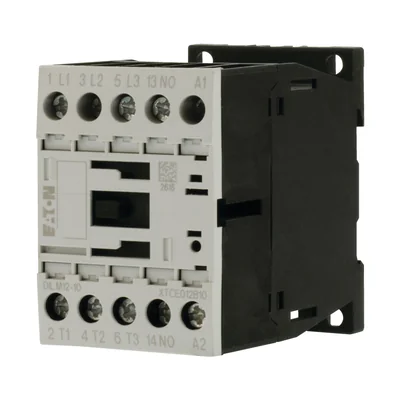

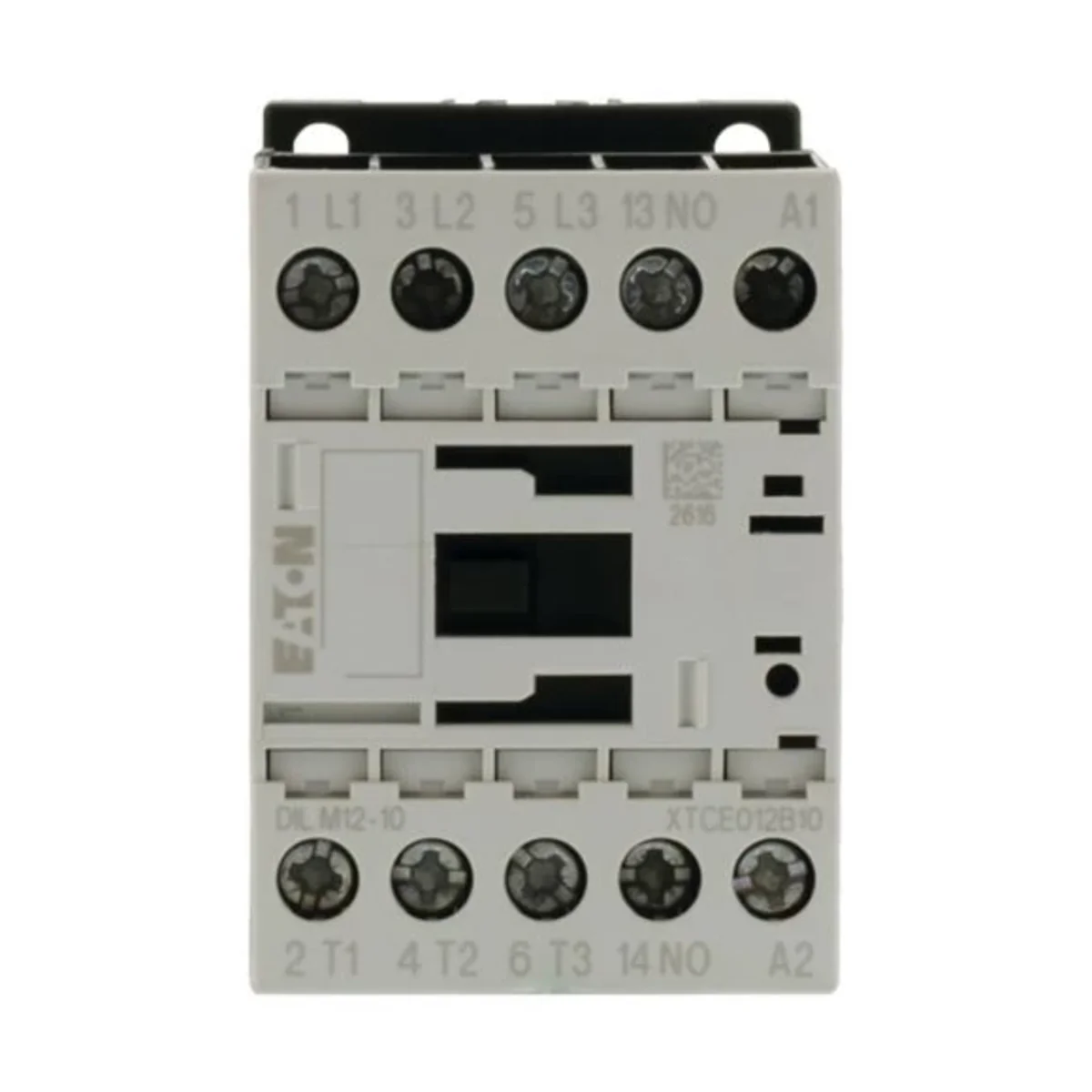

Power contactor, DILM12-10, 12A, 1NC 0R 276827
Index local:
ATA201MOEL
Numéro de catalogue:
276827
Code EAN:
4015082768270
Prix:
50,58 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer
Renseignez-vous sur le produit
Description du produit
DILM power contactors. Contacts according to EN 50012.
For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7-01 – DILM38-01 applies:
• with mirror contacts.
For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7-01 – DILM38-01 applies:
• with mirror contacts.
Données techniques
-
Rated voltage [V]120
-
Rated current [A]12
Autres données techniques
-
Rated control supply voltage AC 50 Hz110 ... 110 V
-
Rated control supply voltage DC0 ... 0 V
-
Rated operation current Ie at AC-1, 400 V22 A
-
Rated operation power at AC-3, 400 V5.5 kW
-
Rated operation power at AC-4, 400 V3 kW
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz120 ... 120 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V12 A
-
Rated operation current Ie at AC-4, 400 V7 A
-
Rated operation power NEMA7.4 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
Détails du fabricant
-
ProducteurEATON ELECTRIC SP. Z O.O.
-
Adresse80-299 UL. GALAKTYCZNA 30
-
E-mail
-
Numéro identifiant TVA5841022327
Emballage en vrac
| Une sorte de paquet | Skrzynia | |
| Quantité | 1 pcs. | 1 pcs. |
| poids (kg) | 0,240 | 0,253 |
| Volume (m3) | 0,000 | 0,000 |
| Largeur (m) | 0,045 | 0,046 |
| Longueur (m) | 0,075 | 0,079 |
| Profondeur (m) | 0,068 | 0,070 |
