Electrical apparatus
contactors
AC contactors

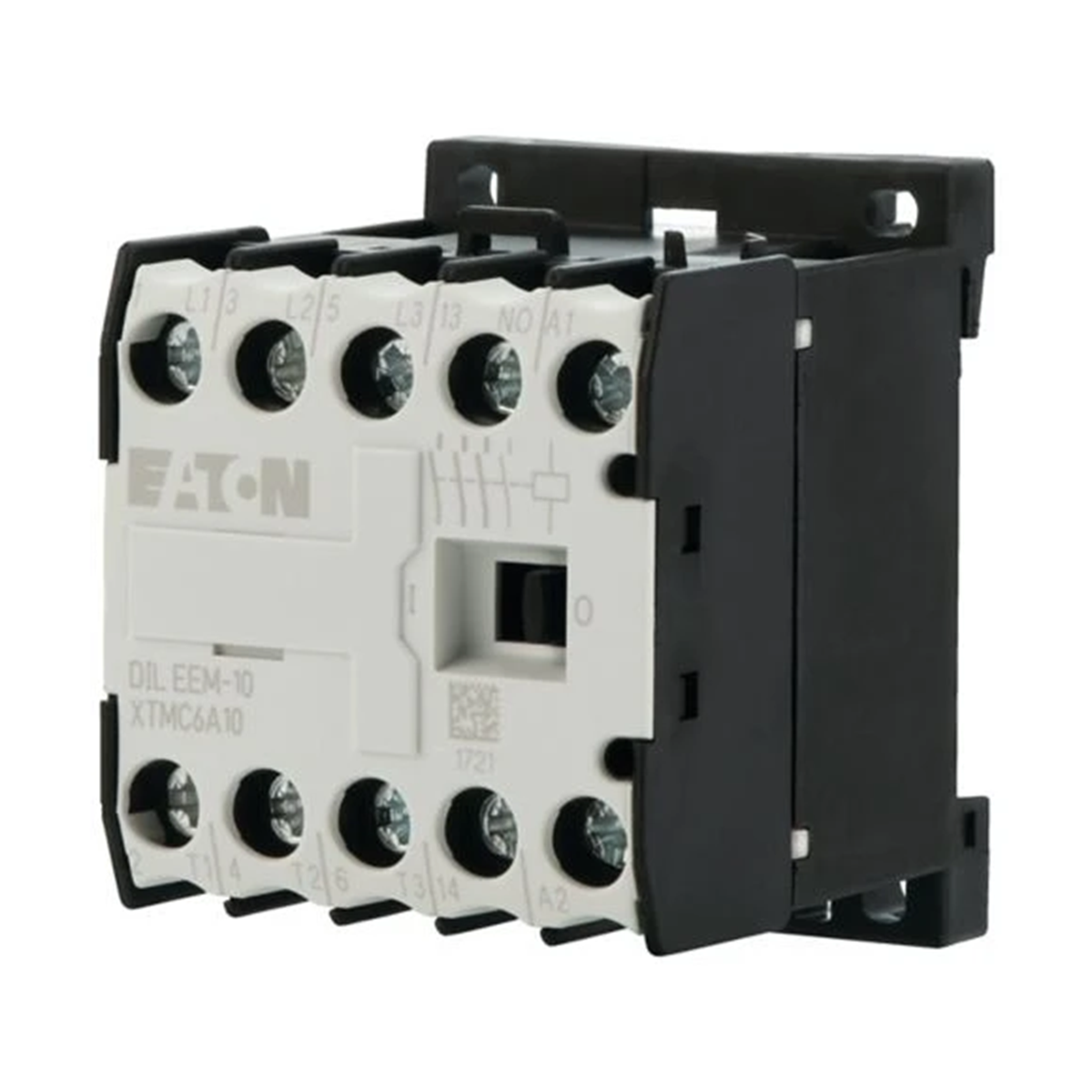

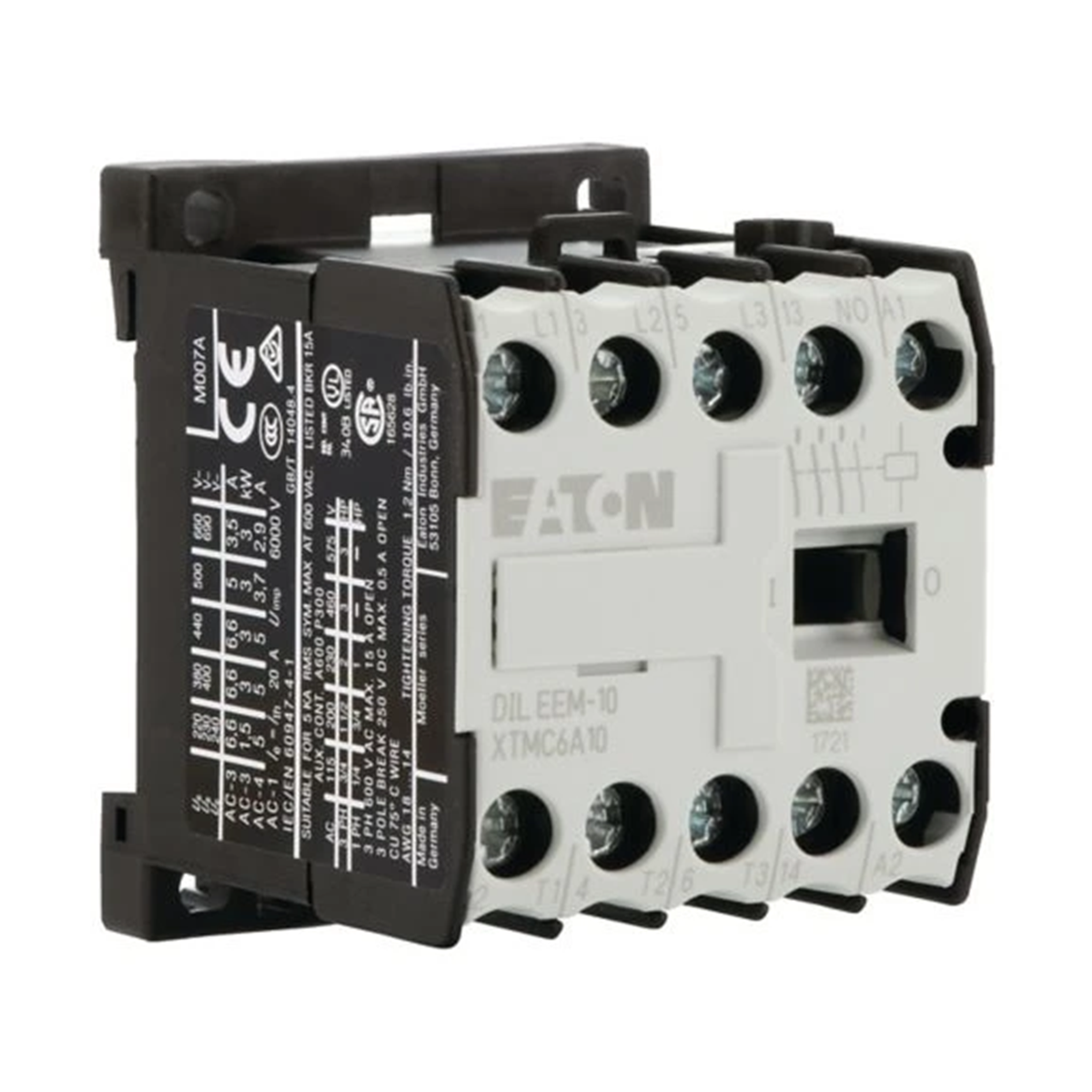

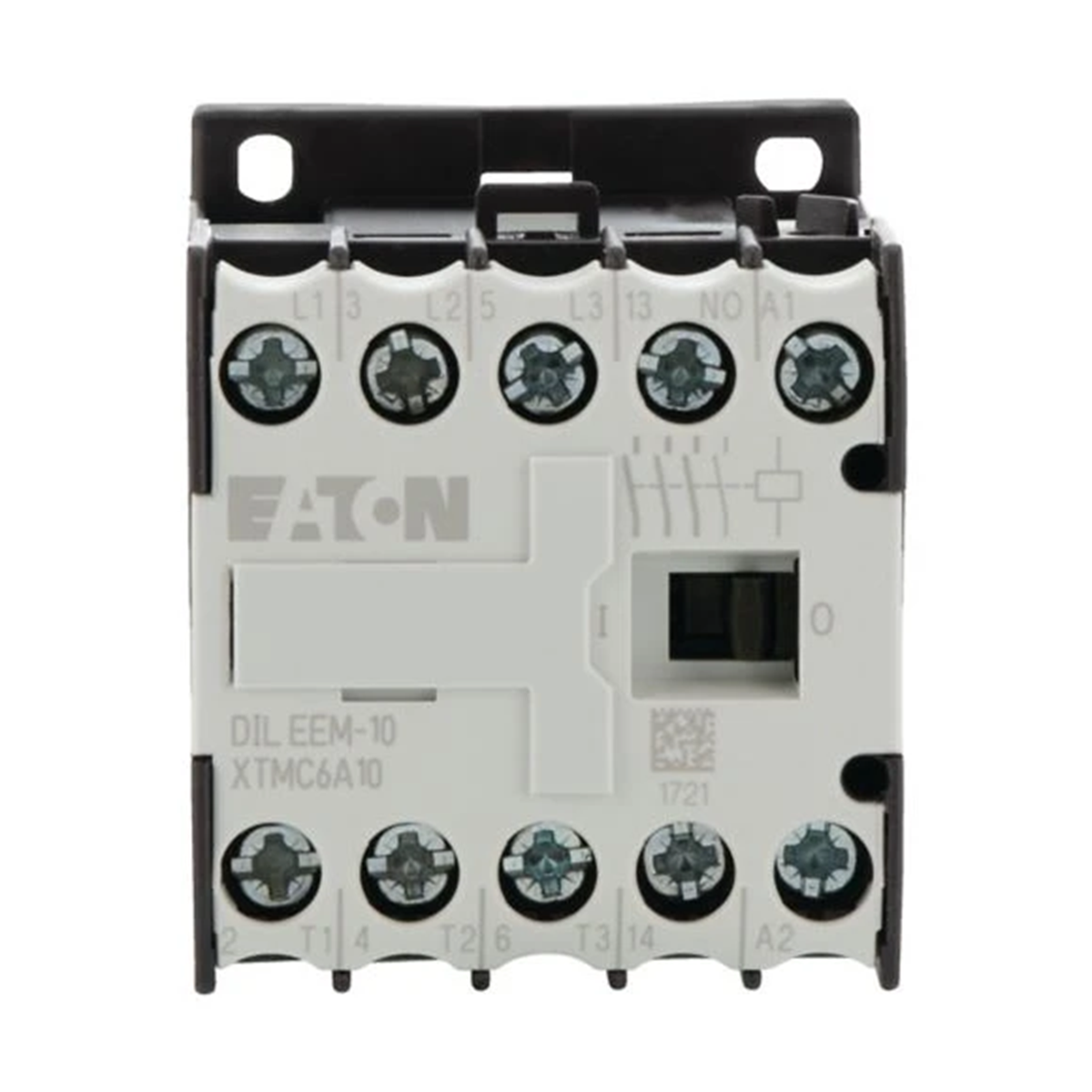

Power contactor, DILEEM-10, 3kW 051608
local index:
ATA002MOEL
Catalog No:
051608
EAN code:
4015080516088
Click on the photo to enlarge
Manufacturer:
EATON
Power [kW]:
3
Rated voltage [V]:
230
See full description
Price:
43,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
5
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Small auxiliary contactors, auxiliary contactors. DILEEM AC.
Technical data
Power [kW]
3
Rated voltage [V]
230
Other technical data
Rated control supply voltage AC 50 Hz
230 ... 230 V
Rated control supply voltage DC
0 ... 0 V
Rated operation current Ie at AC-1, 400 V
22 A
Rated operation power at AC-3, 400 V
3 kW
Rated operation power at AC-4, 400 V
2.2 kW
Modular version
No
Number of auxiliary contacts as normally closed contact
0
Number of normally closed contacts as main contact
0
Rated control supply voltage AC 60 Hz
240 ... 240 V
Voltage type for actuating
AC
Rated operation current Ie at AC-3, 400 V
6.6 A
Rated operation current Ie at AC-4, 400 V
5 A
Rated operation power NEMA
2.2 kW
Number of auxiliary contacts as normally open contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally open contacts as main contact
3
Bulk packaging
A kind of package
Skrzynia
Karton
Quantity
1 pcs.
5 pcs.
Weight (kg)
0,184
0,920
Volume (m3)
0,000
0,001
Width (m)
0,047
0,055
Length (m)
0,054
0,240
Depth (m)
0,060
0,063
