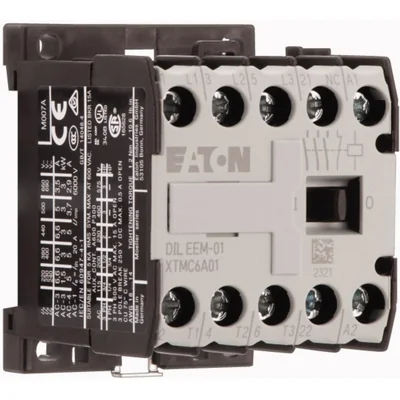

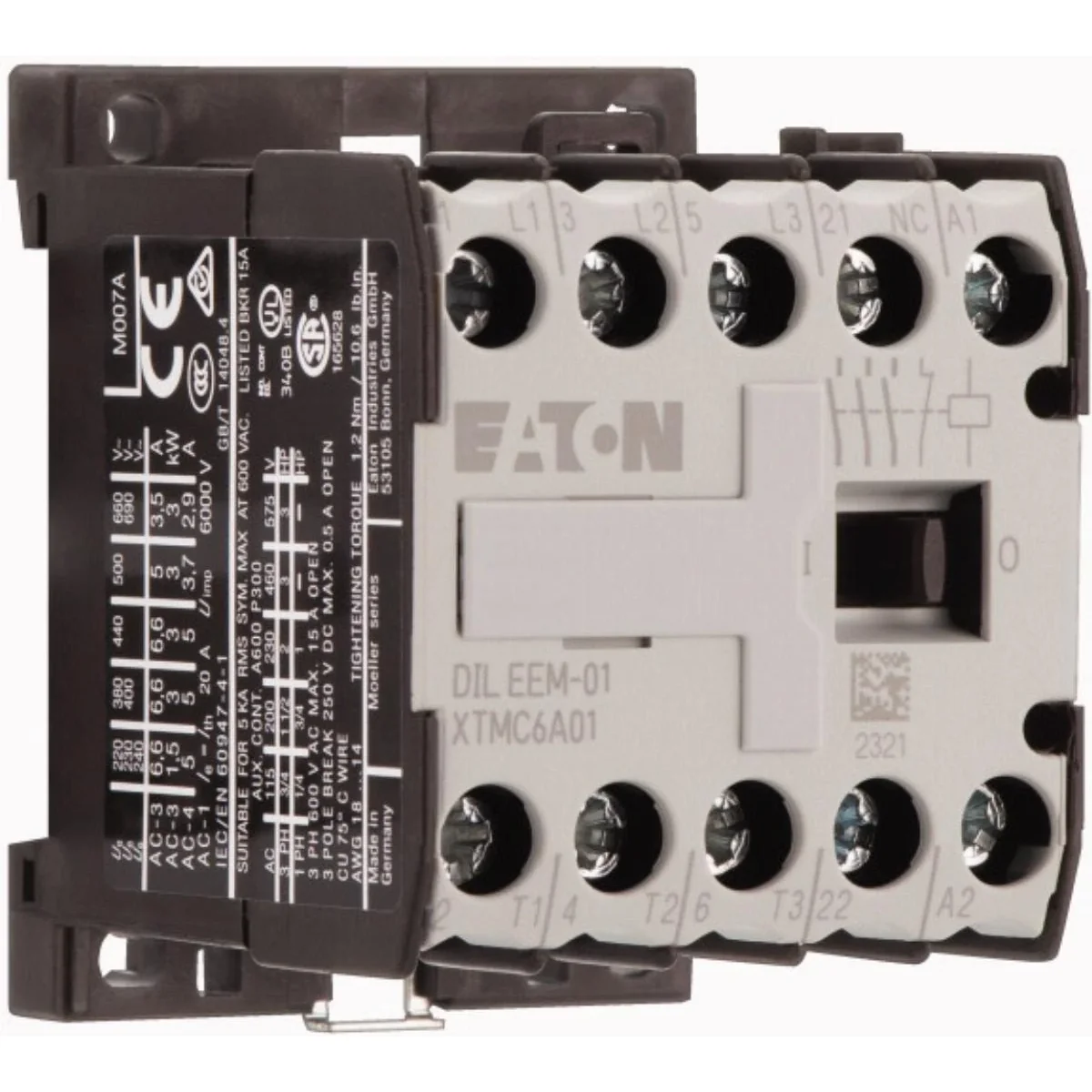

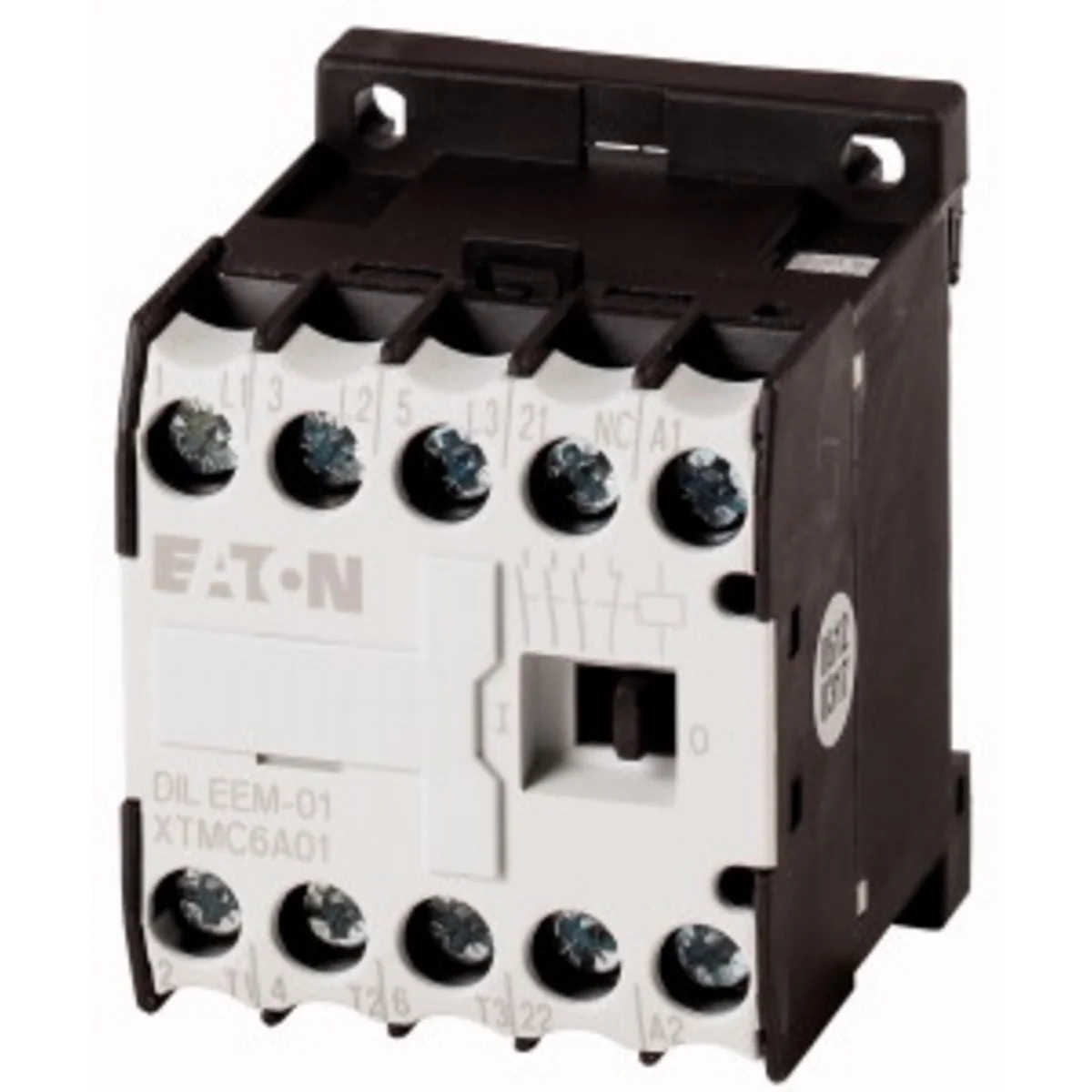

Power contactor, DILEEM-01-G, 6.6A 051650

local index:
ATD059MOEL
Catalog No:
051650
EAN code:
4015080516507
Manufacturer: EATON
Power [kW]: 3
Rated voltage [V]: 420
Rated current [A]: 6.6
Price:
60,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
5
)
Print

Product description

DILE(E)M power contactors (small dimensions)

Technical data

  • Power [kW]
    3
  • Rated current [A]
    6.6
  • Rated voltage [V]
    420

Other technical data

  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    24 ... 24 V
  • Rated operation current Ie at AC-1, 400 V
    22 A
  • Rated operation power at AC-3, 400 V
    3 kW
  • Rated operation power at AC-4, 400 V
    2.2 kW
  • Modular version
    no
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Rated operation current Ie at AC-3, 400 V
    6.6 A
  • Rated operation current Ie at AC-4, 400 V
    5 A
  • Rated operation power NEMA
    2.2 kW
  • Number of auxiliary contacts as normally open contact
    0
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 5 pcs.
Weight (kg) 0,220 1,100
Volume (m3) 0,000 0,001
Width (m) 0,047 0,055
Length (m) 0,056 0,240
Depth (m) 0,060 0,063
