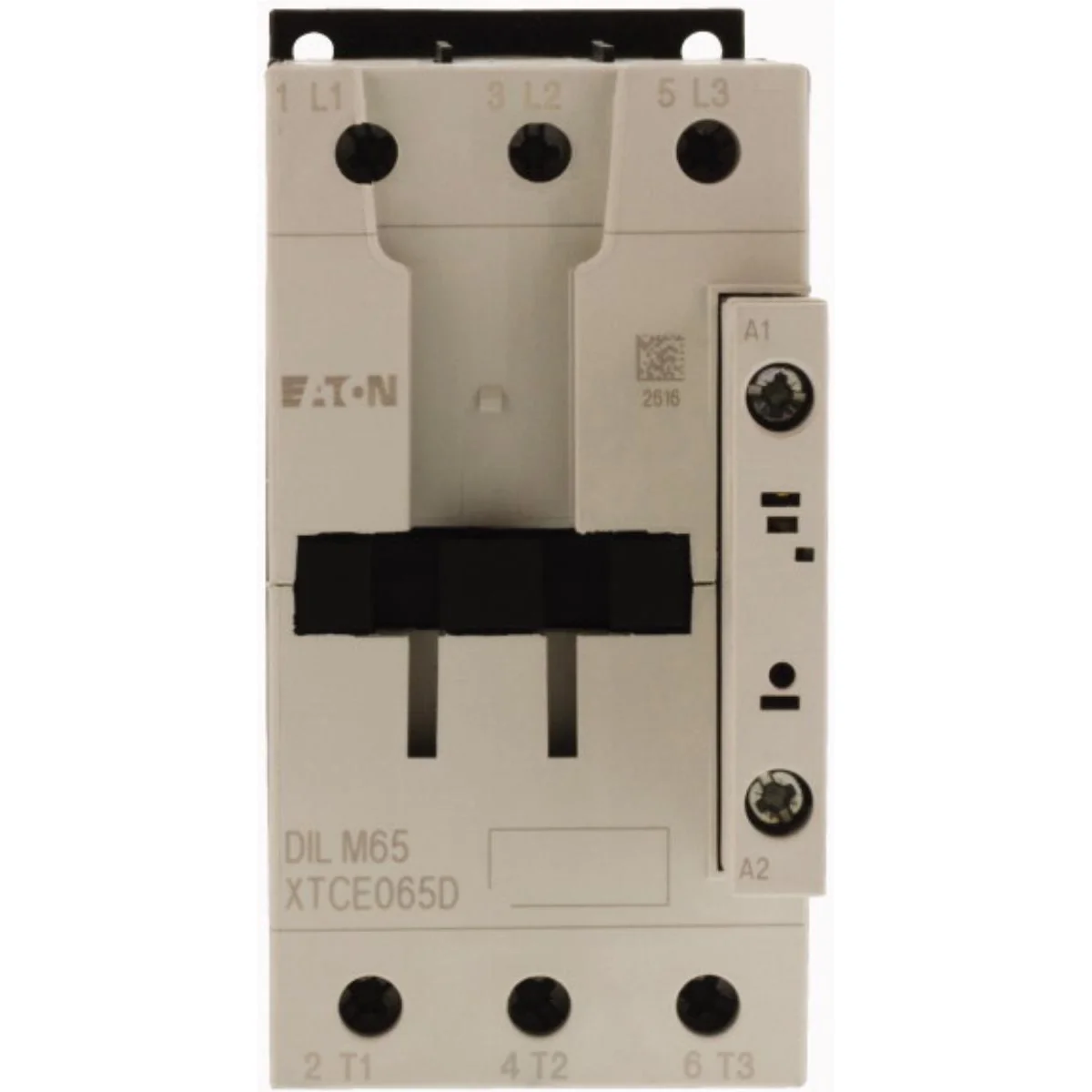

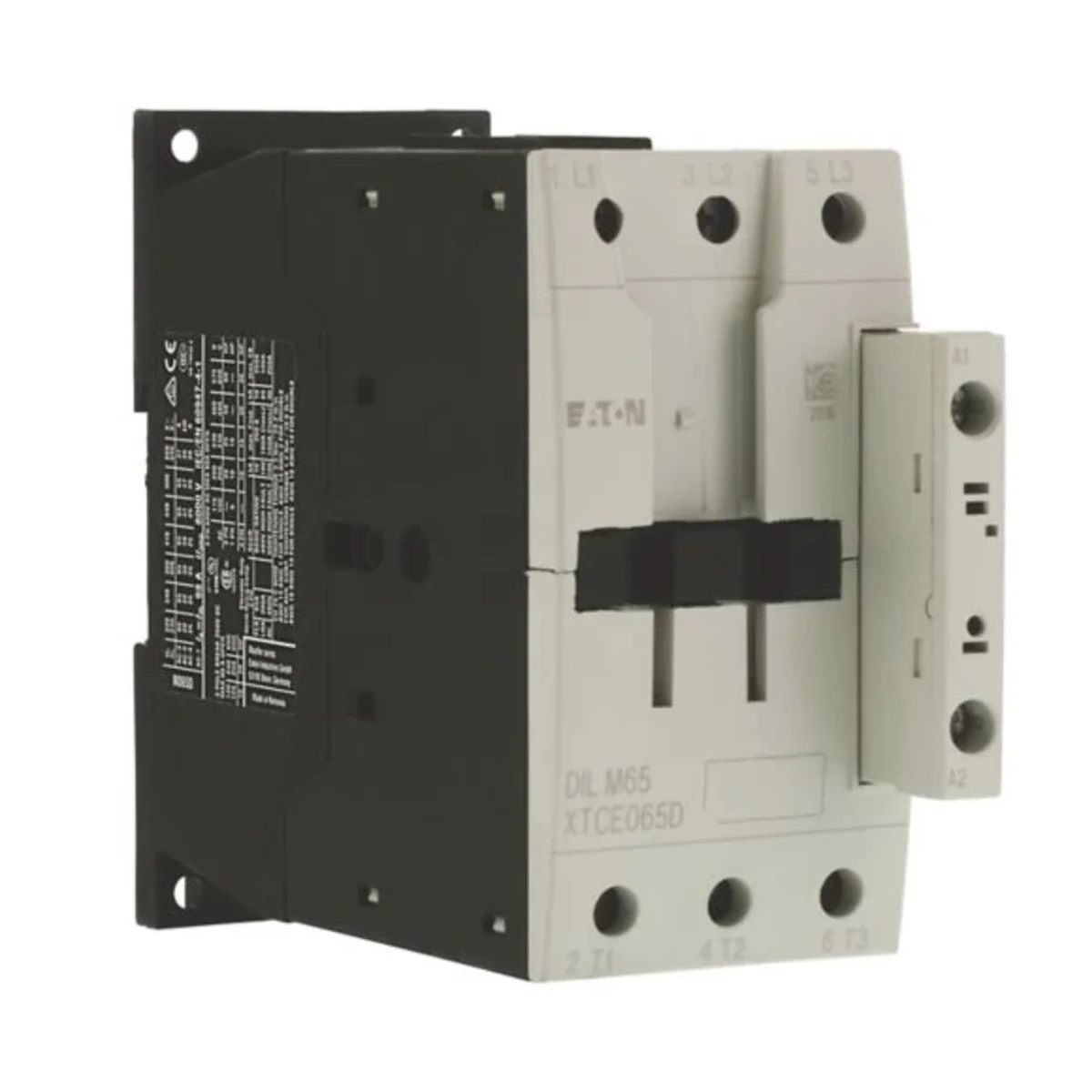

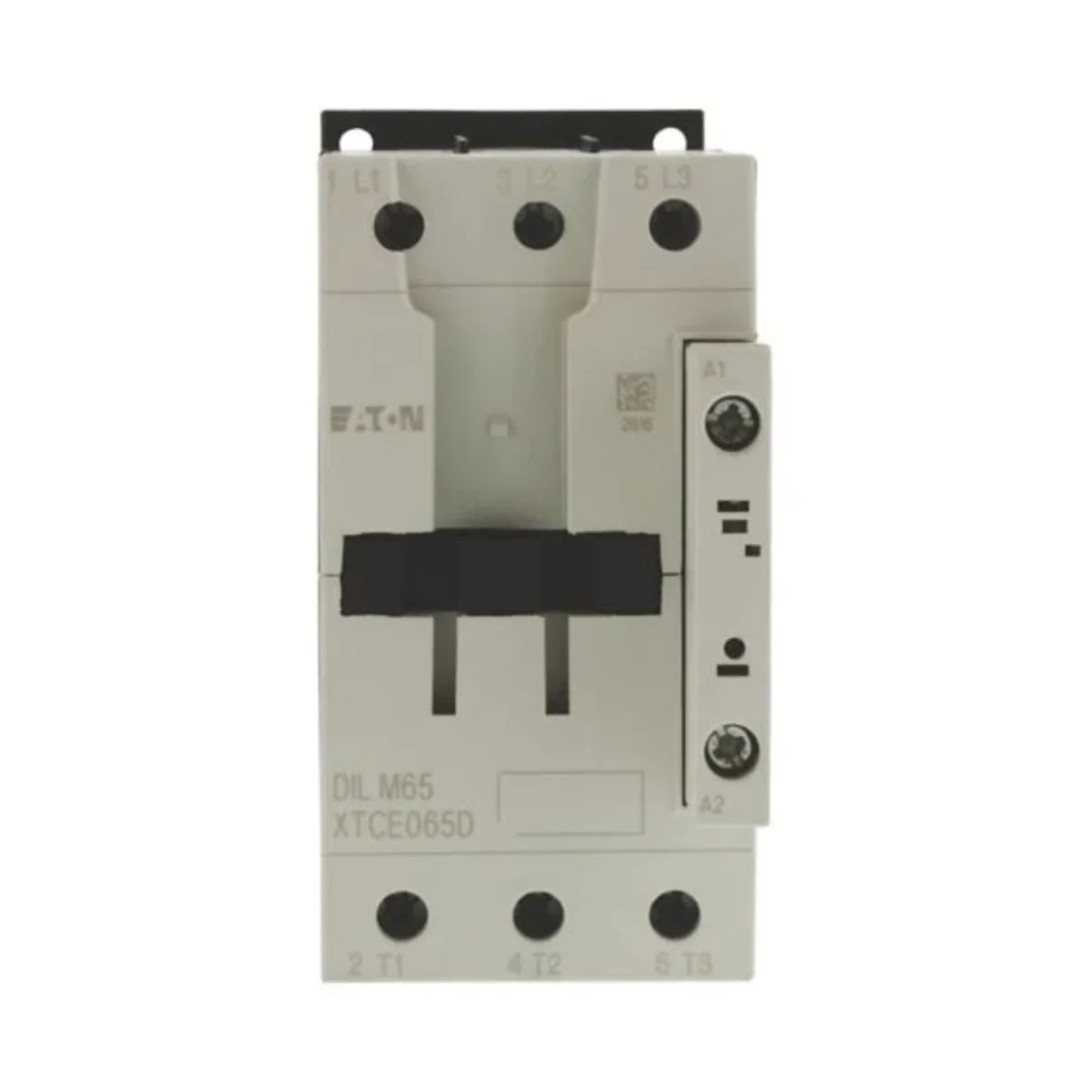

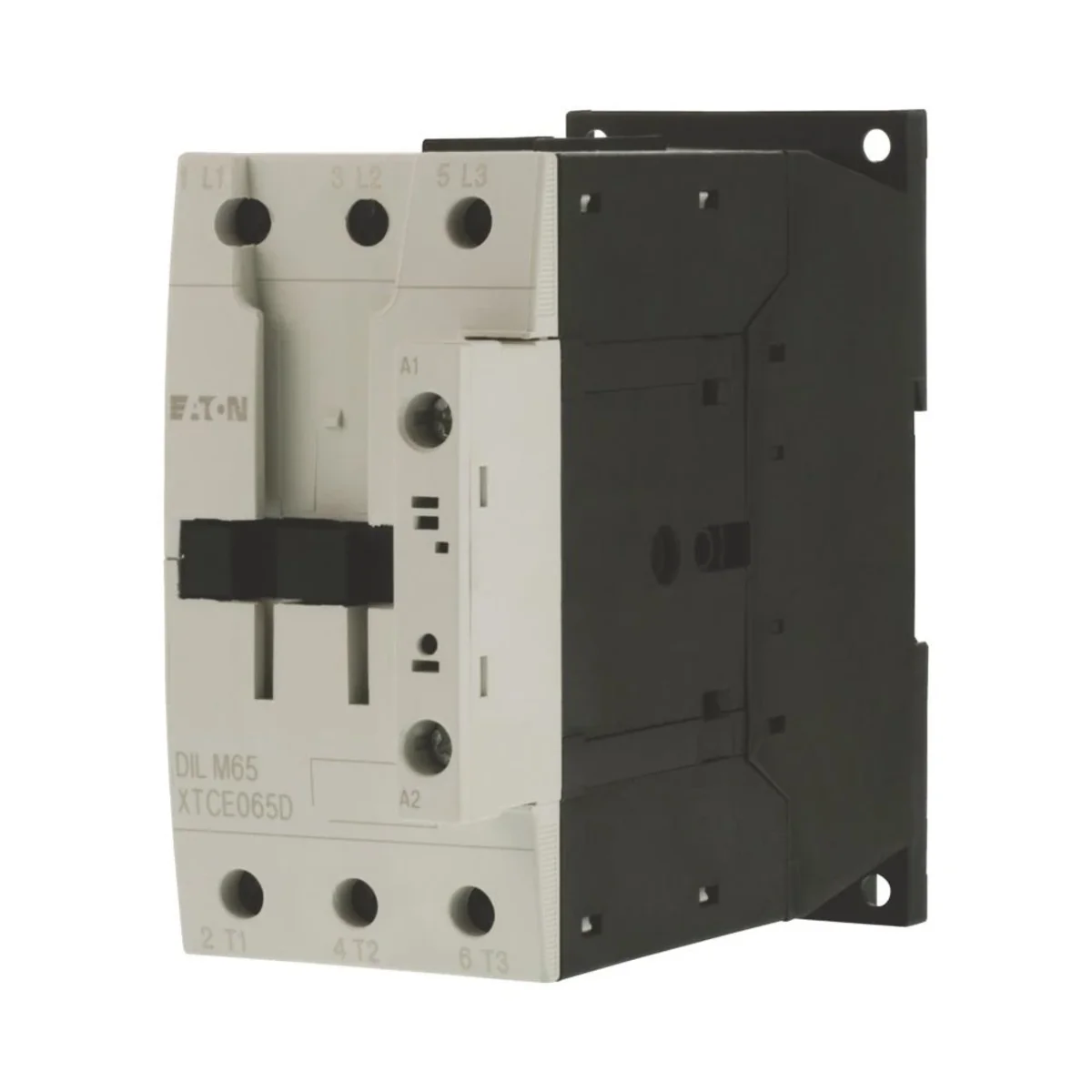

Power contactor, 65A, DILM65(RDC130) 277910

Indice locale:
ATD163MOEL
Numero di catalogo:
277910
Codice EAN:
4015082779108
Produttore: EATON
Rated voltage [V]: 120
Rated current [A]: 65
Prezzo:
466,00 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 2 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Power contactor, I=65A [AC-3]:

Dati tecnici

  • Rated voltage [V]
    120
  • Rated current [A]
    65

Altri dati tecnici

  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    110 ... 130 V
  • Rated operation current Ie at AC-1, 400 V
    98 A
  • Rated operation power at AC-3, 400 V
    30 kW
  • Rated operation power at AC-4, 400 V
    12 kW
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Rated operation current Ie at AC-3, 400 V
    65 A
  • Rated operation current Ie at AC-4, 400 V
    25 A
  • Rated operation power NEMA
    37 kW
  • Number of auxiliary contacts as normally open contact
    0
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3

Dettagli del produttore

  • Produttore
    Eaton Electric Sp. z o.o.
  • Indirizzo
    80-299 Gdańsk Galaktyczna 30 Polska

Imballaggio sfuso

Una specie di pacchetto Skrzynia Skrzynia
Quantità 1 pezzi 1 pezzi
Peso (kg) 1,103 1,103
Volume (m3) 0,001 0,001
Larghezza (m) 0,057 0,057
Lunghezza (m) 0,151 0,151
Profondità (m) 0,118 0,118
