Power Contactor, 65A, 2NC 2NC, DILM65-22(RDC24) 277940

Name: Power Contactor, 65A, 2NC 2NC, DILM65-22(RDC24)
Brand: EATON
SKU: ATA217MOEL
Price: 2368.43 PLN
Availability: BackOrder

Index local:

ATA217MOEL

Numéro de catalogue:

277940

Code EAN:

4015082779405

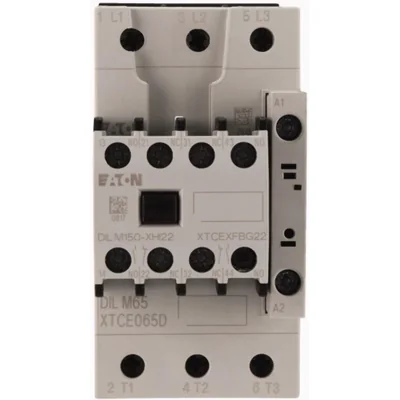

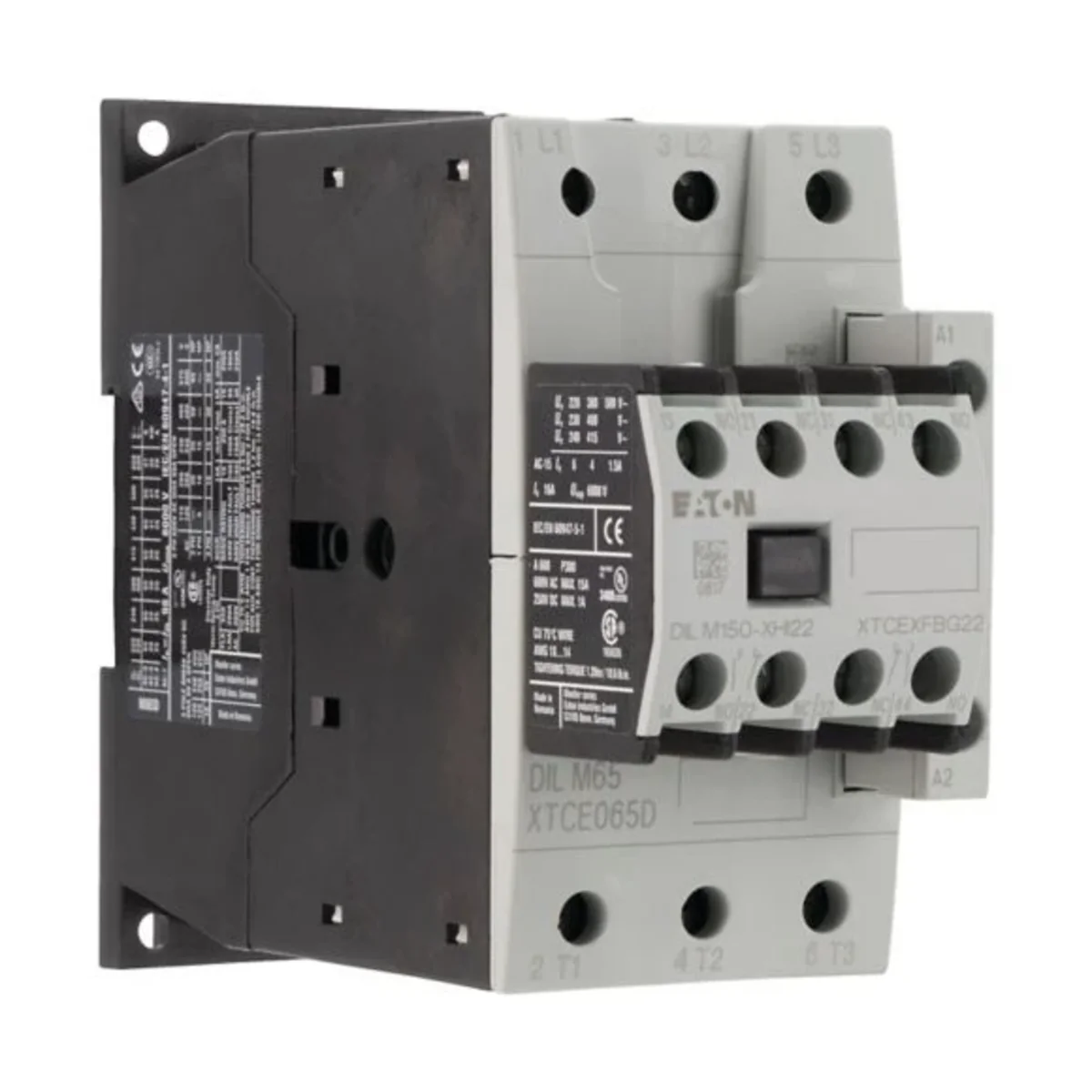

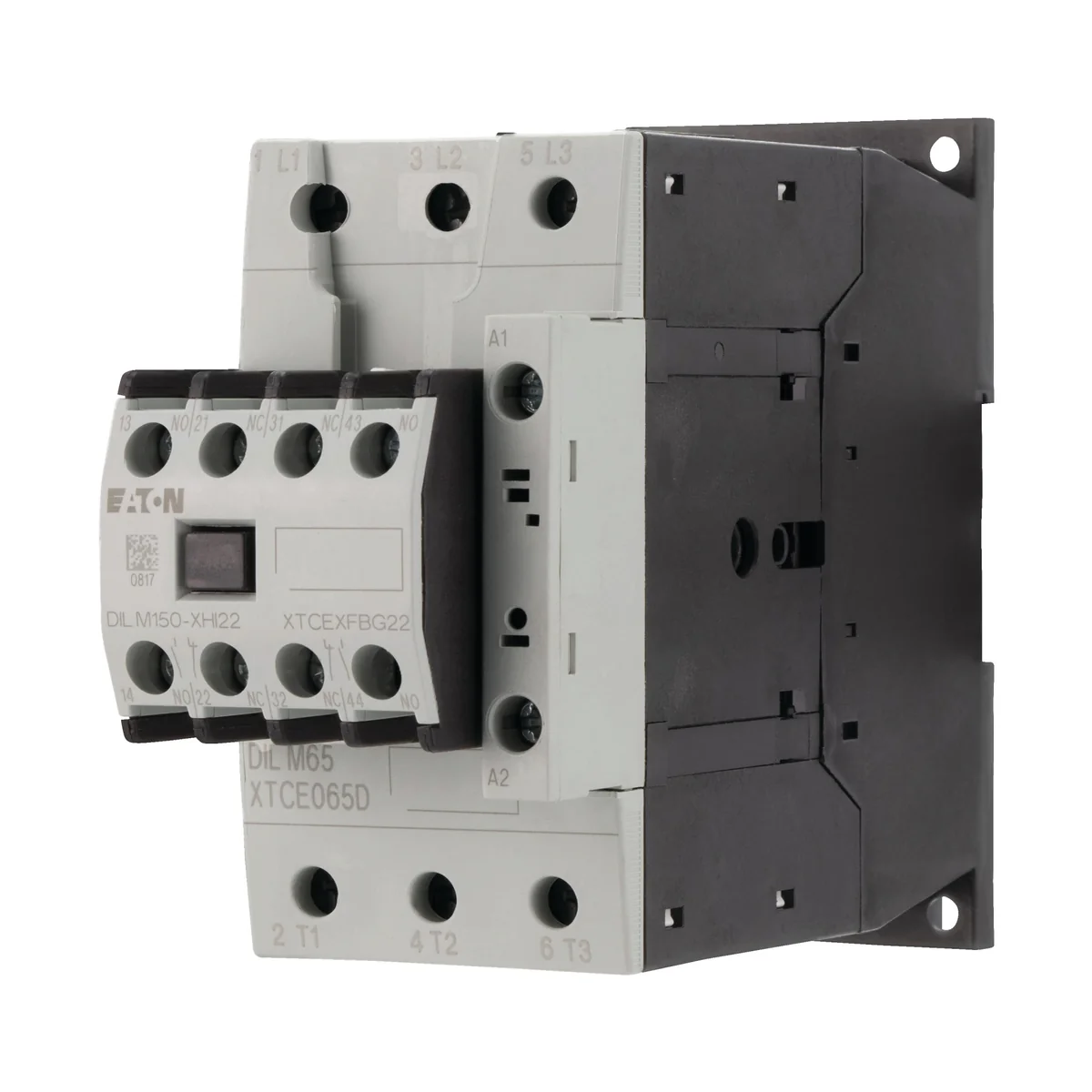

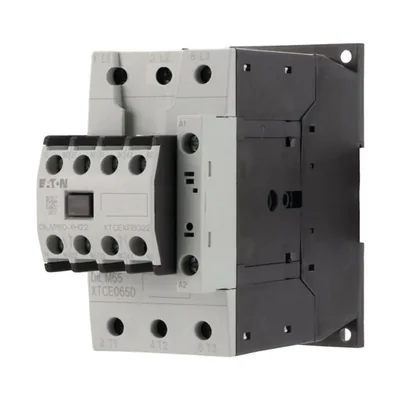

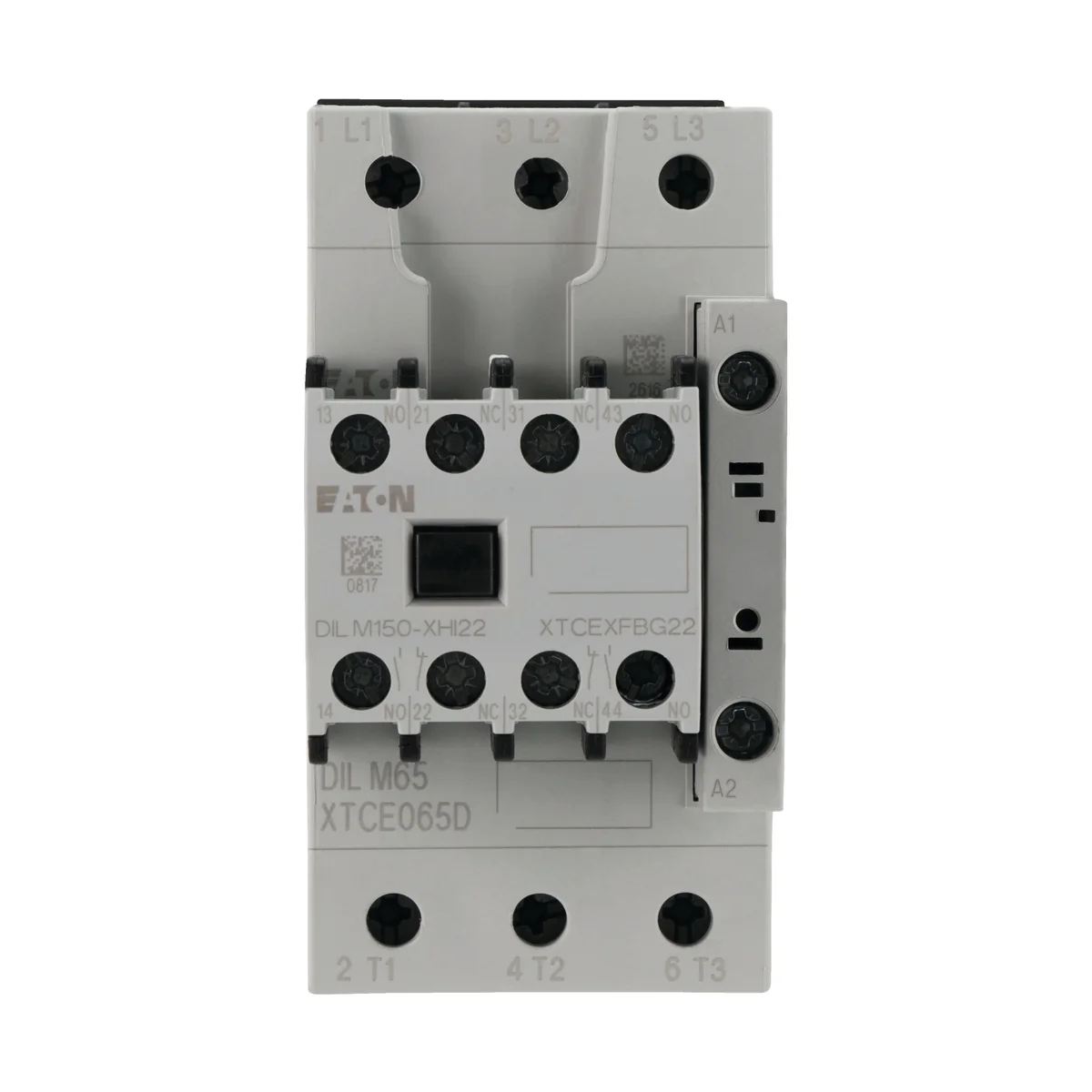

Power Contactor, 65A, 2NC 2NC, DILM65-22(RDC24)

Cliquer sur la photo pour l'agrandir

Producteur: EATON

Rated voltage [V]: 24

Rated current [A]: 65

Voir la description complète

Prix:

2 368,43 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 2 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

DILM power contactors. For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.

Données techniques

Rated voltage [V]

24

Rated current [A]

65

Autres données techniques

Rated control supply voltage AC 50 Hz

0 ... 0 V
Rated control supply voltage DC

24 ... 27 V
Rated operation current Ie at AC-1, 400 V

98 A
Rated operation power at AC-3, 400 V

30 kW
Rated operation power at AC-4, 400 V

12 kW
Modular version

No
Number of auxiliary contacts as normally closed contact

2
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

0 ... 0 V
Voltage type for actuating

DC
Rated operation current Ie at AC-3, 400 V

65 A
Rated operation current Ie at AC-4, 400 V

25 A
Rated operation power NEMA

37 kW
Number of auxiliary contacts as normally open contact

2
Type of electrical connection of main circuit

Screw connection
Number of normally open contacts as main contact

3

Détails du fabricant

Producteur

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Emballage en vrac

Une sorte de paquet	Skrzynia	Karton	Skrzynia	Karton
Quantité	1 pcs.	1 pcs.	1 pcs.	1 pcs.
poids (kg)	1,082	1,133	1,082	1,133
Volume (m3)	0,001	0,001	0,001	0,001
Largeur (m)	0,057	0,057	0,057	0,057
Longueur (m)	0,149	0,151	0,149	0,151
Profondeur (m)	0,117	0,118	0,117	0,118
