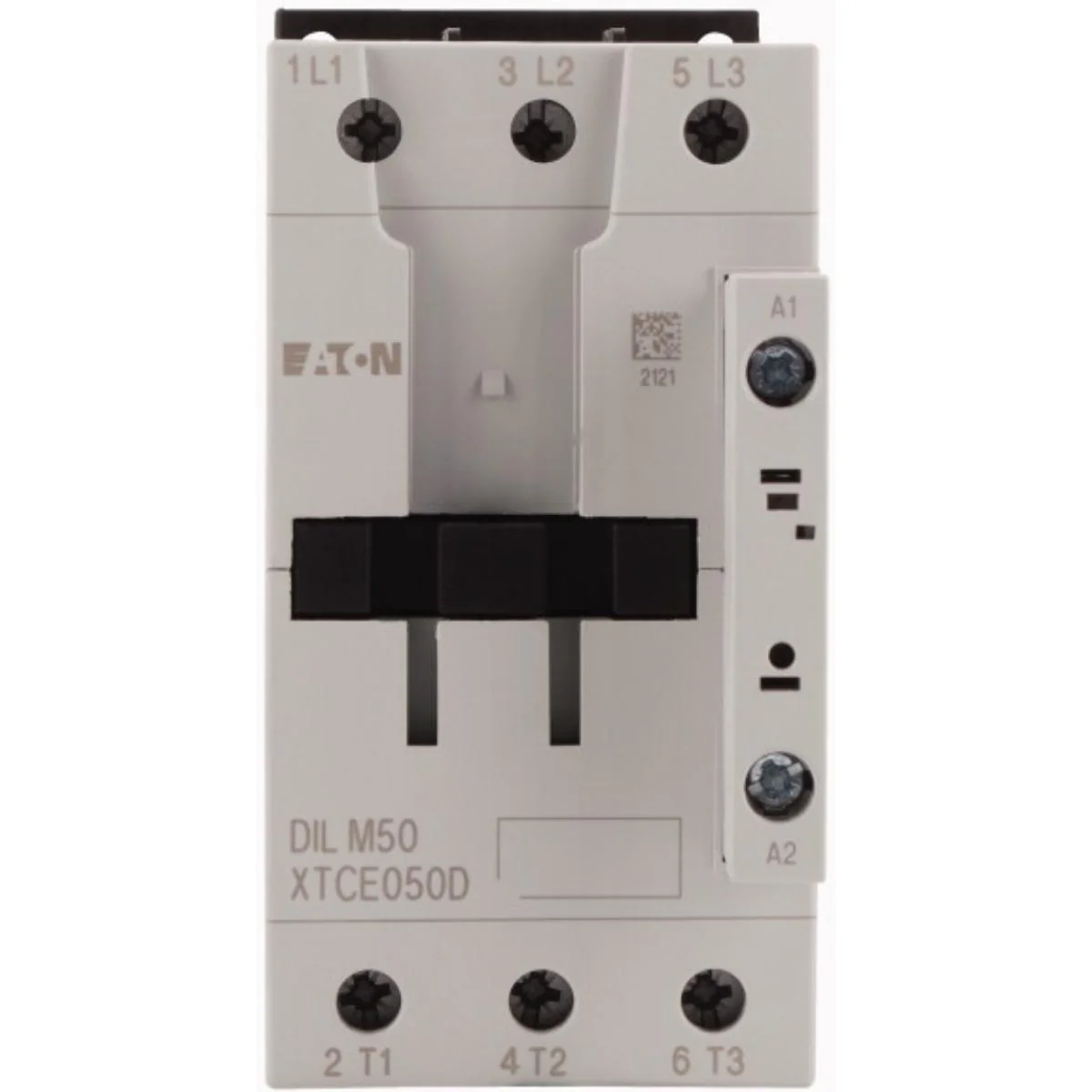

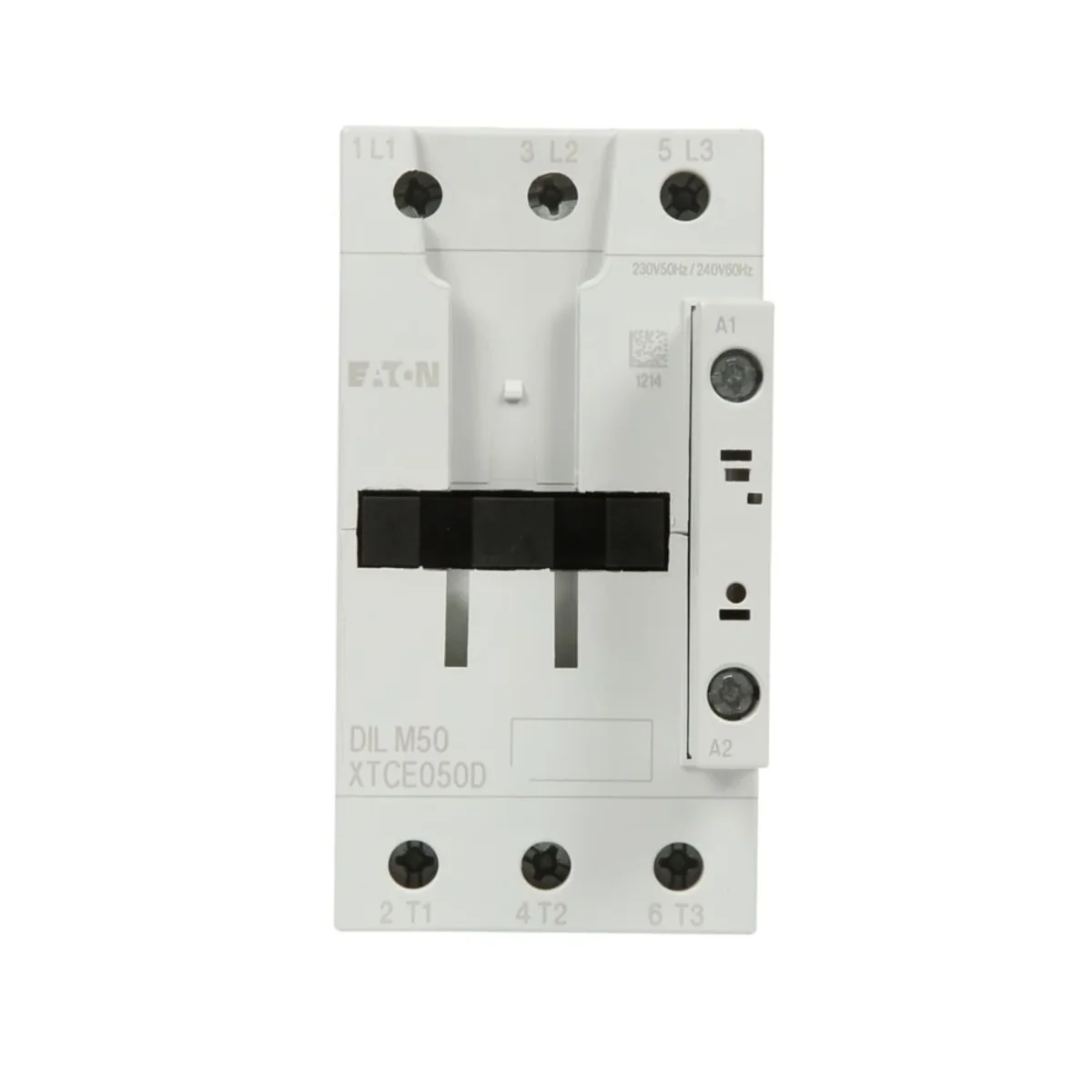

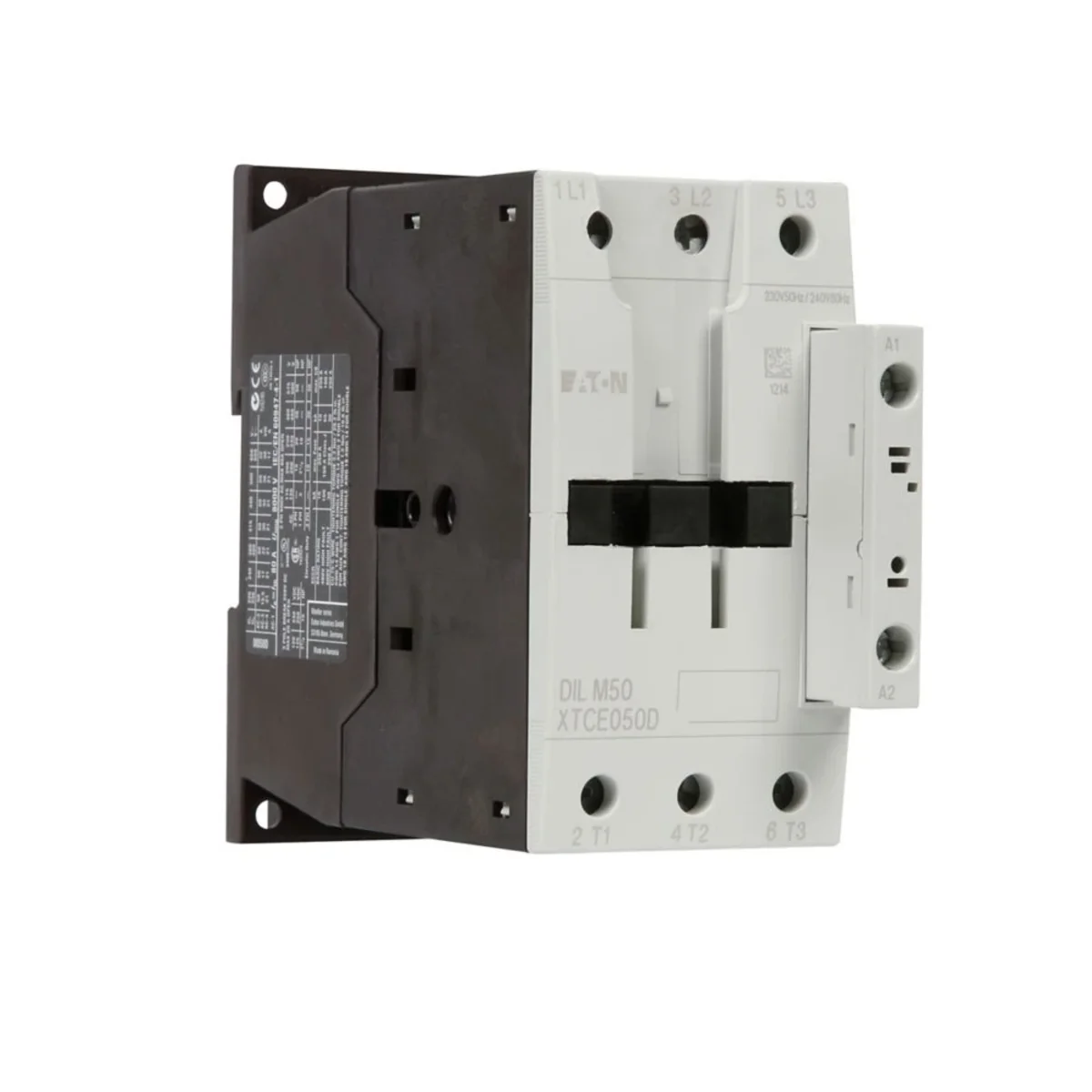

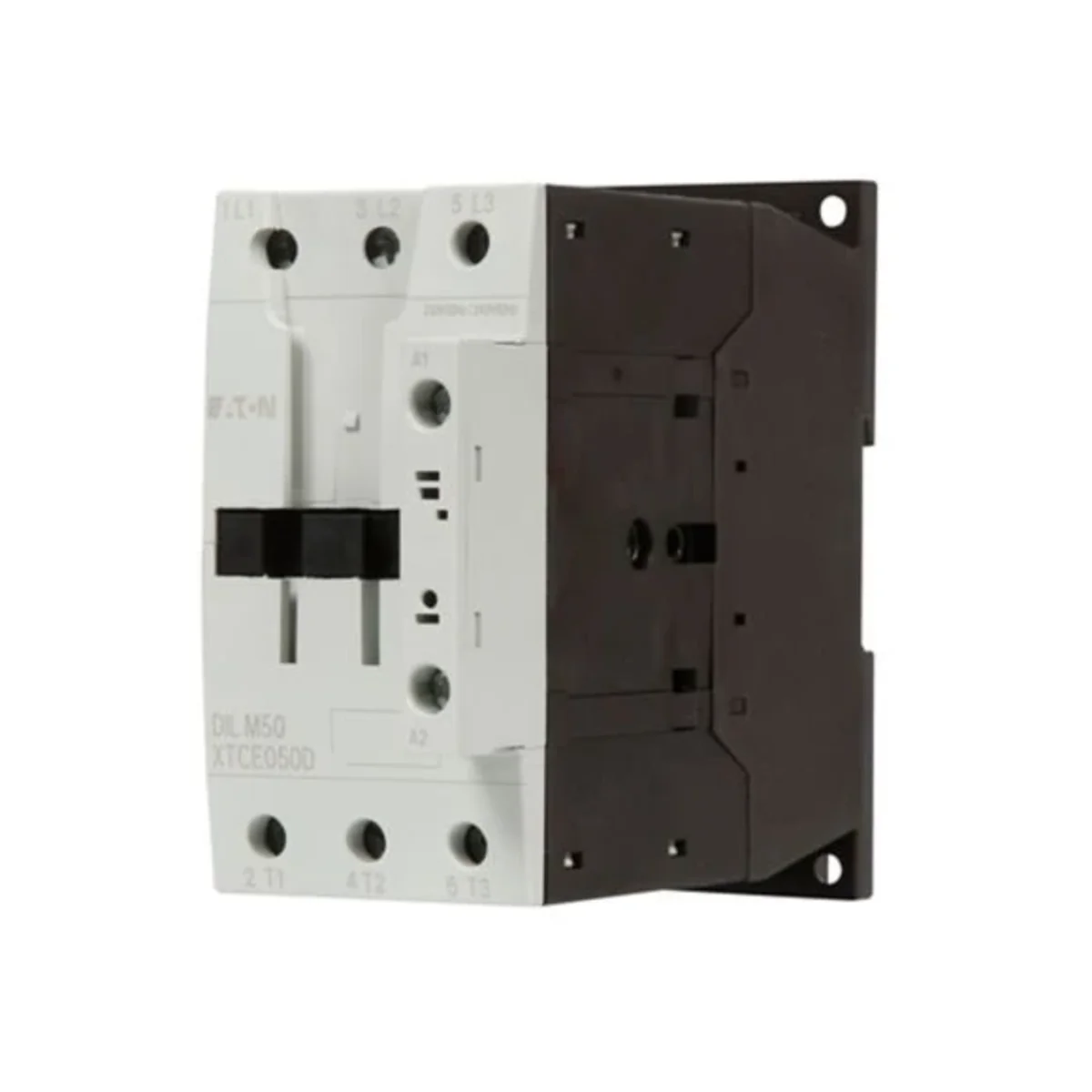

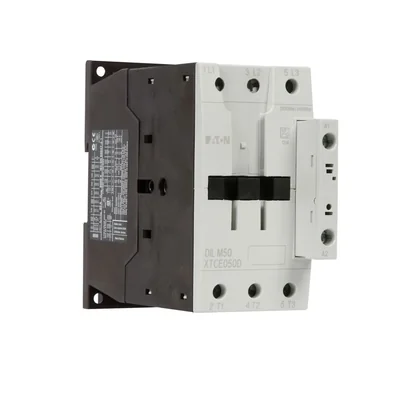

Power contactor, 50A, DILM50(23050HZ, 240V60HZ) 277830

local index:
ATA164MOEL
Catalog No:
277830
EAN code:
4015082778309
Manufacturer: EATON
Rated voltage [V]: 230
Rated current [A]: 50
Price:
230,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power contactor, 50A, DILM50(23050HZ, 240V60HZ)

Technical data

  • Rated voltage [V]
    230
  • Rated current [A]
    50

Other technical data

  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation current Ie at AC-1, 400 V
    80 A
  • Rated operation power at AC-3, 400 V
    22 kW
  • Rated operation power at AC-4, 400 V
    10 kW
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    240 ... 240 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    50 A
  • Rated operation current Ie at AC-4, 400 V
    21 A
  • Rated operation power NEMA
    29.8 kW
  • Number of auxiliary contacts as normally open contact
    0
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,923
Volume (m3) 0,001
Width (m) 0,057
Length (m) 0,151
Depth (m) 0,118
