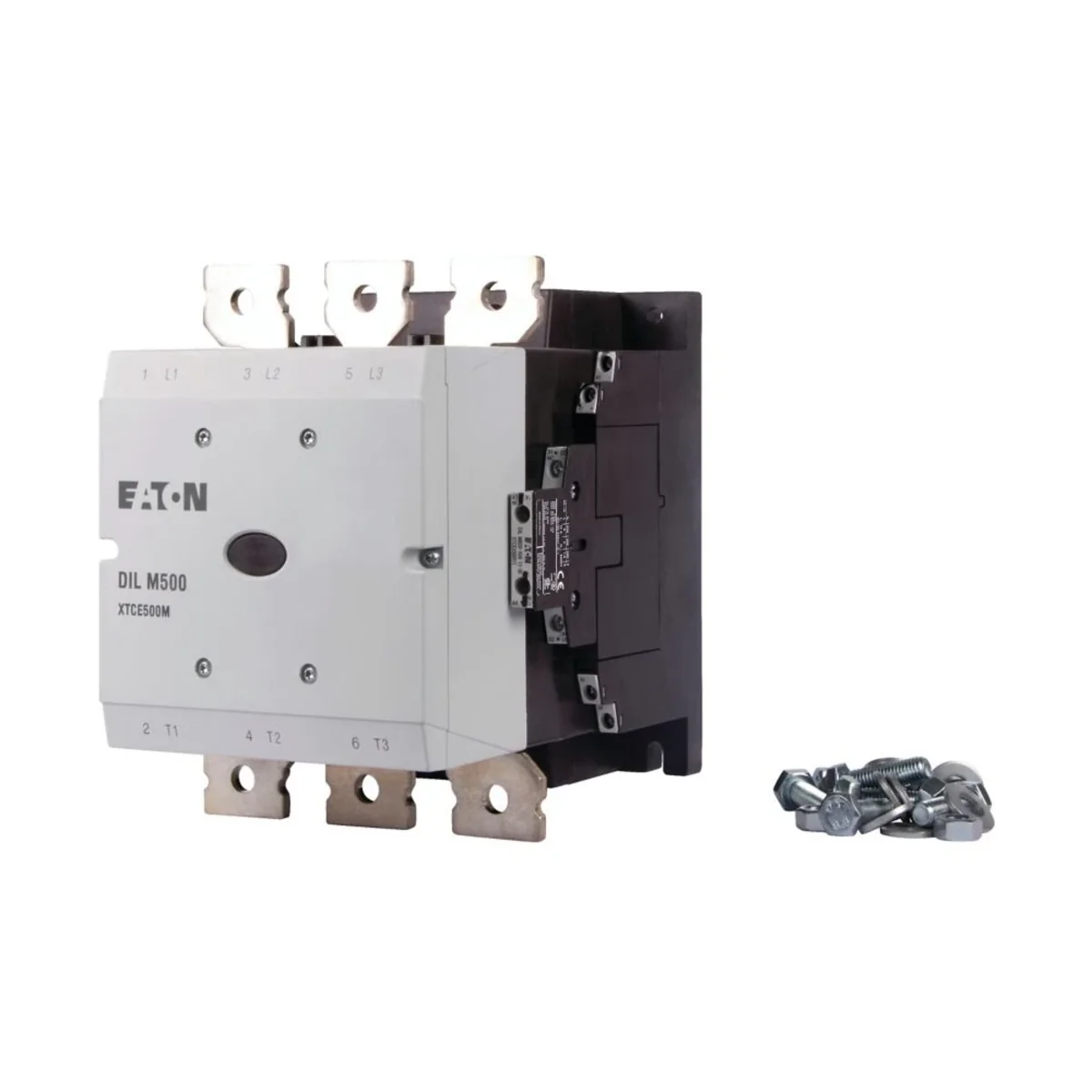

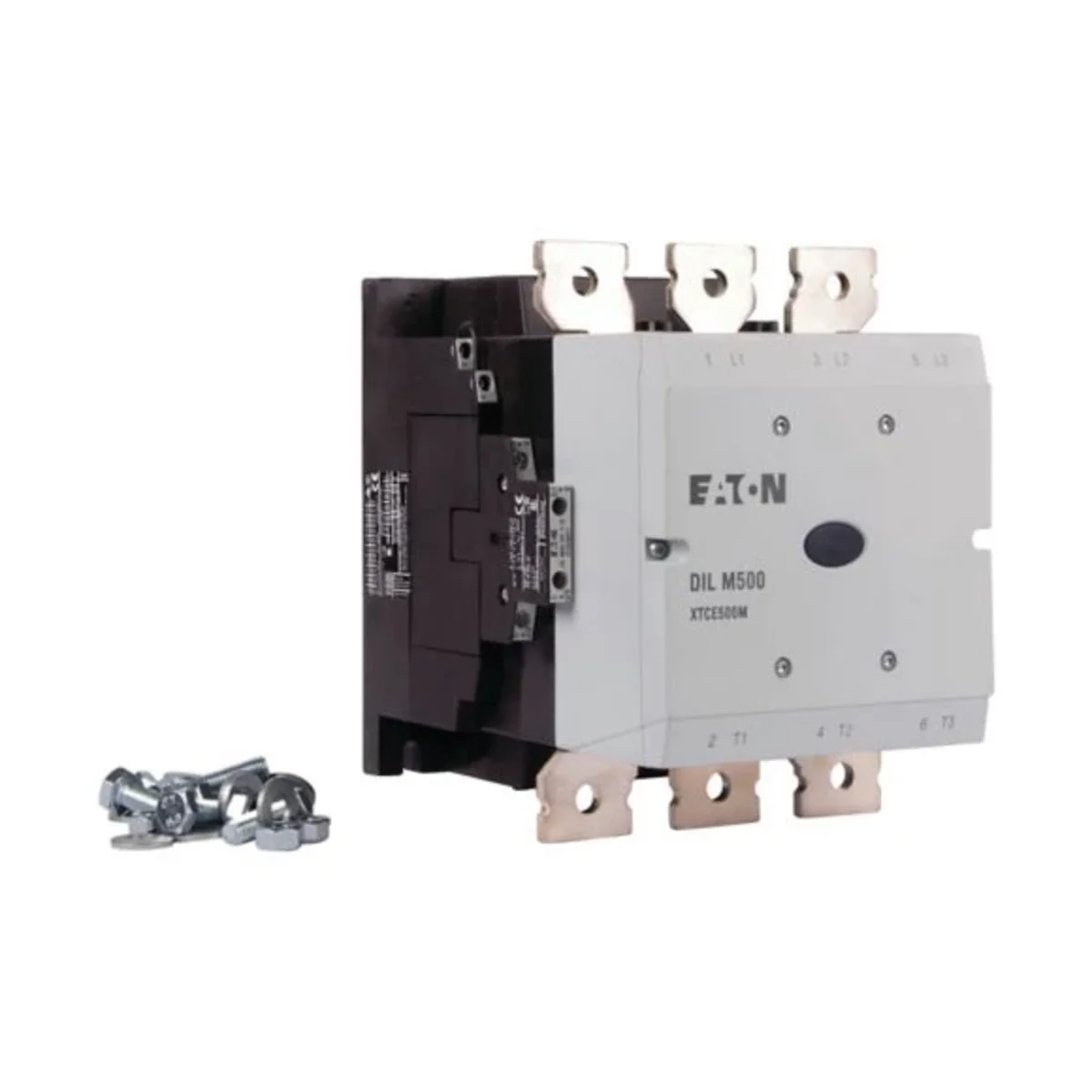

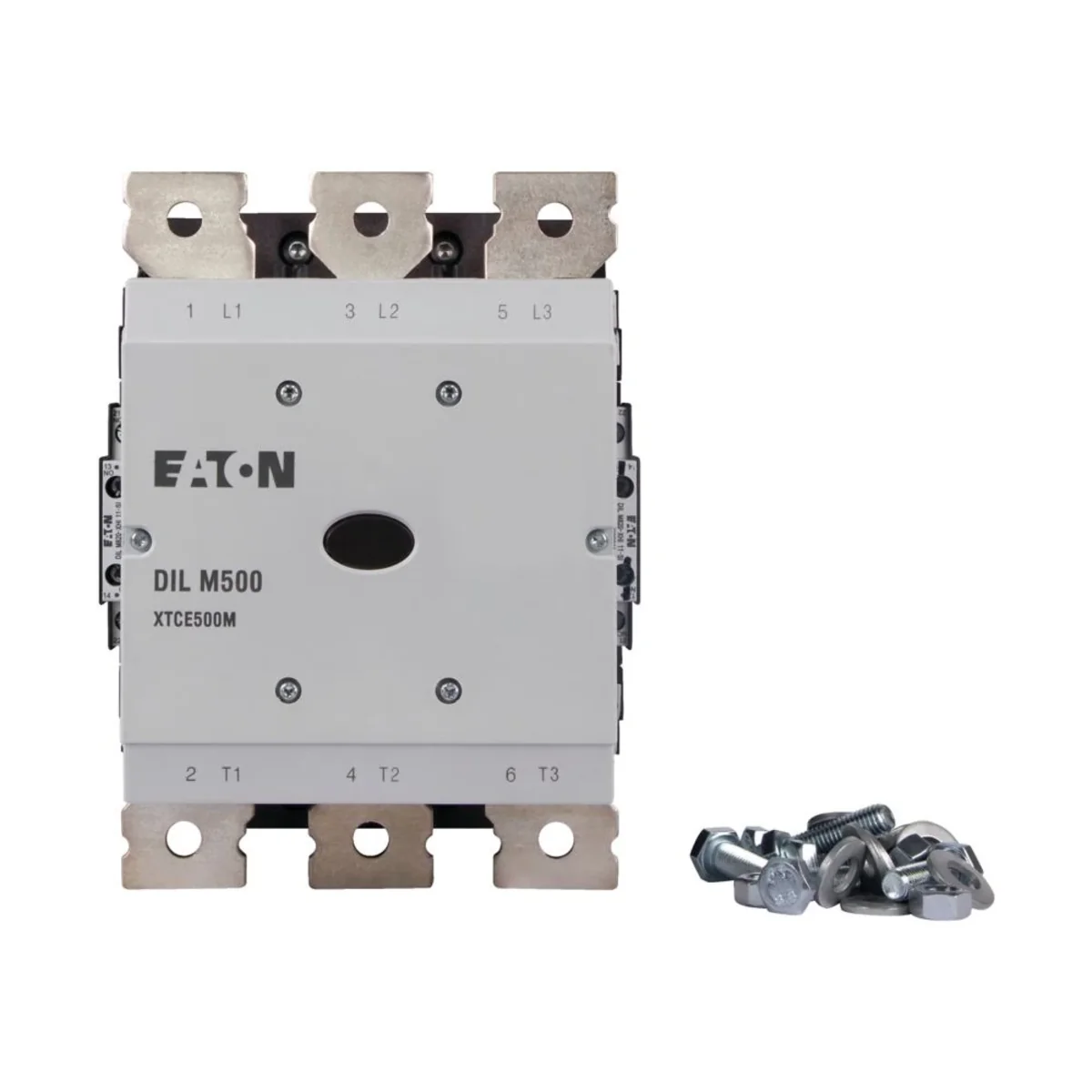

Power Contactor, 500A, 2NC 2NC, DILM500/22(RA250) 208213
local index:
ATC161MOEL
Catalog No:
208213
EAN code:
4015082082130
Click on the photo to enlarge
Manufacturer:
EATON
Power [kW]:
250
Rated voltage [V]:
400
Rated current [A]:
500
See full description
Price:
1927,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Power contactor, I=500A [AC-3]: 2NO 2RO
Technical data
Power [kW]
250
Rated current [A]
500
Rated voltage [V]
400
Other technical data
Rated control supply voltage AC 50 Hz
110 ... 250 V
Rated control supply voltage DC
110 ... 250 V
Rated operation current Ie at AC-1, 400 V
800 A
Rated operation power at AC-3, 400 V
250 kW
Rated operation power at AC-4, 400 V
200 kW
Modular version
No
Number of auxiliary contacts as normally closed contact
2
Number of normally closed contacts as main contact
0
Rated control supply voltage AC 60 Hz
110 ... 250 V
Voltage type for actuating
DC
Rated operation current Ie at AC-3, 400 V
500 A
Rated operation current Ie at AC-4, 400 V
360 A
Rated operation power NEMA
298 kW
Number of auxiliary contacts as normally open contact
2
Type of electrical connection of main circuit
Rail connection
Number of normally open contacts as main contact
3
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
9,120
Volume (m3)
0,013
Width (m)
0,190
Length (m)
0,255
Depth (m)
0,262
