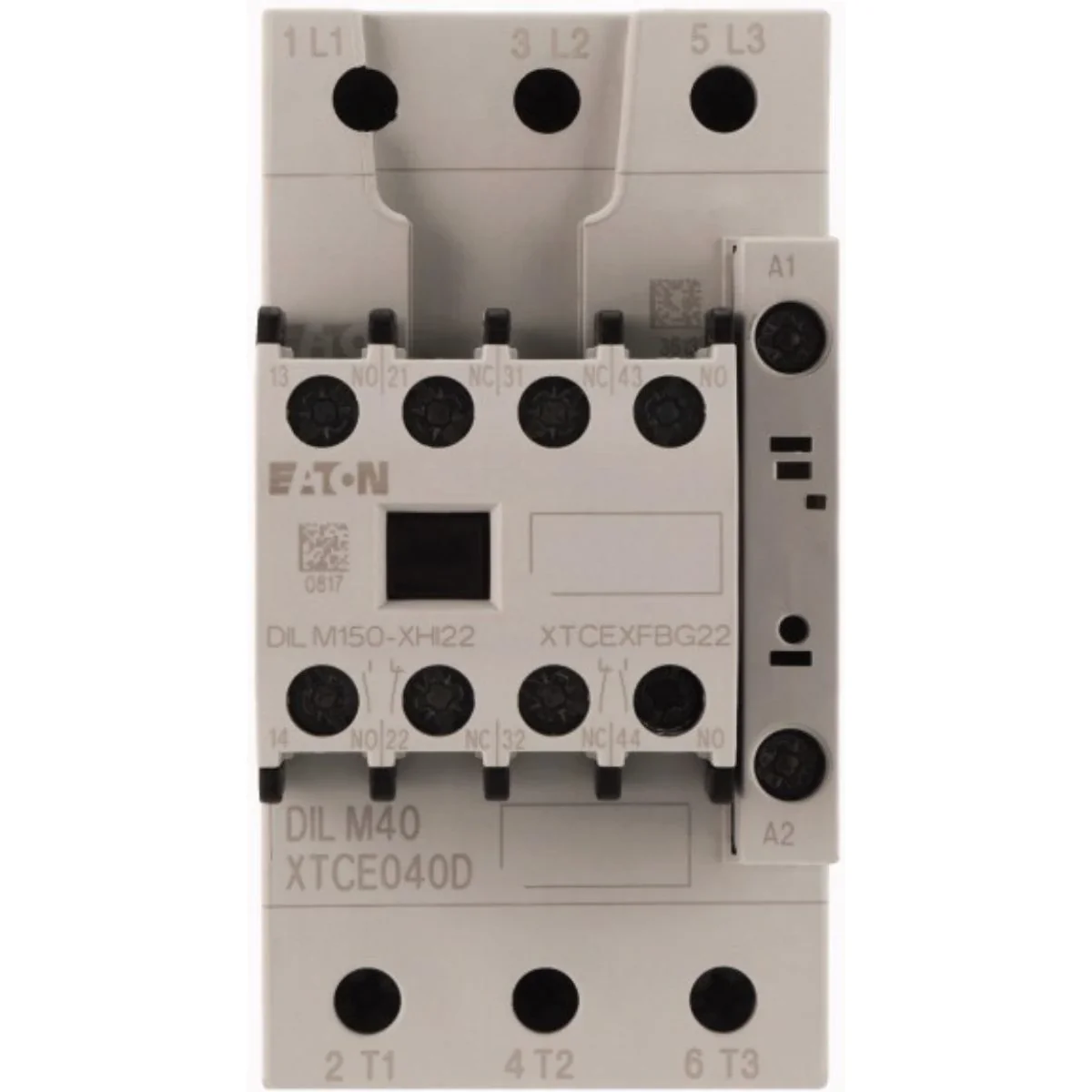

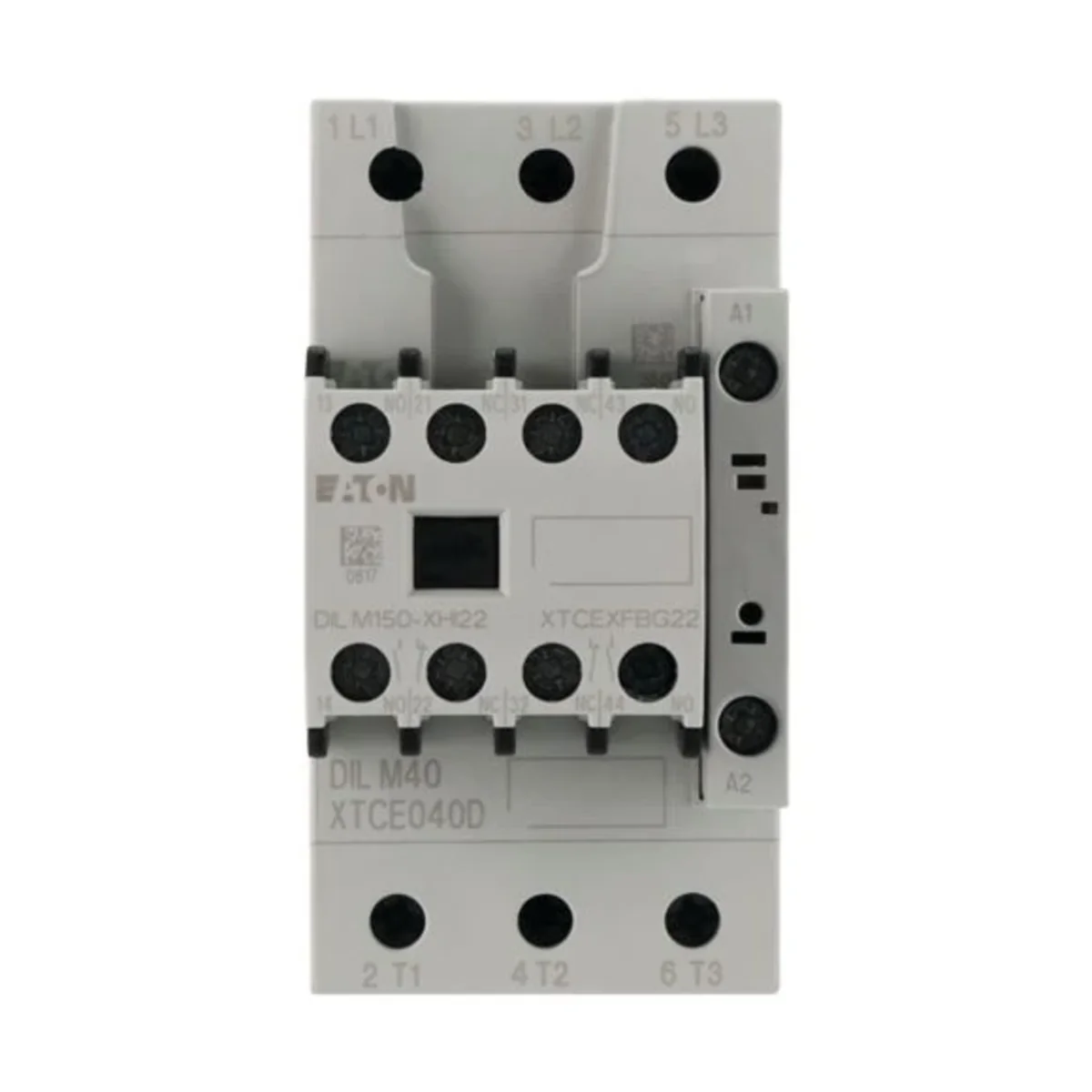

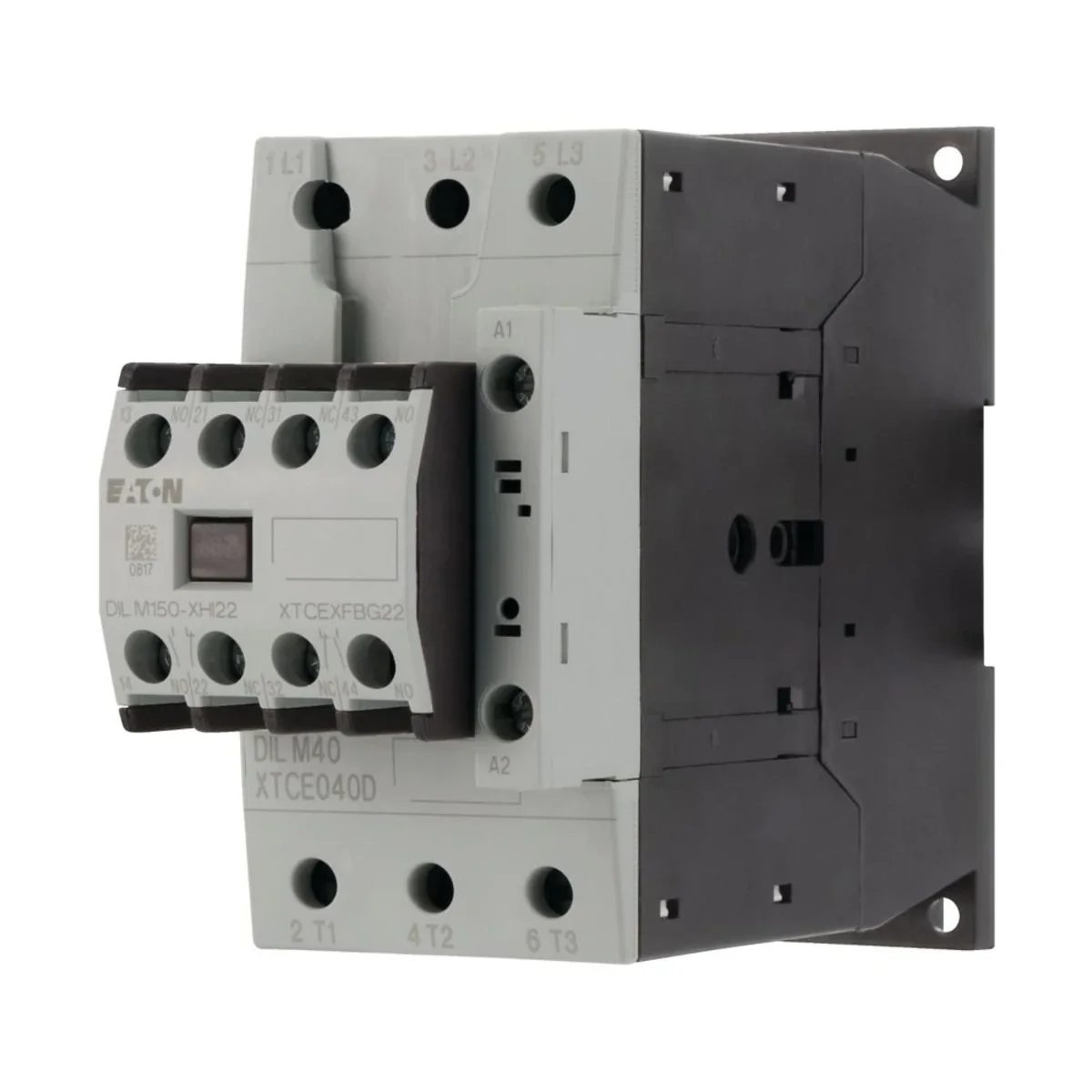

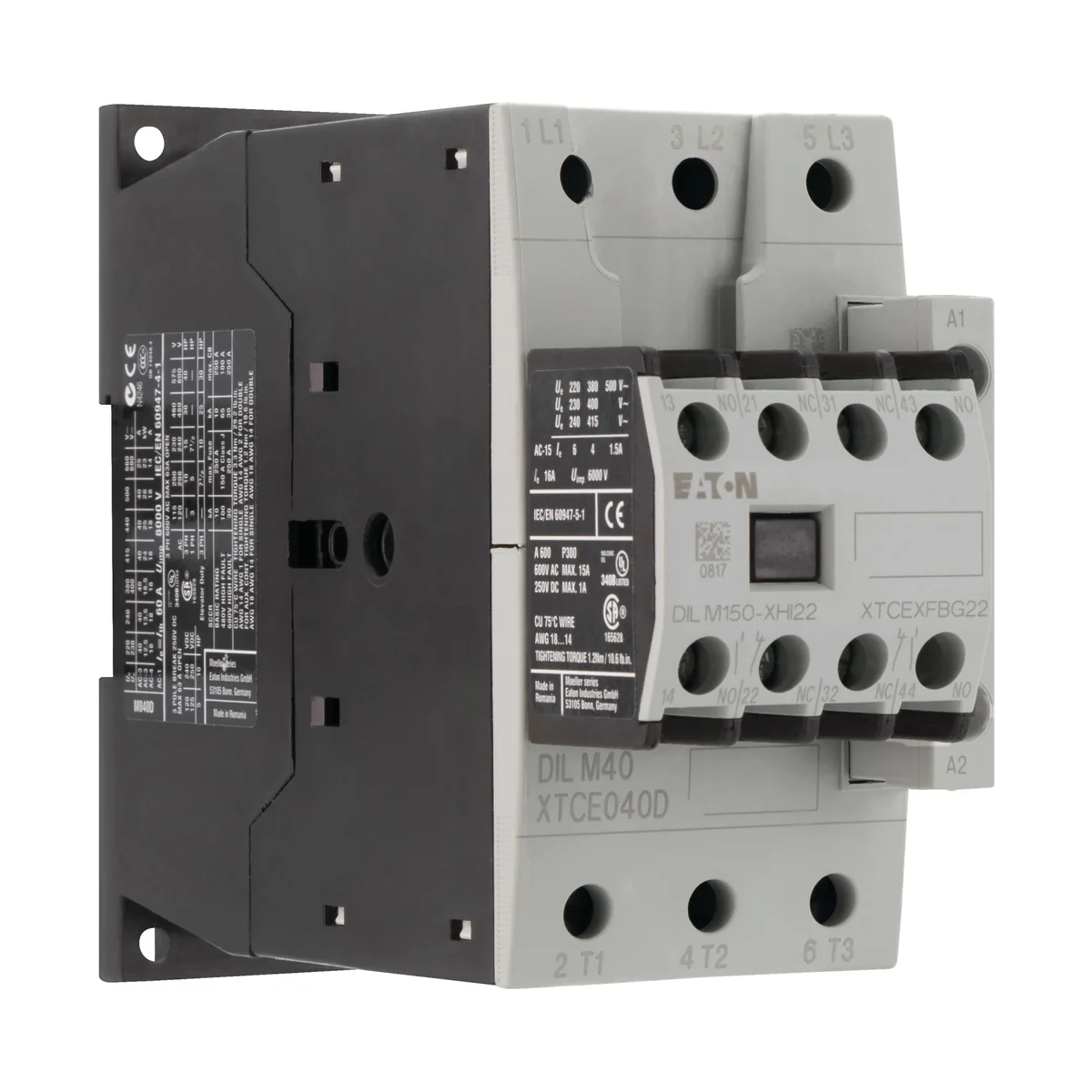

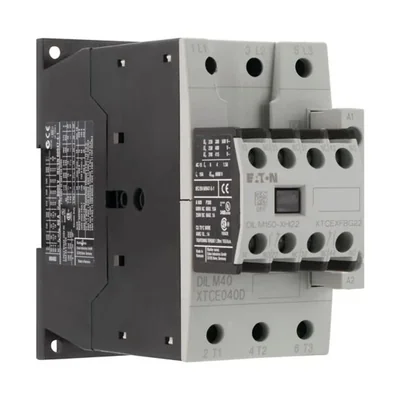

Power Contactor, 40A, 2NC 2NC, DILM40-22(RDC24) 277812

Внутрішній артикул:
ATA406MOEL
№ каталоговий:
277812
Код EAN:
4015082778125
Виробник: EATON
Rated voltage [V]: 24
Rated current [A]: 40
Ціна:
1118,51 zł
gross / шт.
(з ПДВ 23%)
Доставка за 3 години
до 2 тижнів (робочі дні)
Самовивіз через 1 год
Кількість шт.
(багаторазовий:
1
)
Додати до запиту на пропозицію
Додати в буфер обміну
Роздрукувати

Опис товару

DILM power contactors. For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.

Технічні дані

  • Rated voltage [V]
    24
  • Rated current [A]
    40

Інші технічні дані

  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    24 ... 27 V
  • Rated operation current Ie at AC-1, 400 V
    60 A
  • Rated operation power at AC-3, 400 V
    18.5 kW
  • Rated operation power at AC-4, 400 V
    9 kW
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    2
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Rated operation current Ie at AC-3, 400 V
    40 A
  • Rated operation current Ie at AC-4, 400 V
    18 A
  • Rated operation power NEMA
    22 kW
  • Number of auxiliary contacts as normally open contact
    2
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3

Інформація про виробника

  • Виробник
    Eaton Electric Sp. z o.o.
  • Адреса
    80-299 Gdańsk Galaktyczna 30 Polska
  • Електронна пошта

Об'ємна упаковка

Свого роду пакет Skrzynia
Кількість 1 шт.
Вага (кг) 1,133
Об'єм (м3) 0,001
Ширина (м) 0,057
Довжина (м) 0,151
Глибина (м) 0,118
