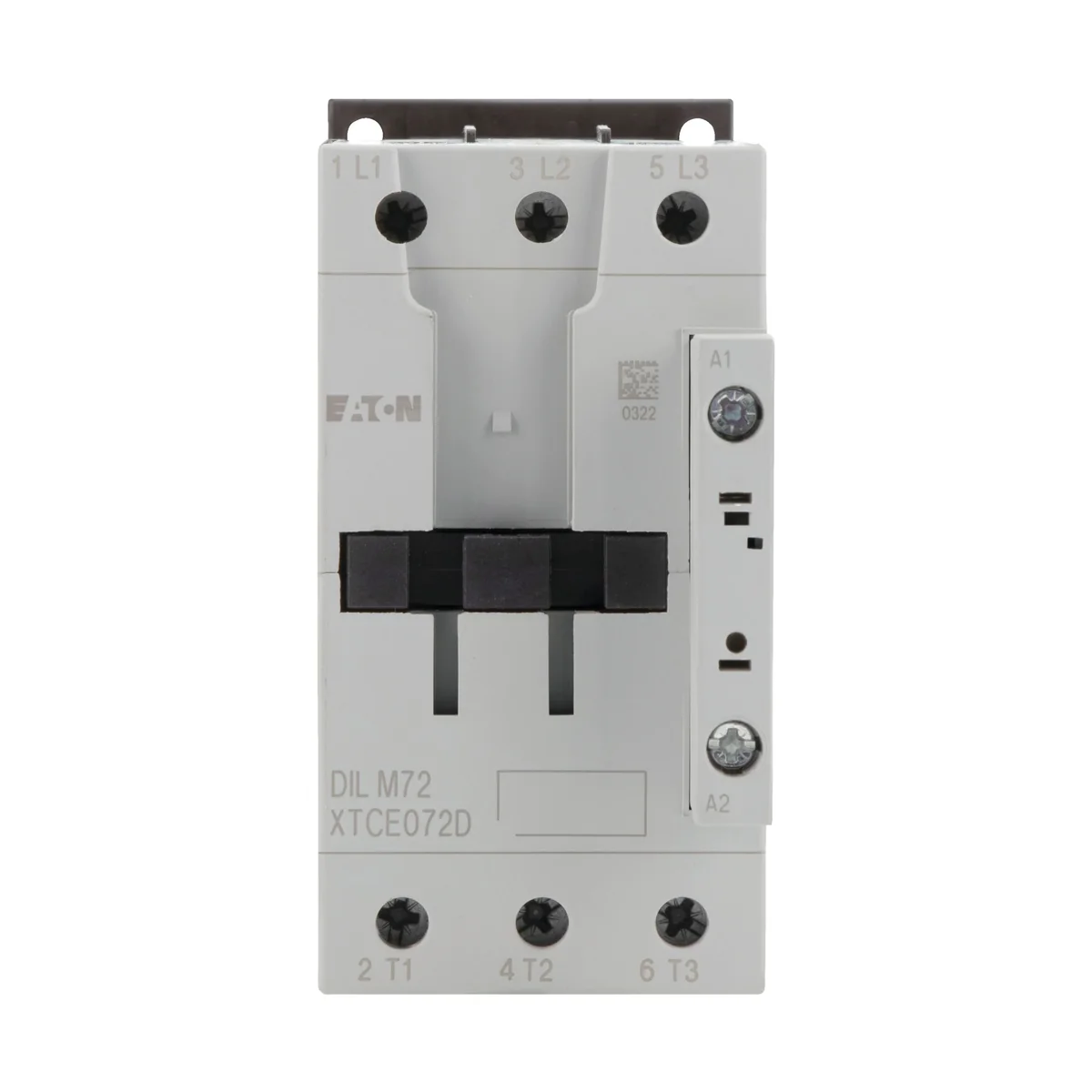

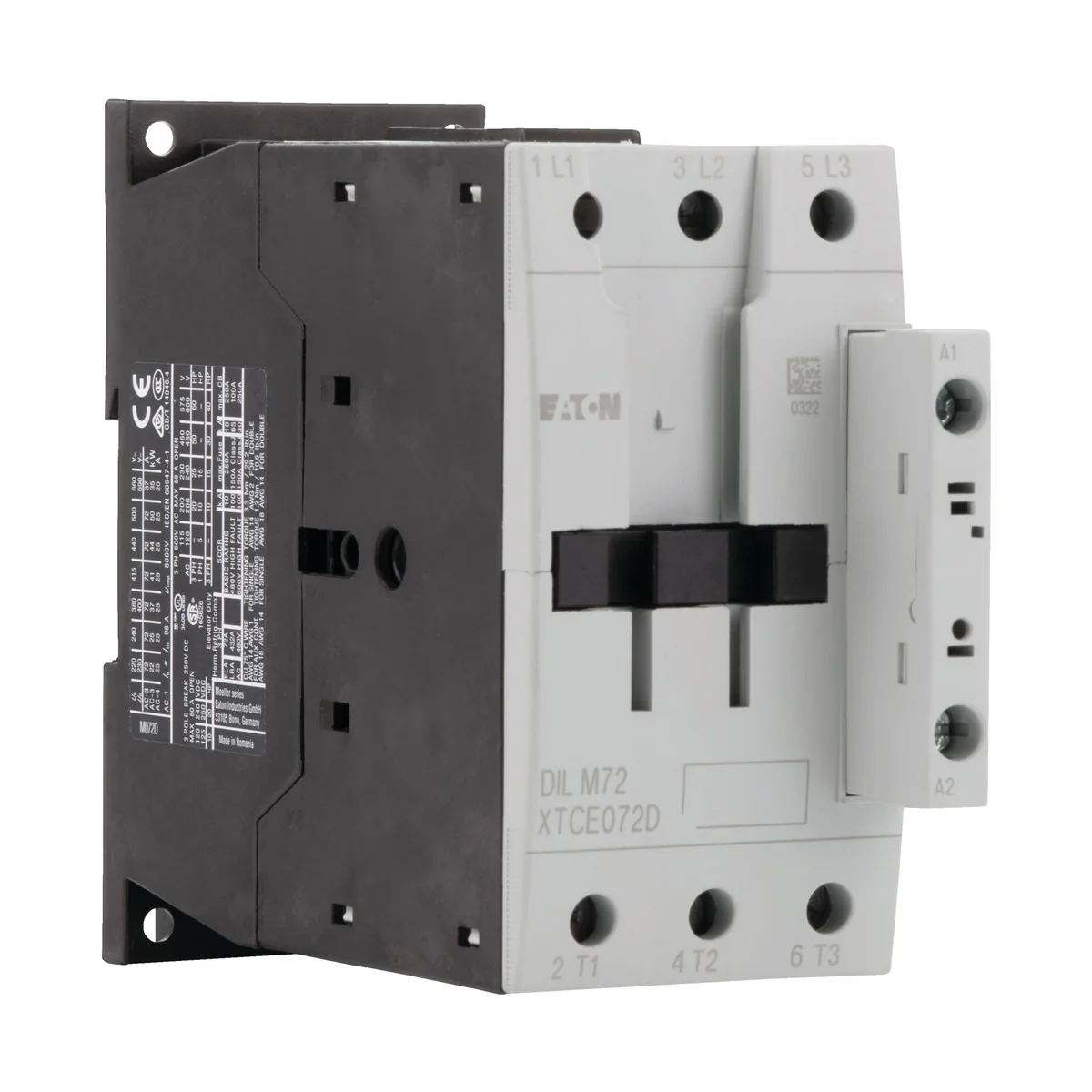

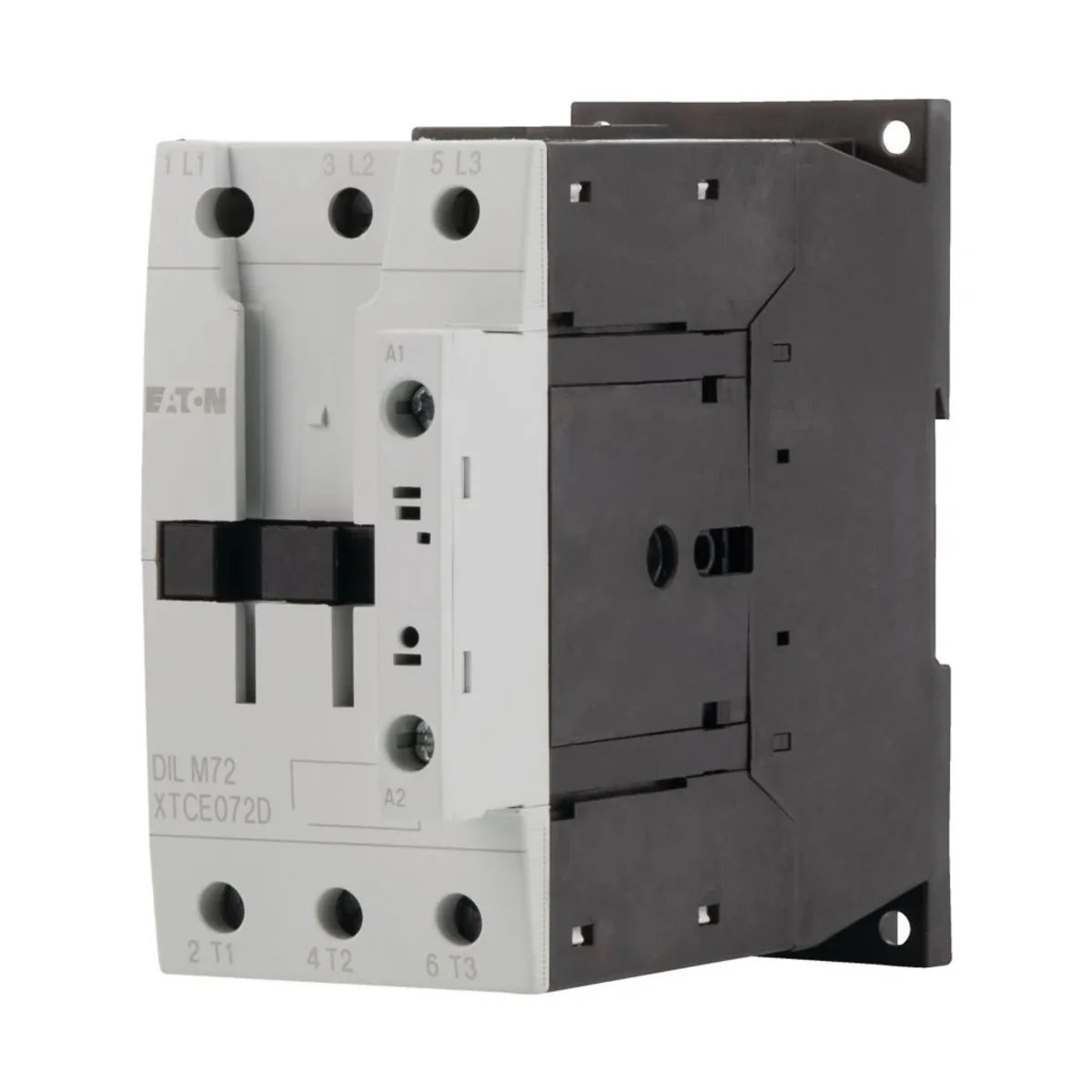

Power contactor, 3-pole, DILM72(110V50HZ,120V60HZ) 109191

local index:
ATM008MOEL
Catalog No:
109191
EAN code:
4015081088119
Manufacturer: EATON
Number of poles: 3
Installation: screw terminals
Voltage [V]: 110V 50Hz, 120V 60Hz
Price:
329,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Motor contactor, Contactors up to 170 A, 3-pole, Utilization category:

AC-1: Non-inductive or weakly inductive load, resistance furnaces,

AC- 3: Squirrel-cage motors: starting, shutdown during operation,

AC-4: Squirrel-cage motors: starting, counter-current brakes, reversing mode, impulse mode,

Connection method: Screw terminals,

Note: Not suitable for motors of energy efficiency class IE3.,

Rated operational current AC-3 380 V 400 V: Rated operational current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith =Ie= 98 A, enclosed: Ith= 72 A, Rated operational current AC-1 conventional thermal current 1-pole open: Ith= 200 A, enclosed: Ith= 180 A, Max. rated power of three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 22 kW, 380 V 400 V: P= 37 kW, 660 V 690 V: P= 35 kW, Max. rated power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 7 kW, 380 V 400 V: P= 12 kW, 660 V 690 V: P= 17 kW,

for connecting to the module auxiliary switch: DILM150-XHI(V).., DILM1000-XHI(V)..,

Notes: Switching elements according to EN 50012., Observe electrical durability.,

AC/DC current type: AC operation

Technical data

  • Number of poles
    3
  • Voltage [V]
    110V 50Hz, 120V 60Hz
  • Installation
    screw terminals
  • Rated operational power at AC-3, 400 V [kW]
    72

Other technical data

  • Rated control supply voltage AC 50 Hz
    110 ... 110 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation current Ie at AC-1, 400 V
    98 A
  • Rated operation power at AC-3, 400 V
    37 kW
  • Rated operation power at AC-4, 400 V
    12 kW
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    120 ... 120 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    72 A
  • Rated operation current Ie at AC-4, 400 V
    25 A
  • Rated operation power NEMA
    37 kW
  • Number of auxiliary contacts as normally open contact
    0
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,923
Volume (m3) 0,001
Width (m) 0,057
Length (m) 0,151
Depth (m) 0,118
