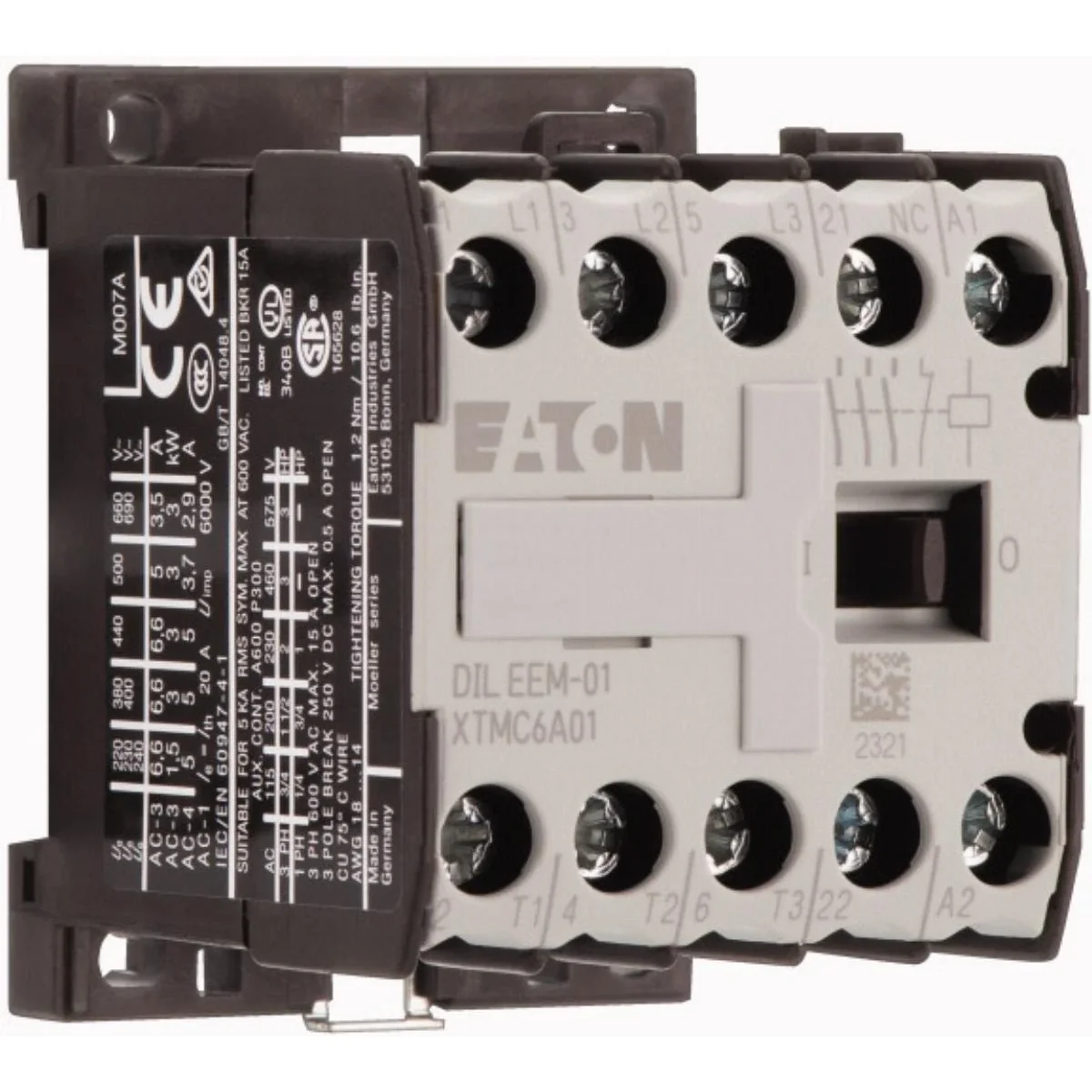

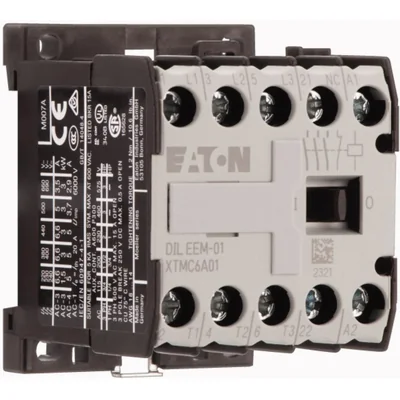

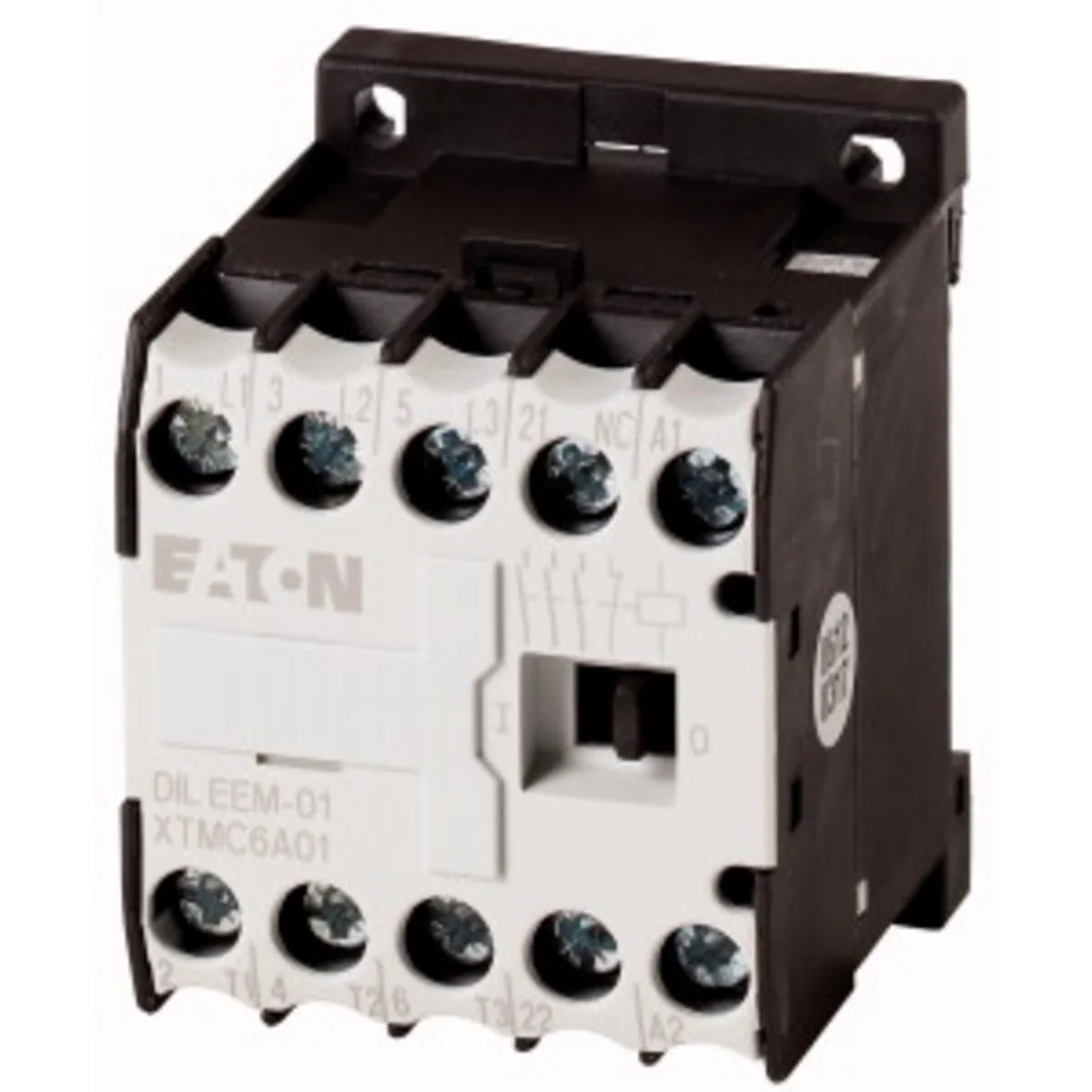

Power contactor 3-pole 400V 051627

local index:
ATA048MOEL
Catalog No:
051627
EAN code:
4015080516279
Manufacturer: EATON
Number of poles: 3
Power [W]: 3000
Price:
43,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
5
)
Add to clipboard
Print

Product description

Power contactor 3-pole 400V

Technical data

  • Number of poles
    3
  • Power [W]
    3000

Other technical data

  • Rated control supply voltage AC 50 Hz
    240 ... 240 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Rated operation current Ie at AC-1, 400 V
    22 A
  • Rated operation power at AC-3, 400 V
    3 kW
  • Rated operation power at AC-4, 400 V
    2.2 kW
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    6.6 A
  • Rated operation current Ie at AC-4, 400 V
    5 A
  • Rated operation power NEMA
    2.2 kW
  • Number of auxiliary contacts as normally open contact
    0
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 5 pcs.
Weight (kg) 0,184 0,920
Volume (m3) 0,000 0,001
Width (m) 0,047 0,055
Length (m) 0,054 0,240
Depth (m) 0,060 0,063
