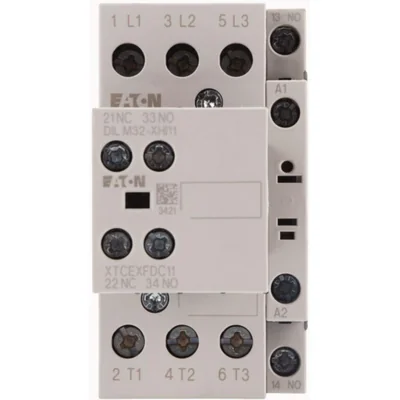

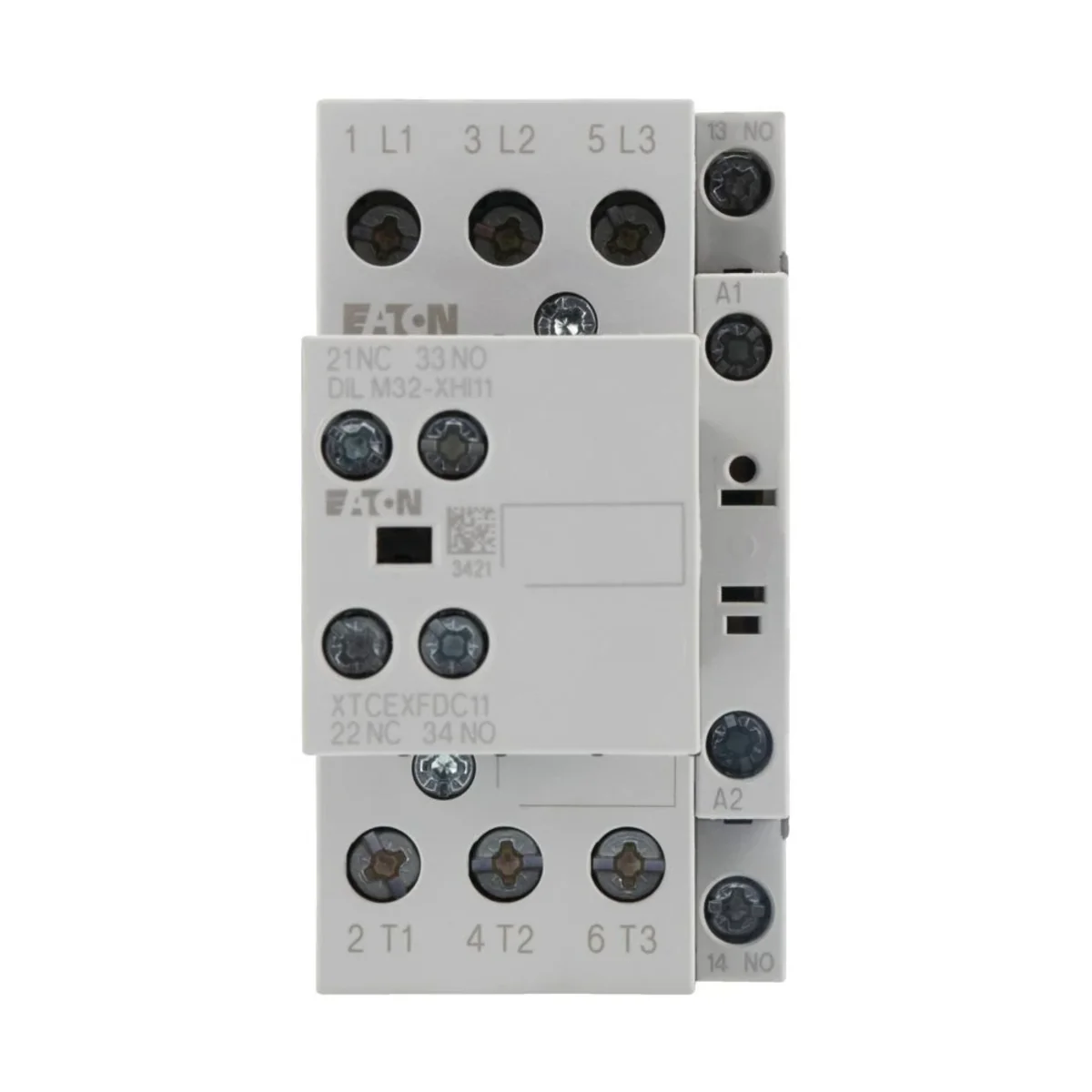

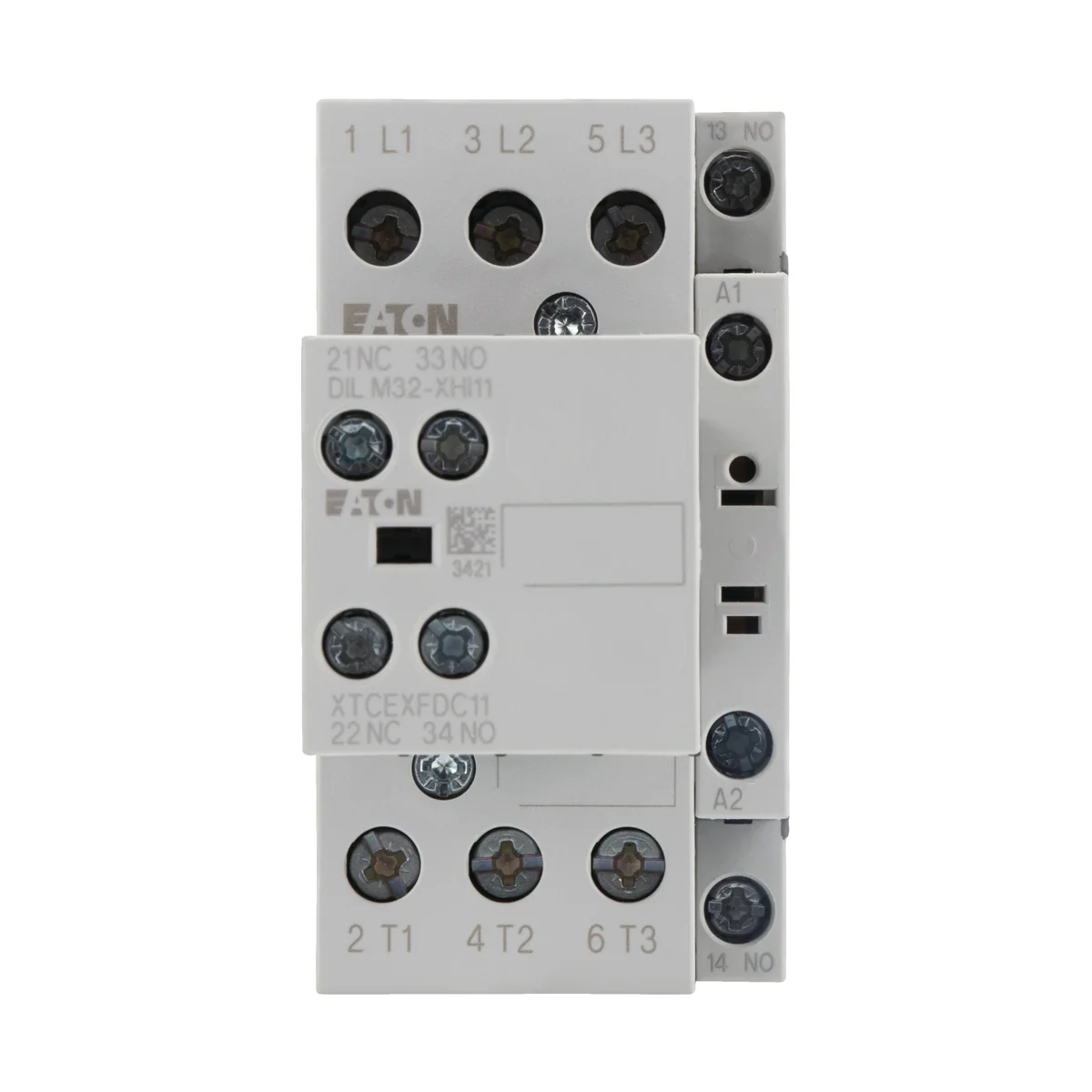

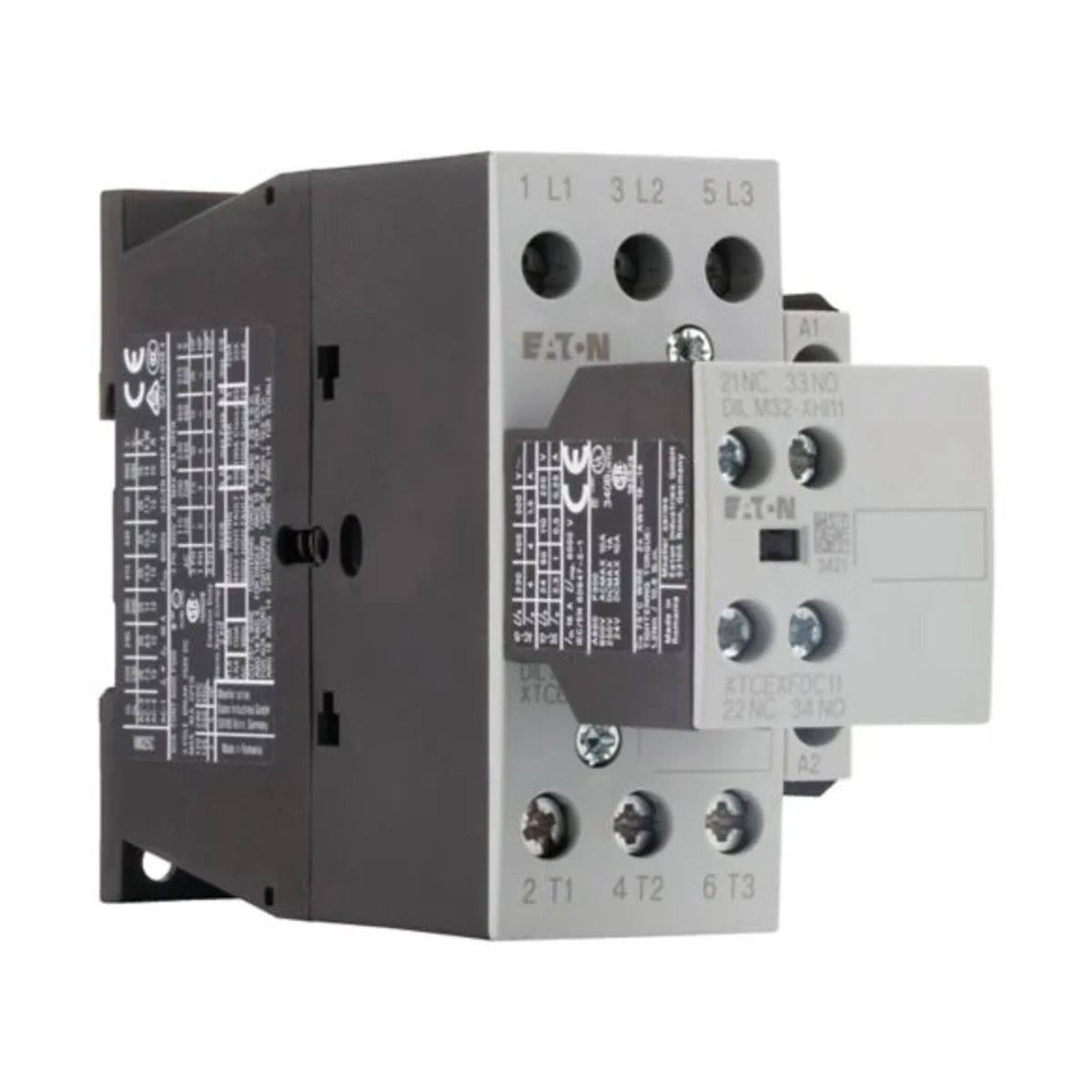

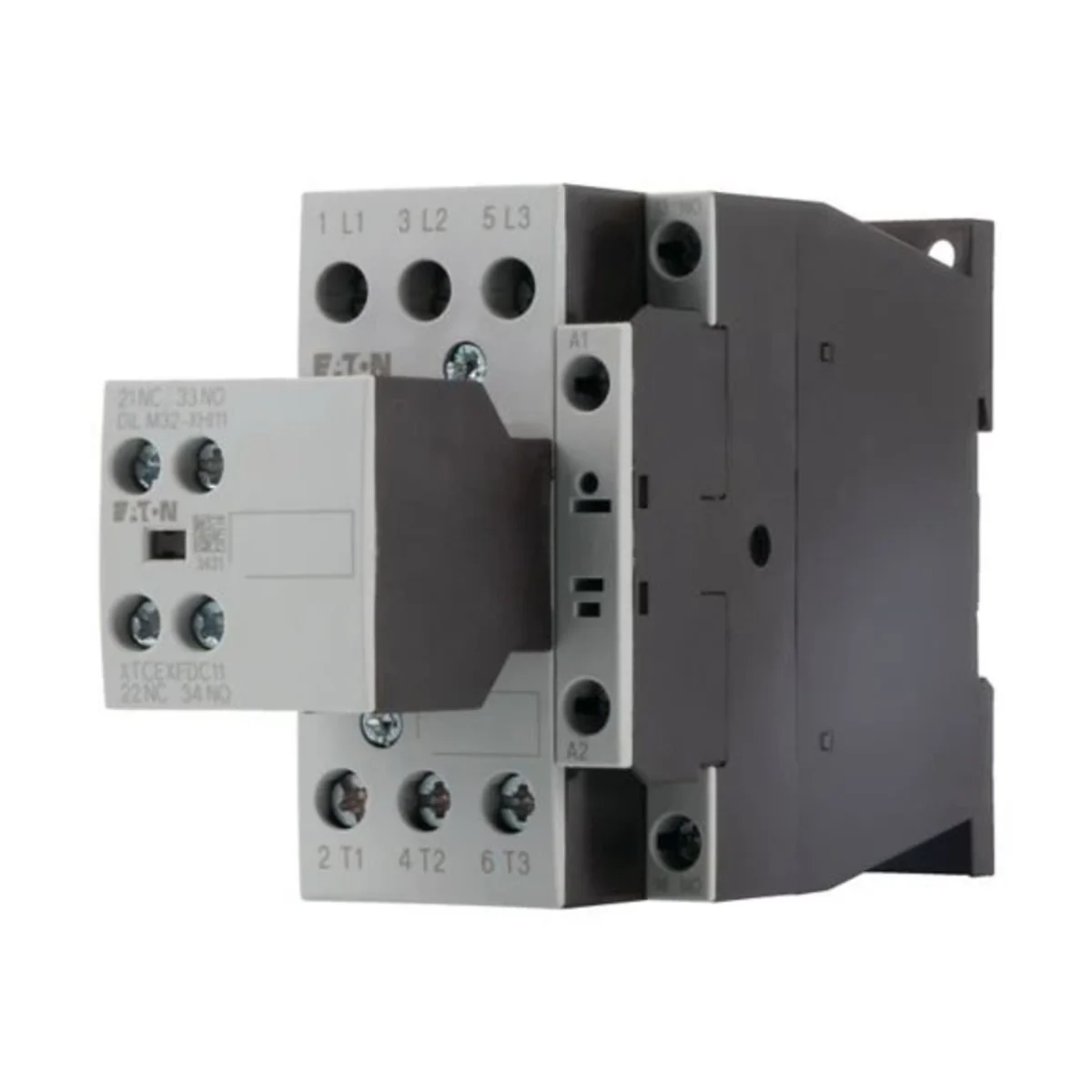

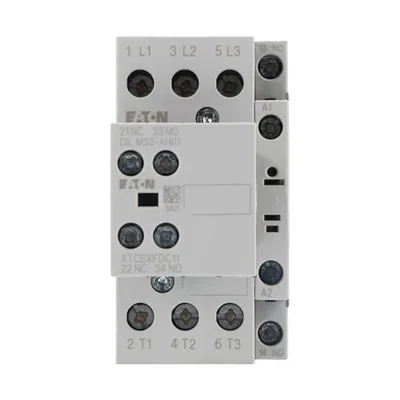

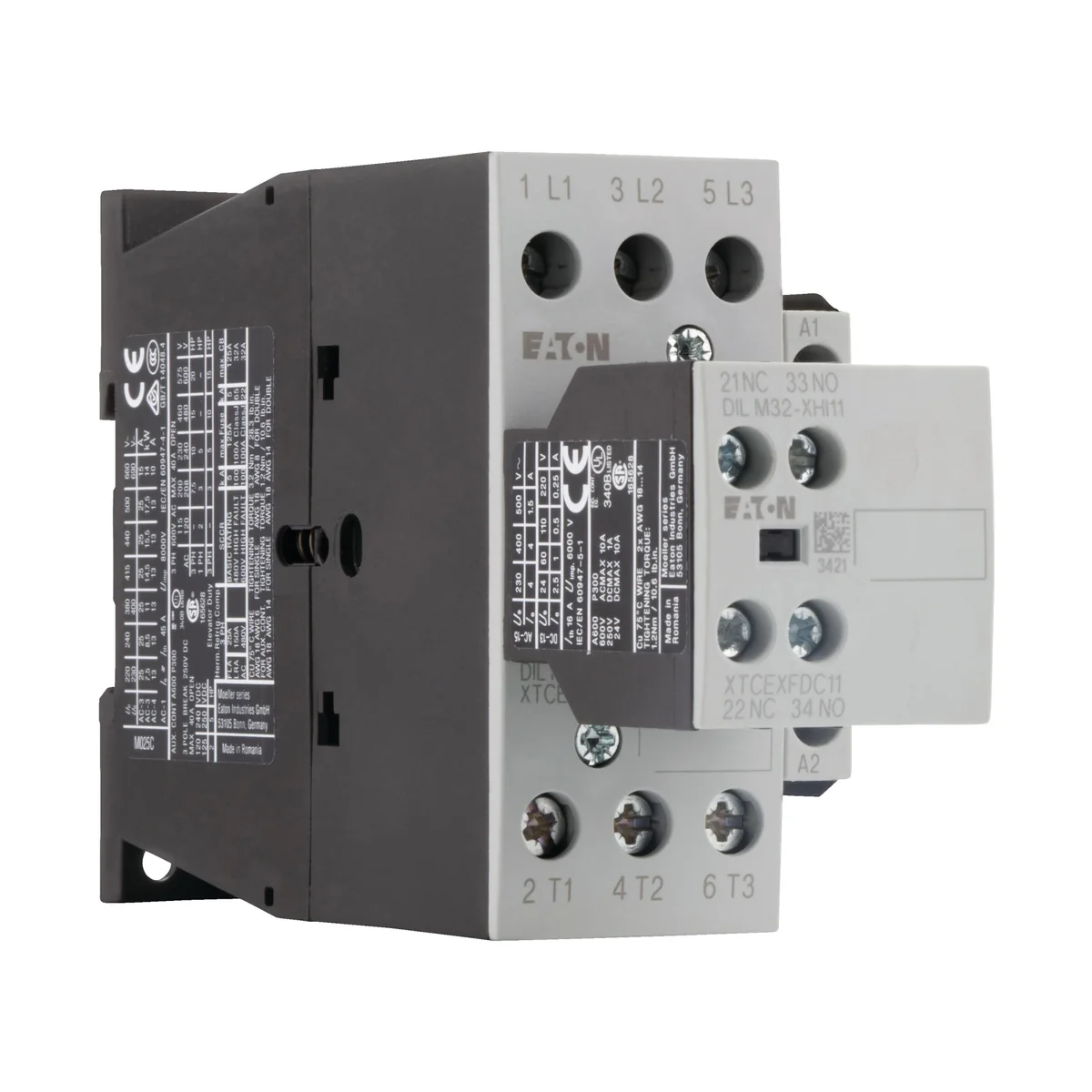

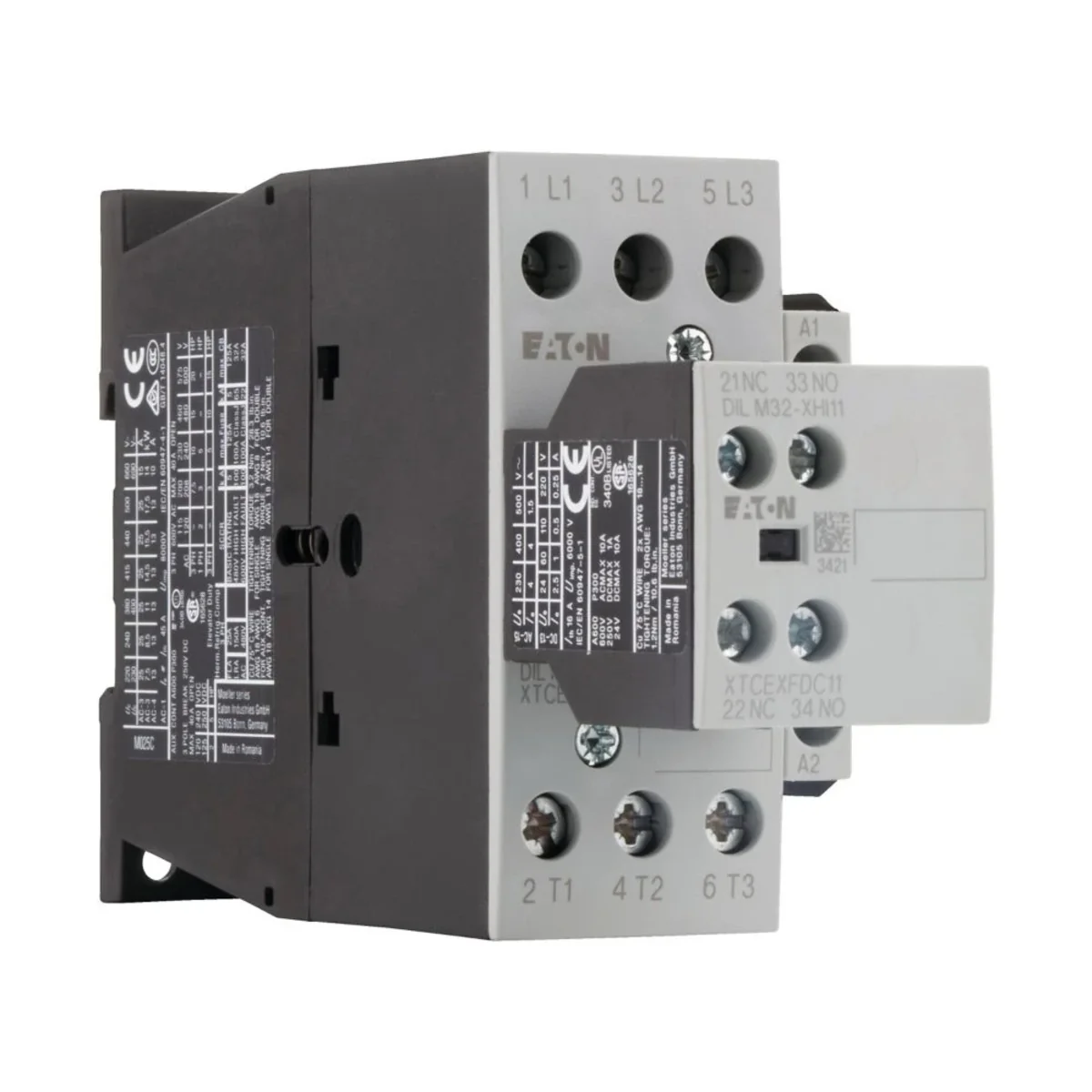

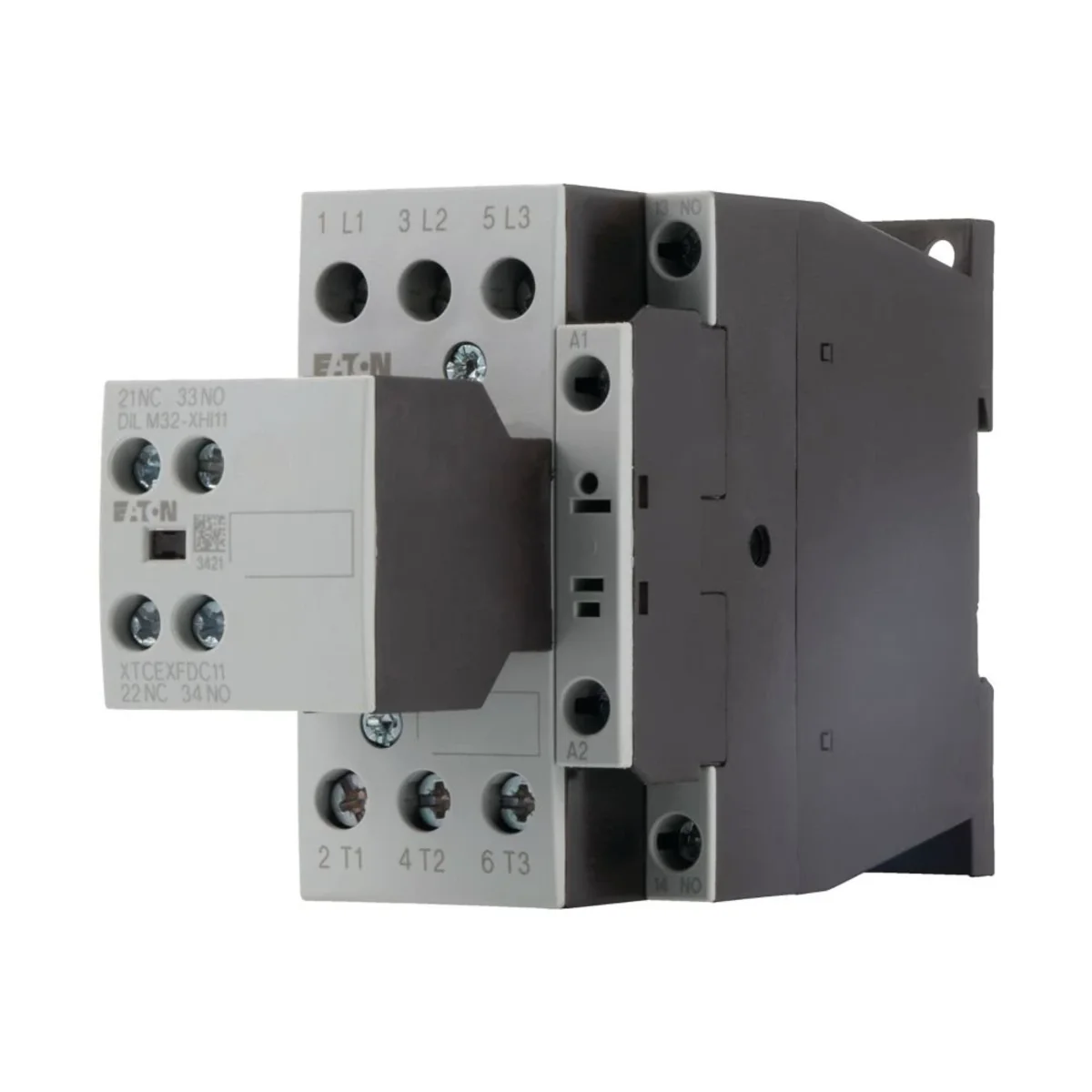

Power Contactor, 25A, 1NC 0R, DILM25-21(230V50HZ,240V60HZ) 277196
local index:
ATA206MOEL
Catalog No:
277196
EAN code:
4015082771966
Price:
104,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
DILM power contactors. For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7 – DILM150 applies:
• with mirror contacts.
Contacts according to EN 50012.
Technical data
-
Rated voltage [V]230
-
Rated current [A]25
Other technical data
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Rated control supply voltage DC0 ... 0 V
-
Rated operation current Ie at AC-1, 400 V45 A
-
Rated operation power at AC-3, 400 V11 kW
-
Rated operation power at AC-4, 400 V6 kW
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz240 ... 240 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V25 A
-
Rated operation current Ie at AC-4, 400 V13 A
-
Rated operation power NEMA11 kW
-
Number of auxiliary contacts as normally open contact2
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,516 |
| Volume (m3) | 0,001 |
| Width (m) | 0,048 |
| Length (m) | 0,152 |
| Depth (m) | 0,089 |
