Power Contactor, 12A, 1NC 0R, DILM12-10(230V50HZ, 240V60HZ) 276830

Name: Power Contactor, 12A, 1NC 0R, DILM12-10(230V50HZ, 240V60HZ)
Brand: EATON
SKU: ATA143MOEL
Price: 41.18 PLN

local index:

ATA143MOEL

Catalog No:

276830

EAN code:

4015082768300

Power Contactor, 12A, 1NC 0R, DILM12-10(230V50HZ, 240V60HZ)

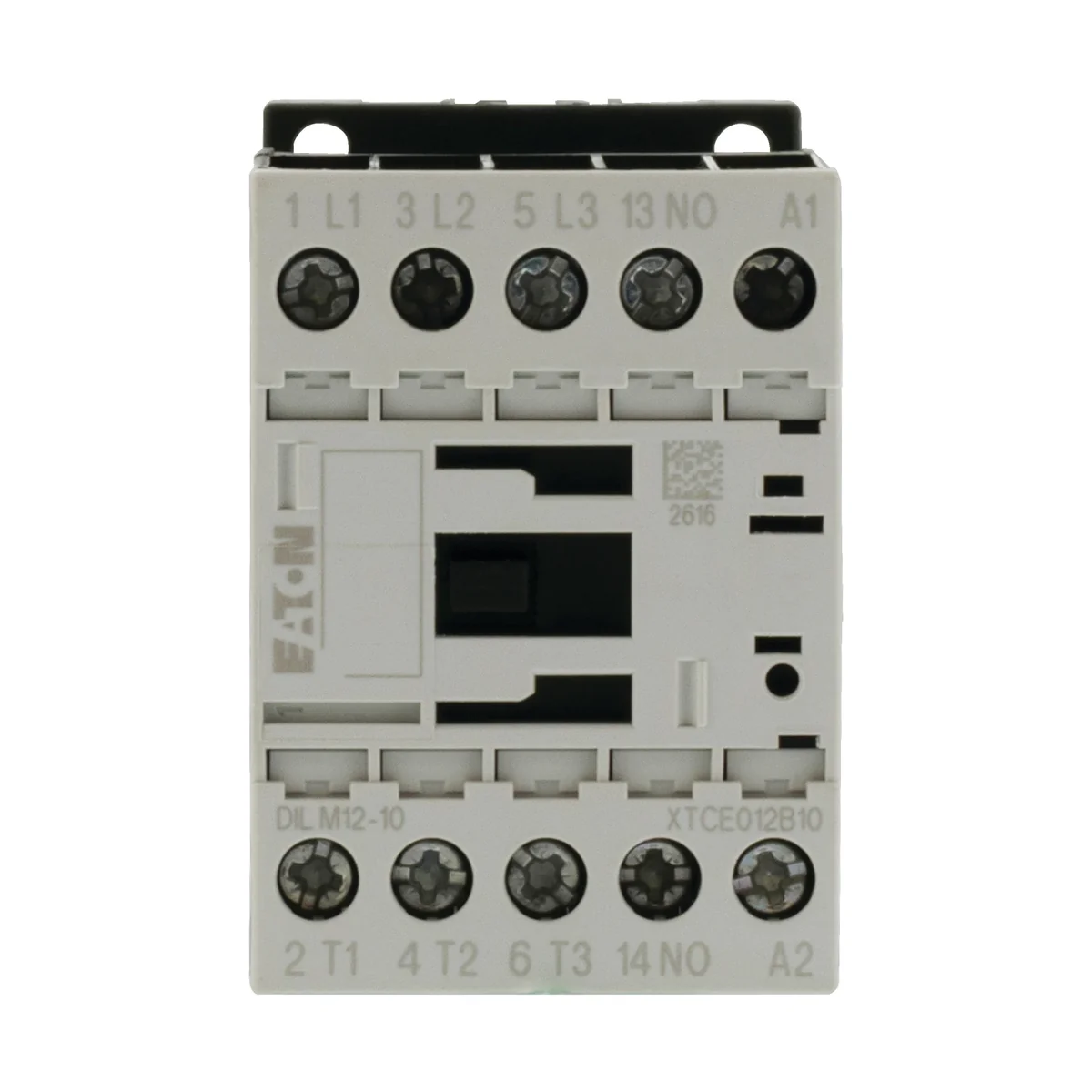

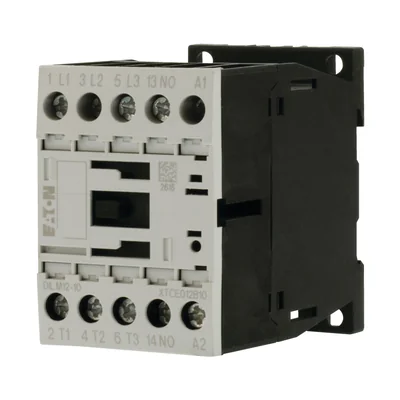

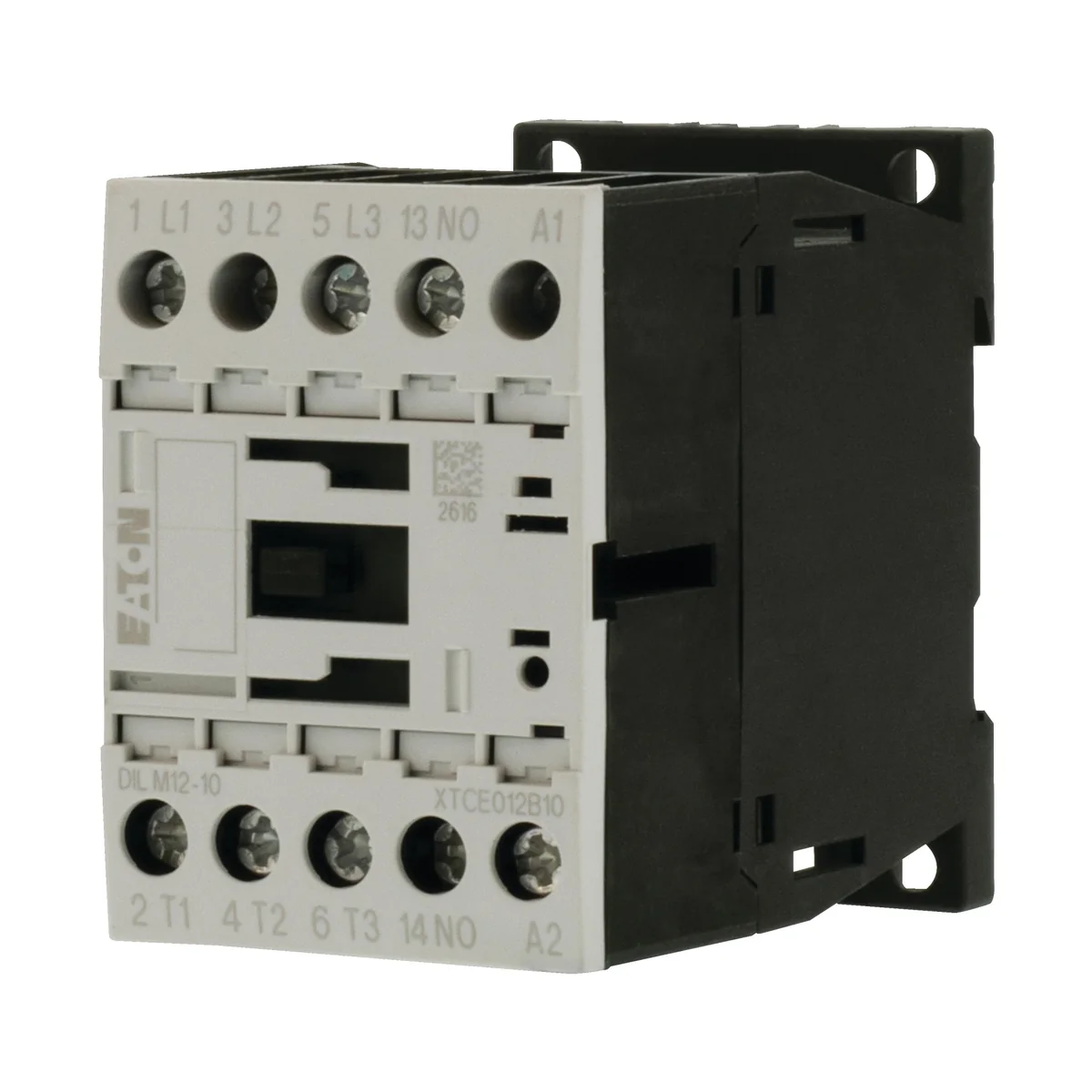

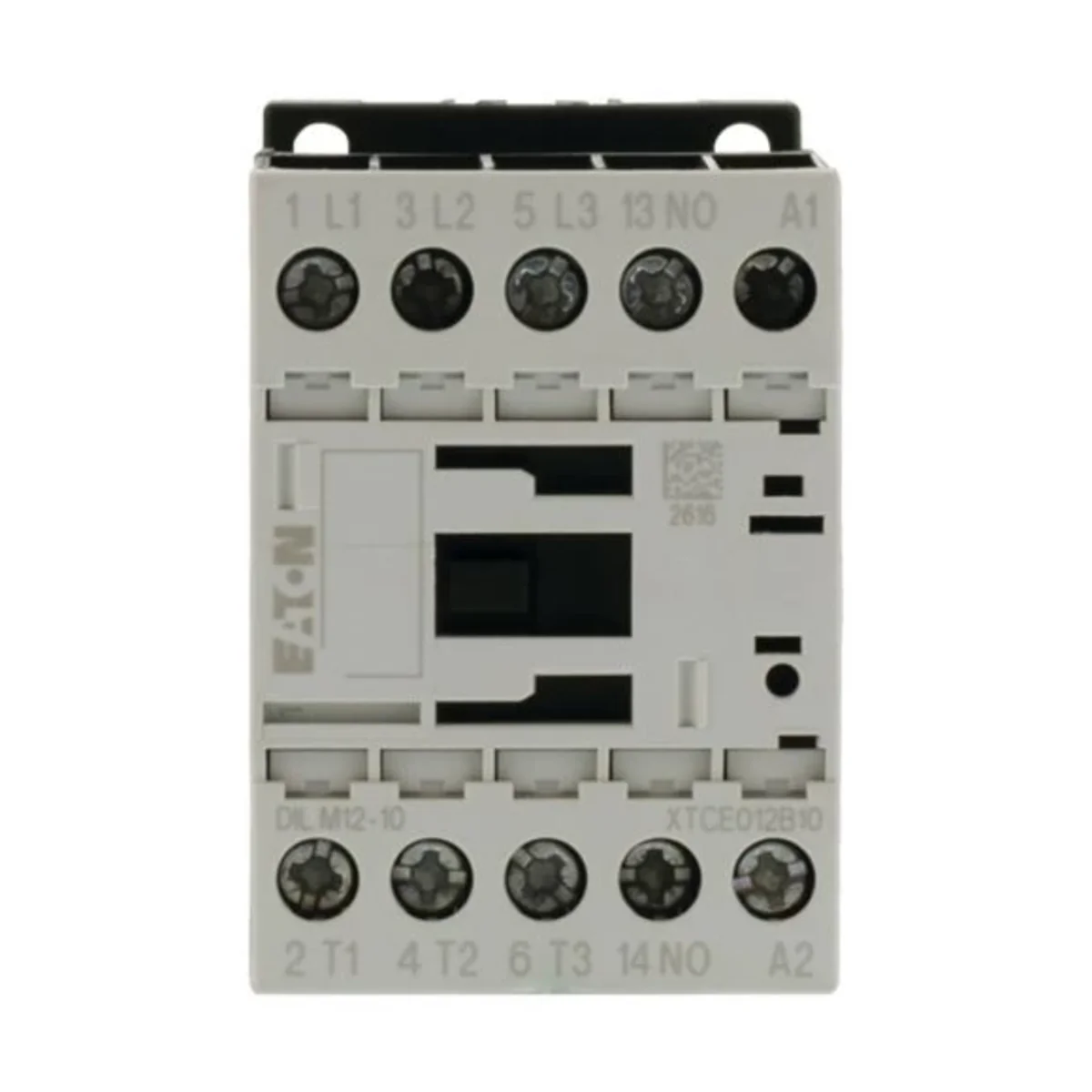

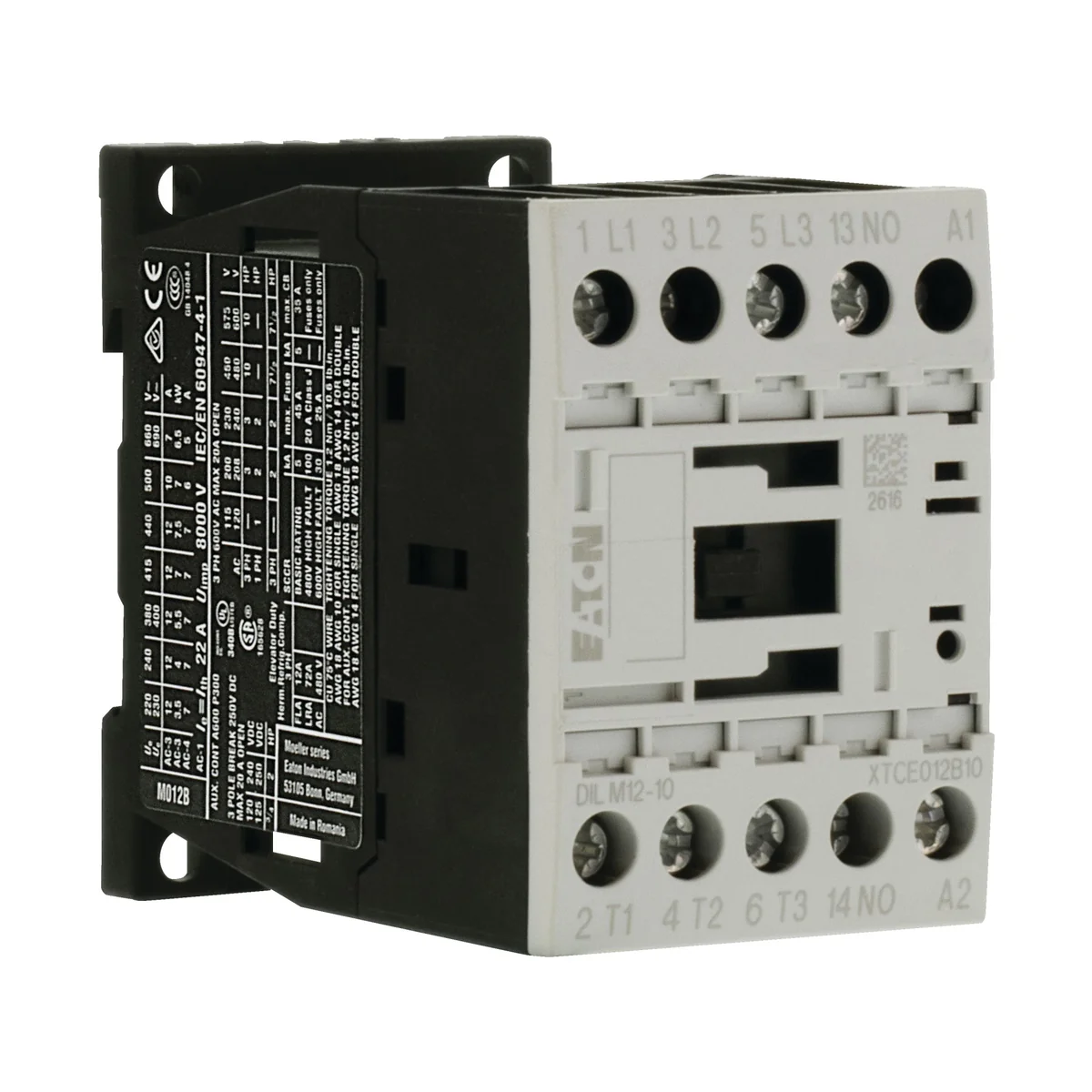

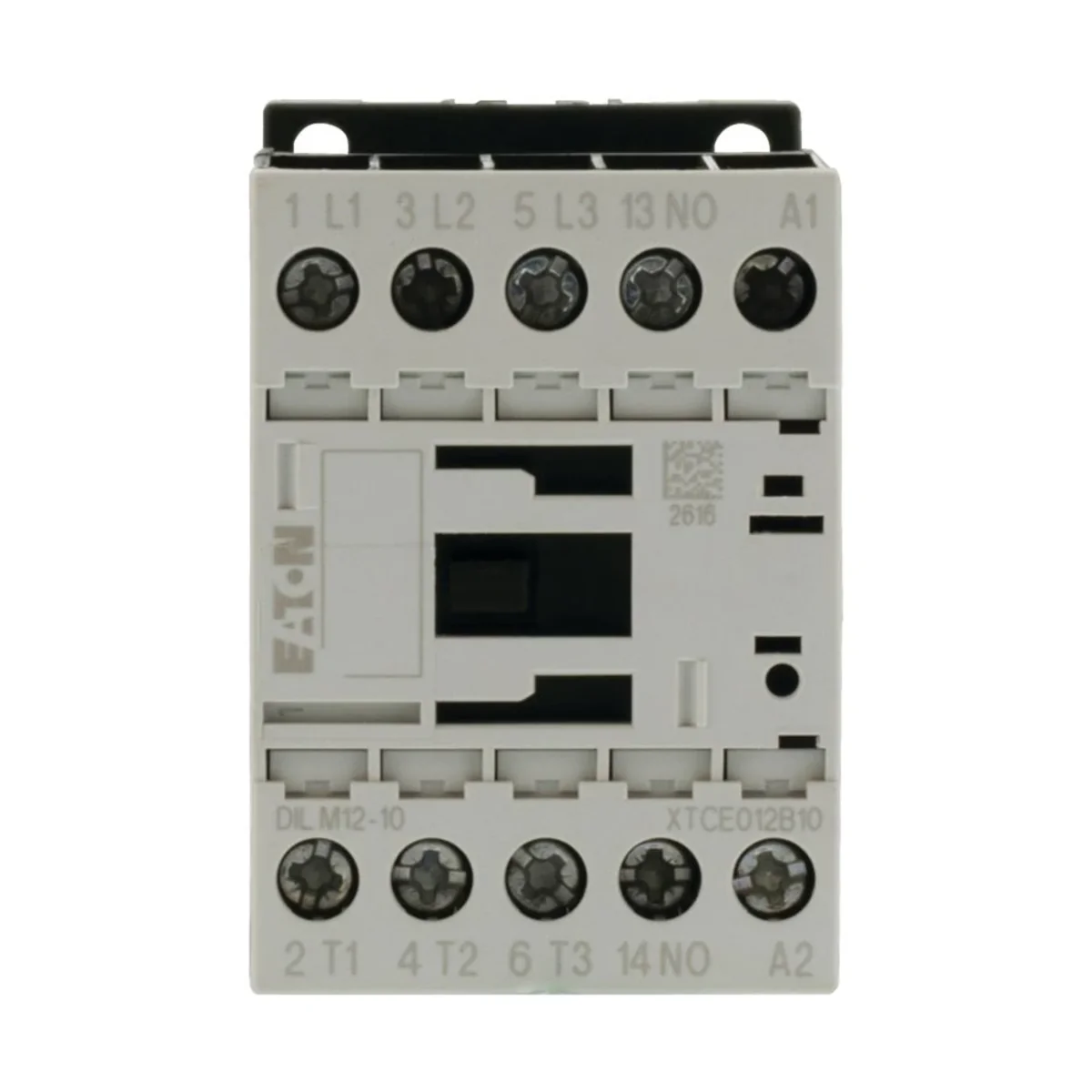

Click on the photo to enlarge

Manufacturer: EATON

Rated voltage [V]: 230

Rated current [A]: 12

See full description

Price:

41,18 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

DILM power contactors. Contacts according to EN 50012.
For DC operated contactors DILM7 – DILM15 applies:
• built-in varistor protection circuit.
For DC operated DILM17 contactors – DILM170 applies:
• protection circuit built into the control electronics.
For AC operated DILM115 contactors – DILM170 applies:
• protection circuit built into the electronic control system.
For DILM7-01 – DILM38-01 applies:
• with mirror contacts.

Technical data

Rated voltage [V]

230

Rated current [A]

12

Other technical data

Rated control supply voltage AC 50 Hz

230 ... 230 V
Rated control supply voltage DC

0 ... 0 V
Rated operation current Ie at AC-1, 400 V

22 A
Rated operation power at AC-3, 400 V

5.5 kW
Rated operation power at AC-4, 400 V

3 kW
Modular version

No
Number of auxiliary contacts as normally closed contact

0
Number of normally closed contacts as main contact

0

Rated control supply voltage AC 60 Hz

240 ... 240 V
Voltage type for actuating

AC
Rated operation current Ie at AC-3, 400 V

12 A
Rated operation current Ie at AC-4, 400 V

7 A
Rated operation power NEMA

7.4 kW
Number of auxiliary contacts as normally open contact

1
Type of electrical connection of main circuit

Screw connection
Number of normally open contacts as main contact

3

Manufacturer details

Manufacturer

EATON ELECTRIC SP. Z O.O.
Address

80-299 UL. GALAKTYCZNA 30
E-mail

pl-zamowienia@eaton.com
Tax identification number

5841022327

Bulk packaging

A kind of package	Skrzynia	Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	0,253	0,253
Volume (m3)	0,000	0,000
Width (m)	0,046	0,046
Length (m)	0,079	0,079
Depth (m)	0,070	0,070
