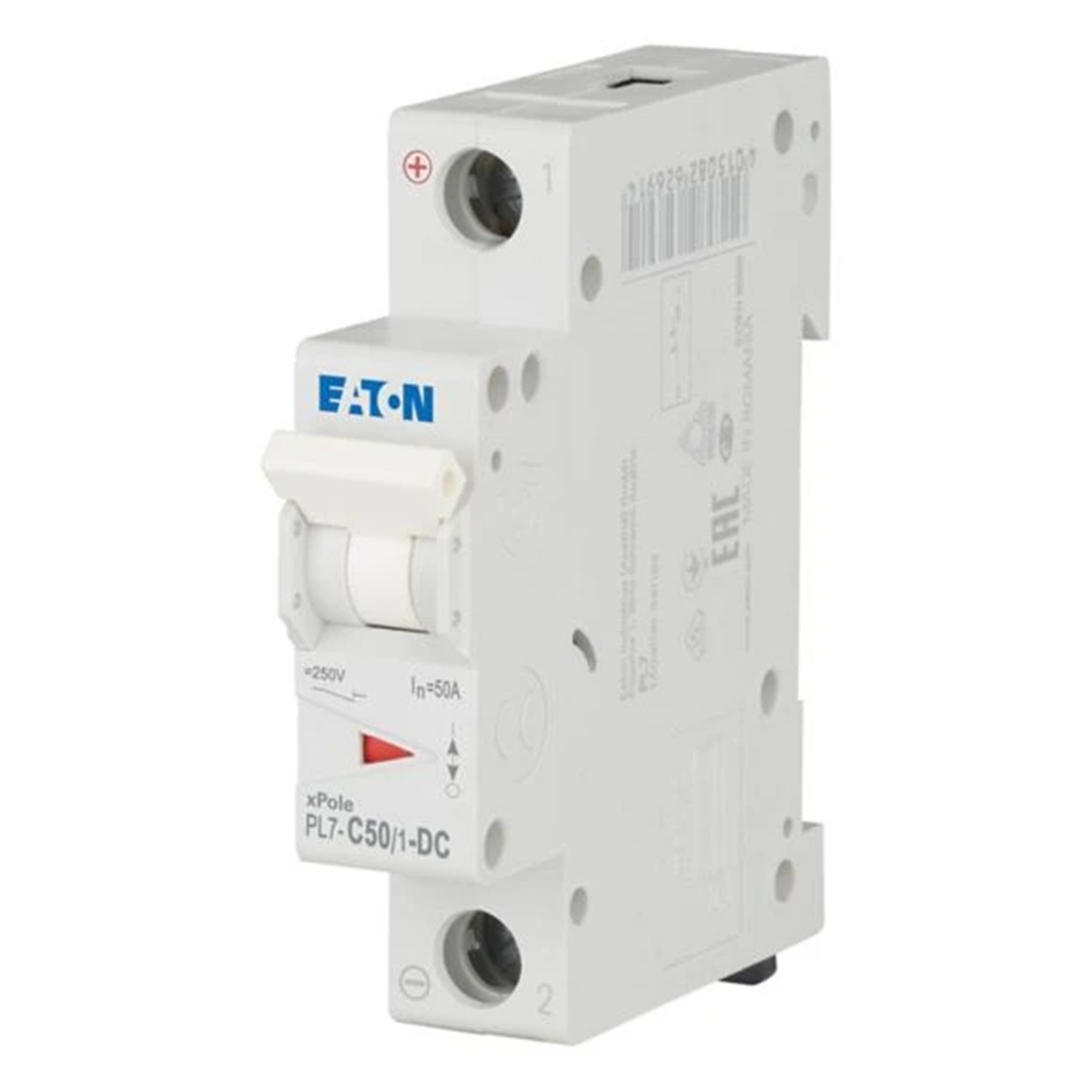

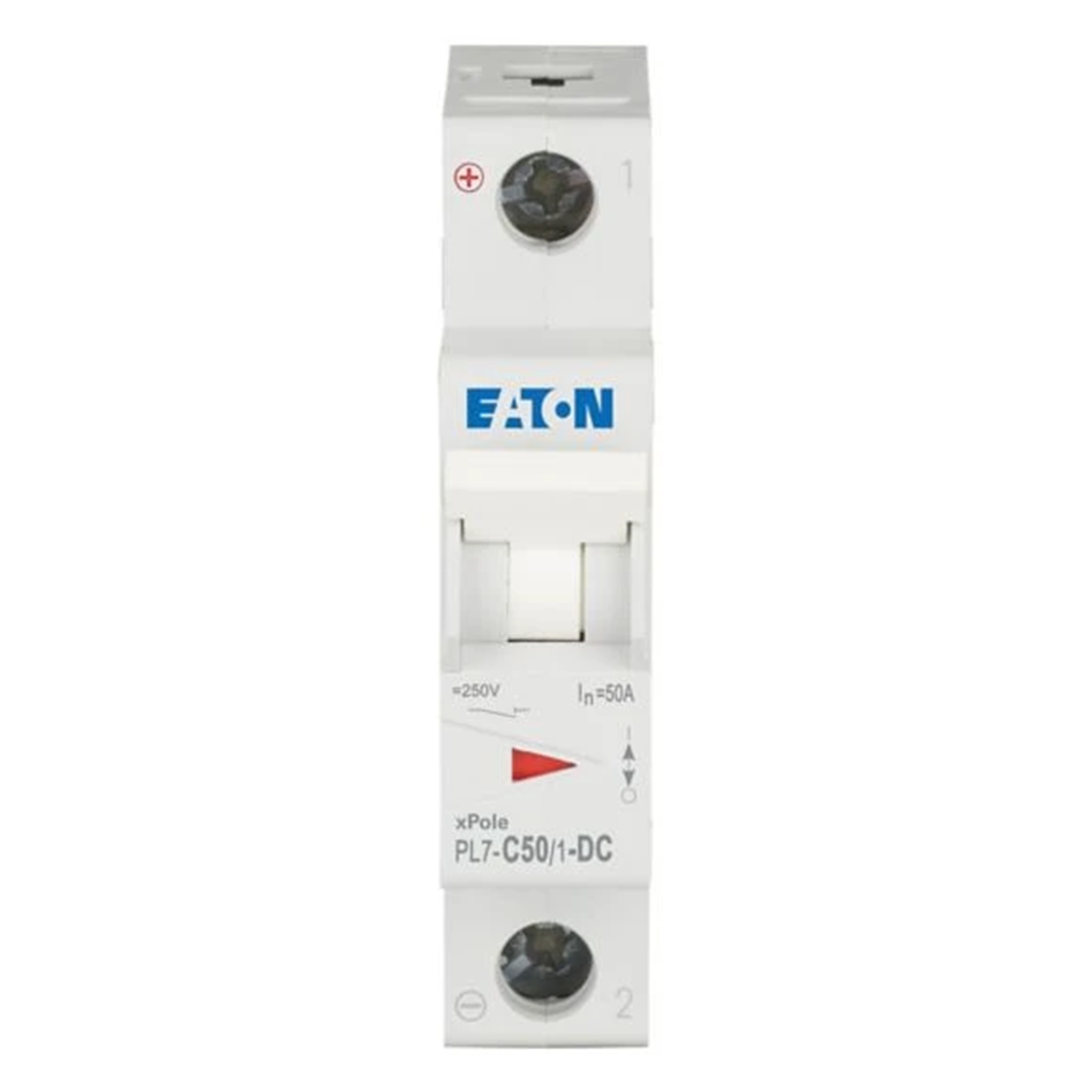

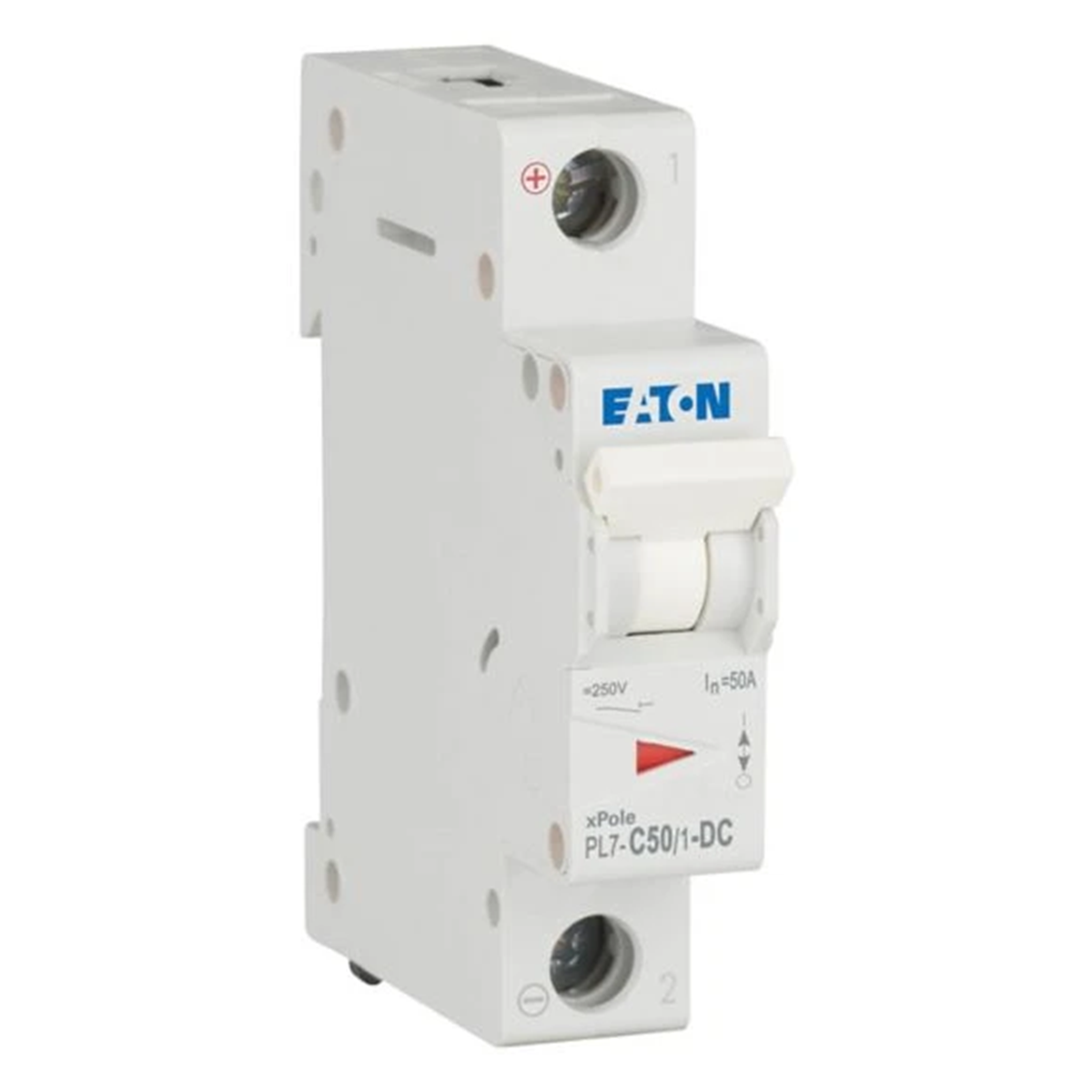

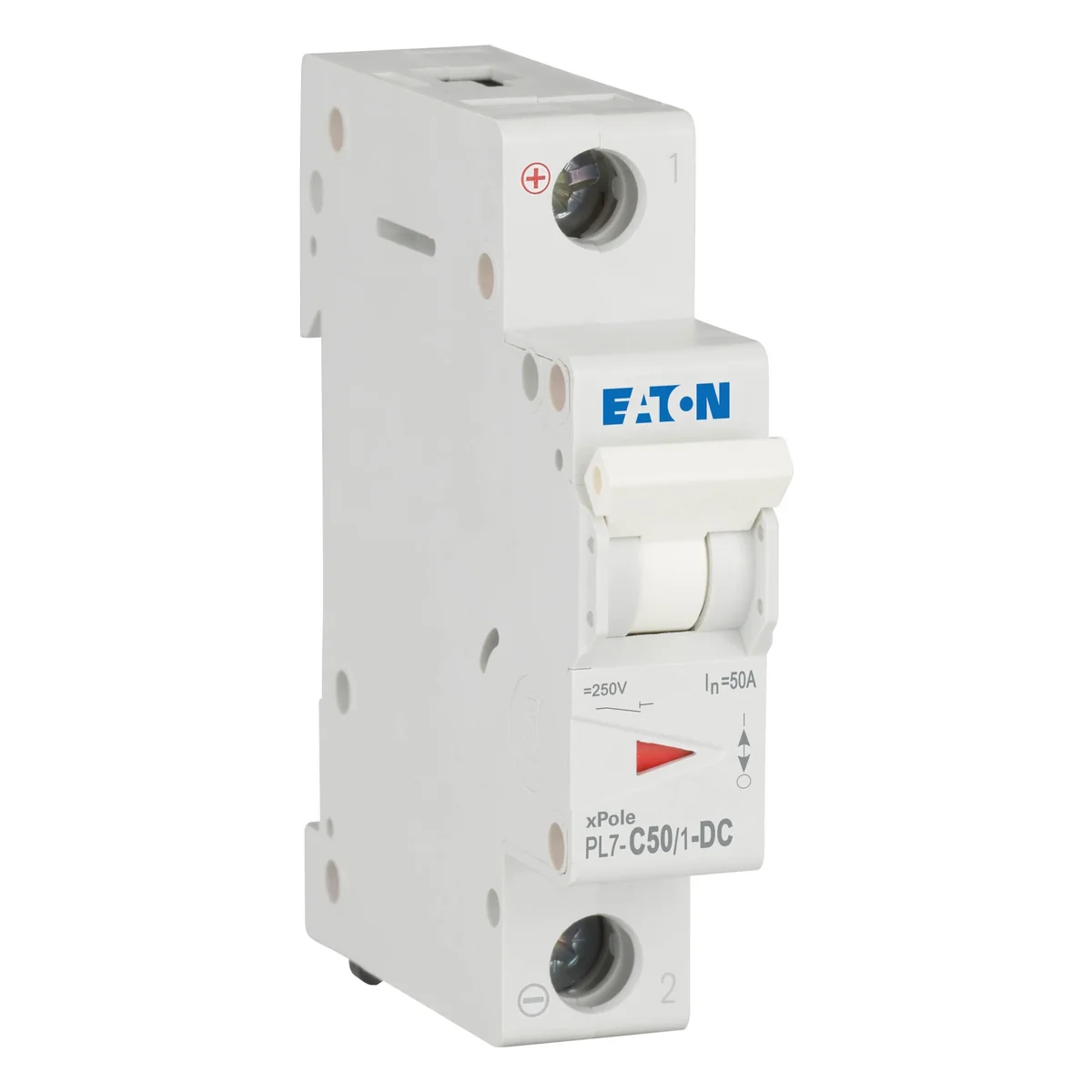

PL7-C50/1-DC Circuit breaker 10kA In= 50A C 1P 264894

local index:
ABC283MOEL
Catalog No:
264894
EAN code:
4015082648947
Manufacturer: EATON
Characteristic: c
Price:
40,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

PL7-C50/1-DC Circuit breaker 10kA In= 50A C 1P

Technical data

  • Characteristic
    c

Other technical data

  • Release characteristic
    C
  • Number of protected poles
    1
  • Rated voltage
    250 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    0 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    10 kA
  • Frequency
    0 ... 0 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Number of poles (total)
    1
  • Rated current
    50 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    0 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    10 kA
  • Voltage type
    DC
  • Current limiting class
    3
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Built-in depth
    70.5 mm
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 12 pcs. 120 pcs.
Weight (kg) 0,125 1,495 15,055
Volume (m3) 0,000 0,001 0,016
Width (m) 0,020 0,086 0,180
Length (m) 0,082 0,218 0,385
Depth (m) 0,074 0,074 0,230
