PL7-C2/2-DC Circuit Breaker 10kA, In=2A, C-type, 2-pole. PL7-DC Series 264896

Name: PL7-C2/2-DC Circuit Breaker 10kA, In=2A, C-type, 2-pole. PL7-DC Series
Brand: EATON
SKU: ABC260MOEL
Price: 361.34 PLN
Availability: BackOrder

Lokaler Index:

ABC260MOEL

Katalognummer:

264896

EAN-Code:

4015082648961

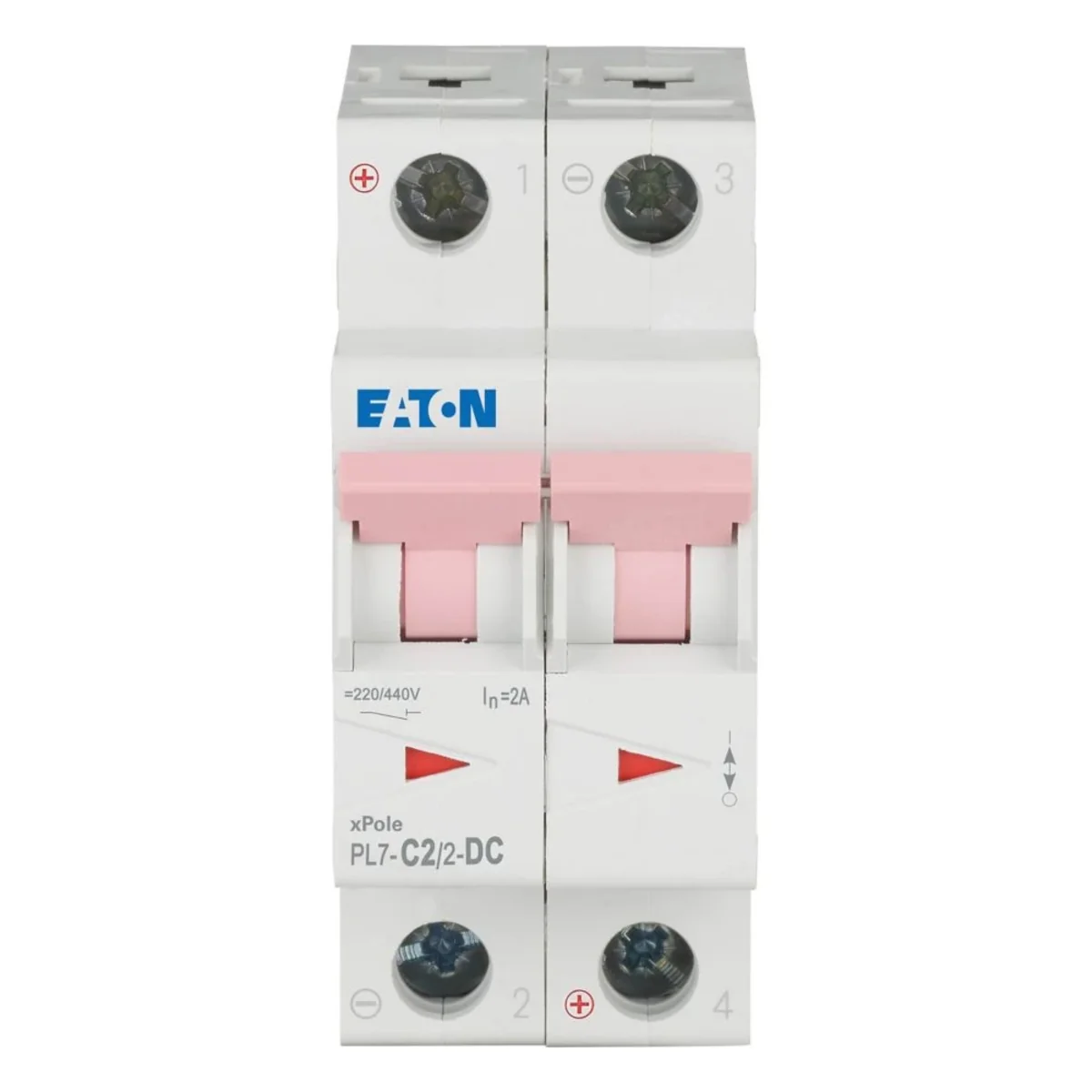

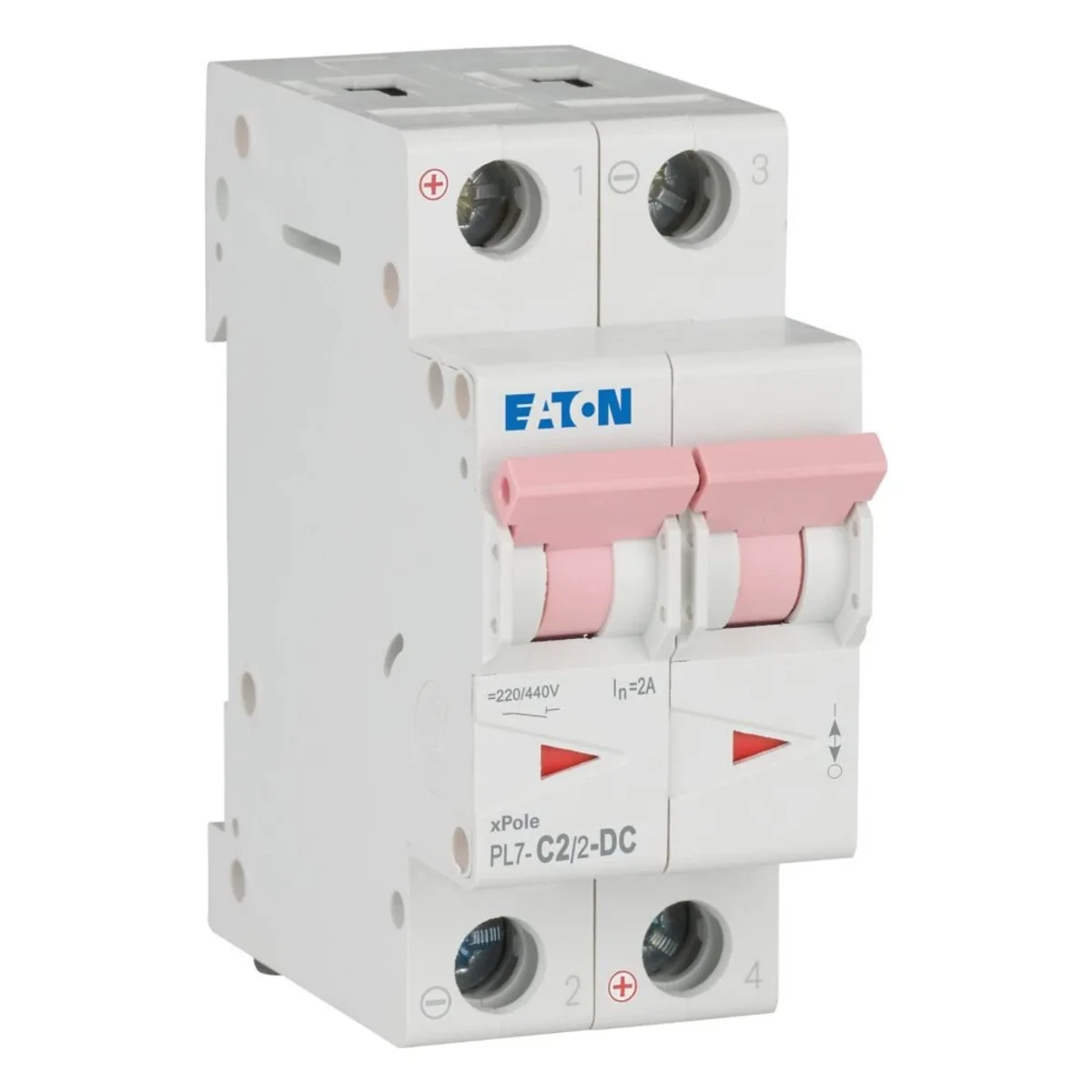

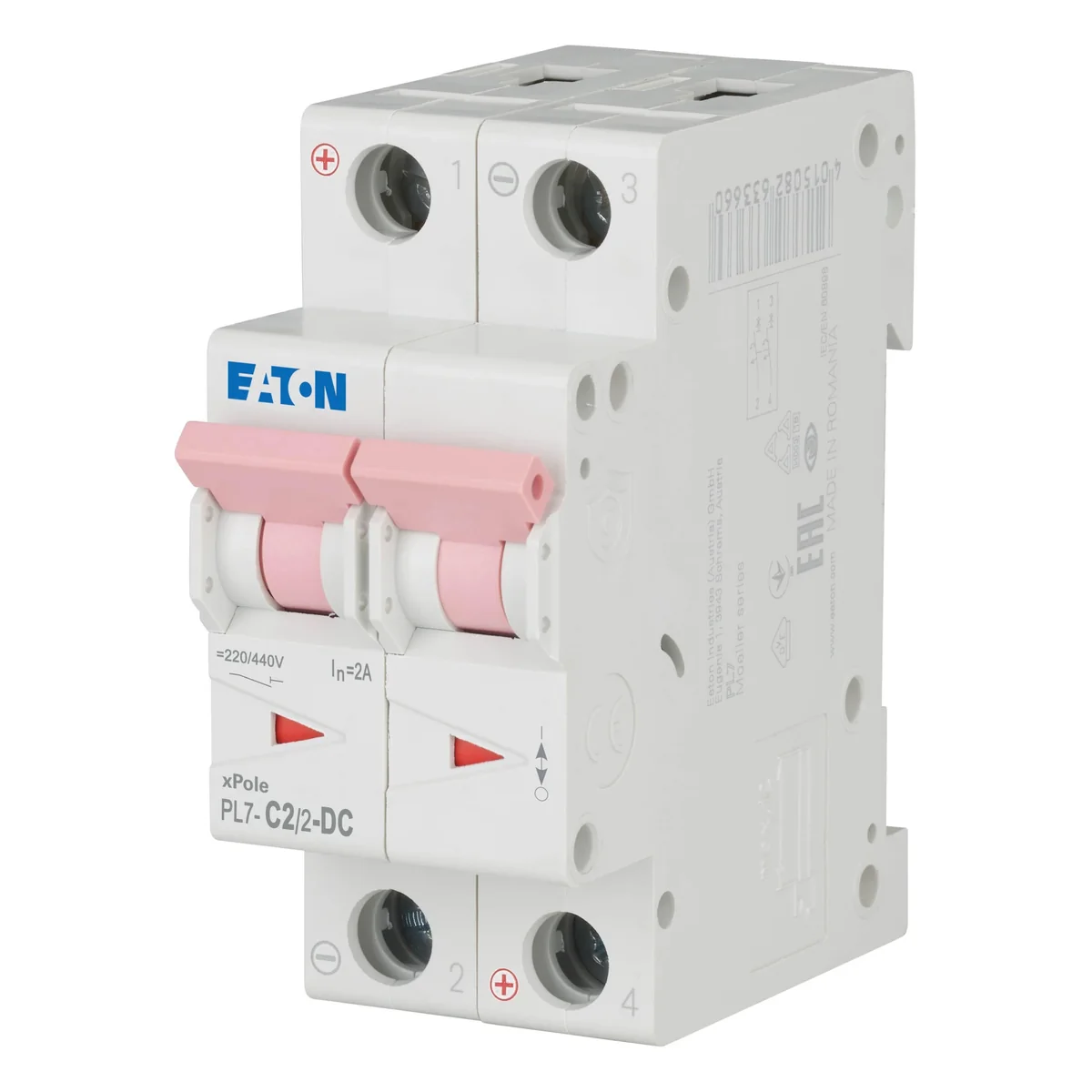

PL7-C2/2-DC Circuit Breaker 10kA, In=2A, C-type, 2-pole. PL7-DC Series

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: EATON

Preis:

361,34 zł

gross / stk.

(inklusive MwSt 23%)

2 Wochen

Auf Bestellung

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Technische Daten

Weitere technische Daten

Built-in depth

70.5 mm
Number of poles (total)

2
Rated current

2 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10 kA
Current limiting class

3
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

2
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Release characteristic

C
Number of protected poles

2
Rated voltage

220 V
Rated impulse withstand voltage Uimp

4 kV
Voltage type

DC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10 kA
Frequency

0 ... 0 Hz
Flush-mounted installation

No
Over voltage category

3
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²
Explosion-proof

No

Hersteller-Details

Hersteller

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-Mail

wsparcietech@eaton.com

Großpackungen

Eine Art Paket	Skrzynia	Karton	Karton	Skrzynia	Karton	Karton
Menge	1 stk.	6 stk.	60 stk.	1 stk.	6 stk.	60 stk.
Gewicht (kg)	0,240	1,495	15,055	0,240	1,495	15,055
Volumen (m3)	0,000	0,001	0,016	0,000	0,001	0,016
Breite (m)	0,037	0,086	0,180	0,037	0,086	0,180
Länge (m)	0,082	0,218	0,385	0,082	0,218	0,385
Tiefe (m)	0,074	0,074	0,230	0,074	0,074	0,230
