PL6-B6/1 Overcurrent circuit breaker 6kA, In=6A, B characteristic, 1-pole, PL6 series 286518

Name: PL6-B6/1 Overcurrent circuit breaker 6kA, In=6A, B characteristic, 1-pole, PL6 series
Brand: EATON
SKU: ABB085MOEL
Price: 23.09 PLN
Availability: BackOrder

Lokaler Index:

ABB085MOEL

Katalognummer:

286518

EAN-Code:

4015082865184

PL6-B6/1 Overcurrent circuit breaker 6kA, In=6A, B characteristic, 1-pole, PL6 series

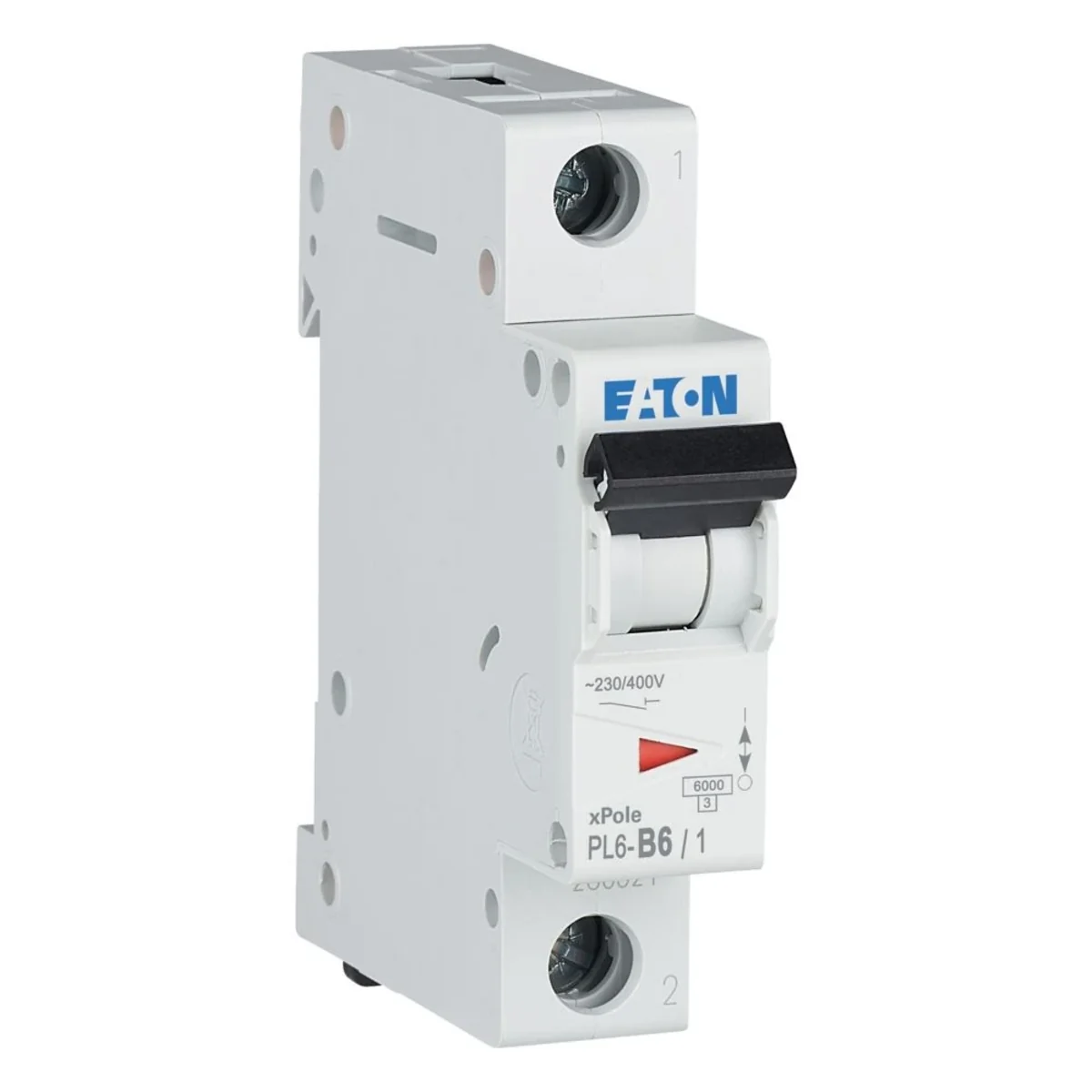

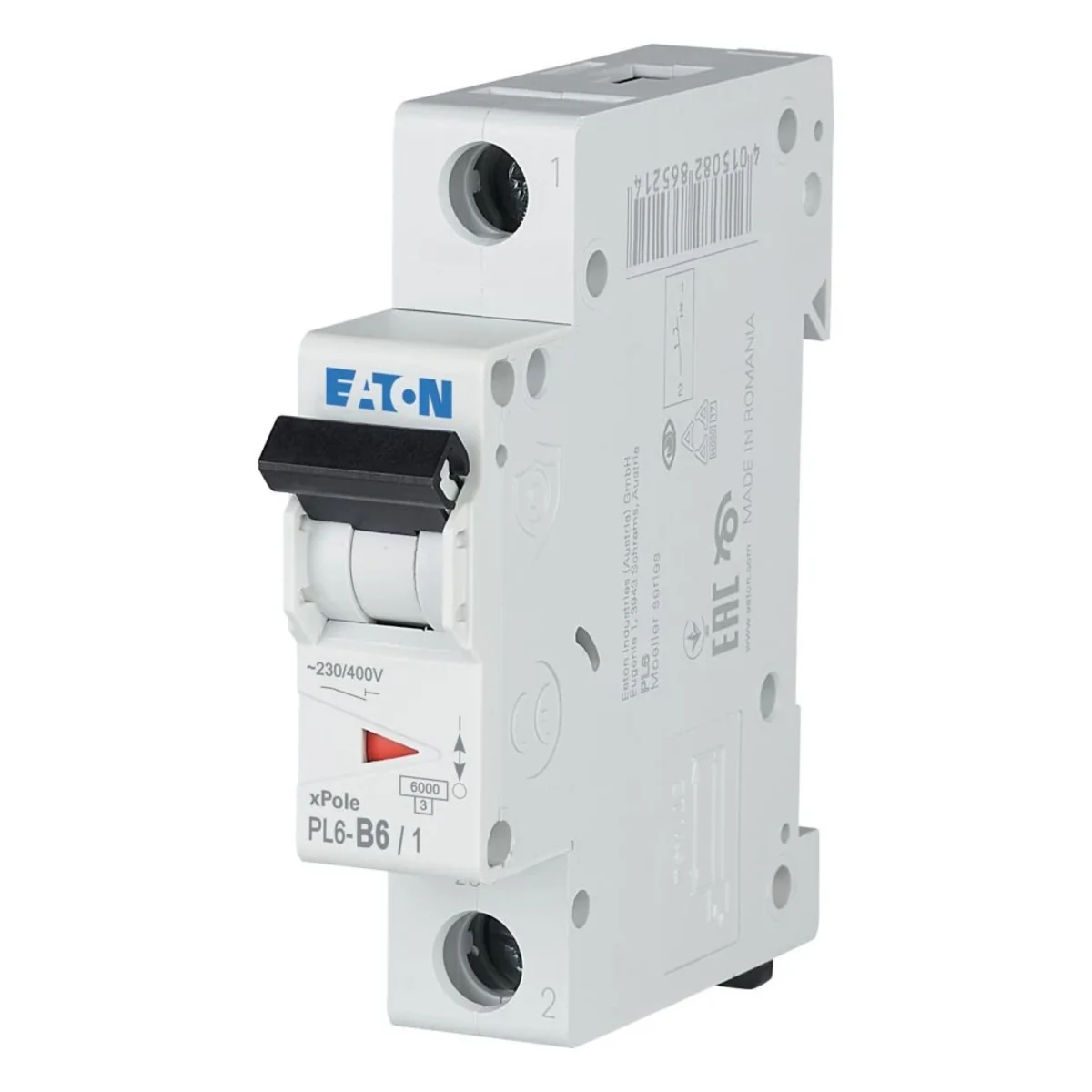

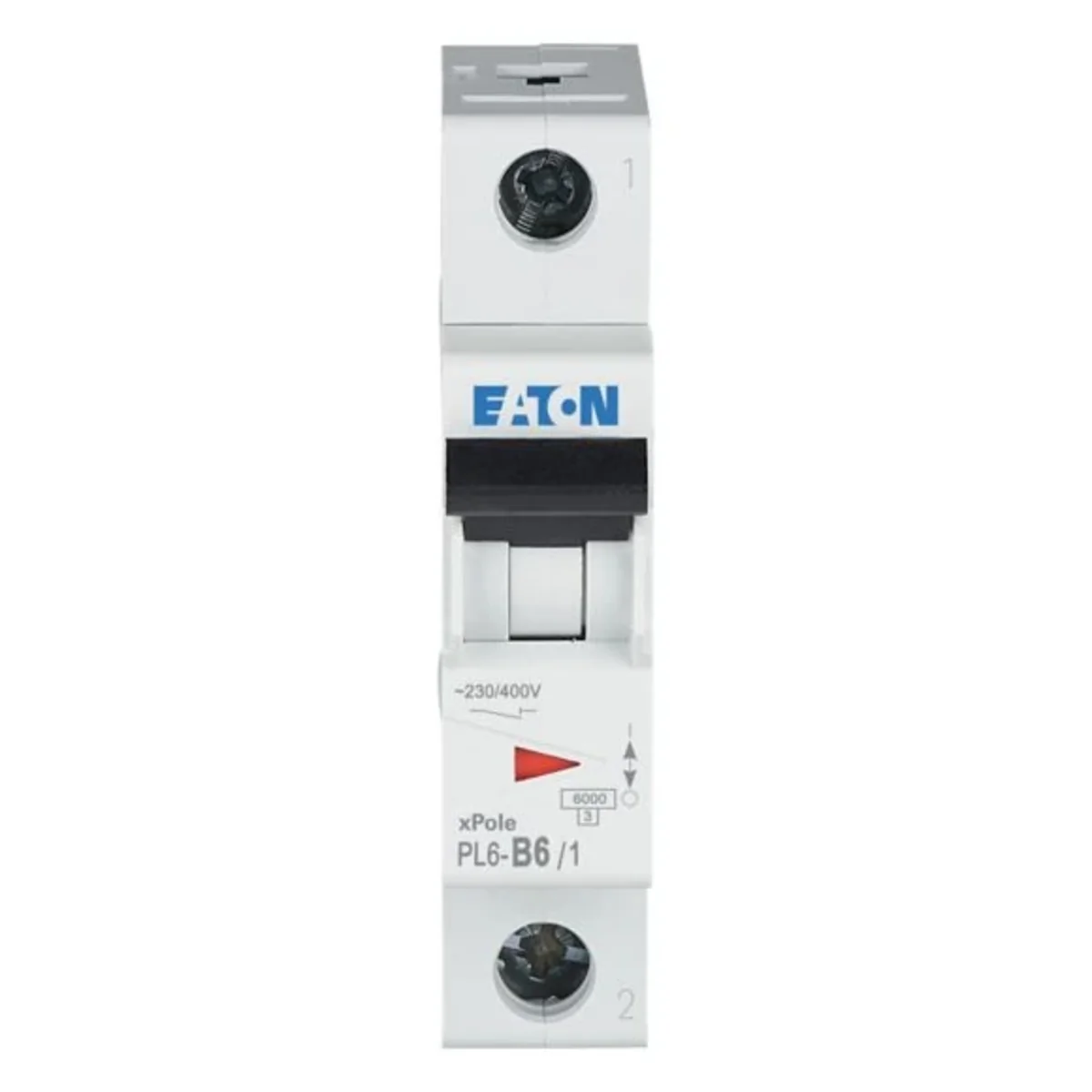

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: EATON

Preis:

23,09 zł

gross / stk.

(inklusive MwSt 23%)

2 Wochen

Auf Bestellung

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Technische Daten

Weitere technische Daten

Release characteristic

B
Number of protected poles

1
Rated voltage

230 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

0 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Pollution degree

2
Width in number of modular spacings

1
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Number of poles (total)

1
Rated current

6 A
Rated insulation voltage Ui

440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

0 kA
Voltage type

AC
Current limiting class

3
Over voltage category

3
Additional equipment possible

Yes
Built-in depth

70.5 mm
Ambient temperature during operating

-25 ... 75 °C
Connectable conductor cross section solid-core

1 ... 25 mm²

Hersteller-Details

Hersteller

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-Mail

wsparcietech@eaton.com

Großpackungen

Eine Art Paket	Skrzynia	Karton	Karton	Skrzynia	Karton	Karton
Menge	1 stk.	12 stk.	120 stk.	1 stk.	12 stk.	120 stk.
Gewicht (kg)	0,120	1,495	15,055	0,120	1,495	15,055
Volumen (m3)	0,000	0,001	0,016	0,000	0,001	0,016
Breite (m)	0,020	0,086	0,180	0,020	0,086	0,180
Länge (m)	0,087	0,218	0,385	0,087	0,218	0,385
Tiefe (m)	0,075	0,074	0,230	0,075	0,074	0,230
