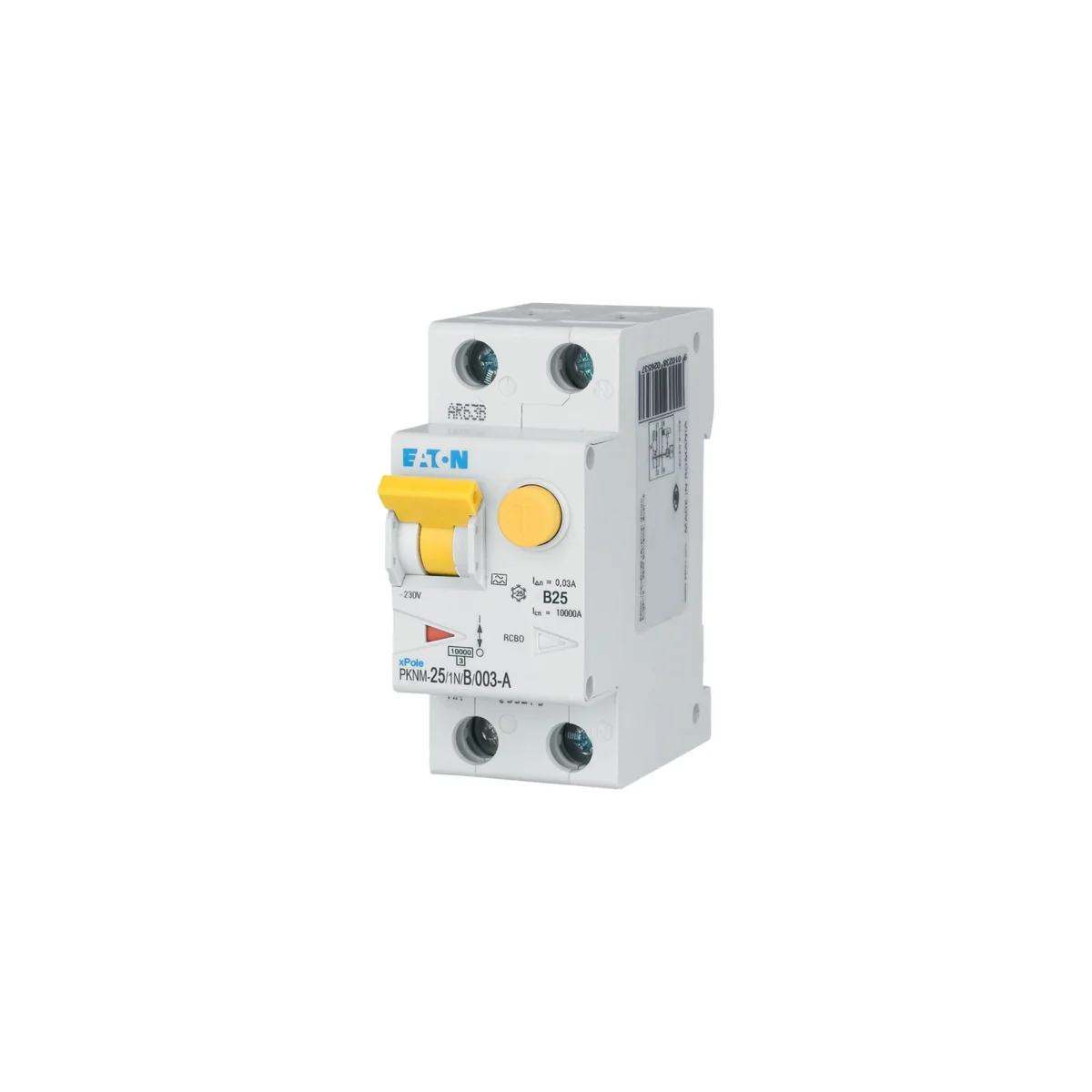

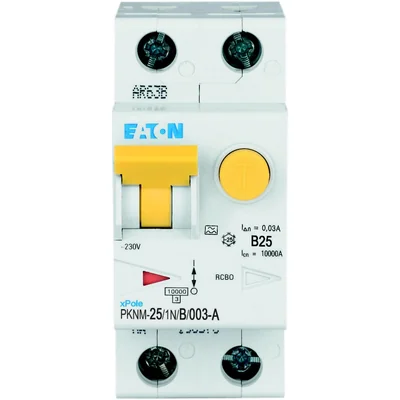

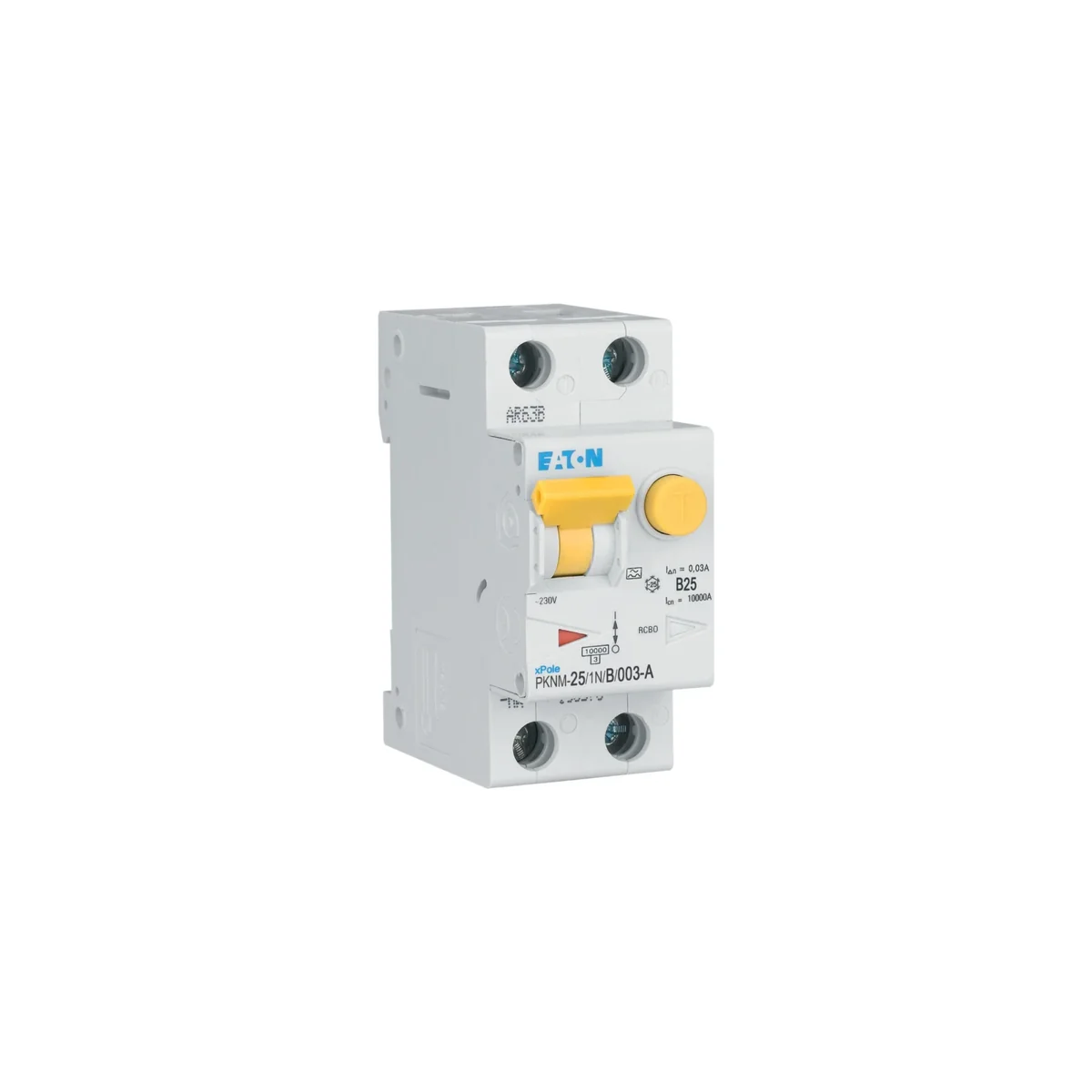

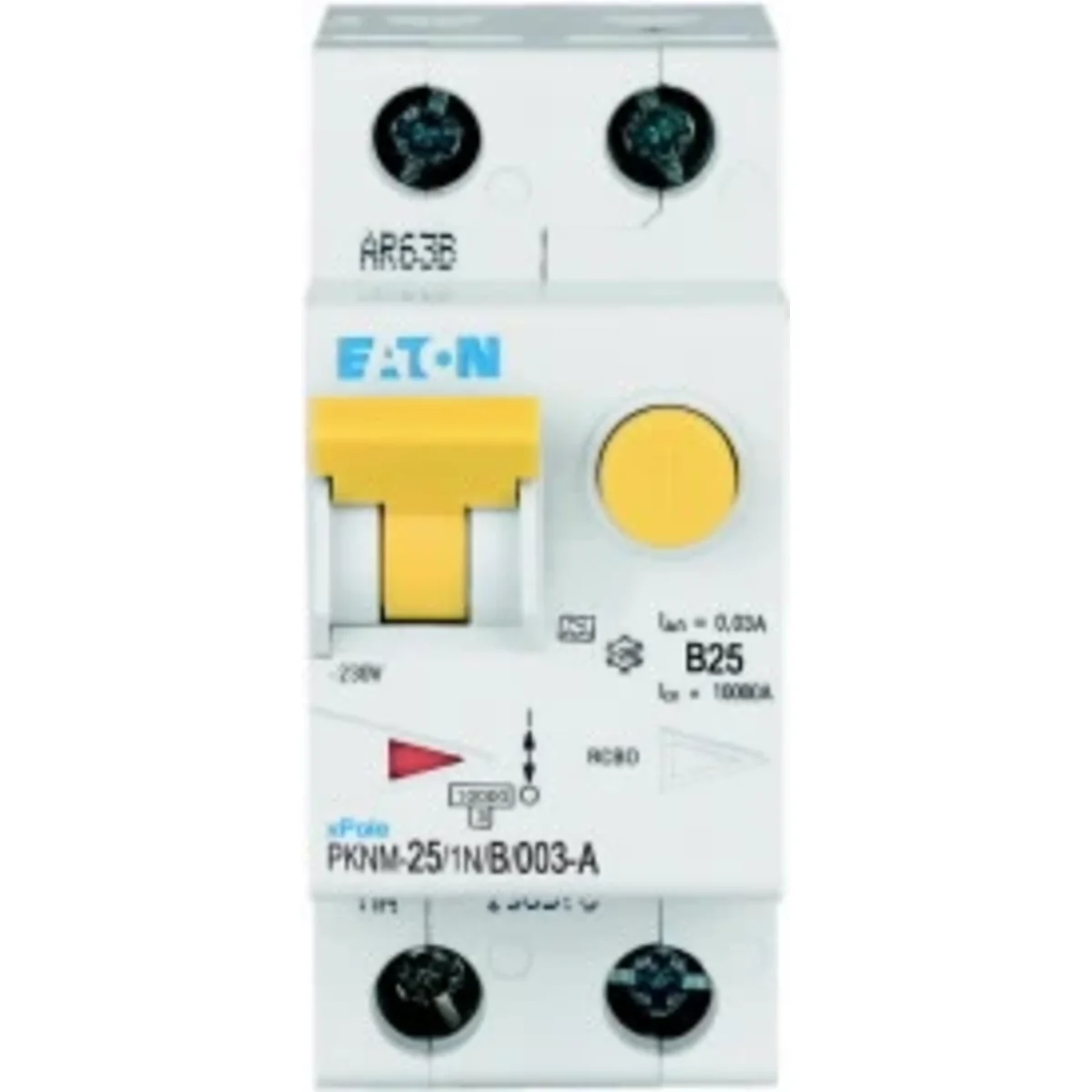

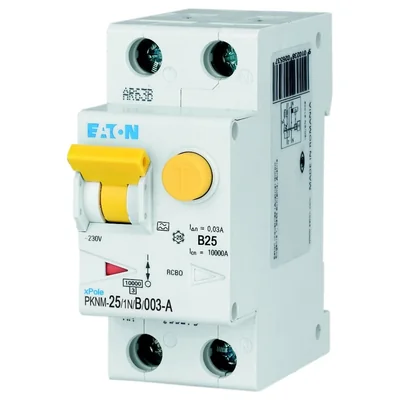

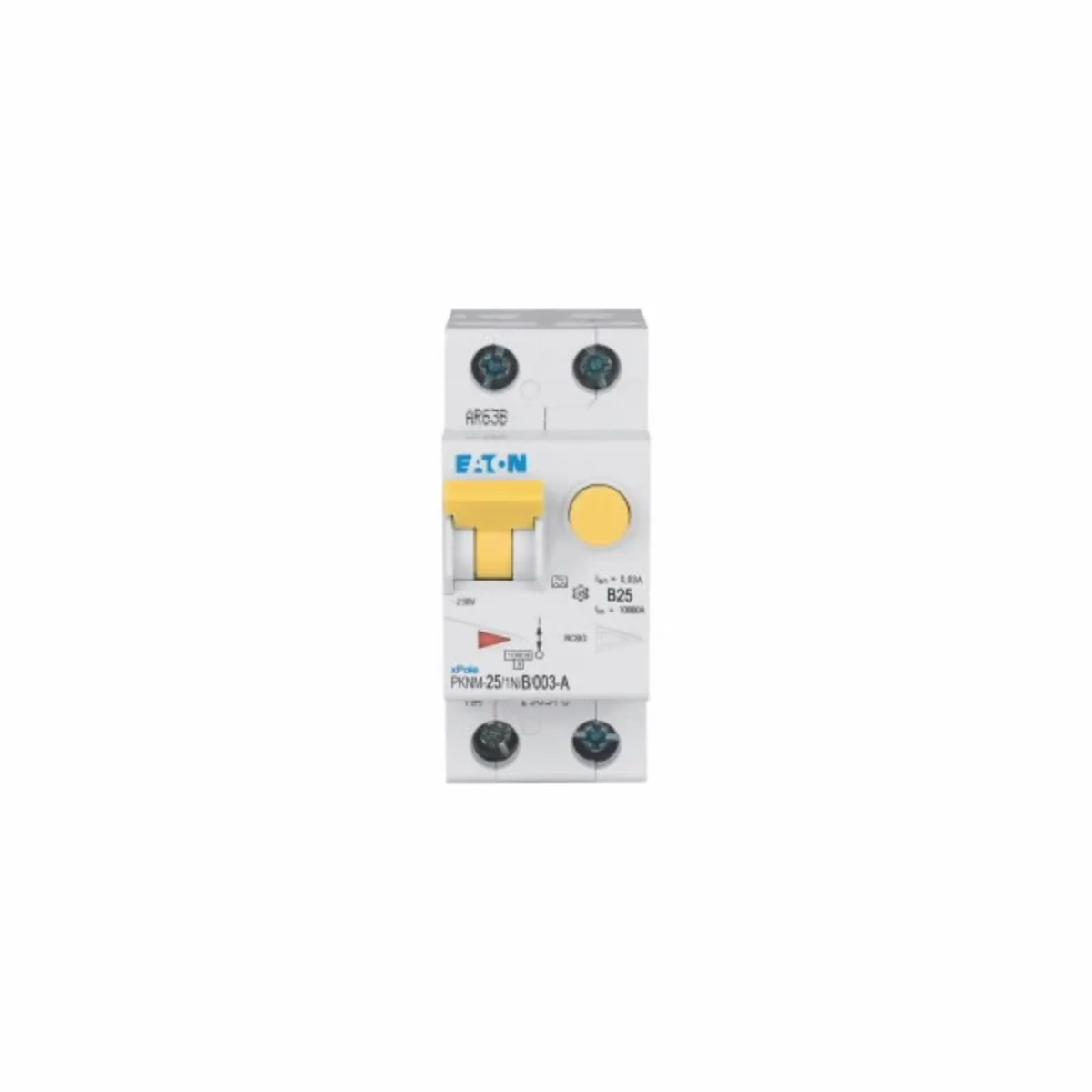

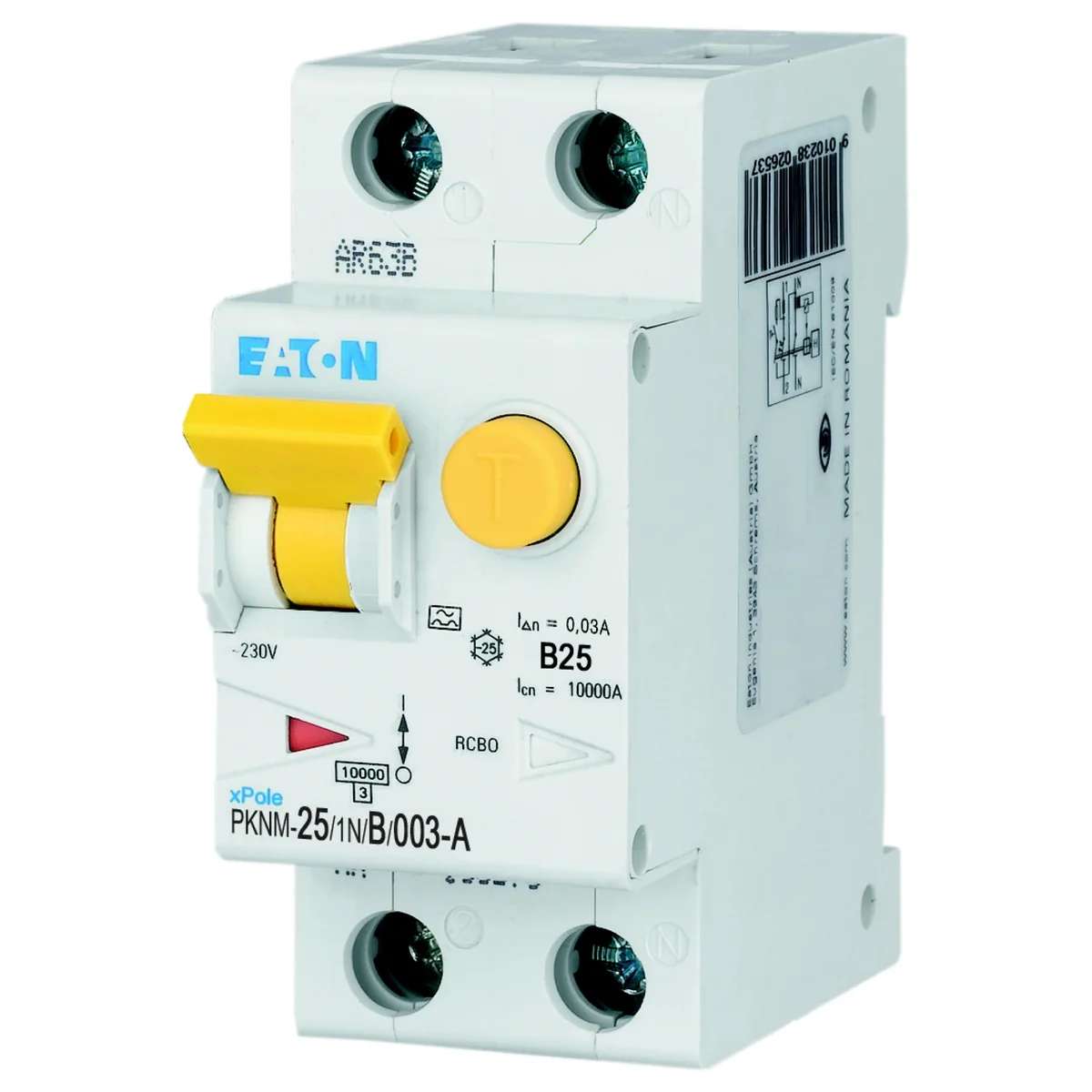

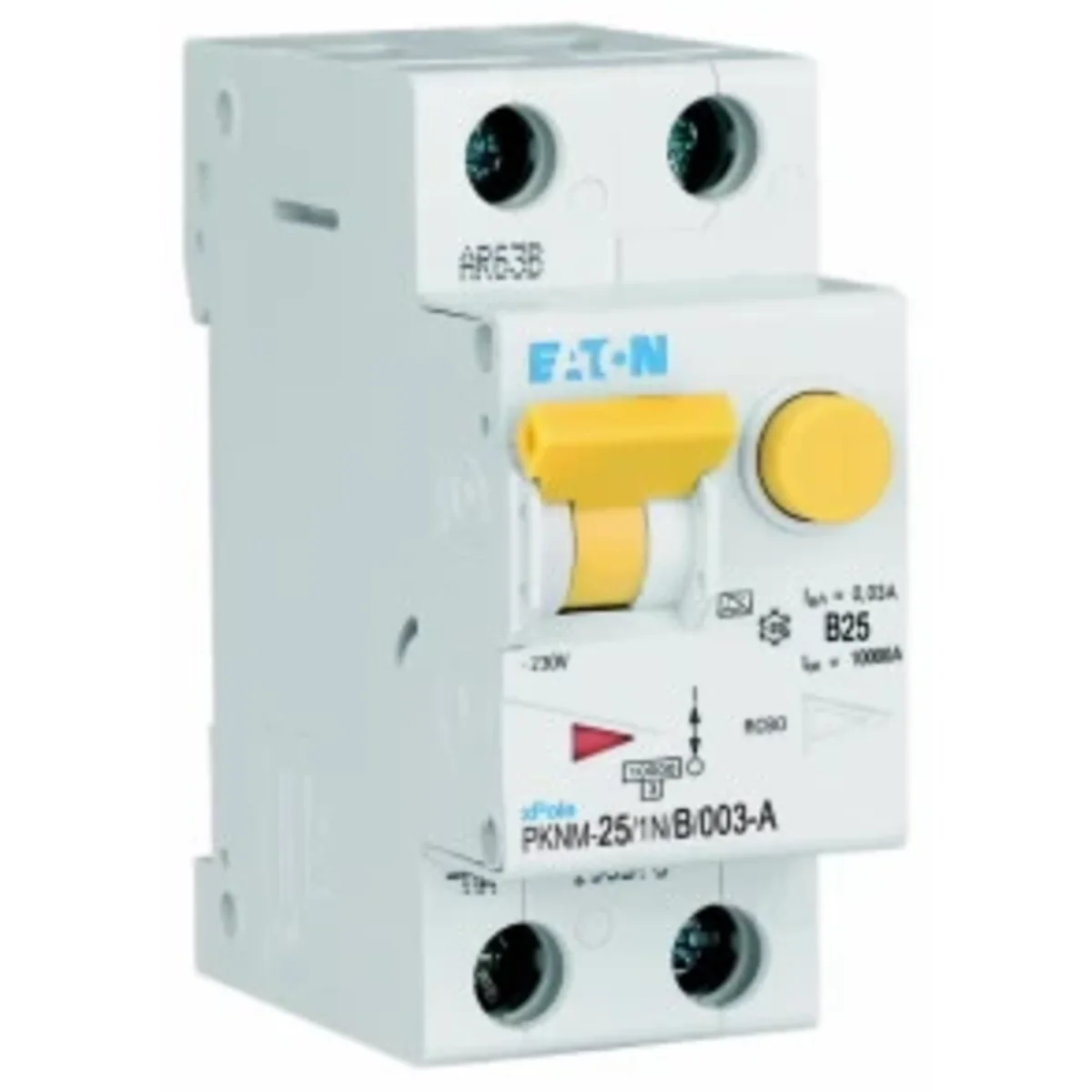

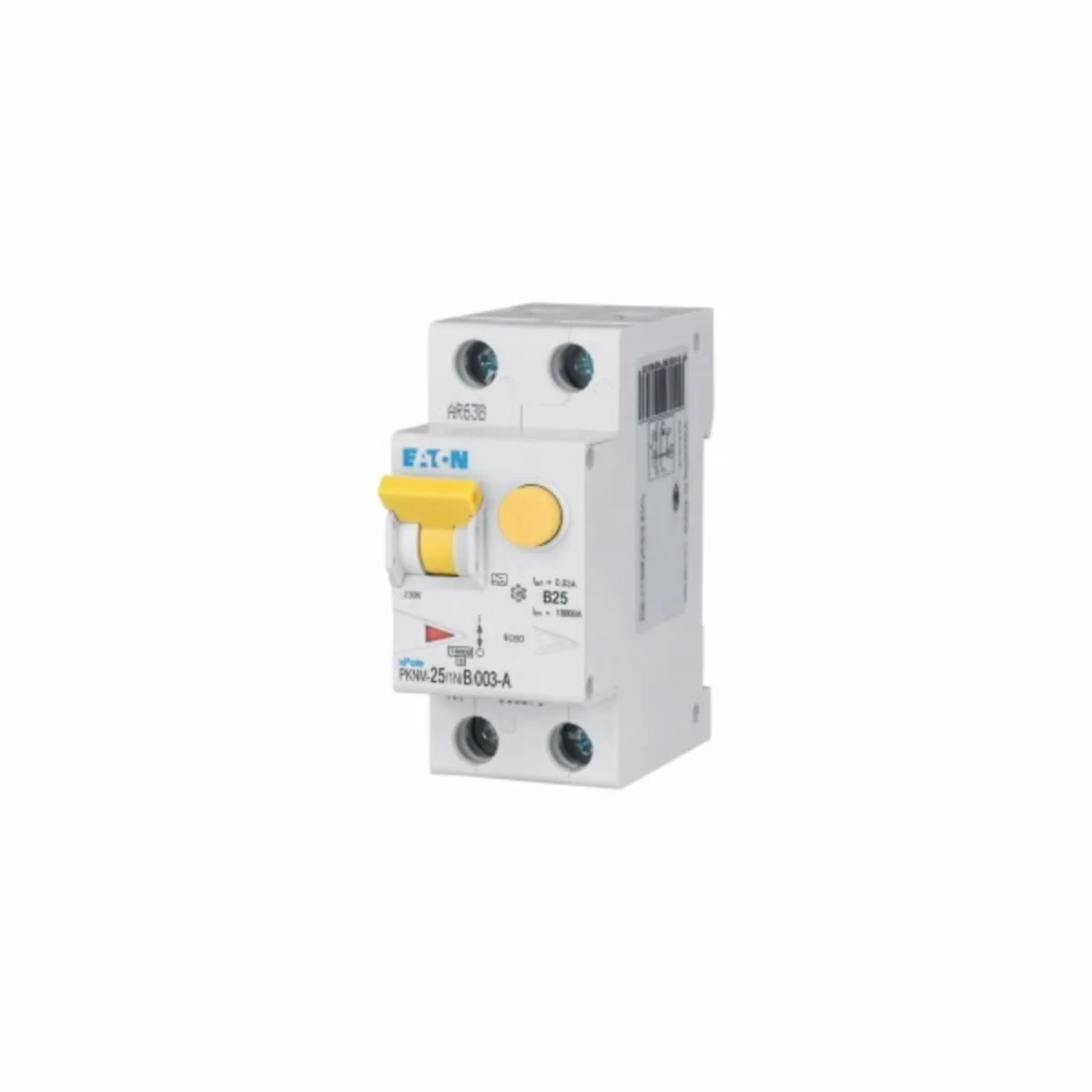

PKNM-25/1N/B/003-A-MW Combined circuit breaker 10kA, In=25A, IΔN=0.03A, char. B, Type A, 1+N pole PKNM series 236269

local index:
ARP119MOEL
Catalog No:
236269
EAN code:
4015082362690
Manufacturer: EATON
Level of security: IP20
Price:
109,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

PKNM-25/1N/B/003-A-MW Combined circuit breaker 10kA, In=25A, IΔN=0.03A, char. B, Type A, 1+N pole PKNM series

Technical data

  • Level of security
    IP20

Other technical data

  • Number of poles (total)
    2
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated fault current
    0.03 A
  • Current limiting class
    3
  • Rated short-circuit breaking capacity according to IEC 60947-2
    0 kA
  • Disconnection characteristic
    Undelayed
  • Voltage type
    AC
  • Release characteristic
    B
  • With interlocking device
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    2
  • Anti-nuisance tripping version
    No
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Number of protected poles
    1
  • Rated insulation voltage Ui
    440 V
  • Rated current
    25 A
  • Leakage current type
    A
  • Rated short-circuit breaking capacity according to EN 61009
    10 kA
  • Rated short-circuit breaking capacity Icn according to EN 61009-1
    10 kA
  • Surge current capacity
    0.25 kA
  • Frequency
    50 Hz
  • Concurrently switching neutral conductor
    Yes
  • Over voltage category
    3
  • Ambient temperature during operating
    -25 ... 40 °C
  • Built-in depth
    70 mm
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 60 pcs.
Weight (kg) 0,218 13,279
Volume (m3) 0,000 0,016
Width (m) 0,037 0,180
Length (m) 0,086 0,385
Depth (m) 0,075 0,230
