PFL6-20/1N/B/003-A Combined circuit breaker 6kA, In=20A, IΔN=0.03A, char. B, type A, 1+N pole. PFL6 series 113101

Name: PFL6-20/1N/B/003-A Combined circuit breaker 6kA, In=20A, IΔN=0.03A, char. B, type A, 1+N pole. PFL6 series
Brand: EATON
SKU: ARB093MOEL
Price: 474.96 PLN
Availability: BackOrder

local index:

ARB093MOEL

Catalog number:

113101

EAN code:

4015081126460

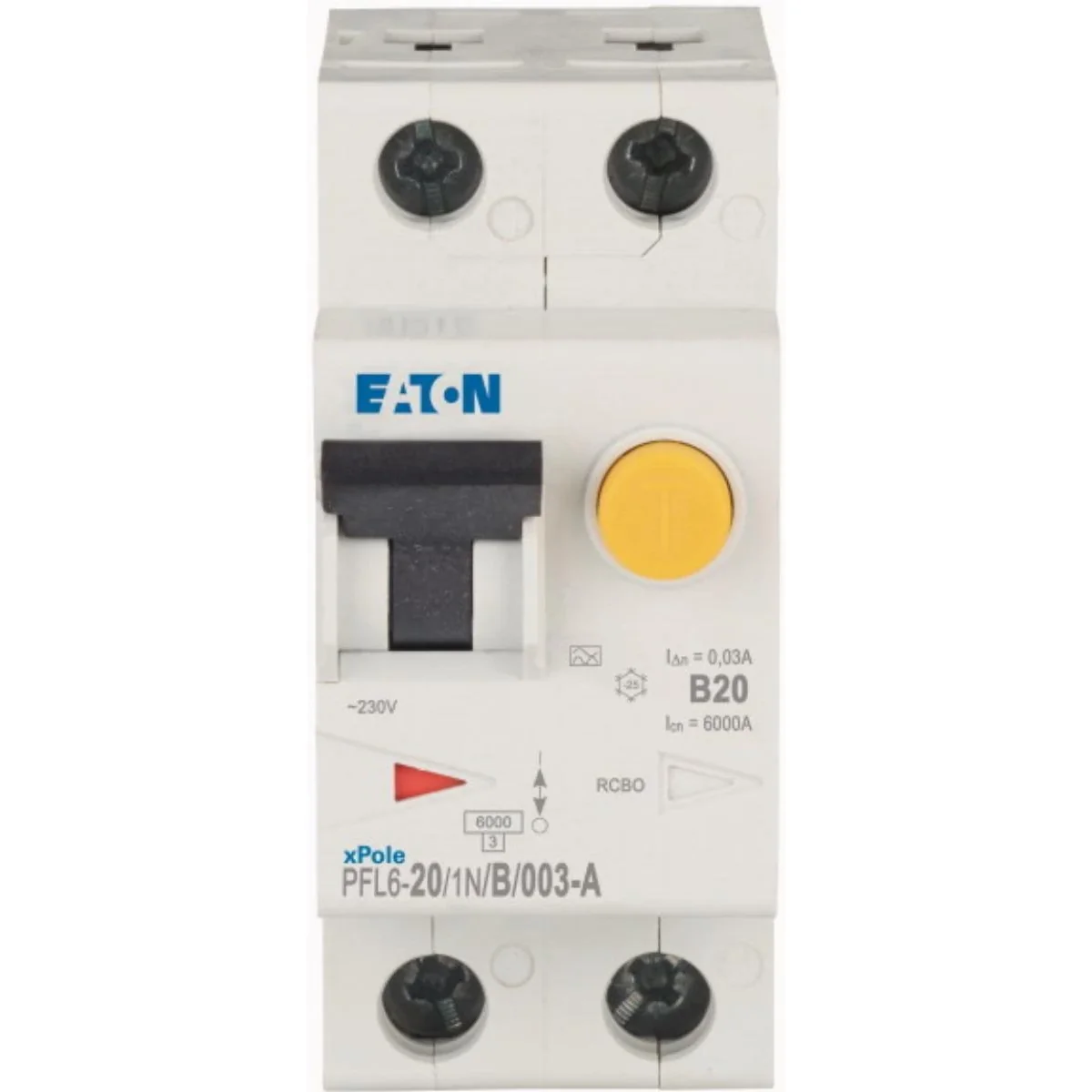

PFL6-20/1N/B/003-A Combined circuit breaker 6kA, In=20A, IΔN=0.03A, char. B, type A, 1+N pole. PFL6 series

Click on the photo to enlarge

Manufacturer: EATON

Price:

474,96 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Technical data Manufacturer details Bulk packaging Files to download

Technical data

PKWIU

27.12.24.0

Other technical data

Number of poles (total)

2
Rated voltage

230 V
Rated impulse withstand voltage Uimp

4 kV
Rated fault current

0.03 A
Current limiting class

3
Rated short-circuit breaking capacity according to IEC 60947-2

0 kA
Disconnection characteristic

Undelayed
Voltage type

AC
Release characteristic

B
With interlocking device

No
Pollution degree

2
Width in number of modular spacings

2
Flush-mounted installation

No
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Number of protected poles

1
Rated insulation voltage Ui

440 V
Rated current

20 A
Leakage current type

A
Rated short-circuit breaking capacity according to EN 61009

6 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1

6 kA
Surge current capacity

0.25 kA
Frequency

50 Hz
Concurrently switching neutral conductor

Yes
Over voltage category

3
Ambient temperature during operating

-25 ... 40 °C
Built-in depth

69.5 mm
Anti-nuisance tripping version

No
Connectable conductor cross section solid-core

1 ... 25 mm²

Manufacturer details

Manufacturer

Eaton Electric Sp. z o.o.
Address

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Bulk packaging

A kind of package	Skrzynia	Karton	Karton
Quantity	1 pcs.	1 pcs.	60 pcs.
Weight (kg)	0,225	0,249	14,515
Volume (m3)	0,000	0,000	0,016
Width (m)	0,039	0,037	0,180
Length (m)	0,088	0,086	0,385
Depth (m)	0,077	0,075	0,230

Files to download

03_PFL.pdf
