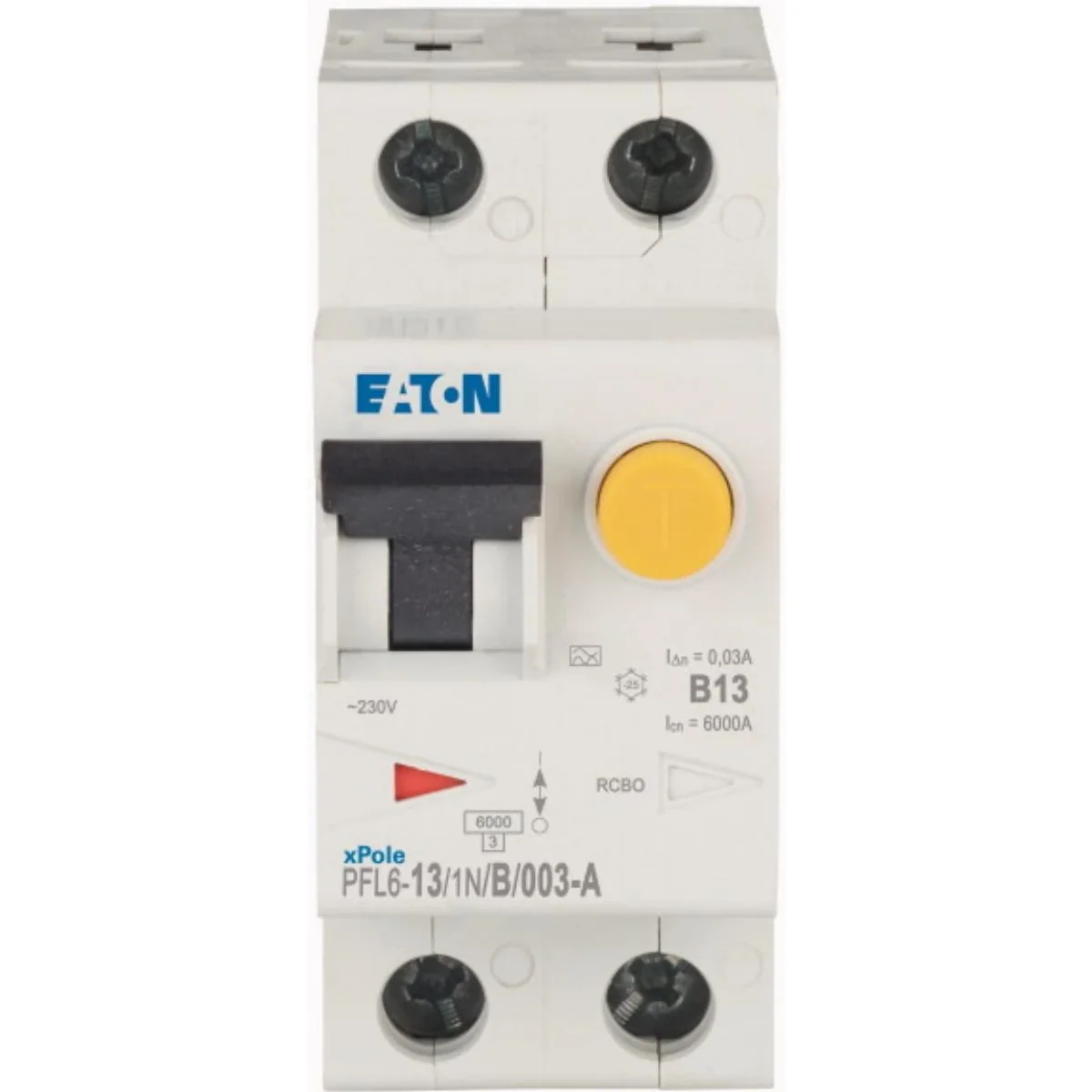

PFL6-13/1N/B/003-A Combined circuit breaker 6kA, In=13A, IΔN=0.03A, char. B, type A, 1+N pole. PFL6 series 112874

Name: PFL6-13/1N/B/003-A Combined circuit breaker 6kA, In=13A, IΔN=0.03A, char. B, type A, 1+N pole. PFL6 series
Brand: EATON
SKU: ARB067MOEL
Price: 443.29 PLN
Availability: InStock

Lokaler Index:

ARB067MOEL

Katalognummer:

112874

EAN-Code:

4015081124190

PFL6-13/1N/B/003-A Combined circuit breaker 6kA, In=13A, IΔN=0.03A, char. B, type A, 1+N pole. PFL6 series

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: EATON

Preis:

443,29 zł

gross / stk.

(inklusive MwSt 23%)

Zugänglich 4 stk.

Menge stk.

(mehrere:

1

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Technische Daten

Weitere technische Daten

Number of poles (total)

2
Rated voltage

230 V
Rated impulse withstand voltage Uimp

4 kV
Rated fault current

0.03 A
Current limiting class

3
Rated short-circuit breaking capacity according to IEC 60947-2

0 kA
Disconnection characteristic

Undelayed
Voltage type

AC
Release characteristic

B
With interlocking device

No
Pollution degree

2
Width in number of modular spacings

2
Flush-mounted installation

No
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1 ... 25 mm²

Number of protected poles

1
Rated insulation voltage Ui

440 V
Rated current

13 A
Leakage current type

A
Rated short-circuit breaking capacity according to EN 61009

6 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1

6 kA
Surge current capacity

0.25 kA
Frequency

50 Hz
Concurrently switching neutral conductor

Yes
Over voltage category

3
Ambient temperature during operating

-25 ... 40 °C
Built-in depth

69.5 mm
Anti-nuisance tripping version

No
Connectable conductor cross section solid-core

1 ... 25 mm²

Hersteller-Details

Hersteller

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-Mail

wsparcietech@eaton.com

Großpackungen

Eine Art Paket	Skrzynia	Karton	Karton
Menge	1 stk.	1 stk.	60 stk.
Gewicht (kg)	0,225	0,249	14,515
Volumen (m3)	0,000	0,000	0,016
Breite (m)	0,039	0,037	0,180
Länge (m)	0,088	0,086	0,385
Tiefe (m)	0,077	0,075	0,230

Dateien zum Herunterladen

03_PFL.pdf

Fehler melden
