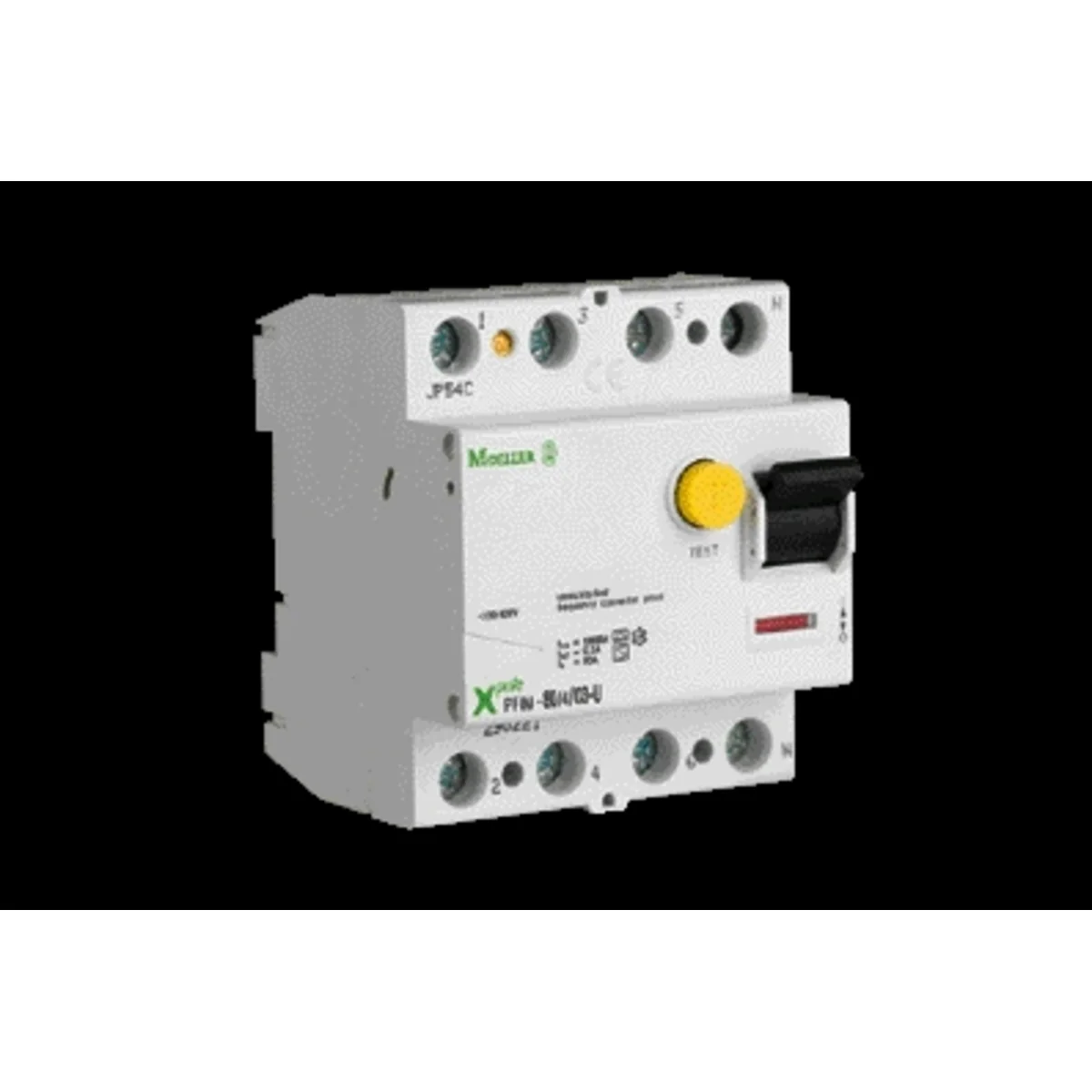

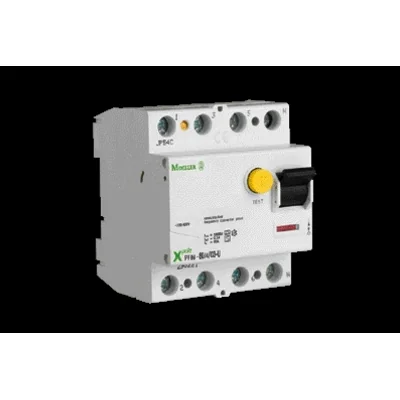

PFIM residual current device, 100A, 4 poles, PFIM-100/4/03 102825
local index:
ARP240MOEL
Catalog No:
102825
EAN code:
4015081027101
Price:
173,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Residual current circuit breakers PFIM - withstand current surge 250 A, type AC.
Technical data
-
Number of poles4
-
Rated current [A]100
-
Differential current [mA]300
Other technical data
-
Number of poles4
-
Rated current100 A
-
Rated insulation voltage Ui440 V
-
Mounting methodDIN rail
-
Selective protectionNo
-
Short-circuit breaking capacity (Icw)10 kA
-
Voltage typeAC
-
Frequency50 Hz
-
Degree of protection (IP)IP20
-
Built-in depth70.5 mm
-
Pollution degree2
-
Connectable conductor cross section solid-core1.5 ... 35 mm²
-
Rated voltage400 V
-
Rated fault current0.3 A
-
Rated impulse withstand voltage Uimp4 kV
-
Leakage current typeAC
-
Short-time delayed trippingNo
-
Surge current capacity0.25 kA
-
With interlocking deviceYes
-
Additional equipment possibleYes
-
Width in number of modular spacings4
-
Ambient temperature during operating-25 ... 60 °C
-
Connectable conductor cross section multi-wired1.5 ... 16 mm²
-
Explosion-proofNo
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Skrzynia | Karton | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 3 pcs. | 30 pcs. |
| Weight (kg) | 0,362 | 0,371 | 1,113 | 11,779 |
| Volume (m3) | 0,000 | 0,000 | 0,000 | 0,016 |
| Width (m) | 0,070 | 0,072 | 0,073 | 0,180 |
| Length (m) | 0,080 | 0,082 | 0,086 | 0,385 |
| Depth (m) | 0,076 | 0,078 | 0,075 | 0,230 |
