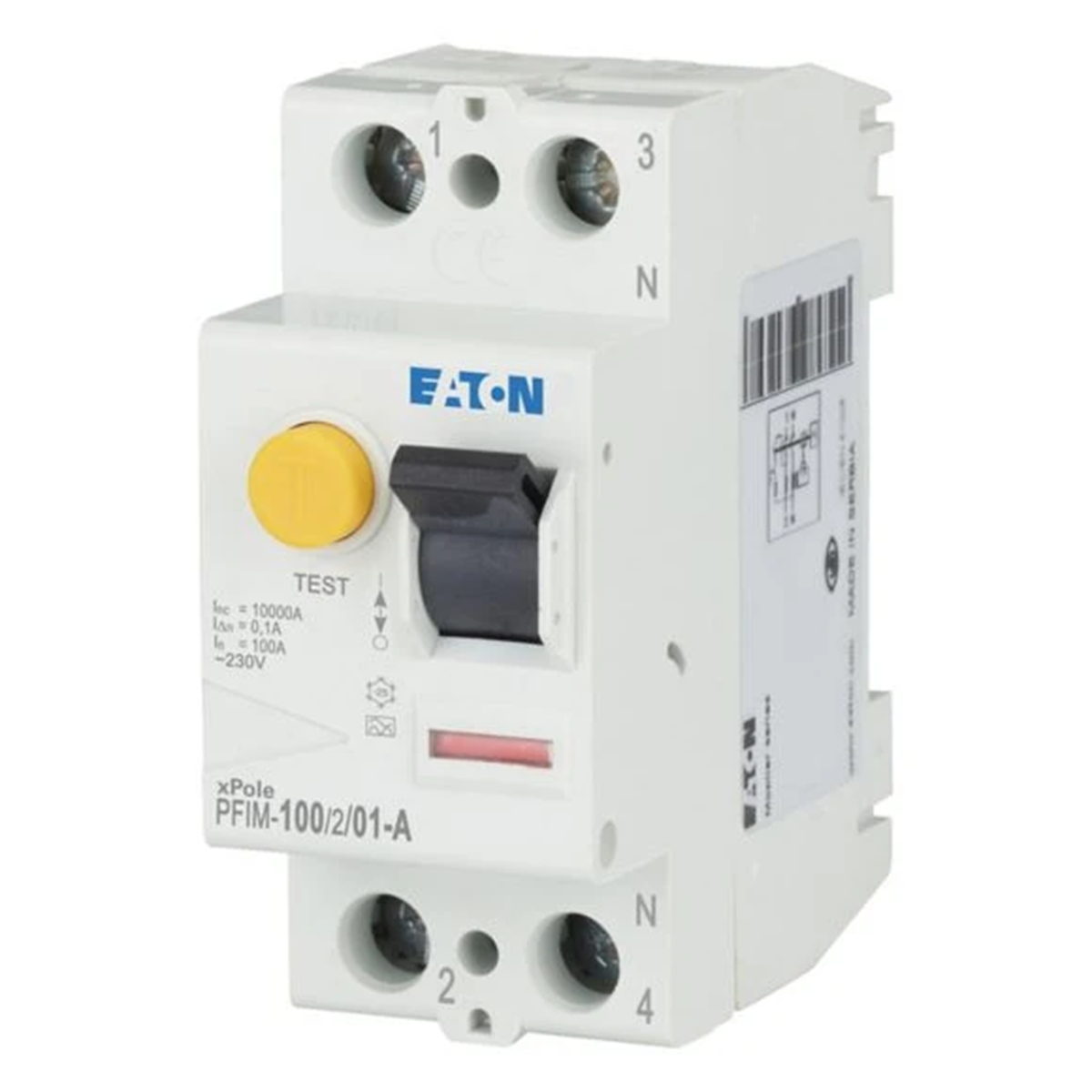

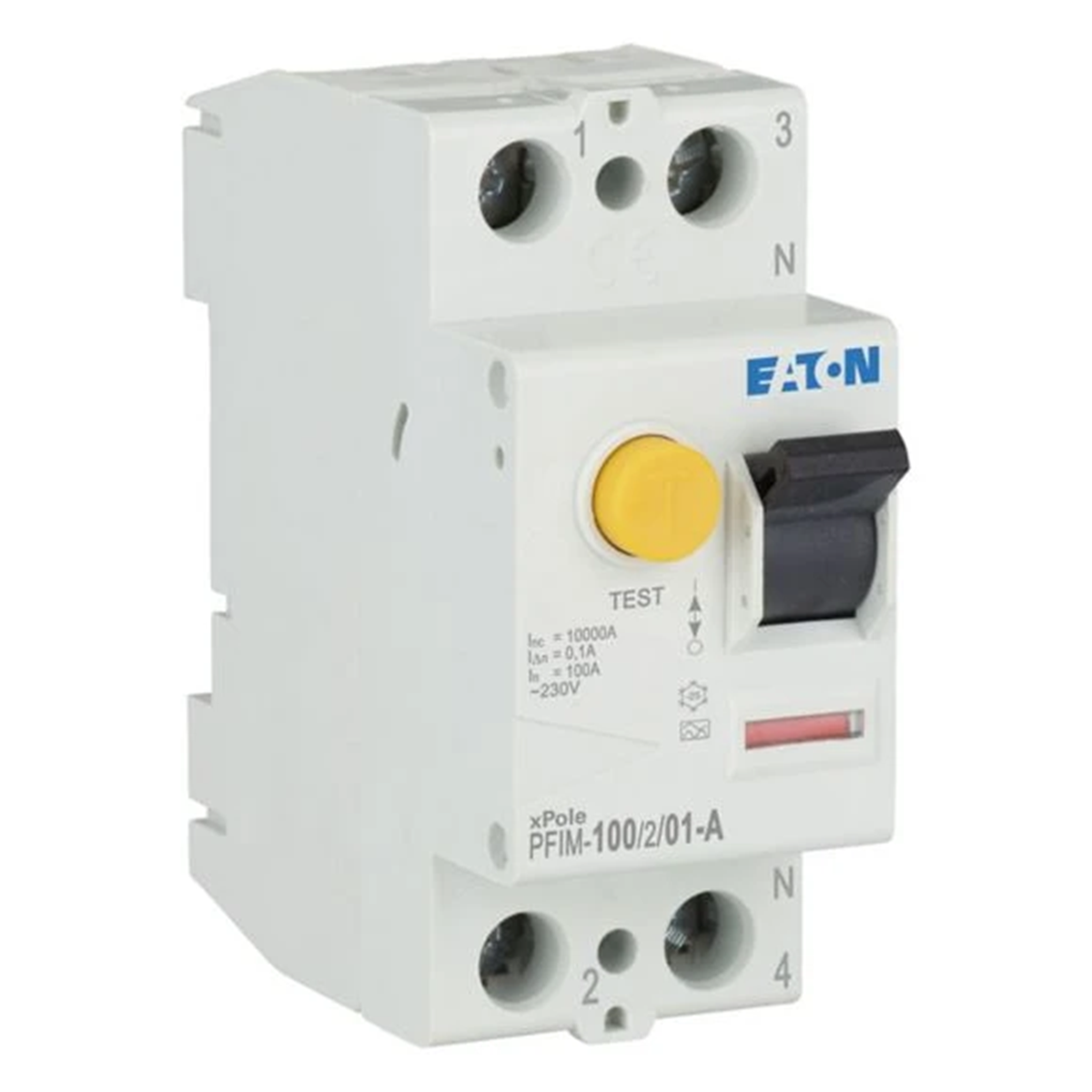

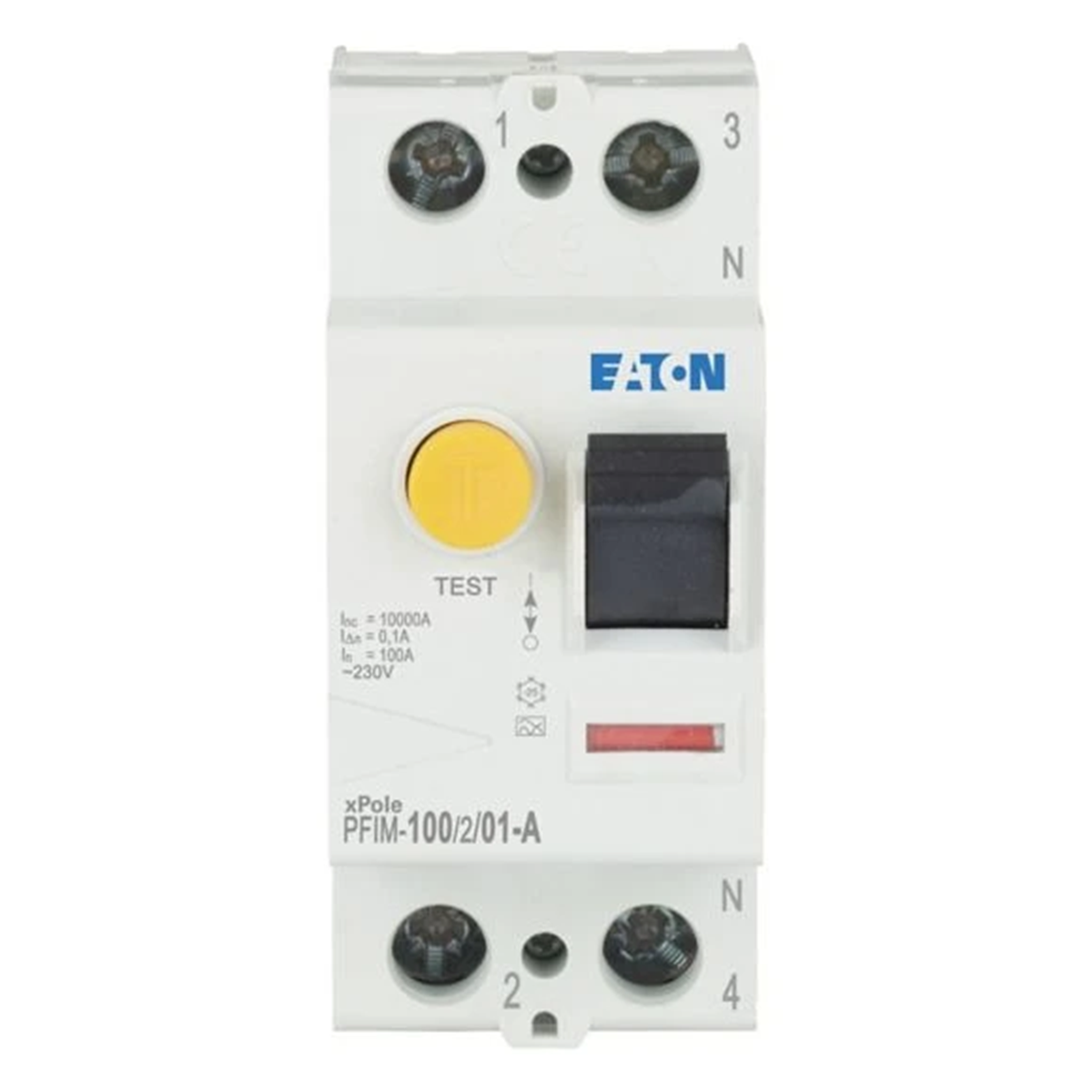

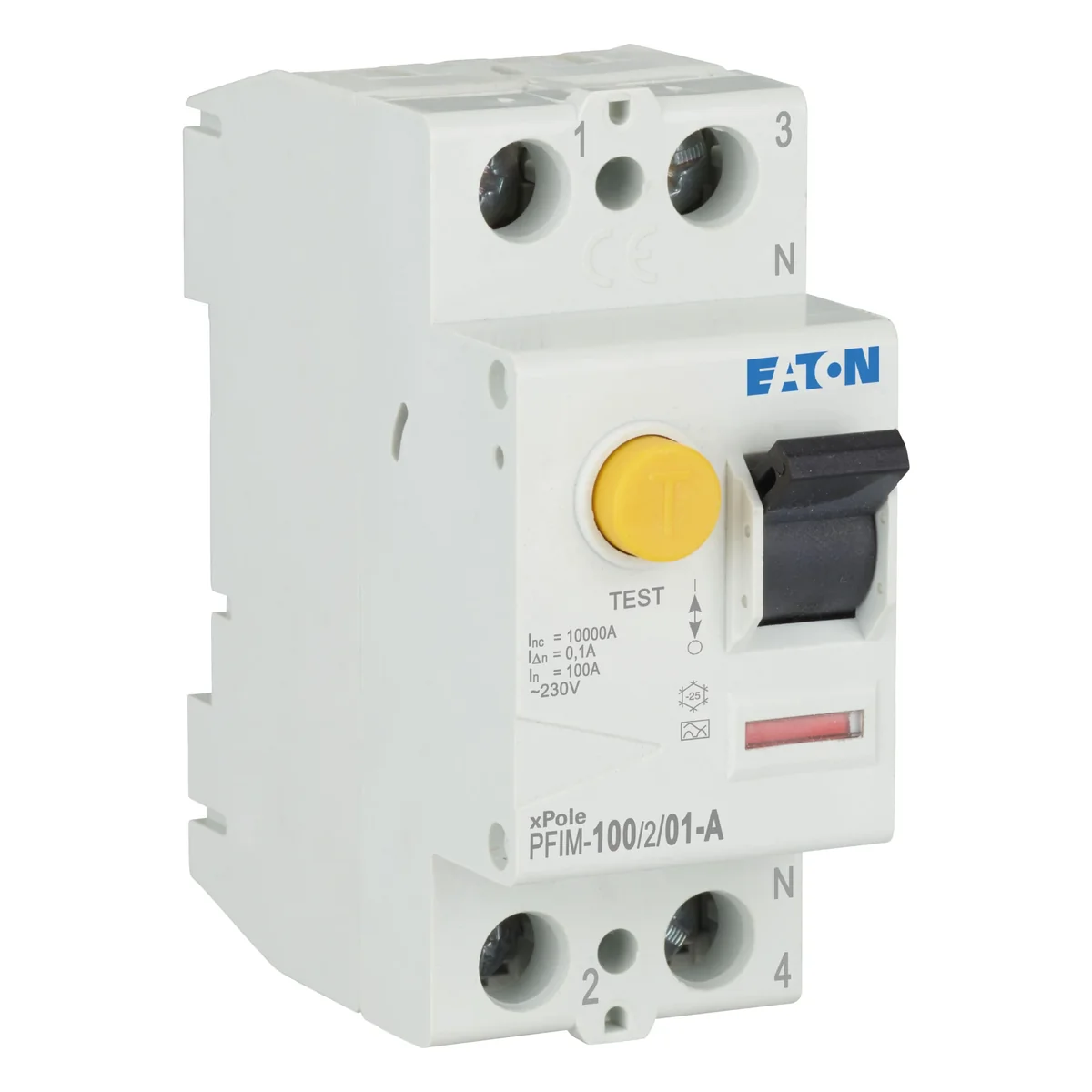

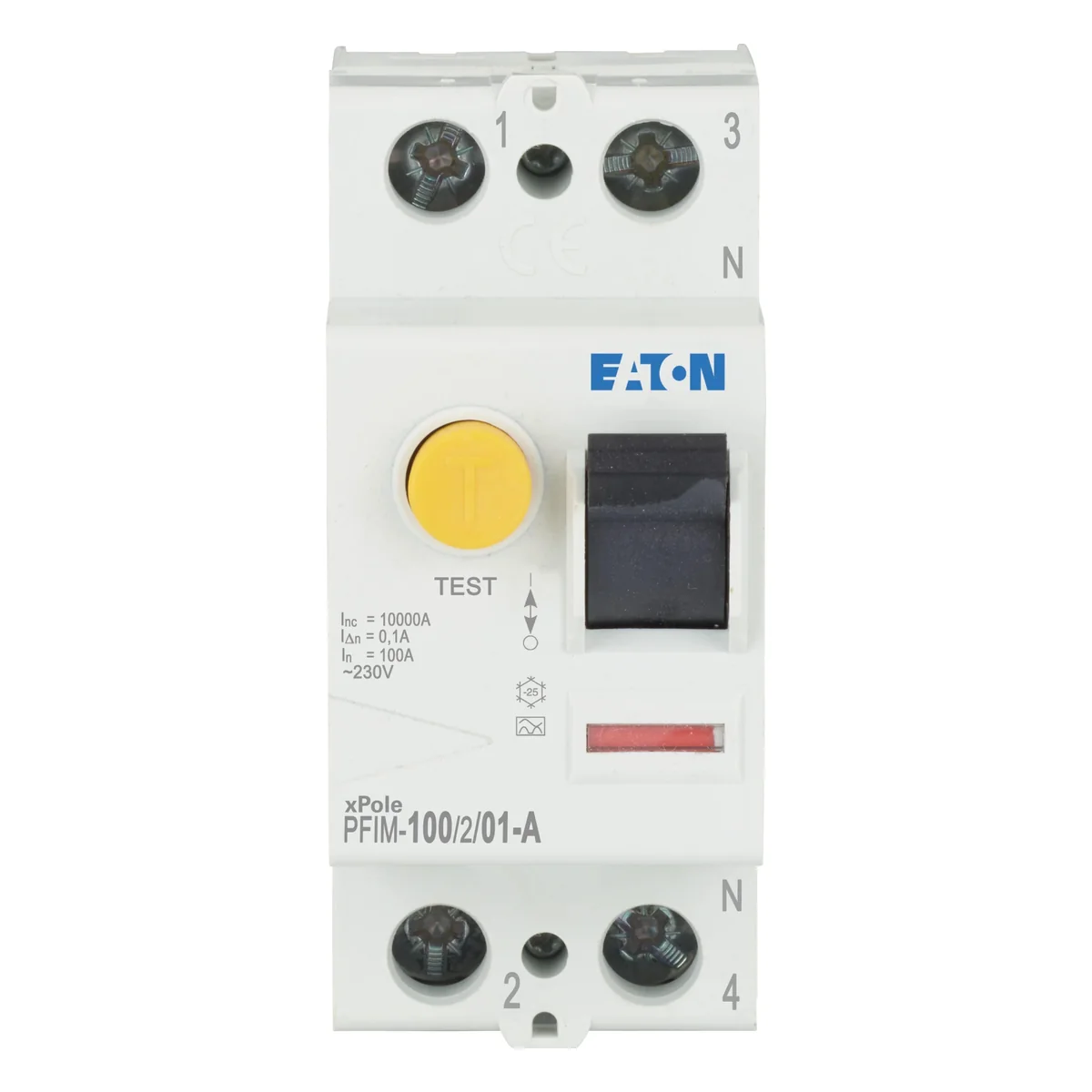

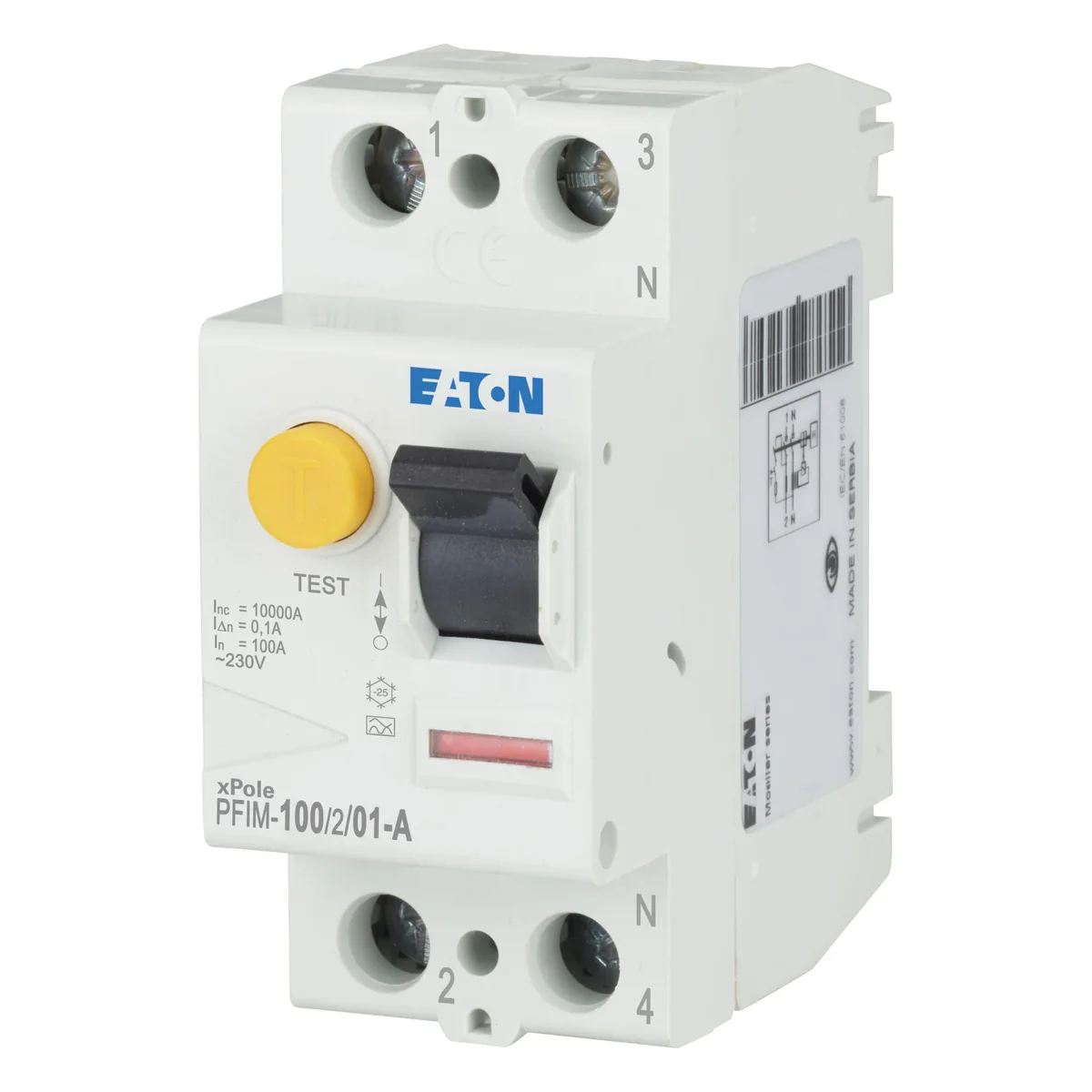

PFIM RCD, 100A, 2 Pole, 10mA, A 102827
local index:
ARP093MOEL
Catalog No:
102827
EAN code:
4015081027125
Manufacturer:
EATON
Tenderness: sensitive to impulse current
Number of poles: 2
Differential current [mA]: 10
Price:
234,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Residual current device for residential and commercial applications. Conditionally resistant to overvoltage 250 A.
Technical data
-
Tendernesssensitive to impulse current
-
Differential current [mA]10
-
TypeAND
-
Number of poles2
-
Rated current [A]100
Other technical data
-
Number of poles2
-
Rated current100 A
-
Rated insulation voltage Ui440 V
-
Mounting methodDIN rail
-
Selective protectionNo
-
Short-circuit breaking capacity (Icw)10 kA
-
Voltage typeAC
-
Frequency50 Hz
-
Degree of protection (IP)IP20
-
Built-in depth70.5 mm
-
Pollution degree2
-
Connectable conductor cross section solid-core1.5 ... 35 mm²
-
Rated voltage230 V
-
Rated fault current0.1 A
-
Rated impulse withstand voltage Uimp4 kV
-
Leakage current typeA
-
Short-time delayed trippingNo
-
Surge current capacity0.25 kA
-
With interlocking deviceYes
-
Additional equipment possibleYes
-
Width in number of modular spacings2
-
Ambient temperature during operating-25 ... 60 °C
-
Connectable conductor cross section multi-wired1.5 ... 16 mm²
-
Explosion-proofNo
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. |
| Weight (kg) | 0,201 | 0,215 | 13,099 |
| Volume (m3) | 0,000 | 0,000 | 0,016 |
| Width (m) | 0,035 | 0,037 | 0,180 |
| Length (m) | 0,080 | 0,086 | 0,385 |
| Depth (m) | 0,076 | 0,075 | 0,230 |
