PF6-63/4/03-A Residual Current Circuit Breaker 6kA, In=63A, IΔN=0.3A, Type A, 4-pole. PF6 Series 112938

Name: PF6-63/4/03-A Residual Current Circuit Breaker 6kA, In=63A, IΔN=0.3A, Type A, 4-pole. PF6 Series
Brand: EATON
SKU: ARB091MOEL
Price: 522.43 PLN
Availability: BackOrder

local index:

ARB091MOEL

Catalog number:

112938

EAN code:

4015081124763

PF6-63/4/03-A Residual Current Circuit Breaker 6kA, In=63A, IΔN=0.3A, Type A, 4-pole. PF6 Series

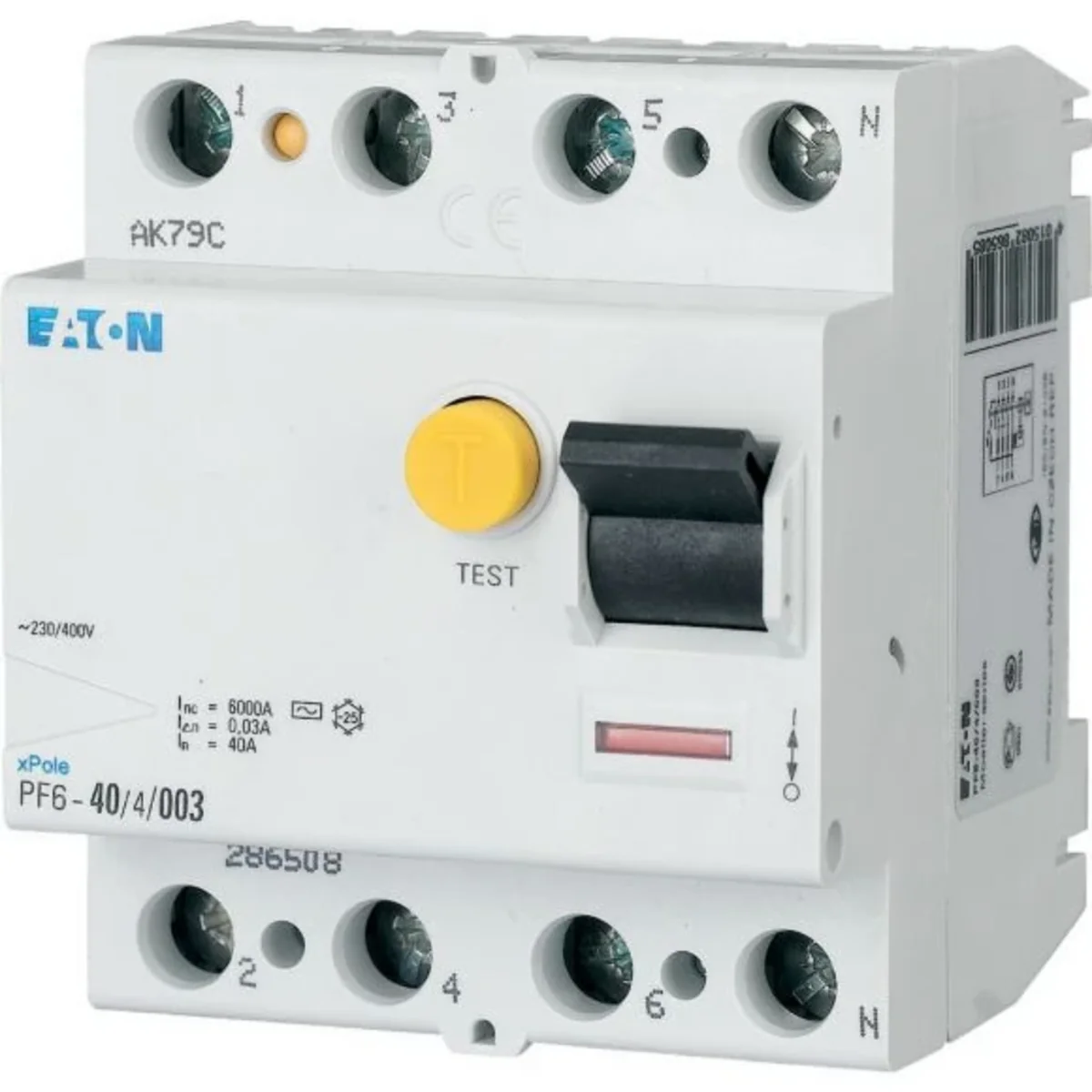

Click on the photo to enlarge

Manufacturer: EATON

Price:

522,43 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging Files to download

Technical data

Other technical data

Number of poles

4
Rated current

63 A
Rated insulation voltage Ui

440 V
Mounting method

DIN rail
Selective protection

No
Short-circuit breaking capacity (Icw)

6 kA
Voltage type

AC
Frequency

50 Hz
Degree of protection (IP)

IP20
Built-in depth

69.5 mm
Pollution degree

2
Connectable conductor cross section solid-core

1.5 ... 35 mm²

Rated voltage

400 V
Rated fault current

0.3 A
Rated impulse withstand voltage Uimp

4 kV
Leakage current type

A
Short-time delayed tripping

No
Surge current capacity

0.25 kA
With interlocking device

Yes
Additional equipment possible

Yes
Width in number of modular spacings

4
Ambient temperature during operating

-25 ... 60 °C
Connectable conductor cross section multi-wired

1.5 ... 16 mm²
Explosion-proof

No

Manufacturer details

Manufacturer

Eaton Electric Sp. z o.o.
Address

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Bulk packaging

A kind of package	Skrzynia	Karton	Karton
Quantity	1 pcs.	1 pcs.	30 pcs.
Weight (kg)	0,320	0,353	10,495
Volume (m3)	0,000	0,000	0,016
Width (m)	0,072	0,073	0,180
Length (m)	0,078	0,086	0,385
Depth (m)	0,082	0,075	0,230
