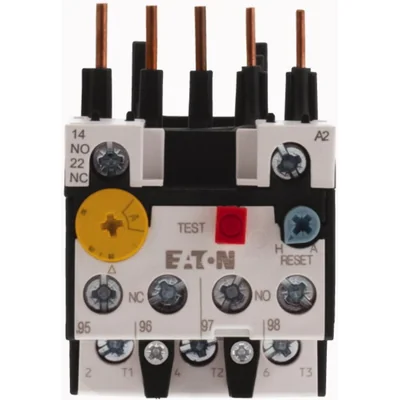

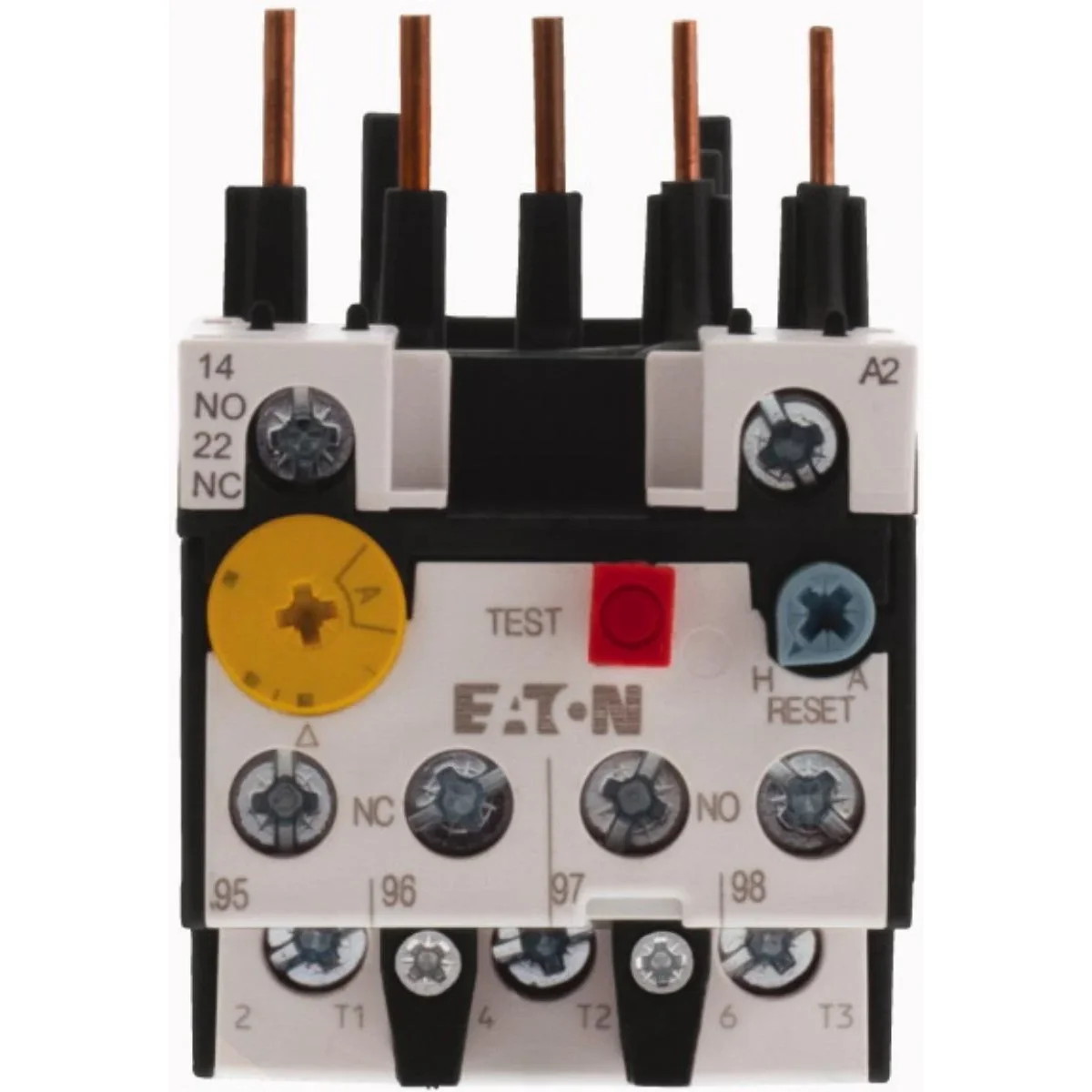

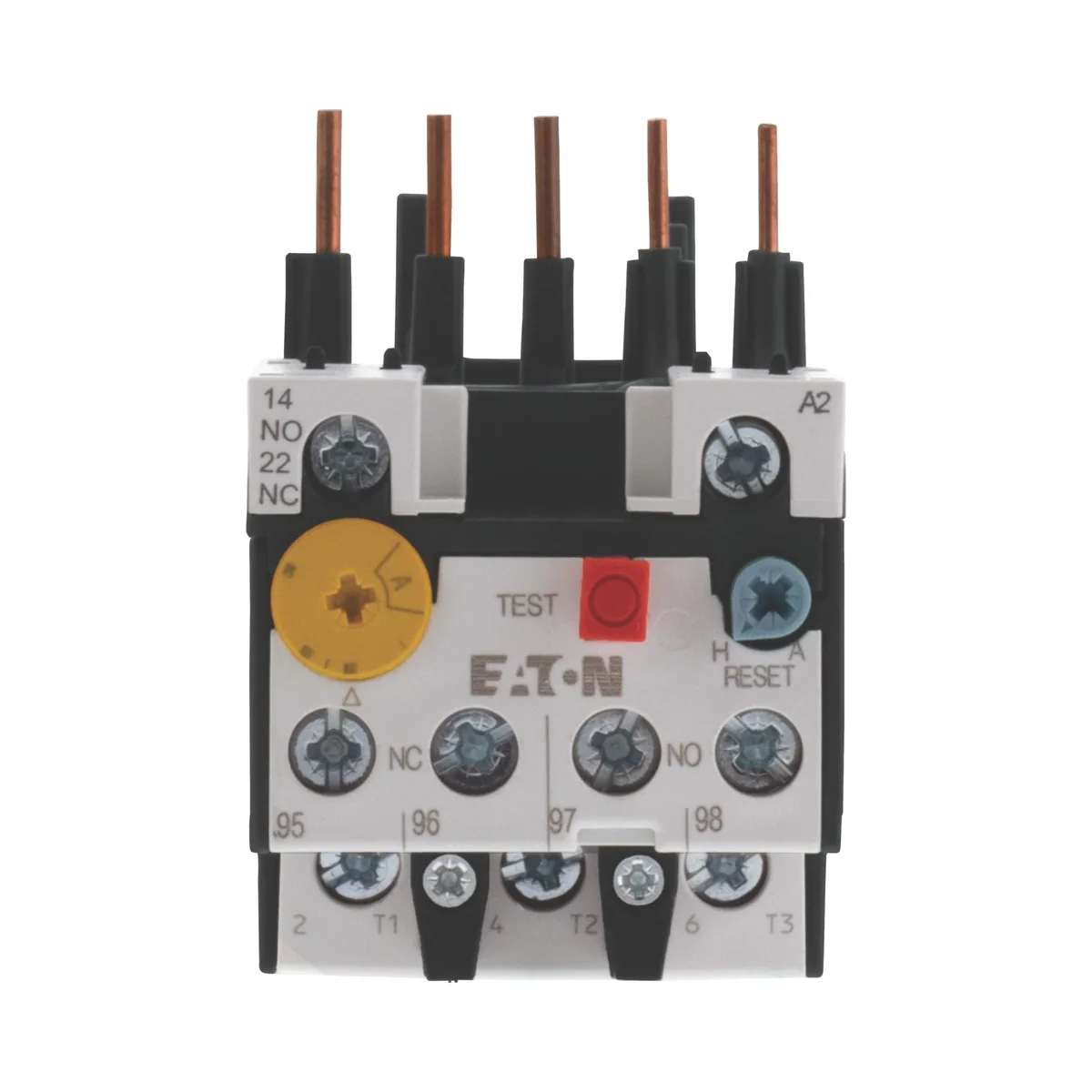

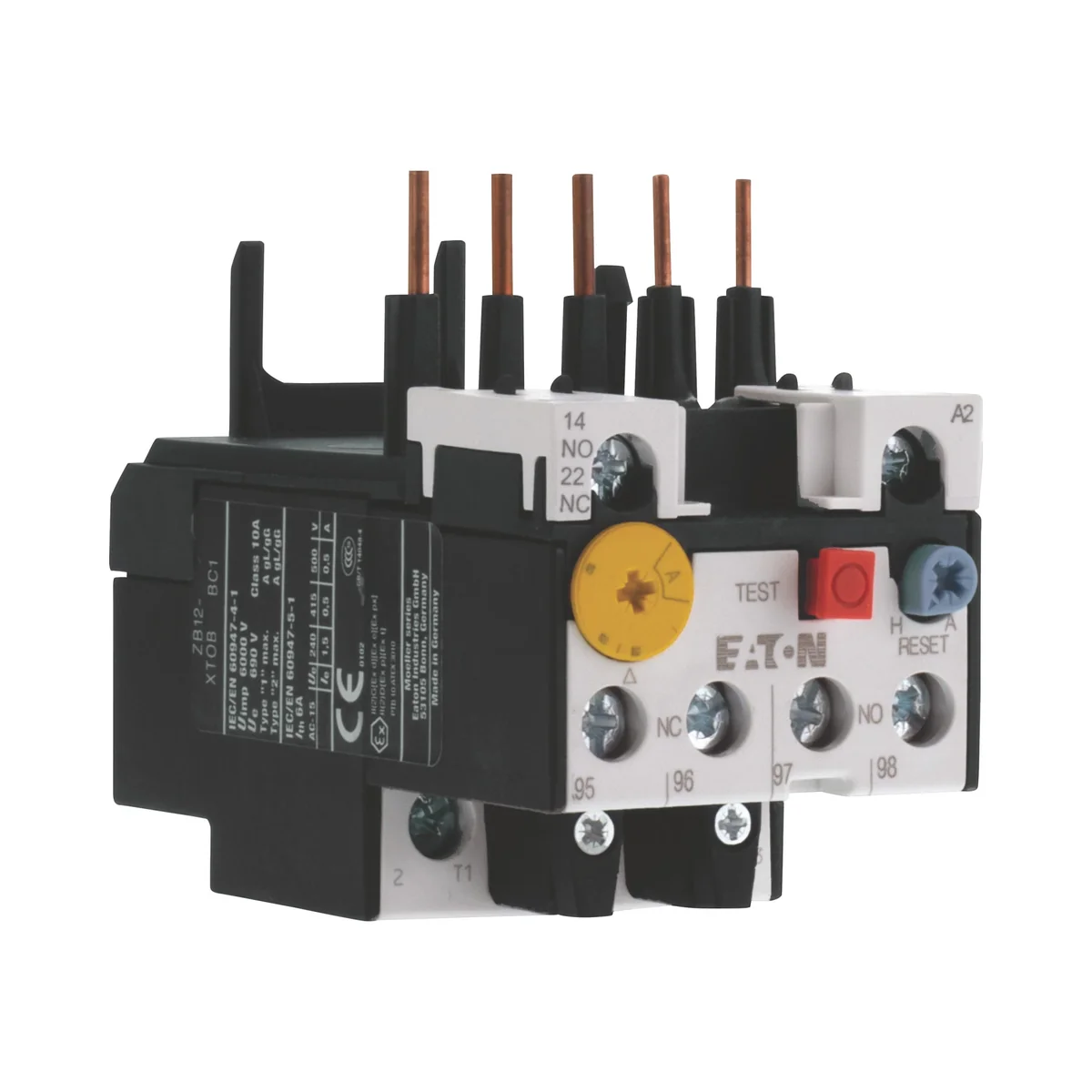

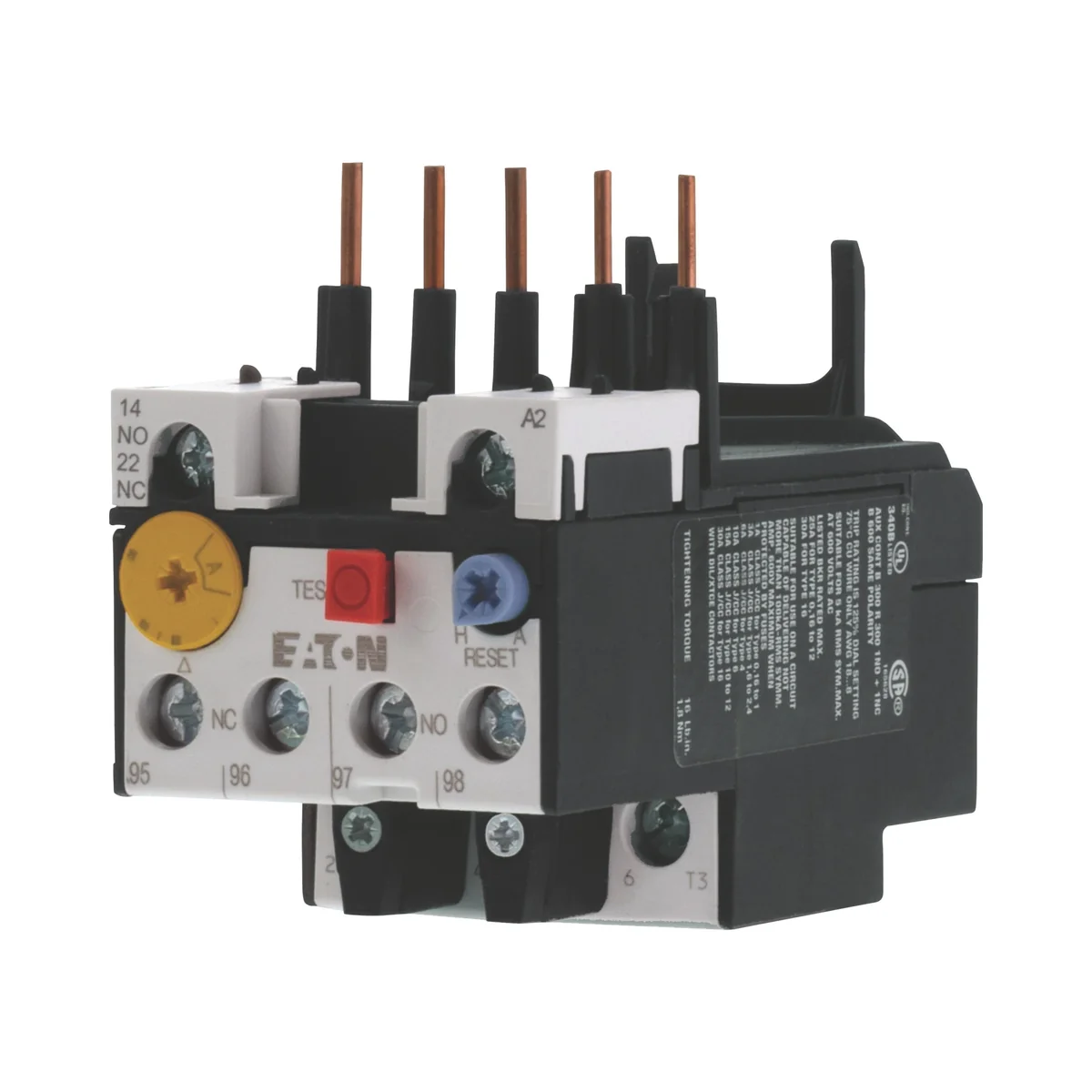

Overvoltage relay, ZB12-4, 12A 278438

local index:
ASN321MOEL
Catalog No:
278438
EAN code:
4015082784386
Manufacturer: EATON
Rated current [A]: 12
Price:
54,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Overload relay. Overload release: tripping class 10 A Short-circuit protection: For direct mounting, pay attention to the max. permissible fuse of the contactor. Suitable for protection of EEx motors.
• Phase failure sensitive according to IEC/EN 60947, VDE 0660 Part 102
• TEST button / shutdown button
• RESET button; manual/automatic
• Free Liberation
• Direct mounting

Technical data

  • Rated current [A]
    12

Other technical data

  • Adjustable current range
    2.4 ... 4 A
  • Mounting method
    Direct attachment
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as change-over contact
    0
  • Reset function input
    No
  • Reset function push-button
    Yes
  • Max. rated operation voltage Ue
    690 V
  • Type of electrical connection of main circuit
    Screw connection
  • Number of auxiliary contacts as normally open contact
    1
  • Release class
    CLASS 10 A
  • Reset function automatic
    Yes

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,159
Volume (m3) 0,000
Width (m) 0,049
Length (m) 0,074
Depth (m) 0,099
