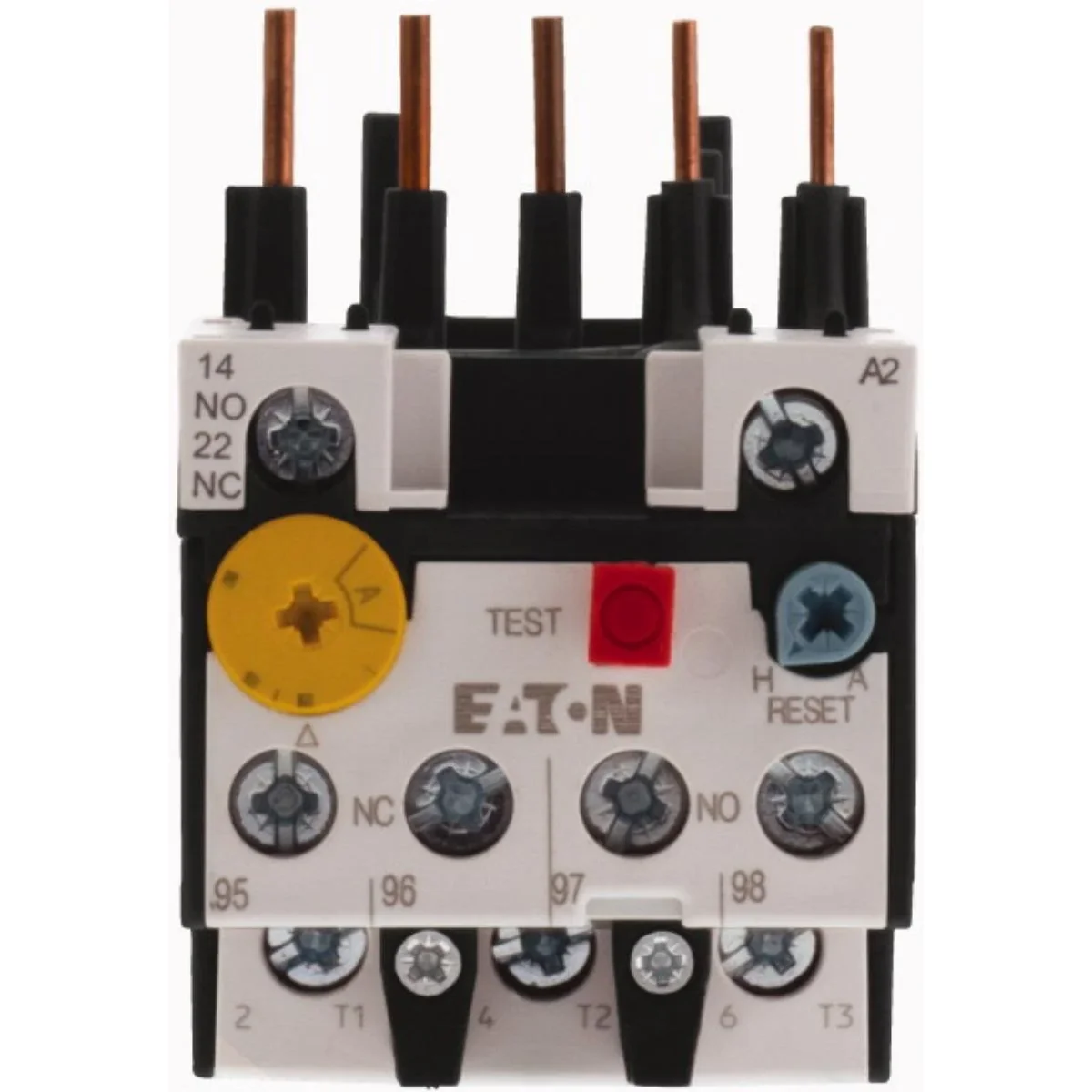

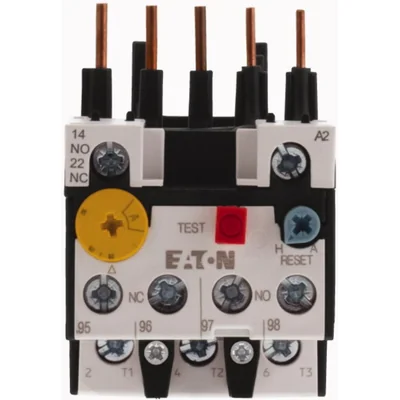

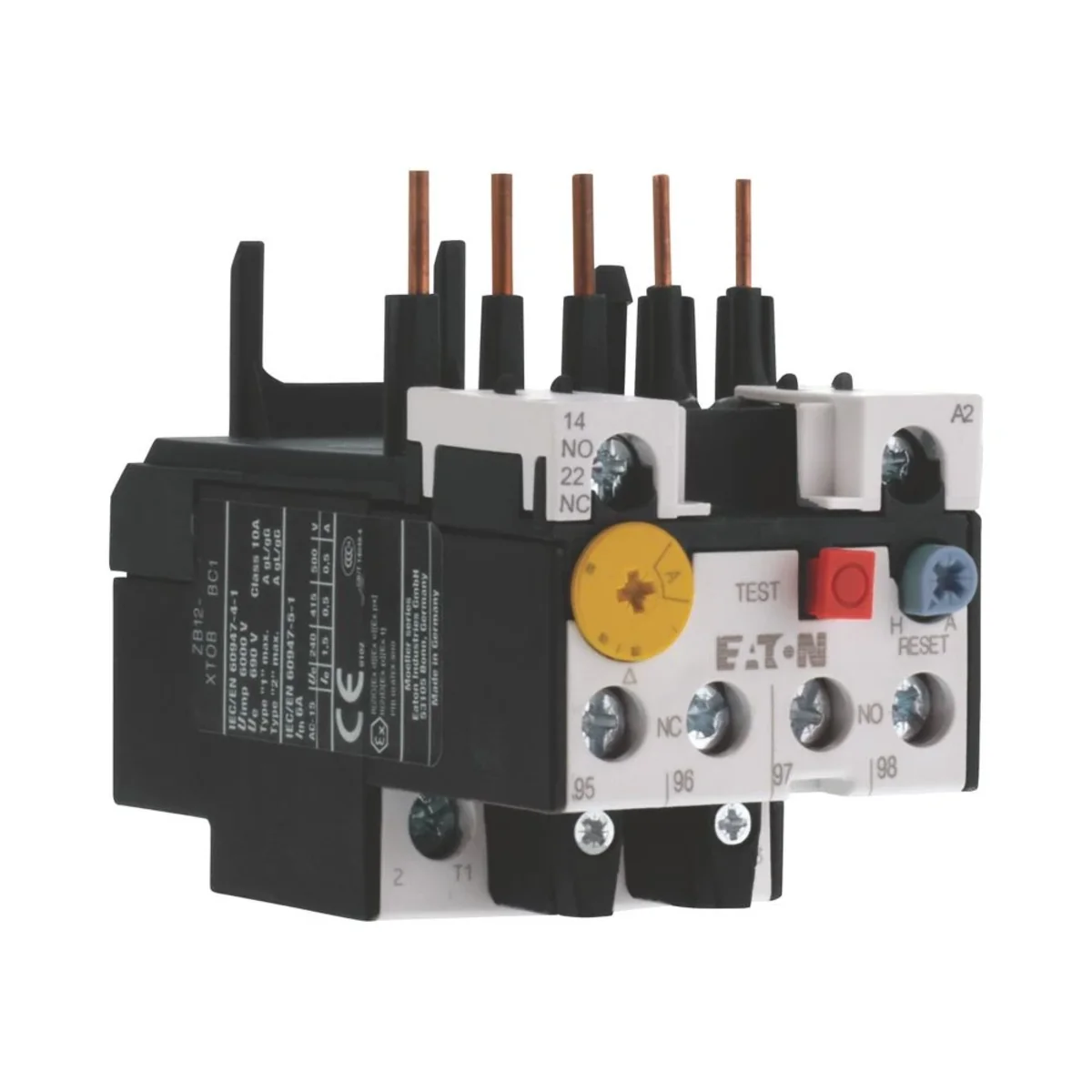

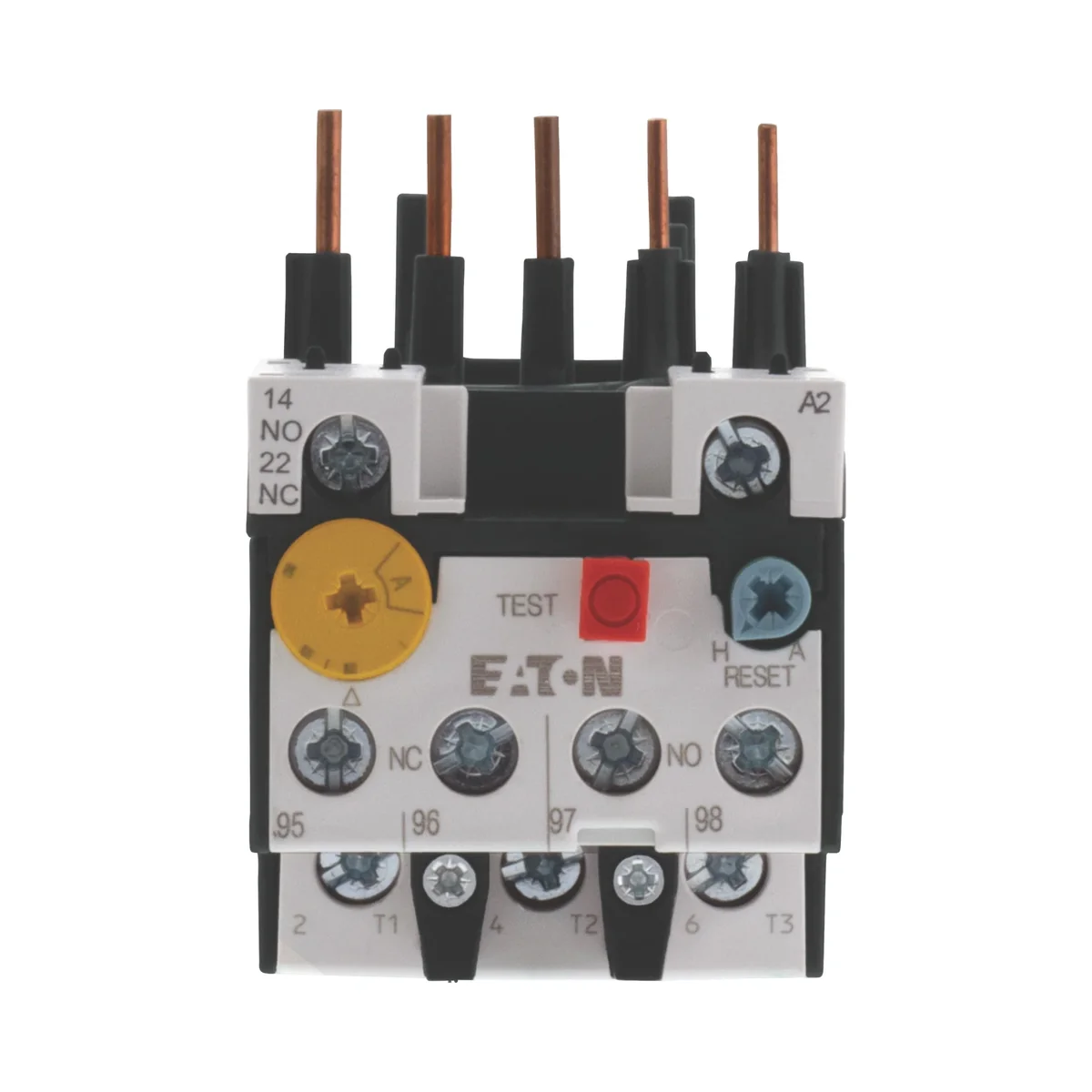

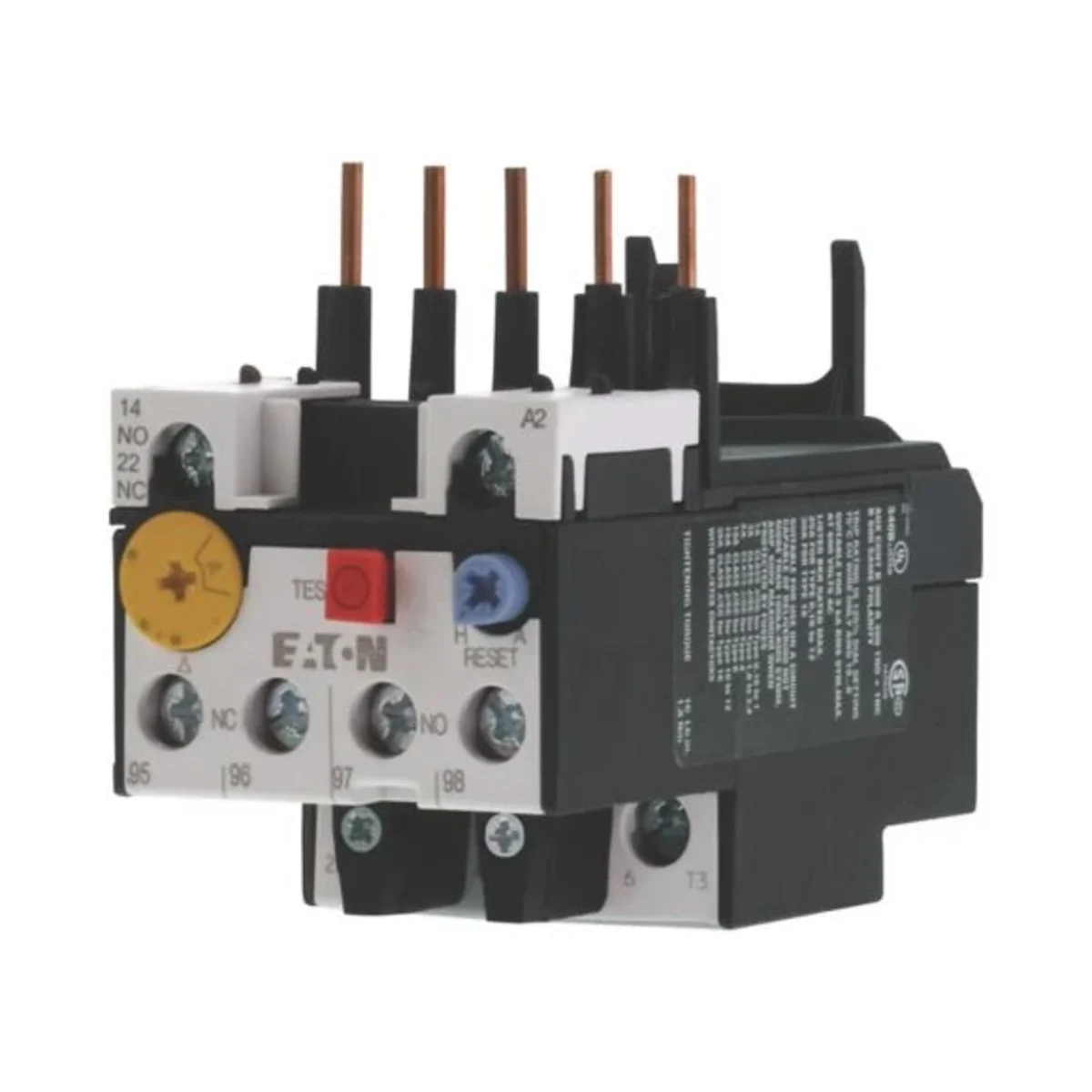

Overvoltage relay, ZB12-10, 12A 278440

Name: Overvoltage relay, ZB12-10, 12A
Brand: EATON
SKU: ASN319MOEL
Price: 55.40 PLN

local index:

ASN319MOEL

Catalog No:

278440

EAN code:

4015082784409

Click on the photo to enlarge

Manufacturer: EATON

Rated current [A]: 12

See full description

Price:

55,40 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Overload relay. Overload release: tripping class 10 A Short-circuit protection: For direct mounting, pay attention to the max. permissible fuse of the contactor. Suitable for protection of EEx motors.
• Phase failure sensitive according to IEC/EN 60947, VDE 0660 part 102
• TEST button / shutdown button
• RESET button; manual/automatic
• Free Liberation
• Direct mounting

Technical data

Rated current [A]

12

Other technical data

Adjustable current range

6 ... 10 A
Mounting method

Direct attachment
Number of auxiliary contacts as normally closed contact

1
Number of auxiliary contacts as change-over contact

0
Reset function input

No
Reset function push-button

Yes

Max. rated operation voltage Ue

690 V
Type of electrical connection of main circuit

Screw connection
Number of auxiliary contacts as normally open contact

1
Release class

CLASS 10 A
Reset function automatic

Yes

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

Bulk packaging

A kind of package		Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	0,145	0,162
Volume (m3)	0,000	0,000
Width (m)	0,045	0,049
Length (m)	0,088	0,074
Depth (m)	0,067	0,099
