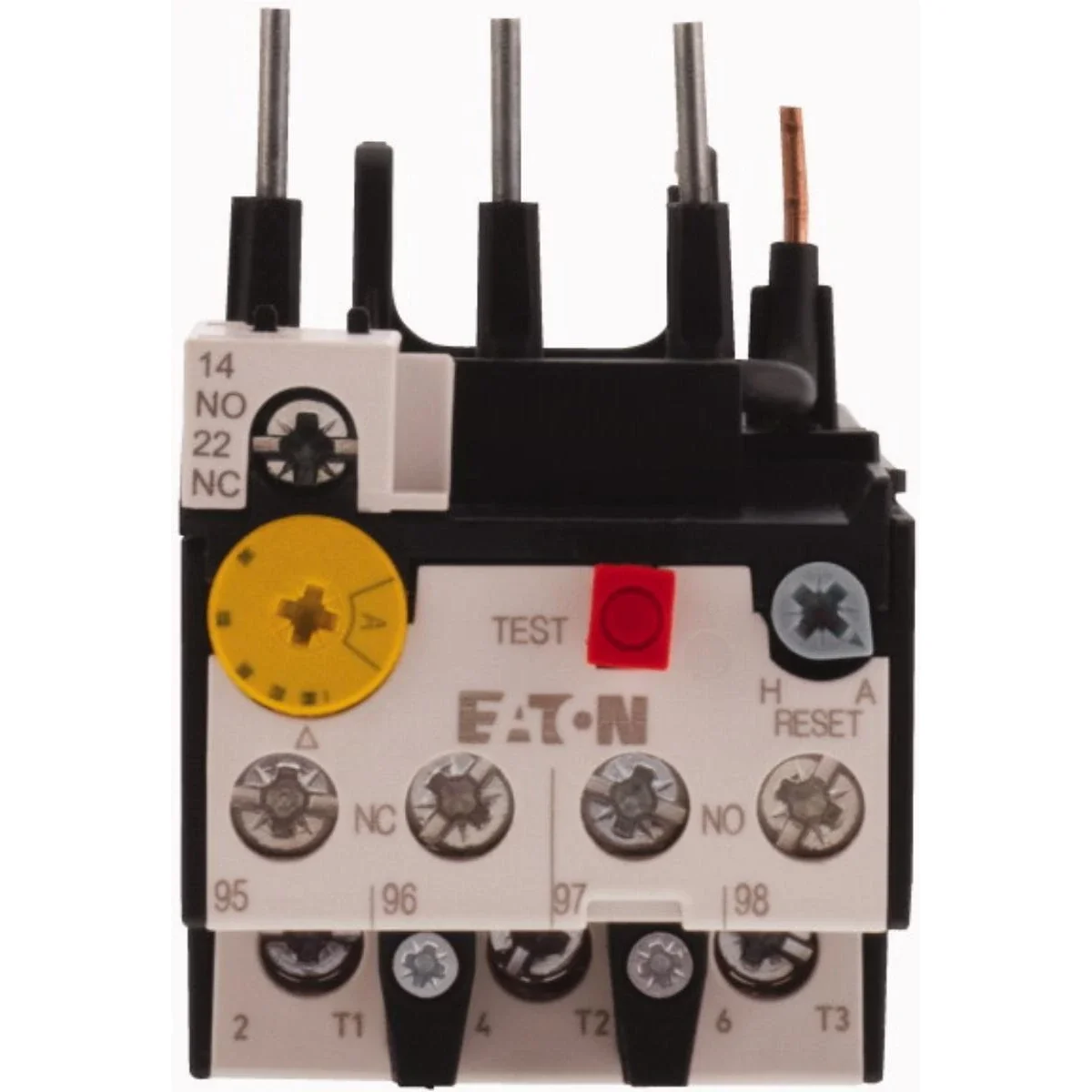

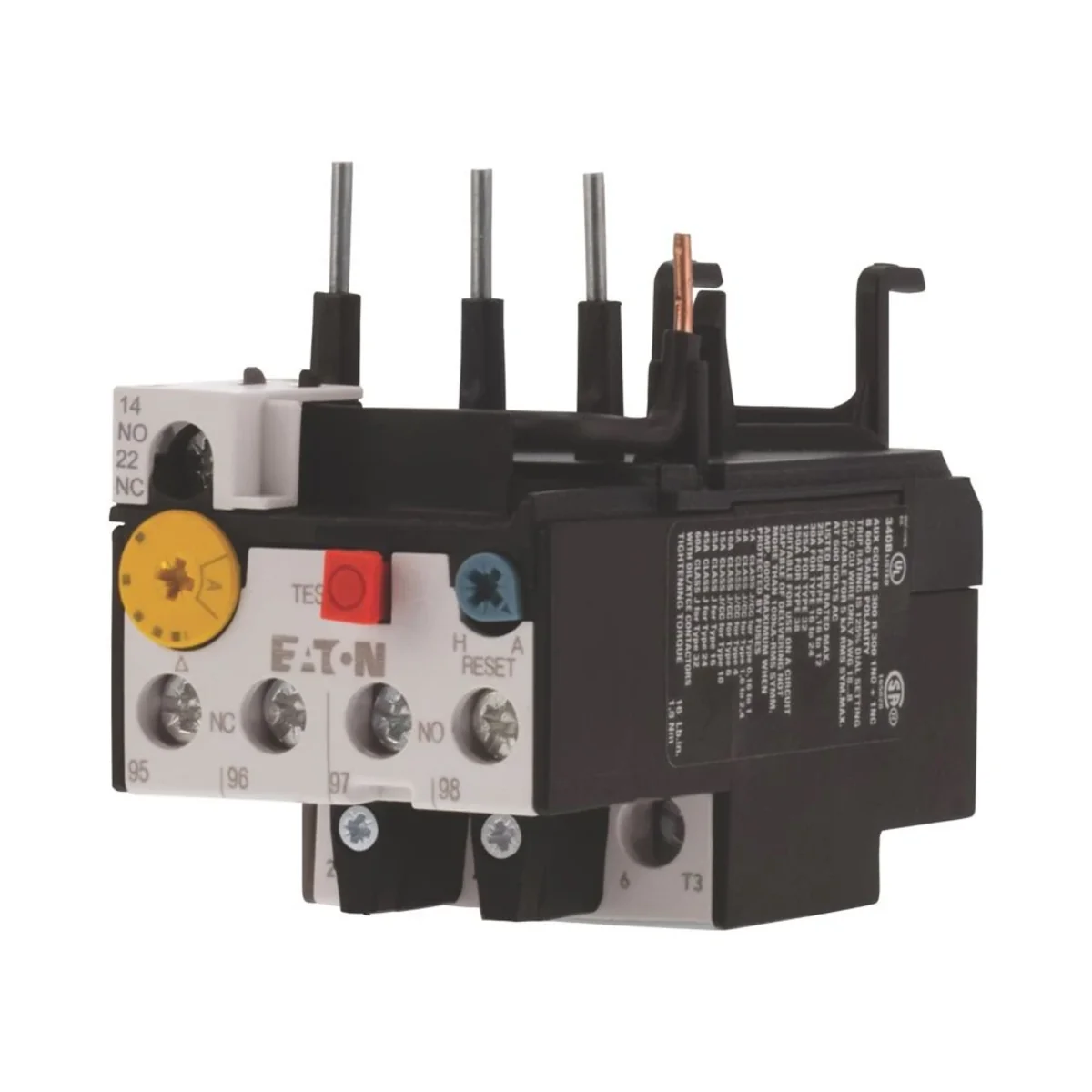

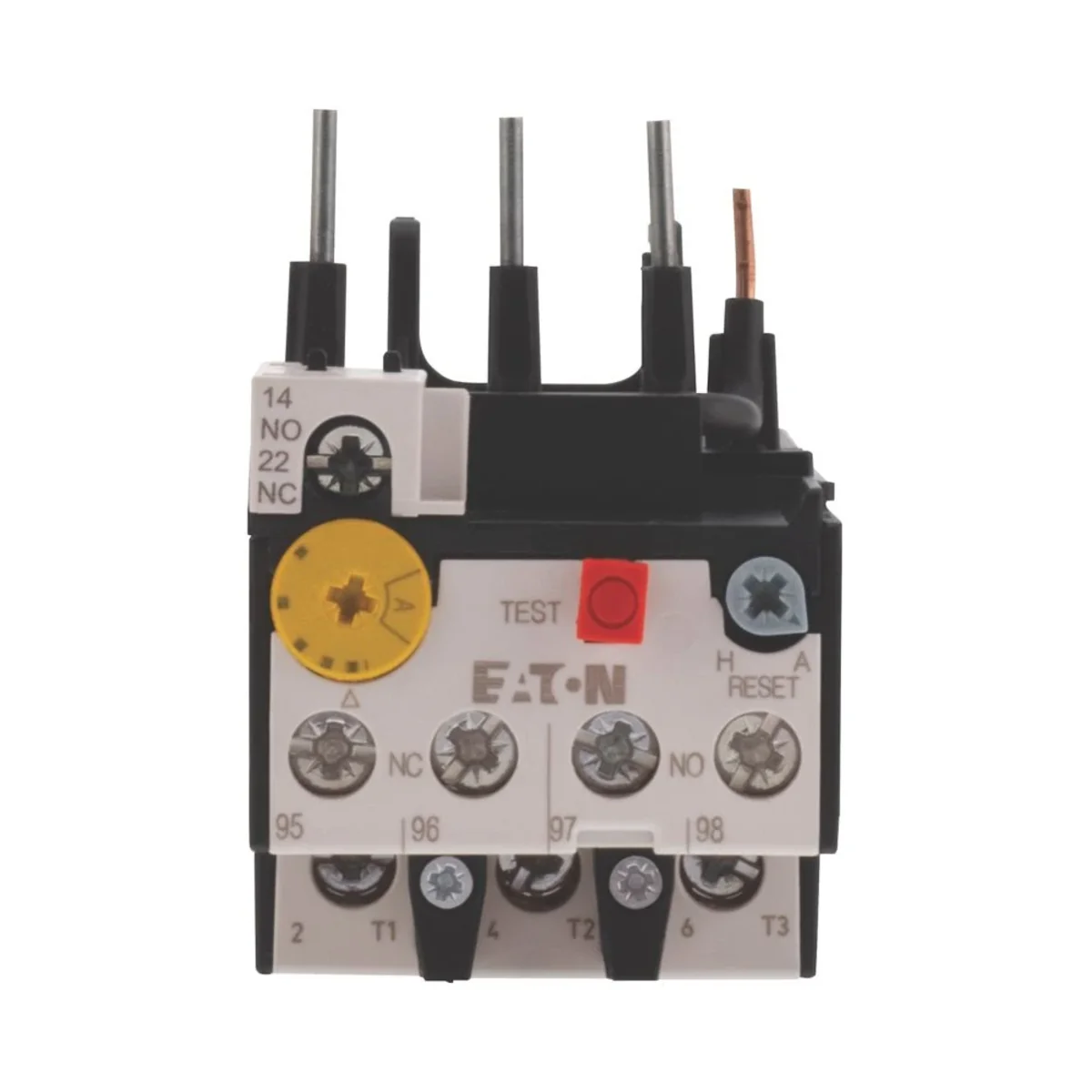

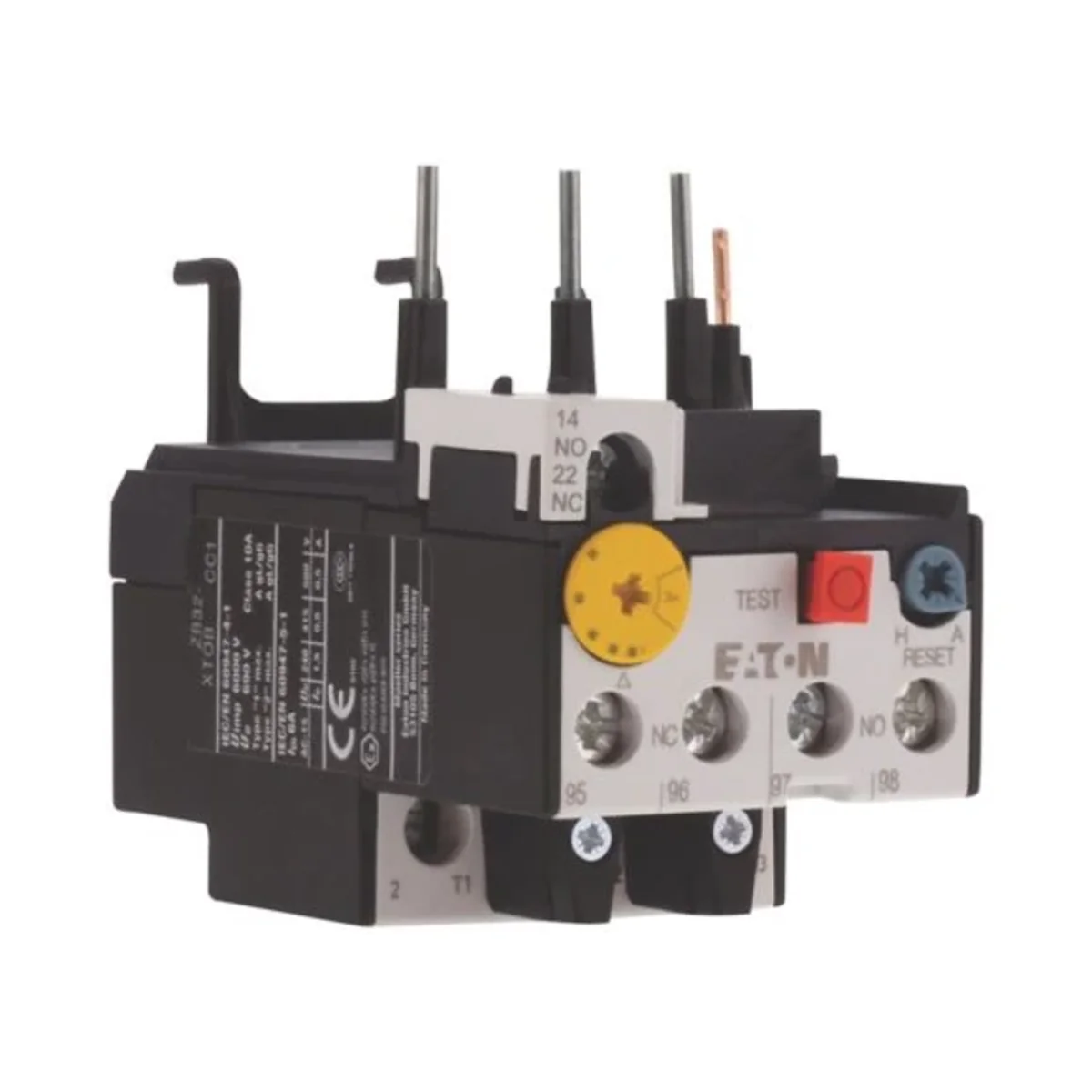

Overload relay, ZB32-2.4 278448

local index:
ASN525MOEL
Catalog No:
278448
EAN code:
4015082784485
Manufacturer: EATON
Current setting range [A] to: 2.4
Current setting range [A] from: 1.6
Price:
84,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Overload release: release class 10 A. Short-circuit protection: For direct mounting, pay attention to the max. permissible fuse of the contactor. Suitable for protecting EEx motors.

Technical data

  • Current setting range [A] to
    2.4
  • Current setting range [A] from
    1.6

Other technical data

  • Adjustable current range
    1.6 ... 2.4 A
  • Mounting method
    Direct attachment
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as change-over contact
    0
  • Reset function input
    No
  • Reset function push-button
    Yes
  • Max. rated operation voltage Ue
    690 V
  • Type of electrical connection of main circuit
    Screw connection
  • Number of auxiliary contacts as normally open contact
    1
  • Release class
    CLASS 10 A
  • Reset function automatic
    Yes

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,142 0,159
Volume (m3) 0,000 0,000
Width (m) 0,045 0,097
Length (m) 0,096 0,072
Depth (m) 0,067 0,047
