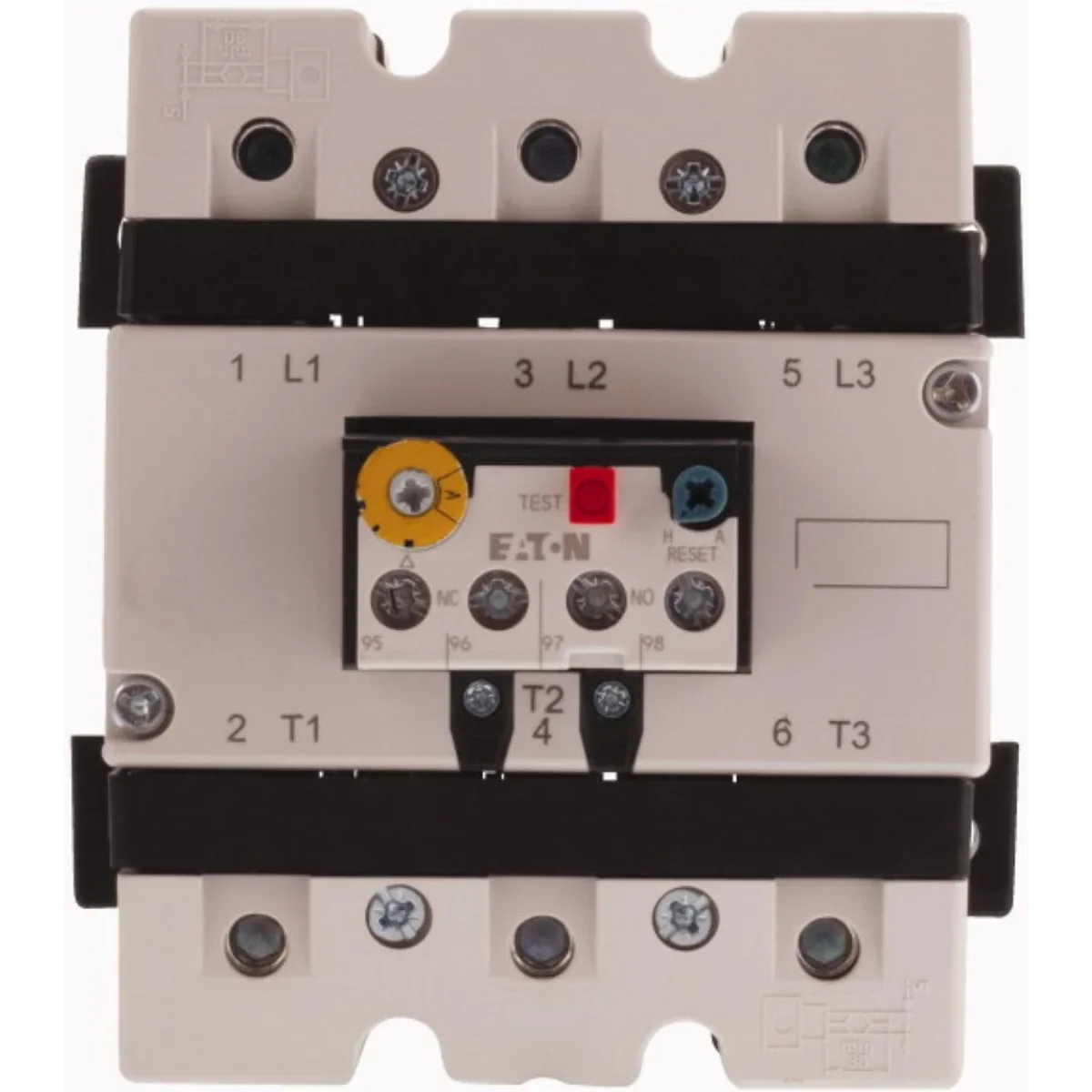

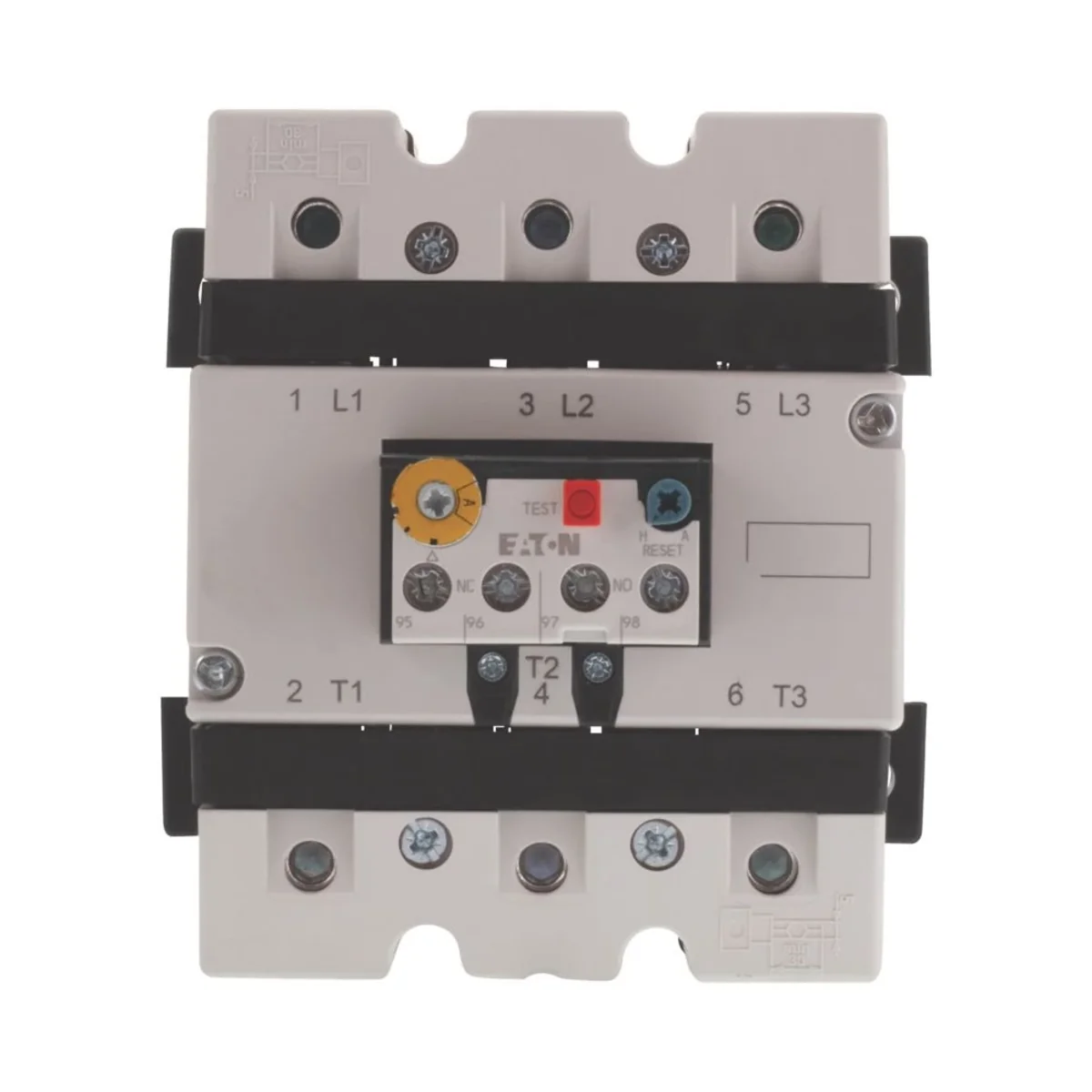

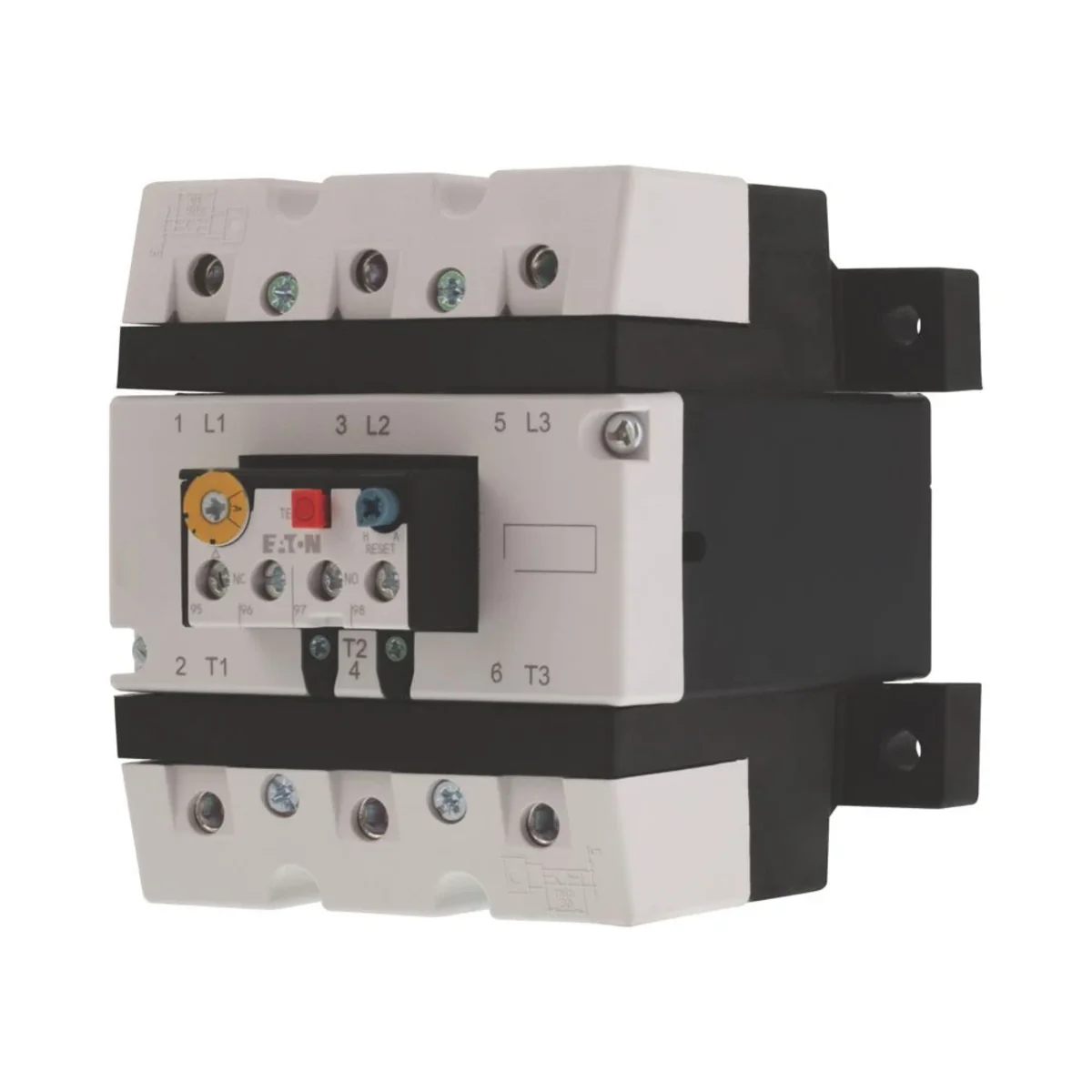

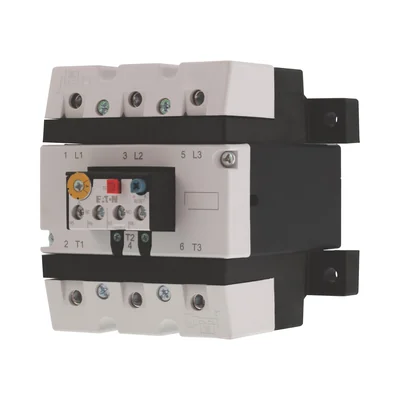

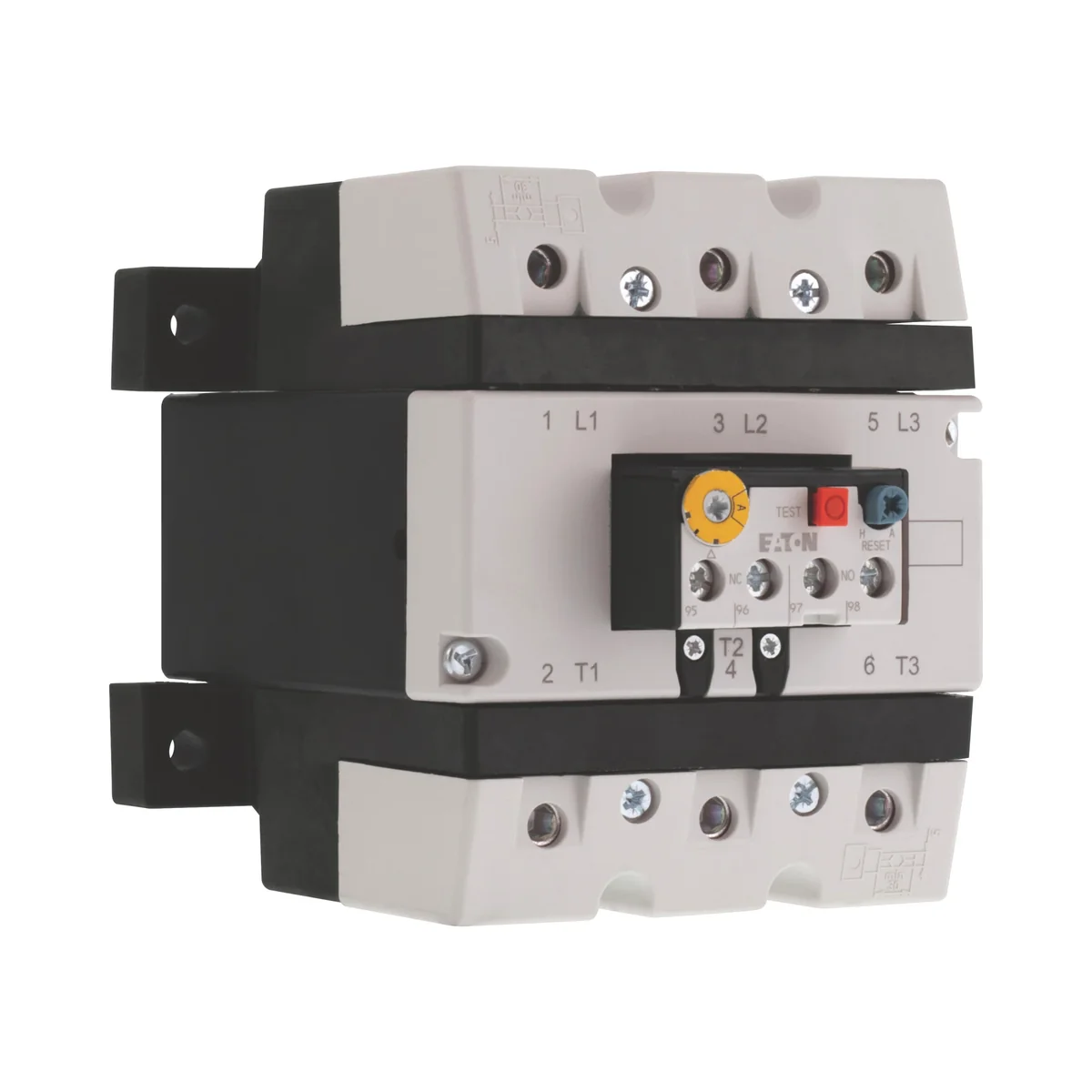

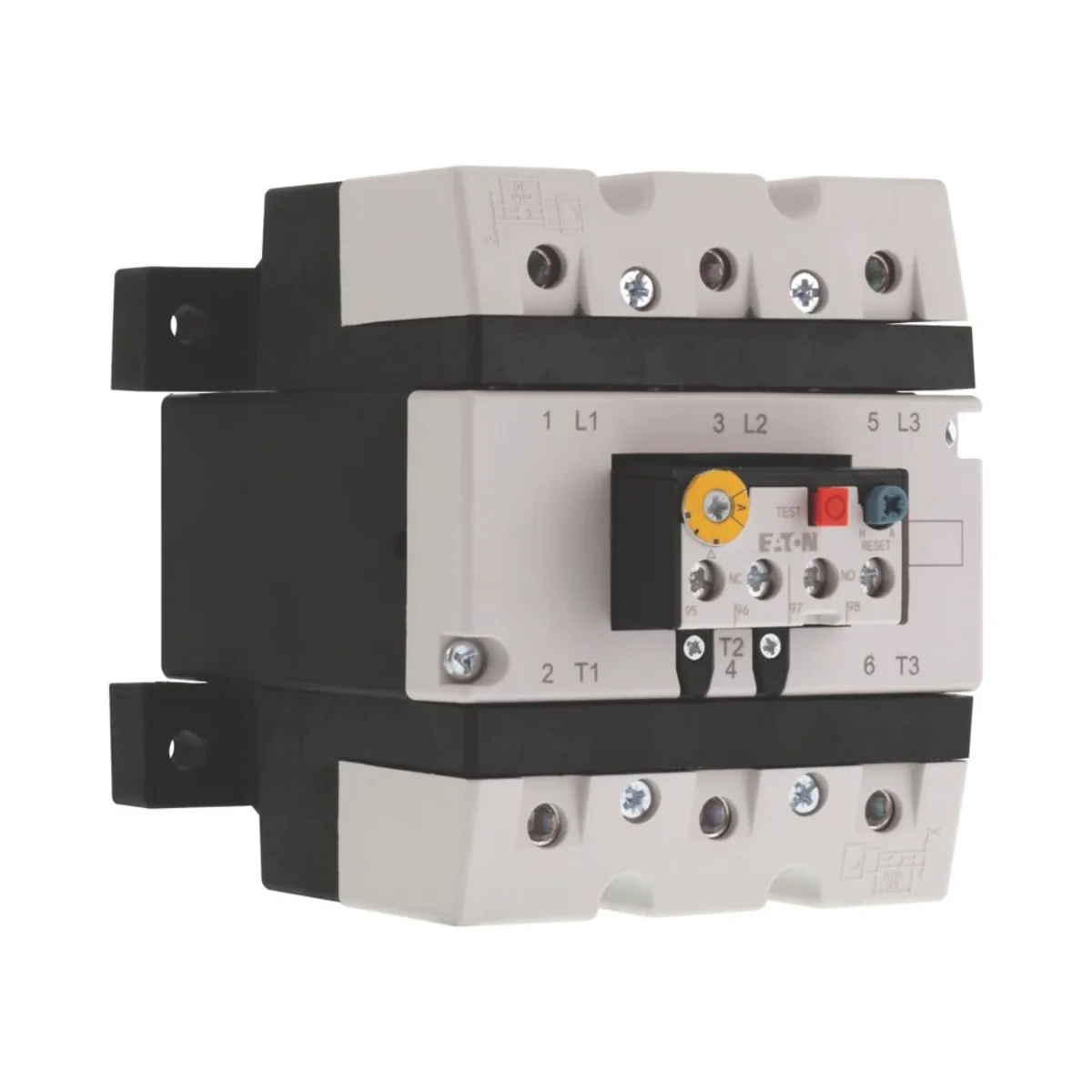

Overload relay, ZB150-100/KK 278470

local index:
ASN328MOEL
Catalog No:
278470
EAN code:
4015082784706
Price:
281,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Overload release: release class 10 A. Short-circuit protection: For direct mounting, pay attention to the max. permissible fuse of the contactor. Suitable for protecting EEx motors.

Technical data

Other technical data

  • Adjustable current range
    70 ... 100 A
  • Mounting method
    Direct attachment
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as change-over contact
    0
  • Reset function input
    no
  • Reset function push-button
    yes
  • Max. rated operation voltage Ue
    1000 V
  • Type of electrical connection of main circuit
    Screw connection
  • Number of auxiliary contacts as normally open contact
    1
  • Release class
    CLASS 10 A
  • Reset function automatic
    yes

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 1,578
Volume (m3) 0,004
Width (m) 0,130
Length (m) 0,170
Depth (m) 0,165
