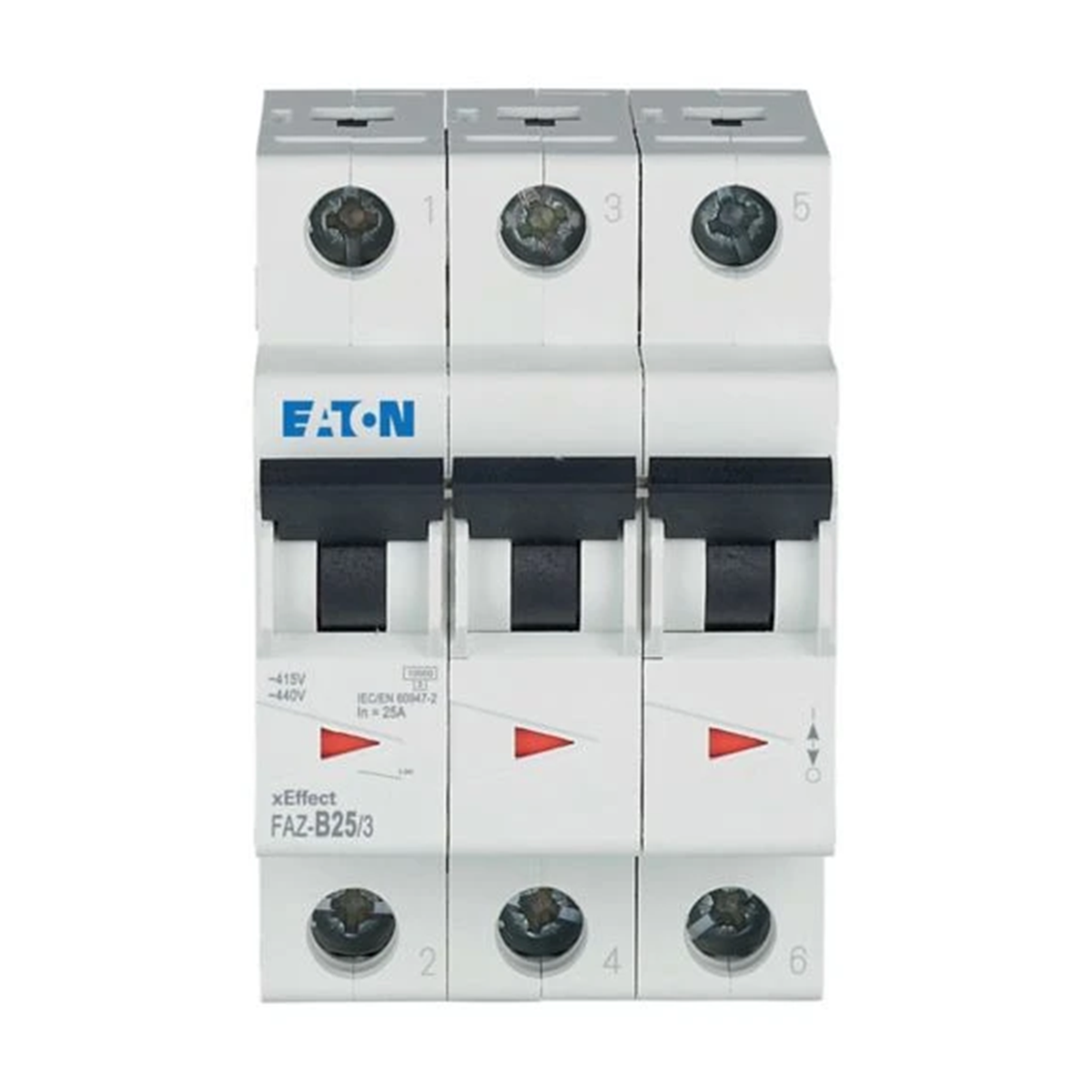

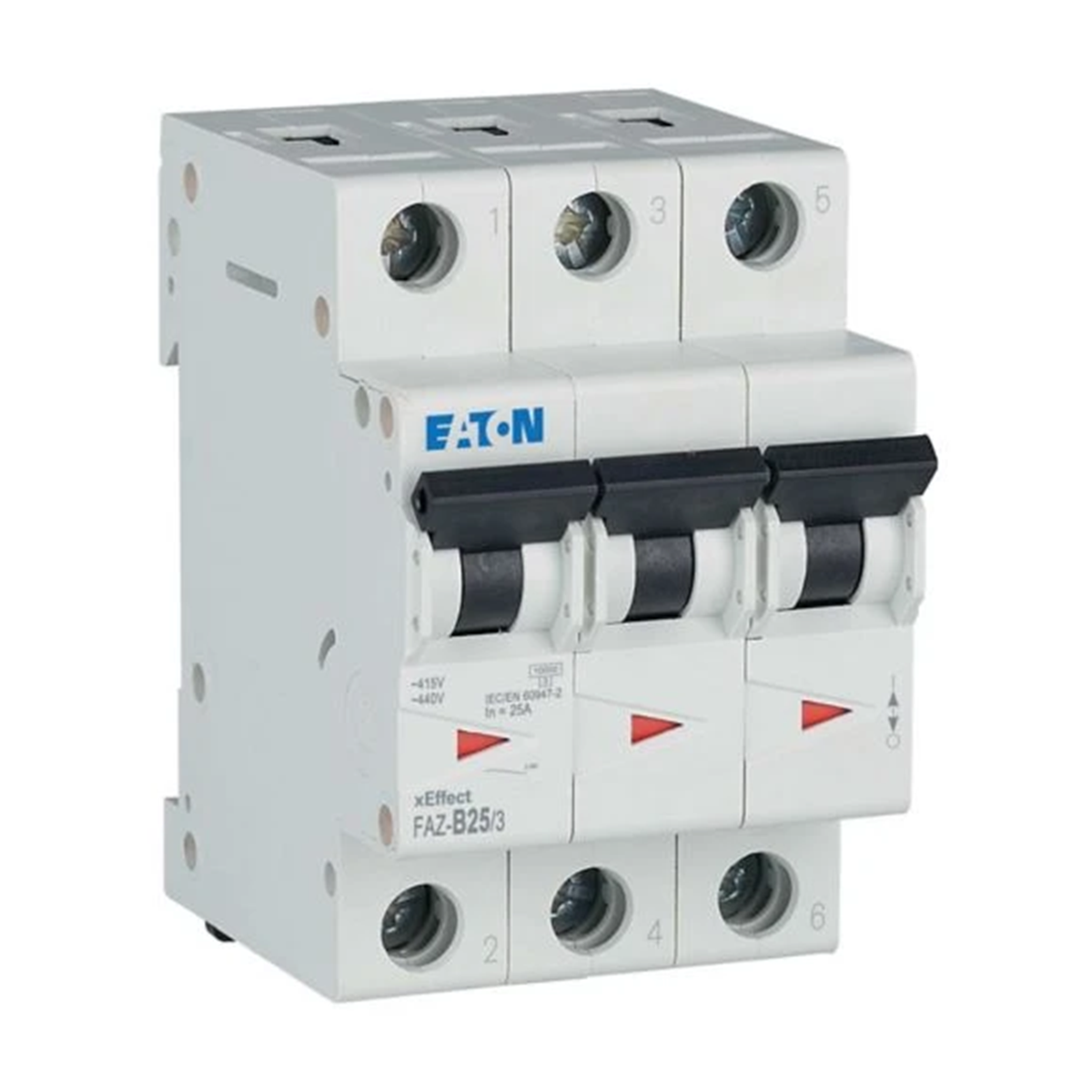

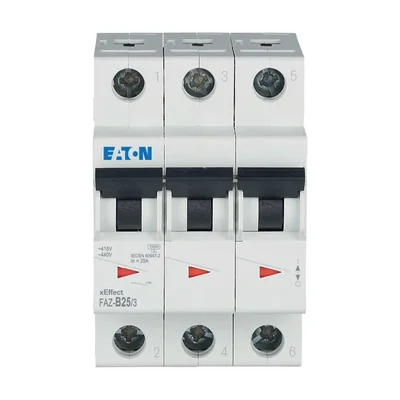

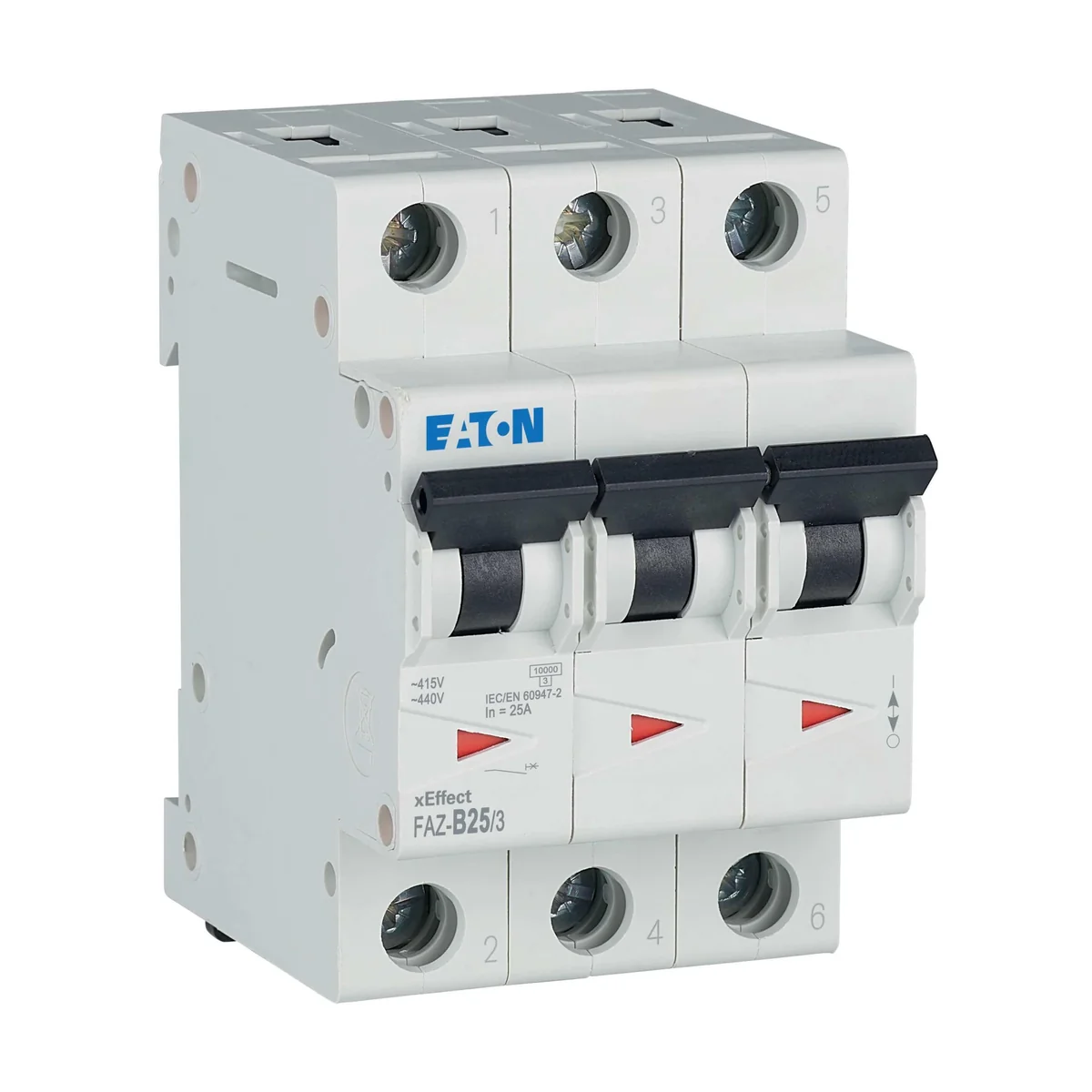

Overcurrent circuit breaker, FAZ-B25/3 278849

Indice locale:
ABB806MOEL
Numero di catalogo:
278849
Codice EAN:
4015082788490
Produttore: EATON
Number of poles: 3
Rated current [A]: 25
Prezzo:
42,28 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 2 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

• Characteristics B, C, D, Z, K, S
• Optical contact setting status indicator (red/green)
• Protective blanking clips
• Rich accessories

Dati tecnici

  • Number of poles
    3
  • Rated current [A]
    25

Altri dati tecnici

  • Release characteristic
    B
  • Number of protected poles
    3
  • Rated voltage
    400 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    3
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Number of poles (total)
    3
  • Rated current
    25 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    15 kA
  • Voltage type
    AC
  • Current limiting class
    3
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Built-in depth
    70.5 mm
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Dettagli del produttore

  • Produttore
    Eaton Electric Sp. z o.o.
  • Indirizzo
    80-299 Gdańsk Galaktyczna 30 Polska

Imballaggio sfuso

Una specie di pacchetto Skrzynia Karton Skrzynia Karton
Quantità 1 pezzi 40 pezzi 1 pezzi 40 pezzi
Peso (kg) 0,366 14,827 0,366 14,827
Volume (m3) 0,000 0,016 0,000 0,016
Larghezza (m) 0,055 0,180 0,055 0,180
Lunghezza (m) 0,086 0,385 0,086 0,385
Profondità (m) 0,075 0,230 0,075 0,230
