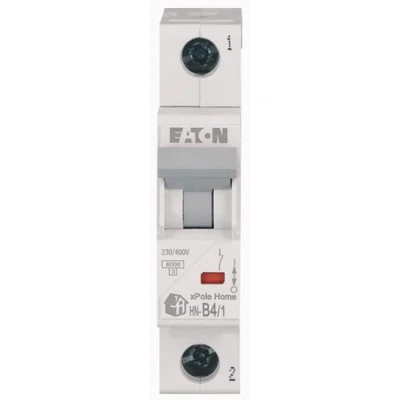

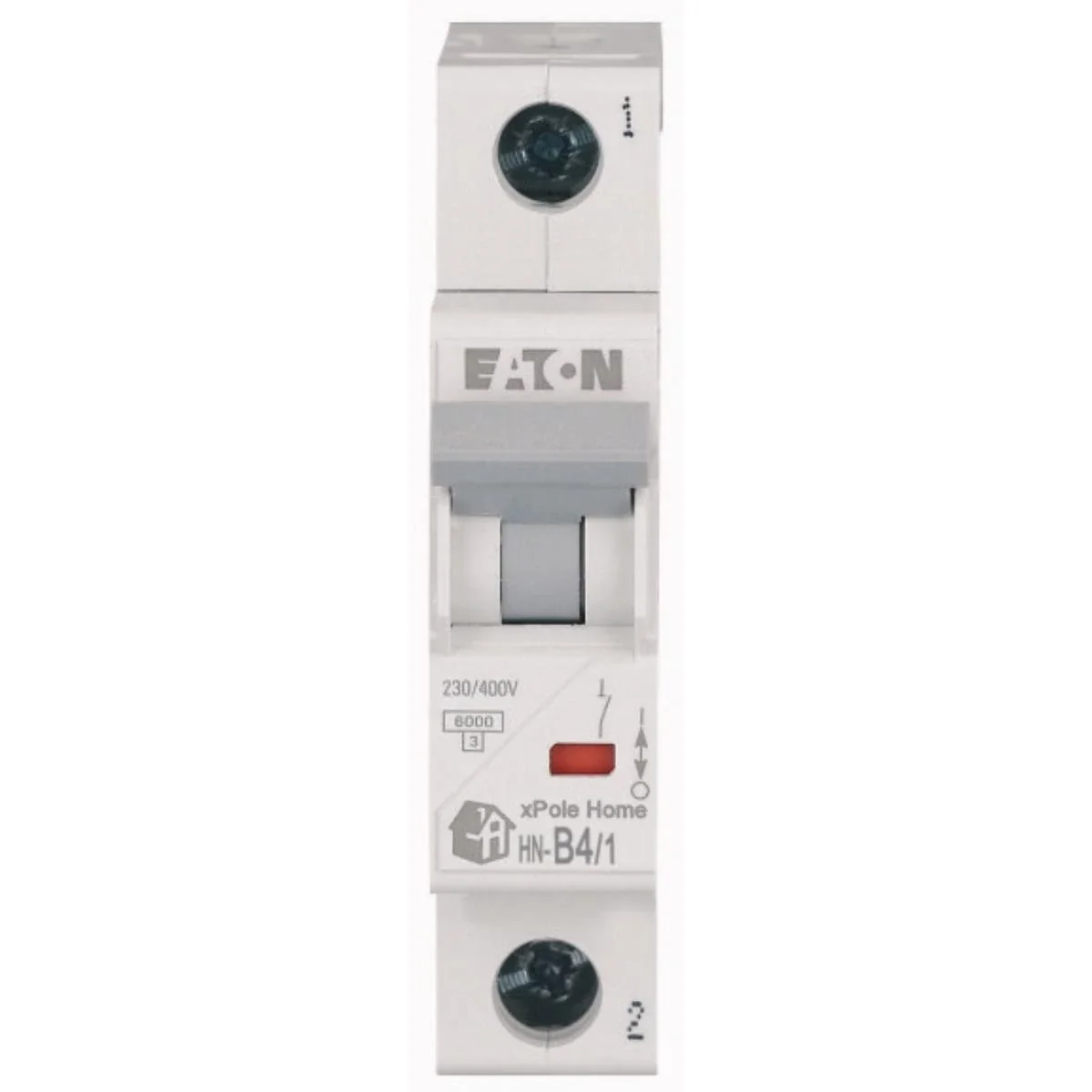

Overcurrent circuit breaker 6kA HN-B4/1 EP-500761

Indice locale:
ABB107MOEL
Numero di catalogo:
EP-500761
Codice EAN:
9010653028215
Produttore: EATON
Frequency [Hz]: 50|60
Energy limitation class: 3
Number of poles: 1
Prezzo:
50,20 zł
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
Accessibile 102 pezzi
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

6kA overcurrent circuit breaker, designed to work with DC voltage up to 48VDC, electric strength up to 20,000 operations. Sealable .

Dati tecnici

  • Frequency [Hz]
    50 60
  • Number of poles
    1
  • Rated current [A]
    2
  • Level of security
    IP20
  • Working temperature [°C]
    from -25 to +75
  • Rated impulse voltage [kV]
    4
  • Installation depth [mm]
    49.5
  • Energy limitation class
    3
  • Rated voltage [V]
    230
  • Type of voltage
    AC
  • Width [number of modules]
    17.5
  • Trigger type
    b
  • Wire cross-section [mm²]
    25

Altri dati tecnici

  • Built-in depth
    49.5 mm
  • Number of poles (total)
    1
  • Rated current
    2 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    0 kA
  • Current limiting class
    3
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    17.5
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²
  • Release characteristic
    B
  • Number of protected poles
    1
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Voltage type
    AC
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    0 kA
  • Frequency
    50 ... 60 Hz
  • Flush-mounted installation
    No
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Explosion-proof
    No

Dettagli del produttore

  • Produttore
    Eaton Electric Sp. z o.o.
  • Indirizzo
    80-299 Gdańsk Galaktyczna 30 Polska

Imballaggio sfuso

Una specie di pacchetto Skrzynia Karton Karton Skrzynia Karton Karton
Quantità 1 pezzi 12 pezzi 120 pezzi 1 pezzi 12 pezzi 120 pezzi
Peso (kg) 0,137 1,640 16,400 0,137 1,640 16,400
Volume (m3) 0,000 0,001 0,016 0,000 0,001 0,016
Larghezza (m) 0,020 0,218 0,180 0,020 0,218 0,180
Lunghezza (m) 0,087 0,086 0,385 0,087 0,086 0,385
Profondità (m) 0,075 0,075 0,230 0,075 0,075 0,230
