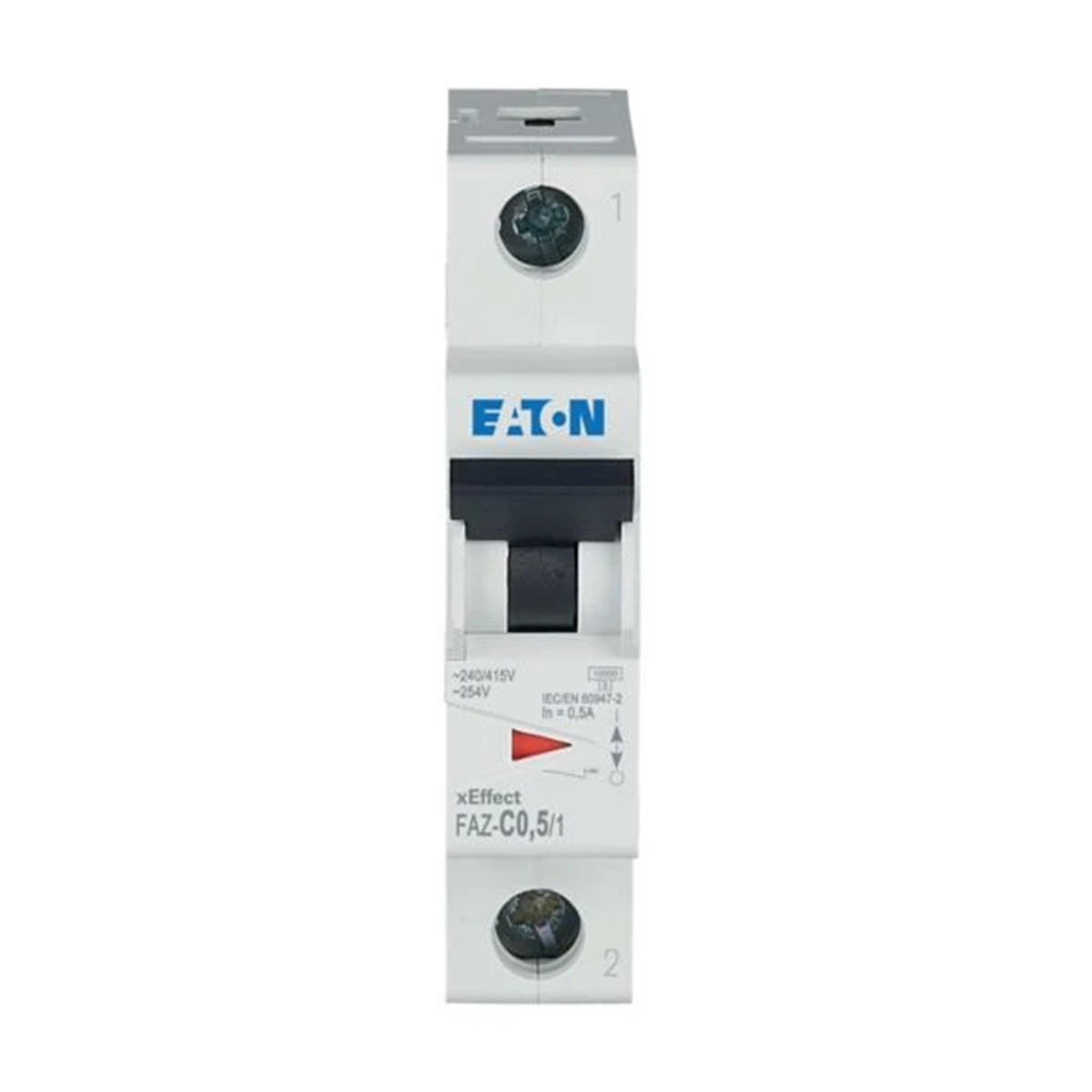

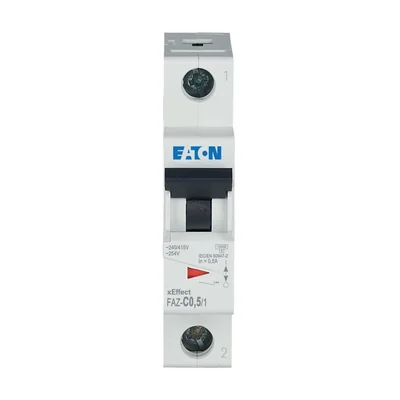

Overcurrent circuit breaker, 15kA series (1 pole), FAZ-C0,5/1 278544

Indice locale:
ABC802MOEL
Numero di catalogo:
278544
Codice EAN:
4015082785444
Produttore: EATON
Number of poles: 1
Rated current [A]: 0.5
Prezzo:
22,35 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 2 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
12
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

FAZ circuit breaker. Characteristic C, rated short-circuit breaking capacity 15 kA instantaneous release pick-up current 5 – 10 x In.

Dati tecnici

  • Number of poles
    1
  • Rated current [A]
    0.5

Altri dati tecnici

  • Release characteristic
    C
  • Number of protected poles
    1
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    15 kA
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Number of poles (total)
    1
  • Rated current
    0.5 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    10 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    15 kA
  • Voltage type
    AC
  • Current limiting class
    3
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Built-in depth
    70.5 mm
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Dettagli del produttore

  • Produttore
    Eaton Electric Sp. z o.o.
  • Indirizzo
    80-299 Gdańsk Galaktyczna 30 Polska

Imballaggio sfuso

Una specie di pacchetto Skrzynia Karton Karton Skrzynia Karton Karton
Quantità 1 pezzi 12 pezzi 120 pezzi 1 pezzi 12 pezzi 120 pezzi
Peso (kg) 0,114 1,364 13,843 0,114 1,364 13,843
Volume (m3) 0,000 0,001 0,016 0,000 0,001 0,016
Larghezza (m) 0,020 0,218 0,180 0,020 0,218 0,180
Lunghezza (m) 0,082 0,086 0,385 0,082 0,086 0,385
Profondità (m) 0,078 0,075 0,230 0,078 0,075 0,230
