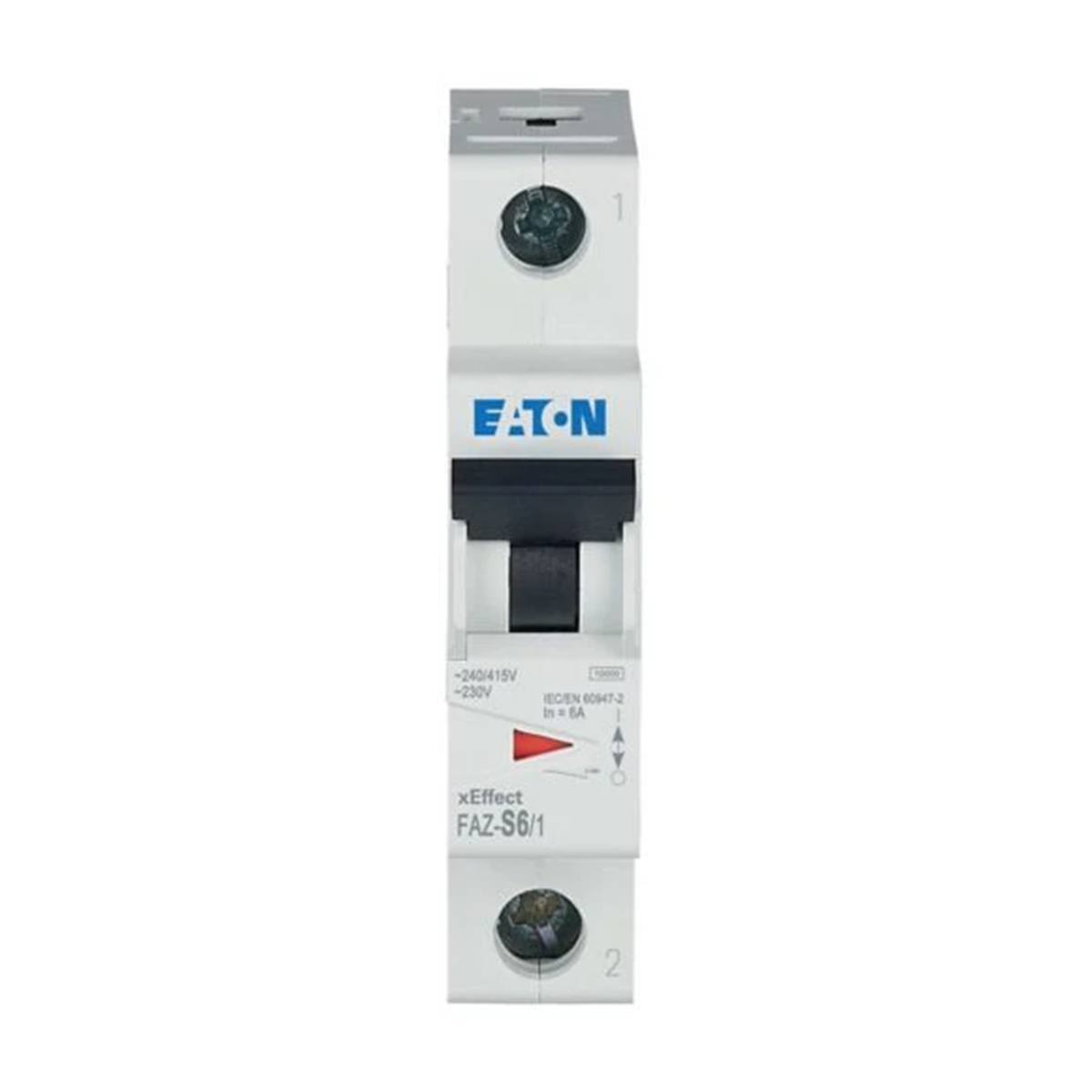

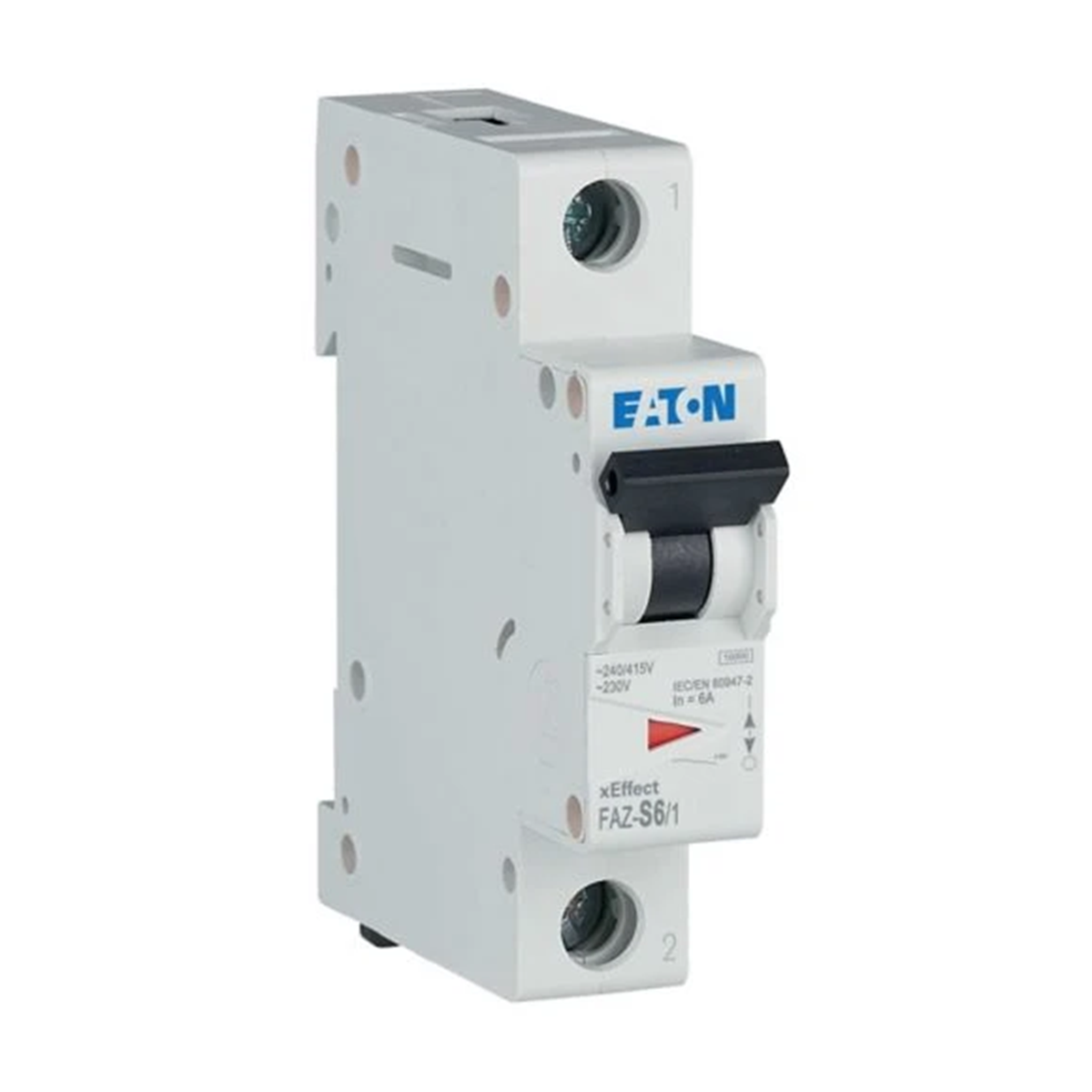

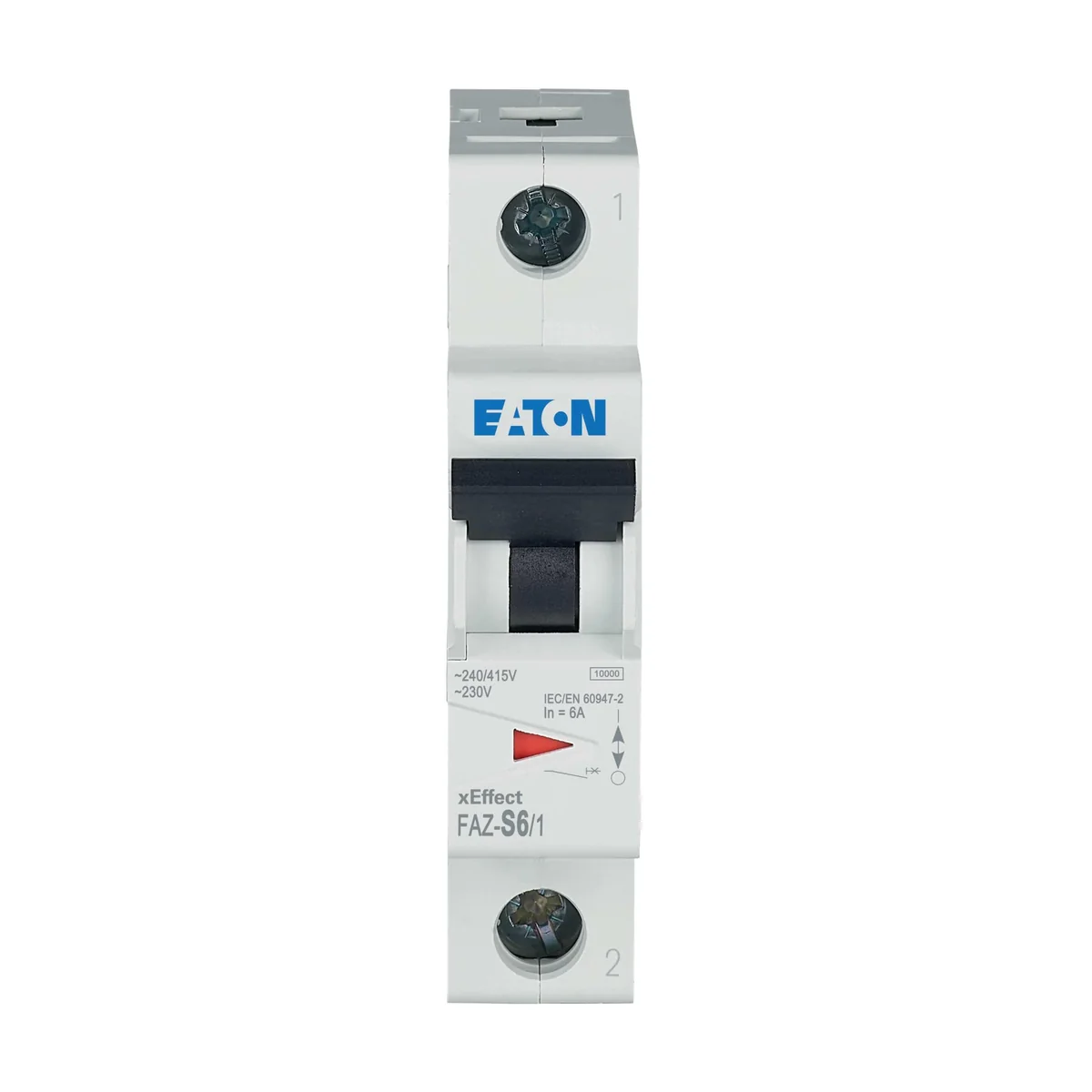

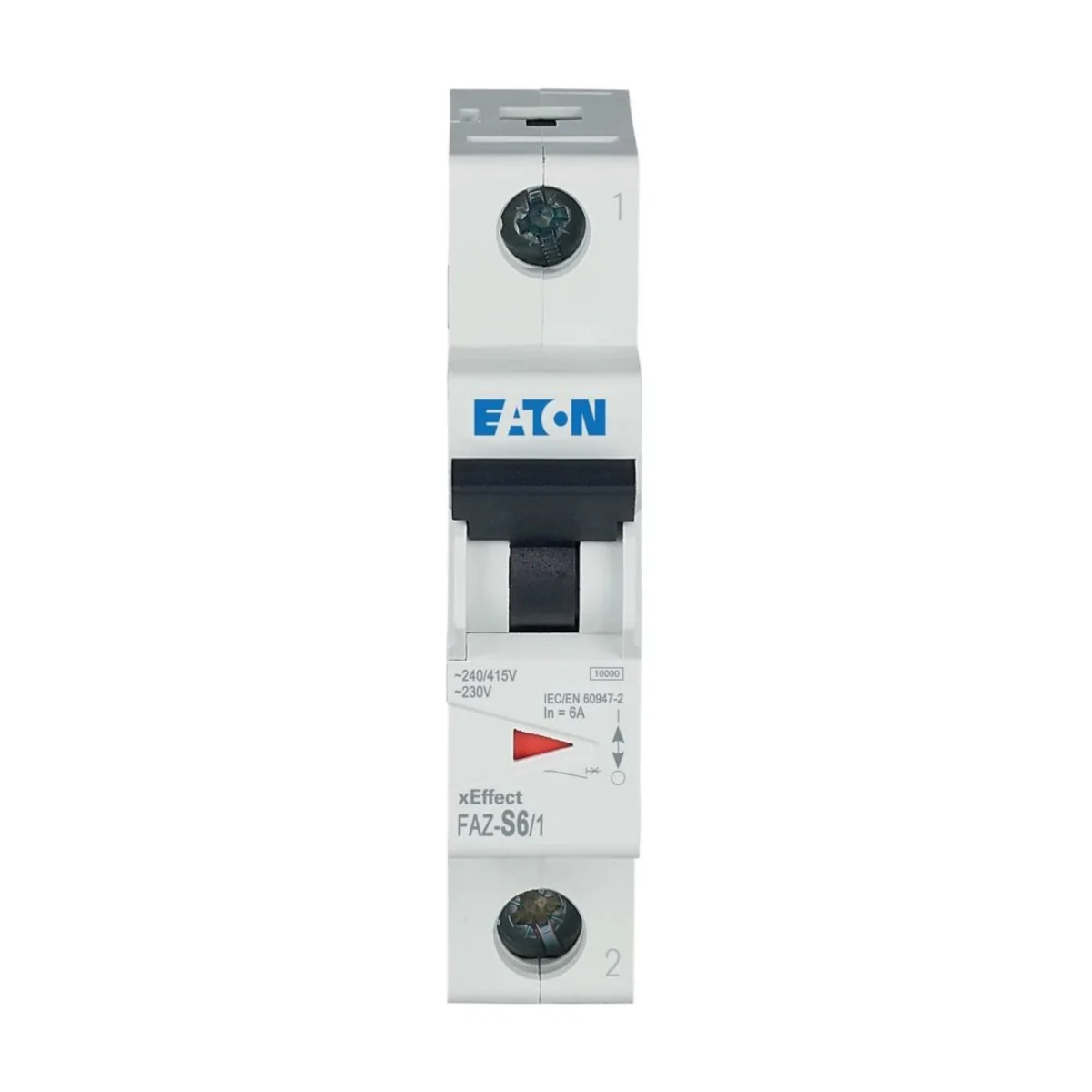

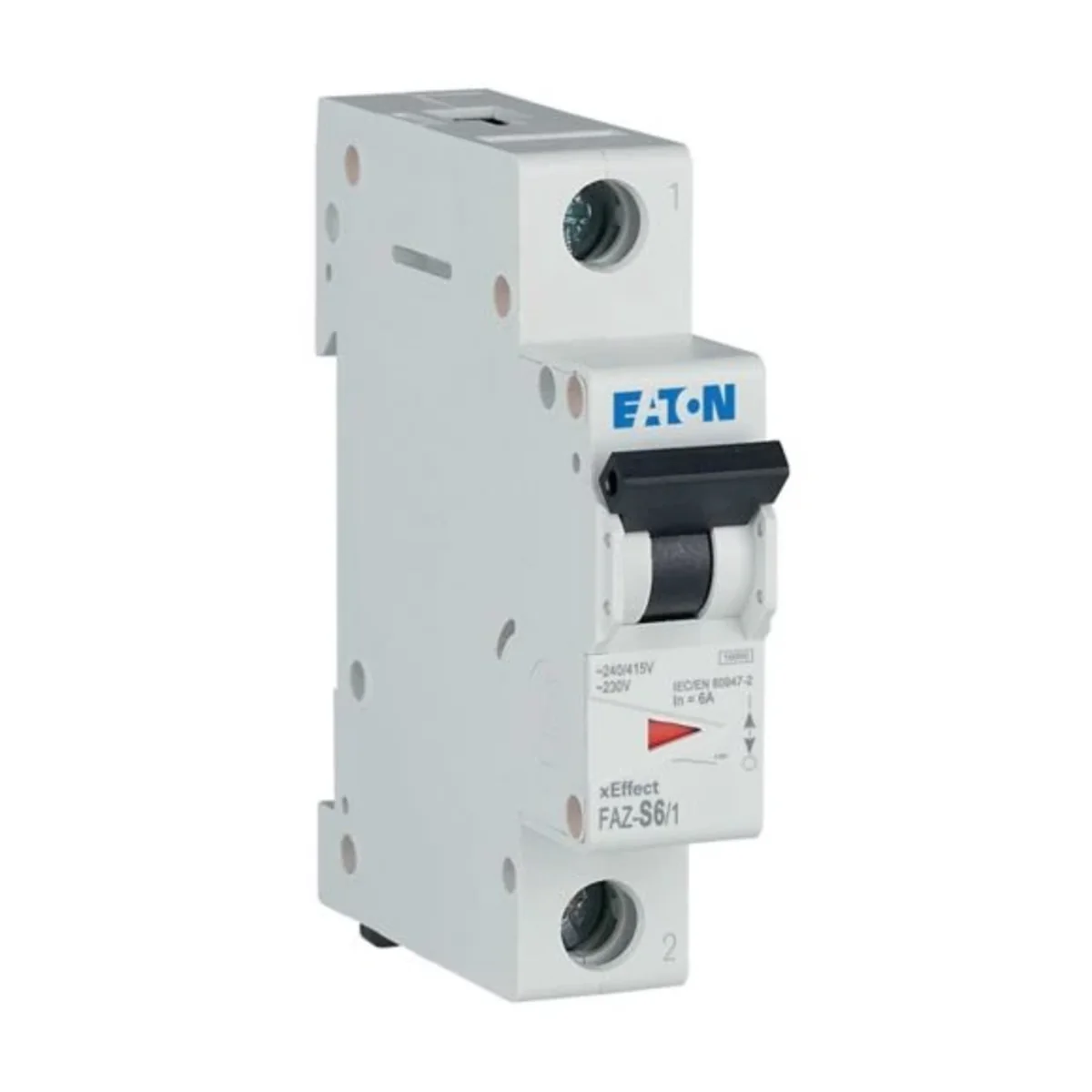

Overcurrent circuit breaker (1 pole), FAZ-S6/1 278610

local index:
ABN015MOEL
Catalog No:
278610
EAN code:
4015082786106
Manufacturer: EATON
Number of poles: 1
Rated current [A]: 6
Price:
34,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
12
)
Add to clipboard
Print

Product description

FAZ circuit breakers. Characteristic S, rated short-circuit breaking capacity 10 kA, instantaneous release pick-up current 13 – 17 x In.

Technical data

  • Number of poles
    1
  • Rated current [A]
    6

Other technical data

  • Release characteristic
    Other
  • Number of protected poles
    1
  • Rated voltage
    230 V
  • Rated impulse withstand voltage Uimp
    4 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
    0 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
    10 kA
  • Frequency
    50 ... 60 Hz
  • Concurrently switching neutral conductor
    No
  • Pollution degree
    2
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20
  • Connectable conductor cross section multi-wired
    1 ... 25 mm²
  • Number of poles (total)
    1
  • Rated current
    6 A
  • Rated insulation voltage Ui
    440 V
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    0 kA
  • Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
    10 kA
  • Voltage type
    AC
  • Current limiting class
    3
  • Over voltage category
    3
  • Additional equipment possible
    Yes
  • Built-in depth
    70.5 mm
  • Ambient temperature during operating
    -25 ... 75 °C
  • Connectable conductor cross section solid-core
    1 ... 25 mm²

Manufacturer details

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 1 pcs. 12 pcs. 120 pcs.
Weight (kg) 0,109 0,113 1,355 13,752
Volume (m3) 0,000 0,000 0,001 0,016
Width (m) 0,018 0,020 0,218 0,180
Length (m) 0,080 0,082 0,086 0,385
Depth (m) 0,075 0,078 0,075 0,230
