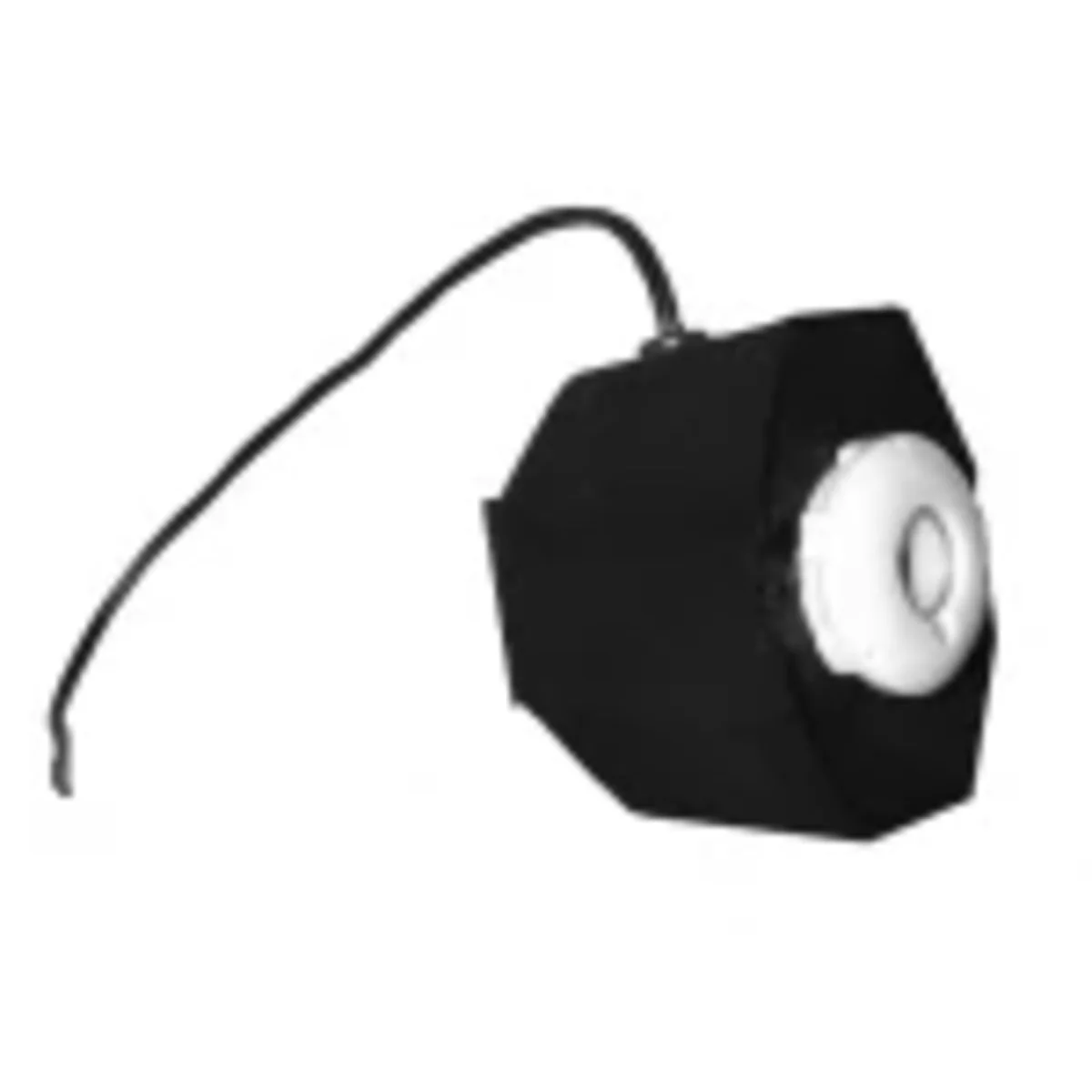

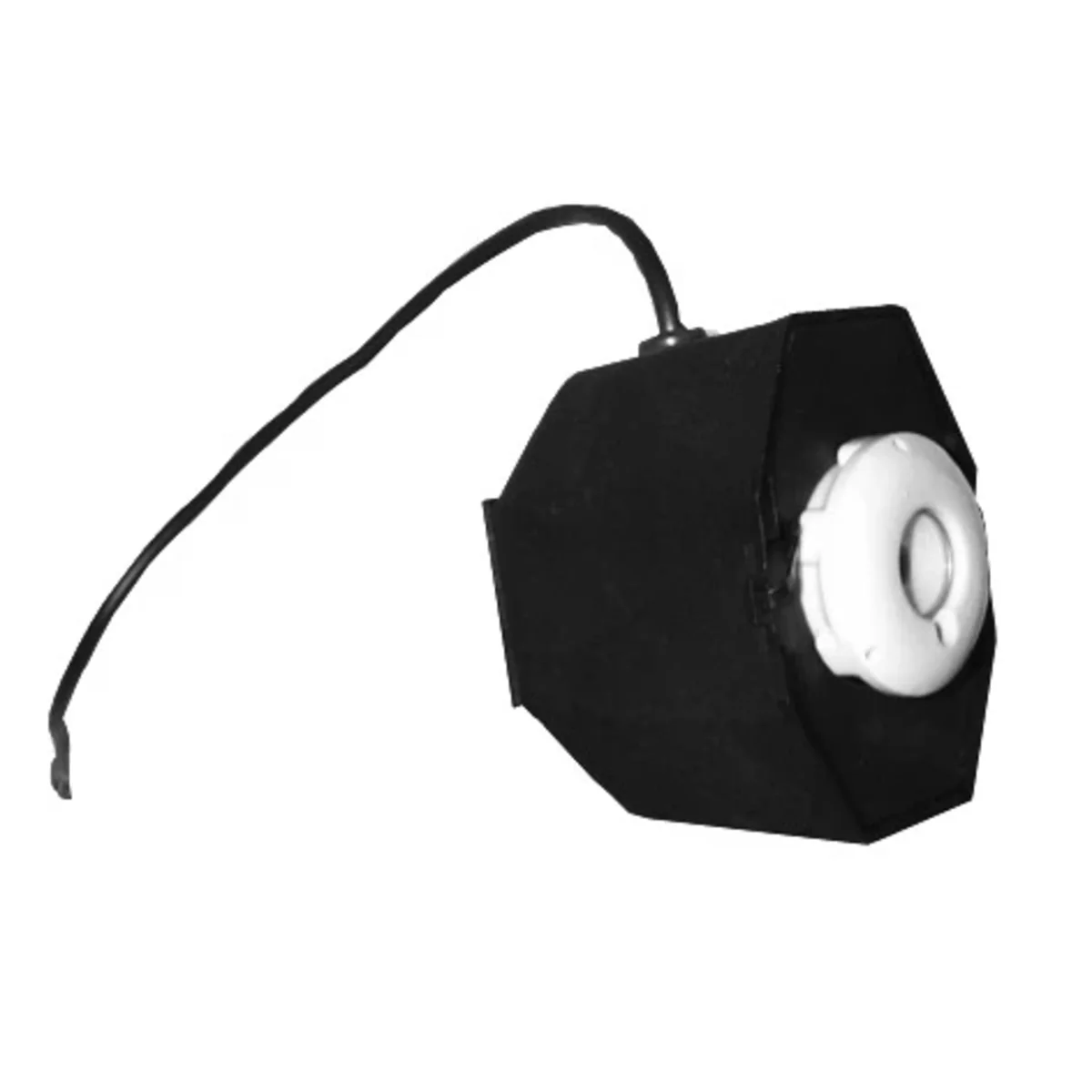

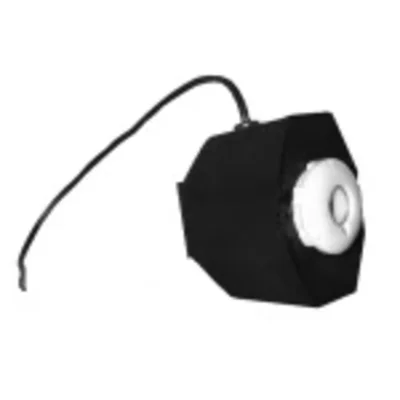

Outdoor fuse BN 25A 002322041

local index:
ABO090ETIP
Catalog No:
002322041
EAN code:
5904722905993
Manufacturer: ETI POLAM
Rated voltage [V]: 500
Rated current [A]: 25
Cable connectivity [mm]: 1.5 - 10mm2
Price:
16,03 €
gross / pcs.
(including VAT 23%)
534,33 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Application - They are used to protect street lighting circuits or small receivers. They are attached to the insulation-piercing clamps of various companies. They are designed to be mounted on a bundle of ASXSn insulated wires.

Advantages:
→ socket design ensures durability and ease of installation,
→ the fuse cover is made of plastic,
→ 25A and 63A fuse socket is made of electrotechnical porcelain with outer surfaces covered with white glaze,
→ upper and lower contacts are made of brass, they are equipped with main terminals,
→ metal elements of the socket are protected against corrosion with protective coatings.

Technical data

  • Rated voltage [V]
    500
  • Cable connectivity [mm]
    1.5 - 10mm2
  • Weight [g]
    thirty
  • Rated current [A]
    25
  • Handle
    E27
  • PKWIU
    27.12.21.0

Other technical data

  • Number of poles
    1
  • Material
    Plastic
  • Version with cover
    Yes
  • Rated voltage
    500 V
  • Construction size
    DII
  • Model
    Fitted screw
  • Mounting method
    Snap mounting
  • Rated current
    25 A
