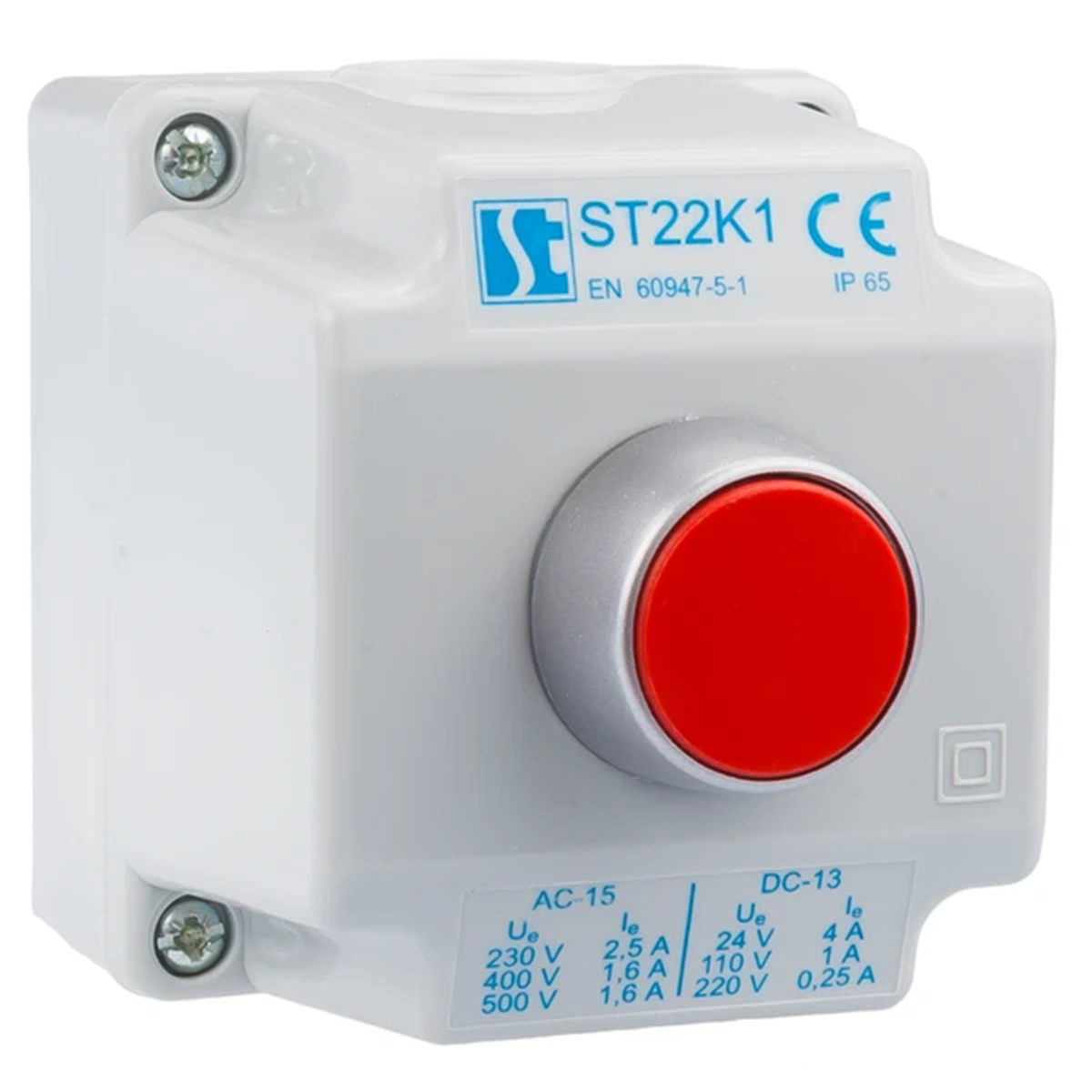

One-hole control pendant with STOP button. Button with red covered button (KC). ST22K1\02-1

local index:
AKK164SPAM
Catalog No:
ST22K1\02-1
EAN code:
5907723015555
Manufacturer: SPAMEL
Color: Gray
Rated insulation voltage [V]: 500
Level of security: IP65
Price:
19,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The housings of the ST22 cassettes are made of plastic, which gives the ST22 buttons and signal lamps an additional degree of insulation (protection class 2) in IP65 housings. The cassette can be fitted with any drive of the button or the body of the lamp powered by 24V or 220V.

Technical data

  • Color
    Gray
  • Level of security
    IP65
  • Rated insulation voltage [V]
    500
  • Accurate color
    Gray

Other technical data

  • Number of command positions
    1
  • Number of indicator lights
    0
  • Number of selector switches
    1
  • Rated control supply voltage AC 50 Hz
    230 ... 500 V
  • Colour housing cover
    Grey
  • Number of contacts as normally open contact
    0
  • Number of contacts as change-over contact
    0
  • Number of push buttons
    1
  • Number of key switches
    0
  • Number of mushroom-shaped push-buttons
    0
  • Rated control supply voltage DC
    24 ... 220 V
  • Housing material
    Plastic
  • Number of contacts as normally closed contact
    1
  • Degree of protection (IP)
    IP65
