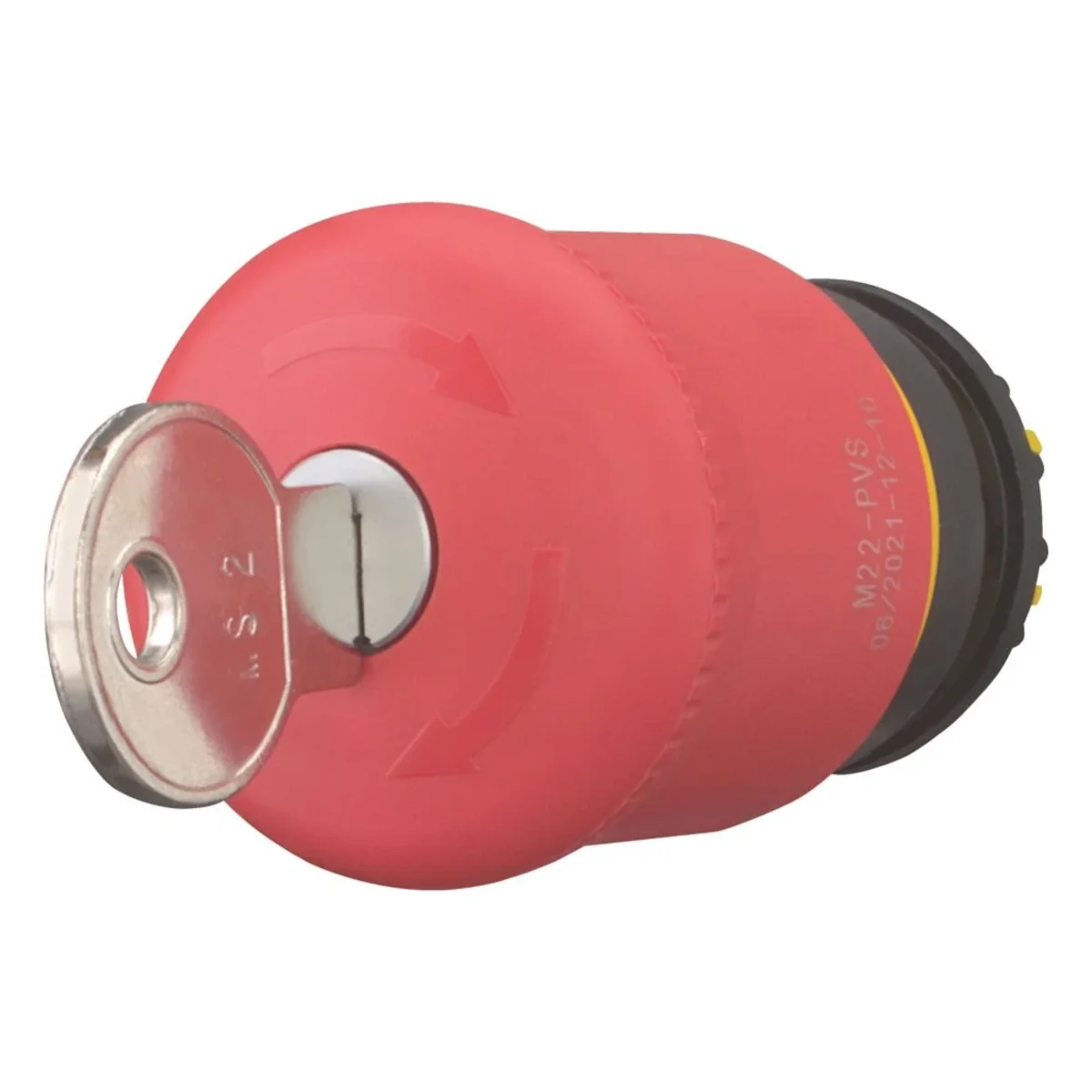

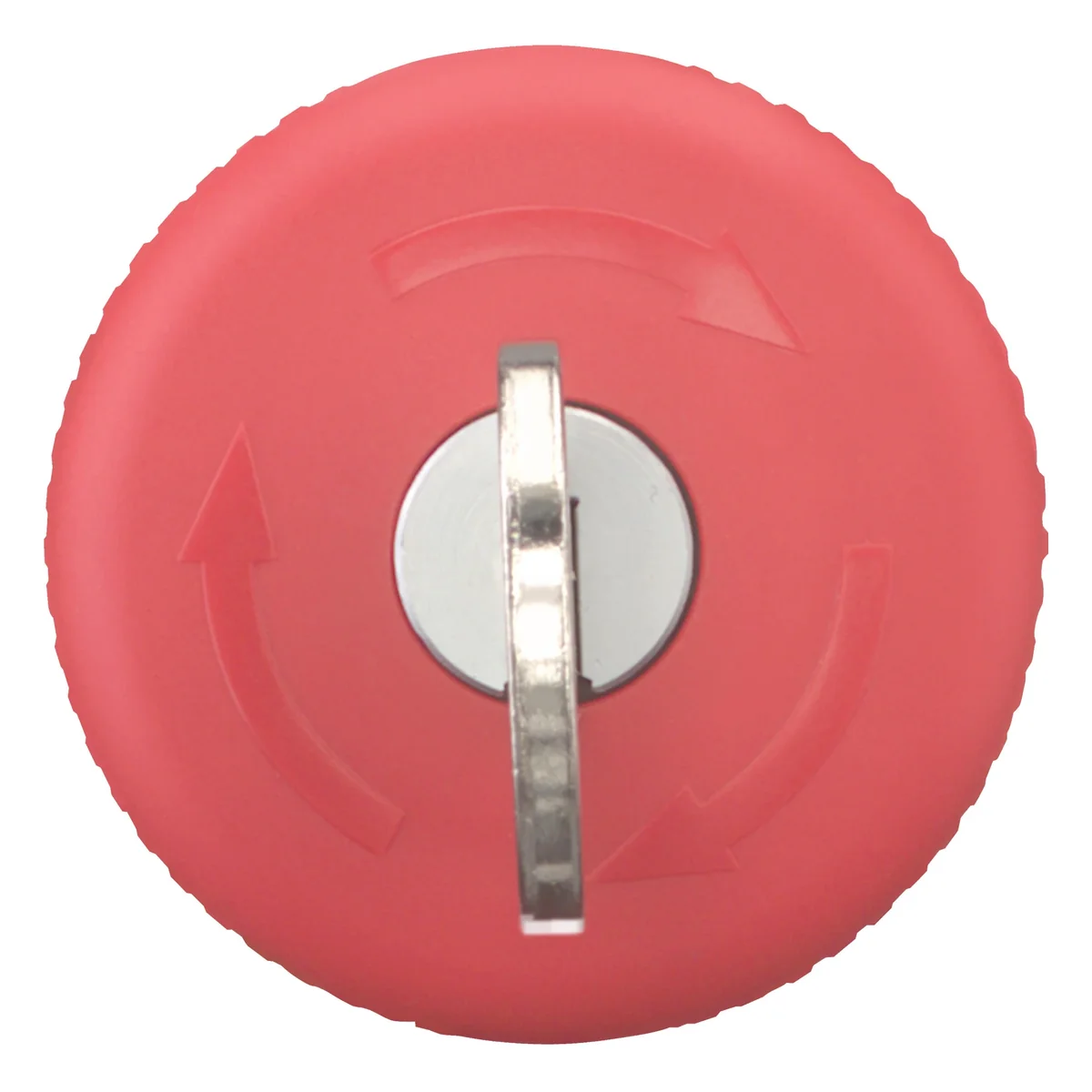

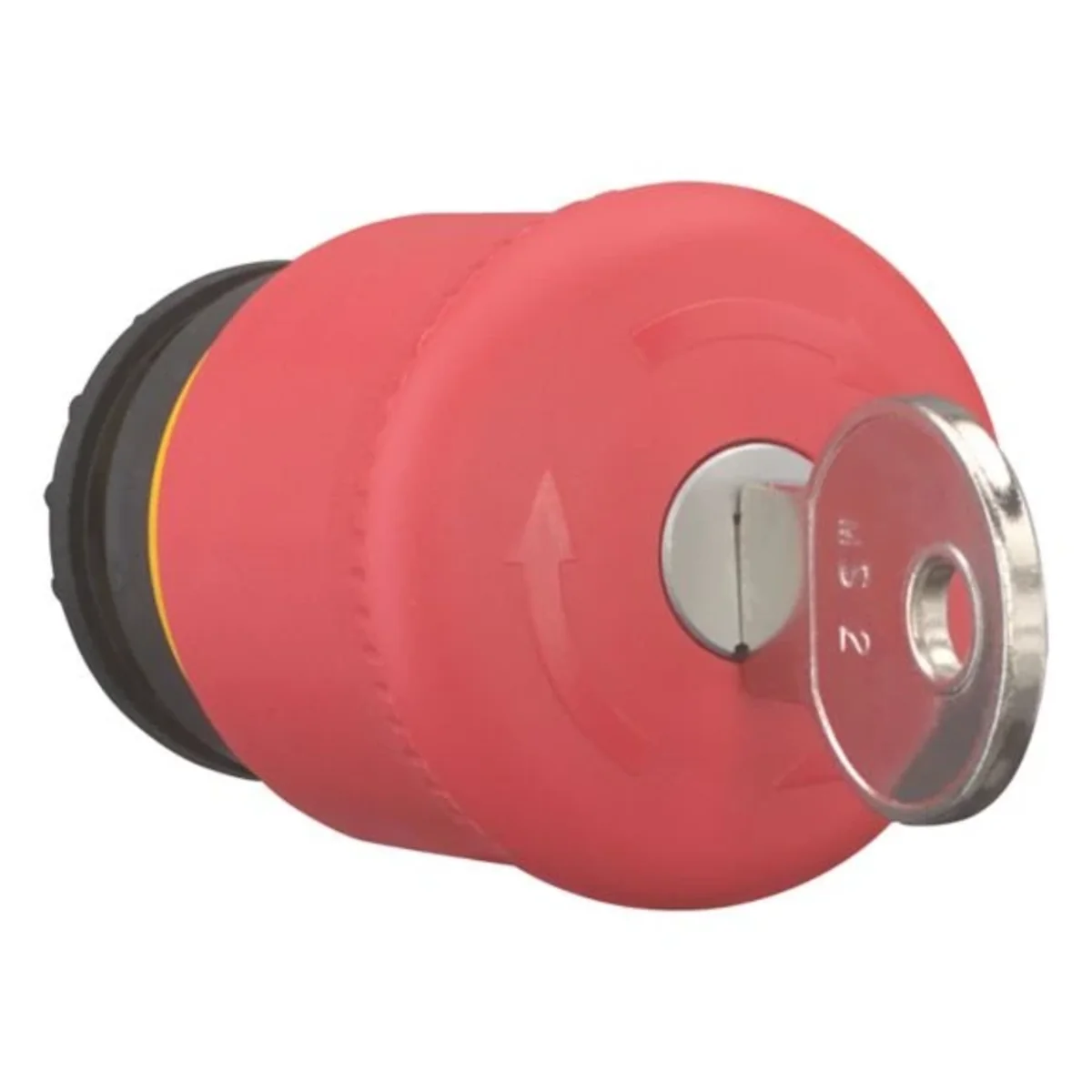

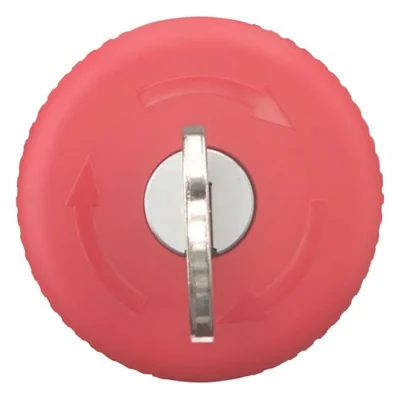

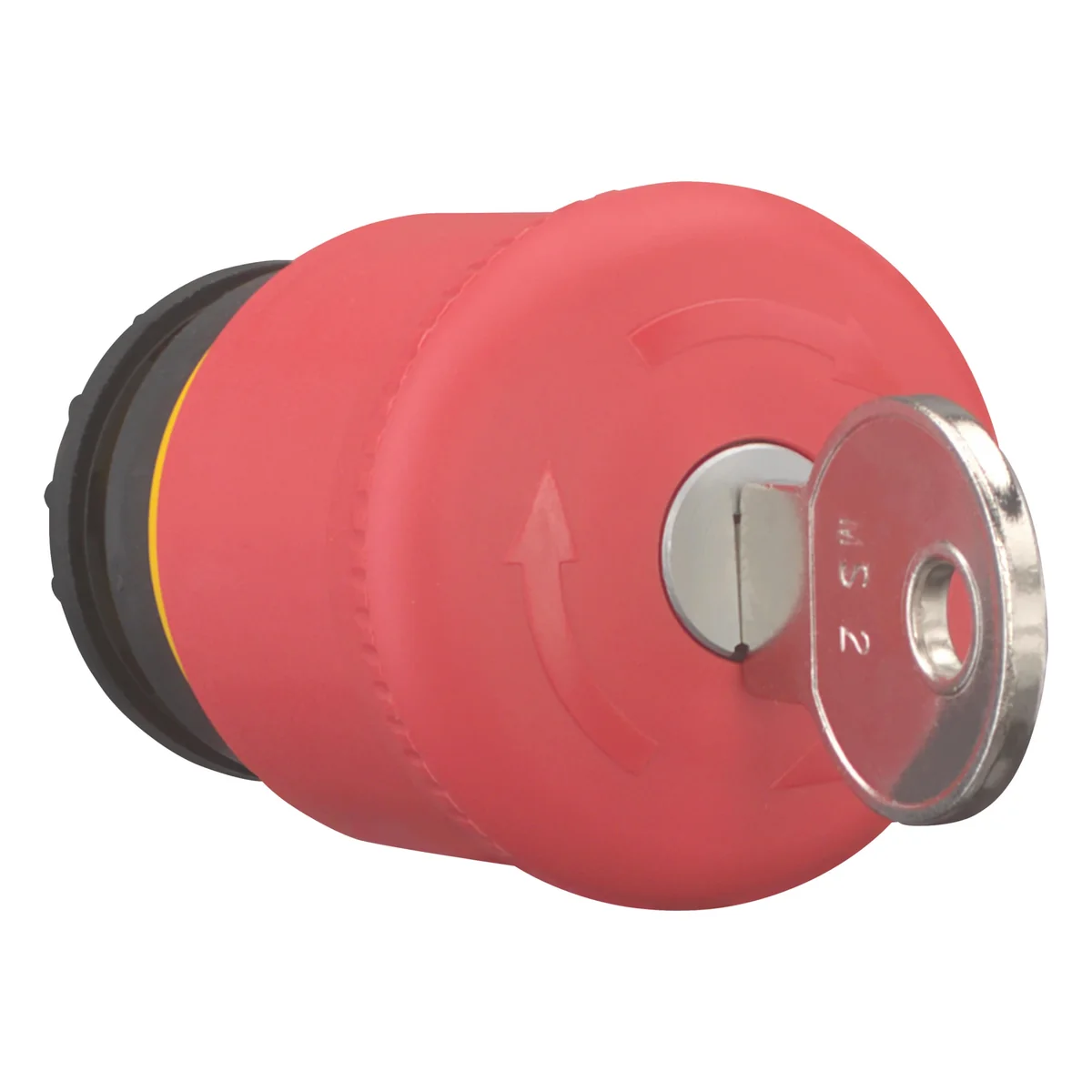

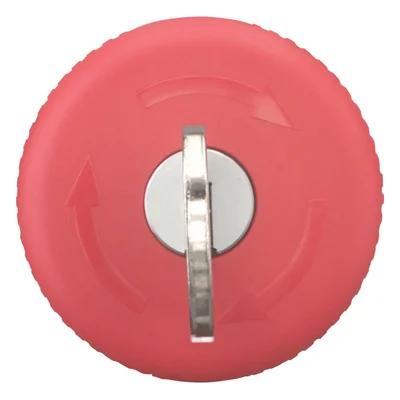

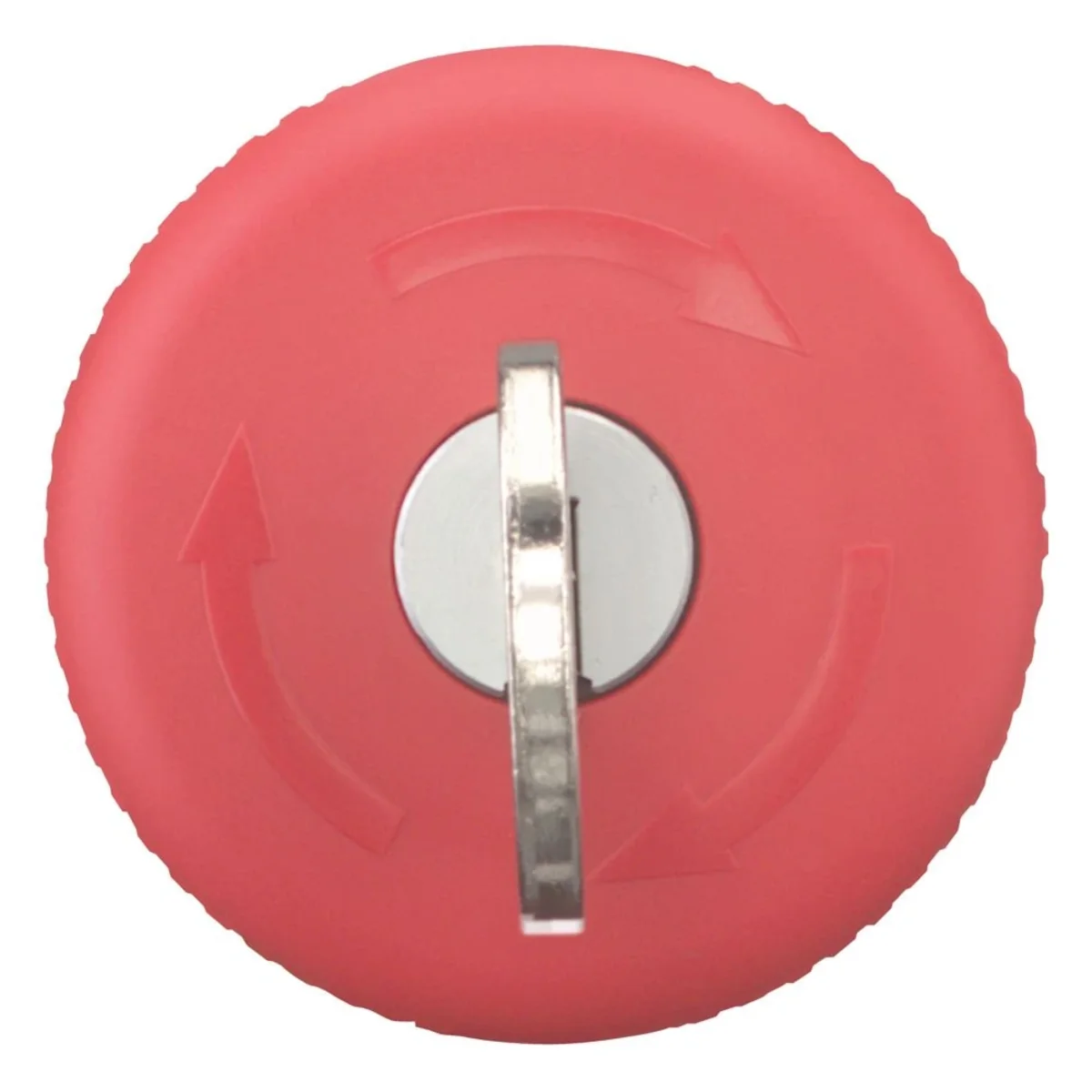

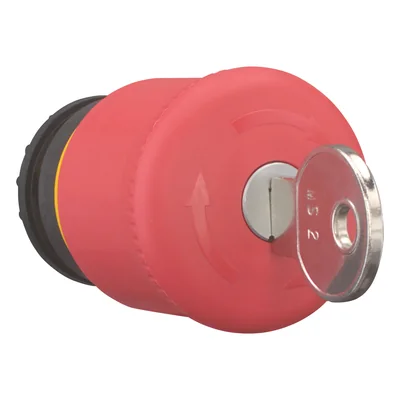

Mushroom pushbutton actuator, red, M22-PVS 216879

local index:
AKS874MOEL
Catalog No:
216879
EAN code:
4015082168797
Price:
48,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
5
)
Add to clipboard
Print

Product description

Unlocking by turning the key, ∅ 38mm

Technical data

Other technical data

  • Colour button
    Red
  • Diameter cap
    38 mm
  • Width opening
    0 mm
  • Degree of protection (IP)
    IP67/IP69K
  • Suitable for illumination
    No
  • Spring-return
    No
  • Material front ring
    Other
  • Suitable for emergency stop
    Yes
  • Construction type lens
    Round
  • Hole diameter
    22.5 mm
  • Height opening
    0 mm
  • Type of button
    High
  • Switching function latching
    Yes
  • With front ring
    No
  • Colour front ring
    Other
  • Unlocking method
    Key-release

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 5 pcs.
Weight (kg) 0,068 0,340
Volume (m3) 0,000 0,001
Width (m) 0,040 0,066
Length (m) 0,095 0,171
Depth (m) 0,040 0,076
