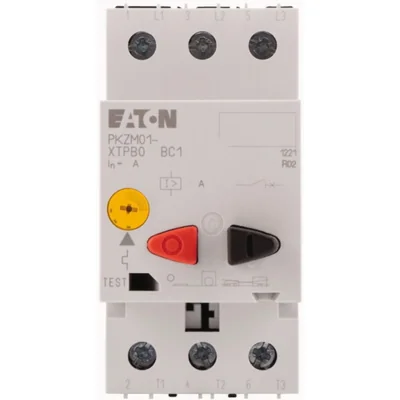

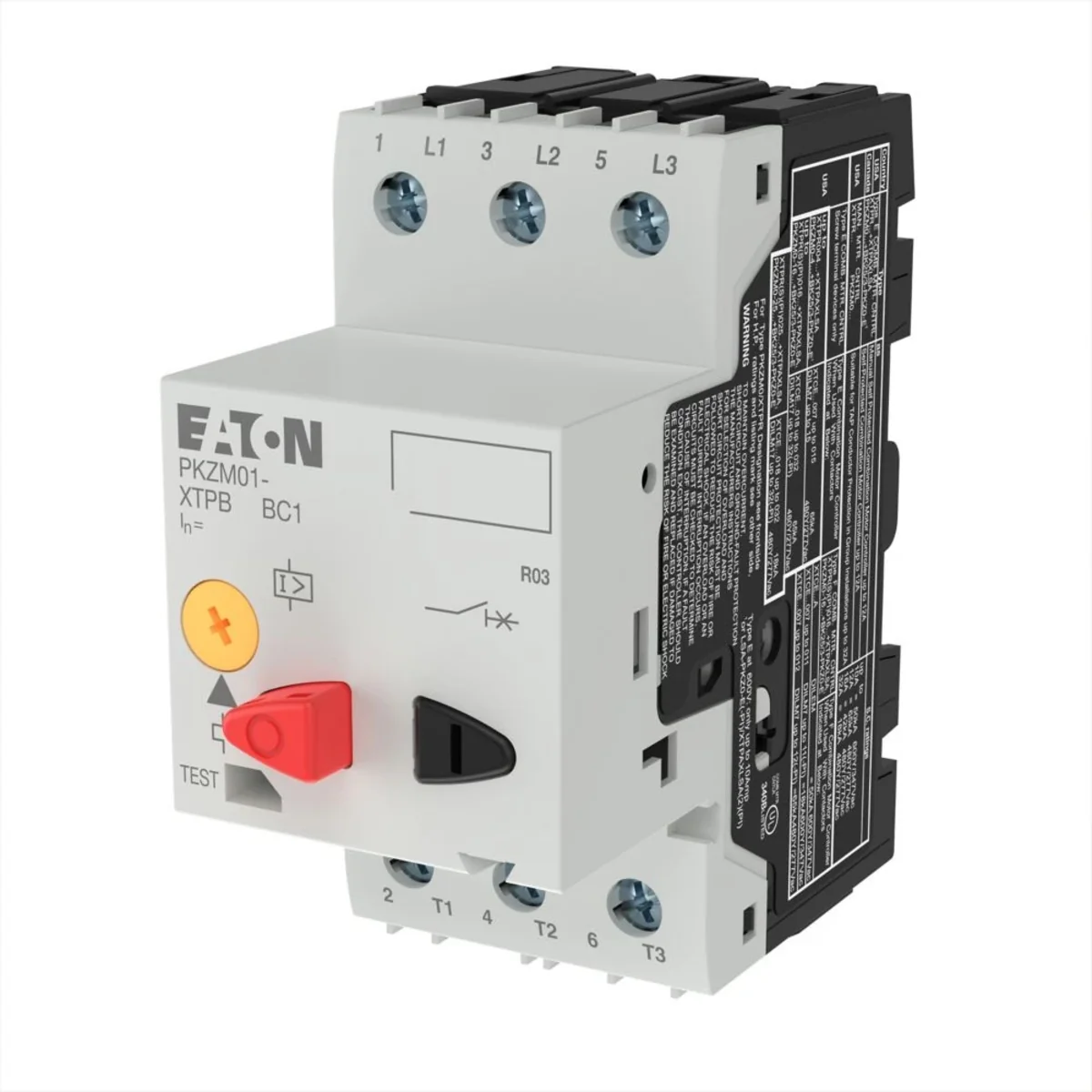

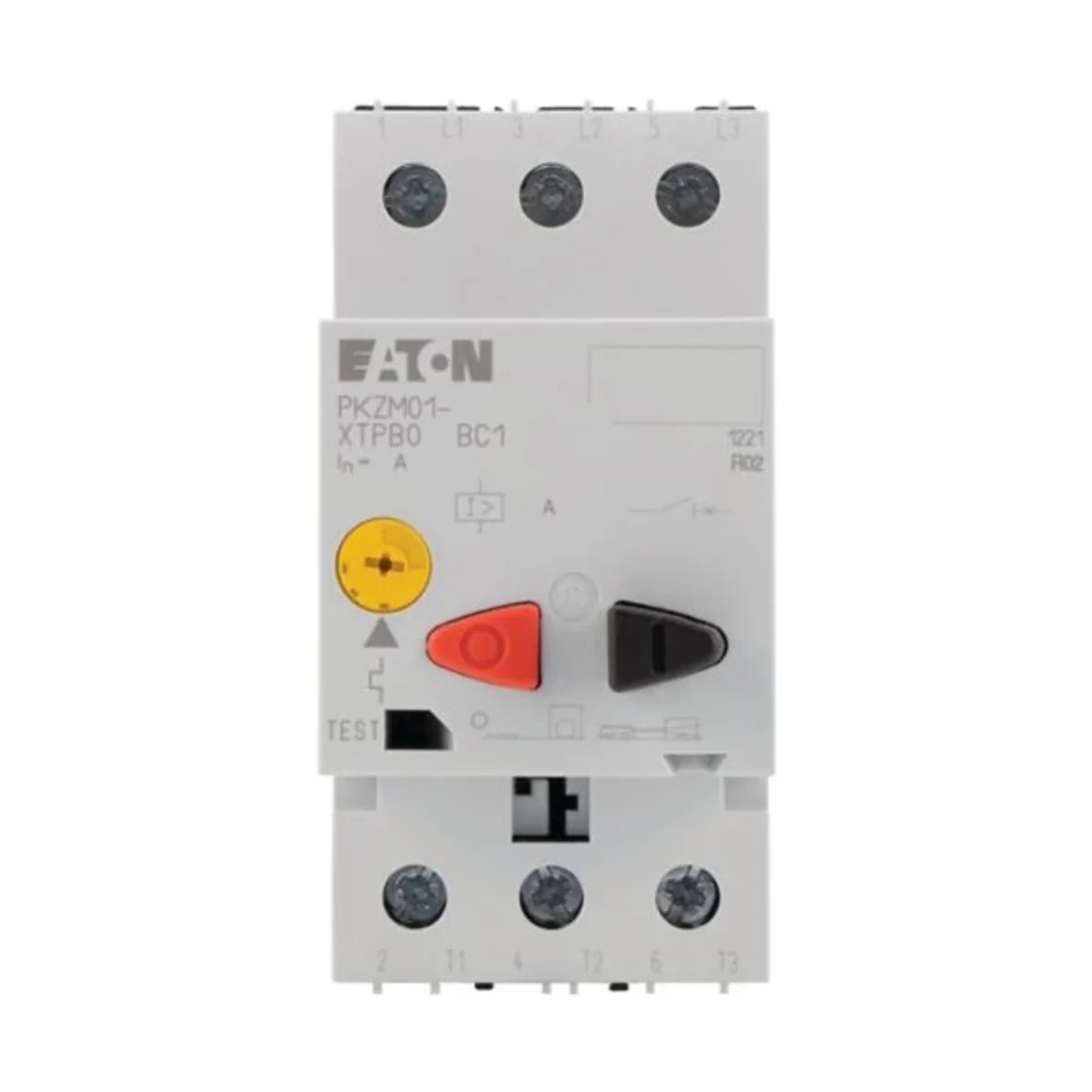

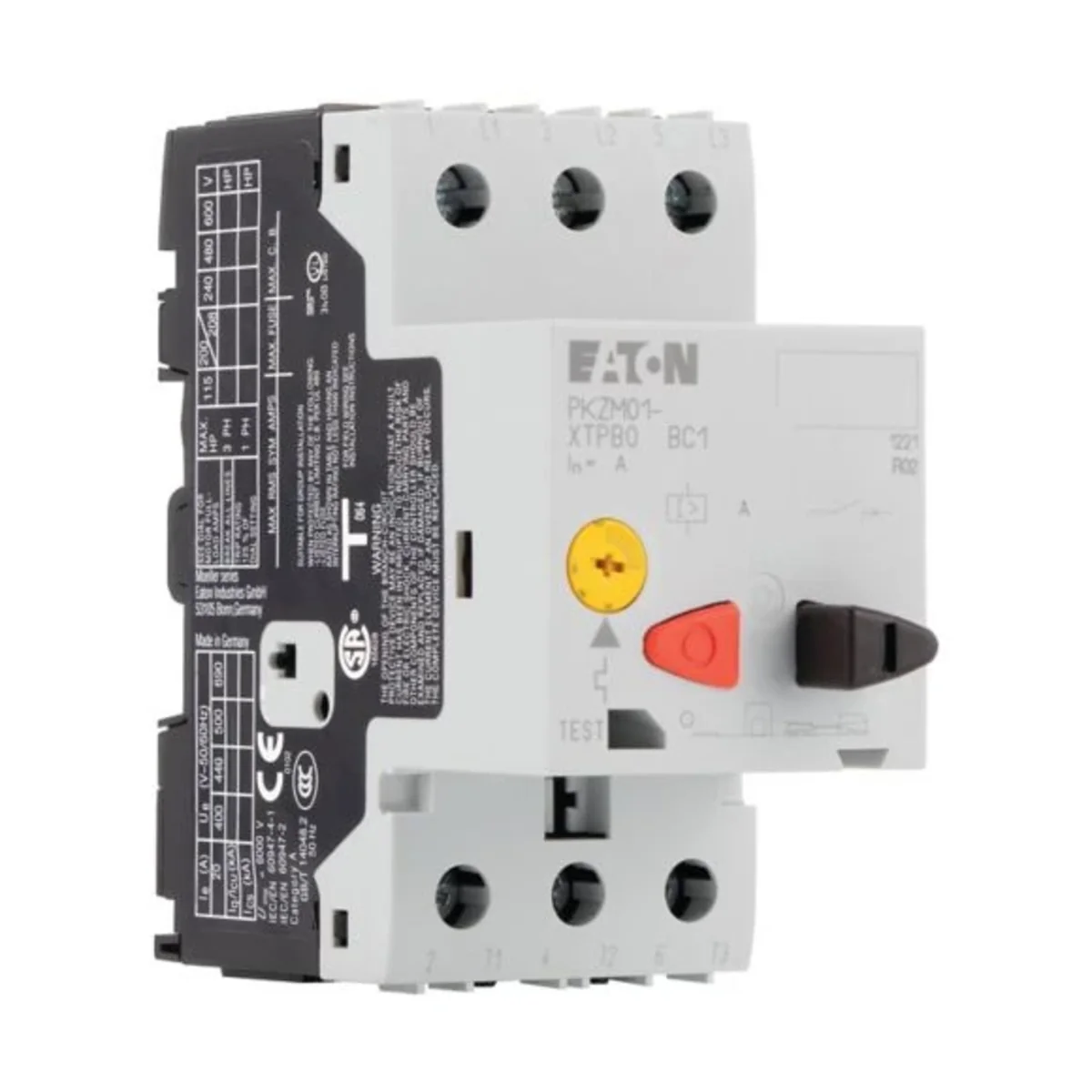

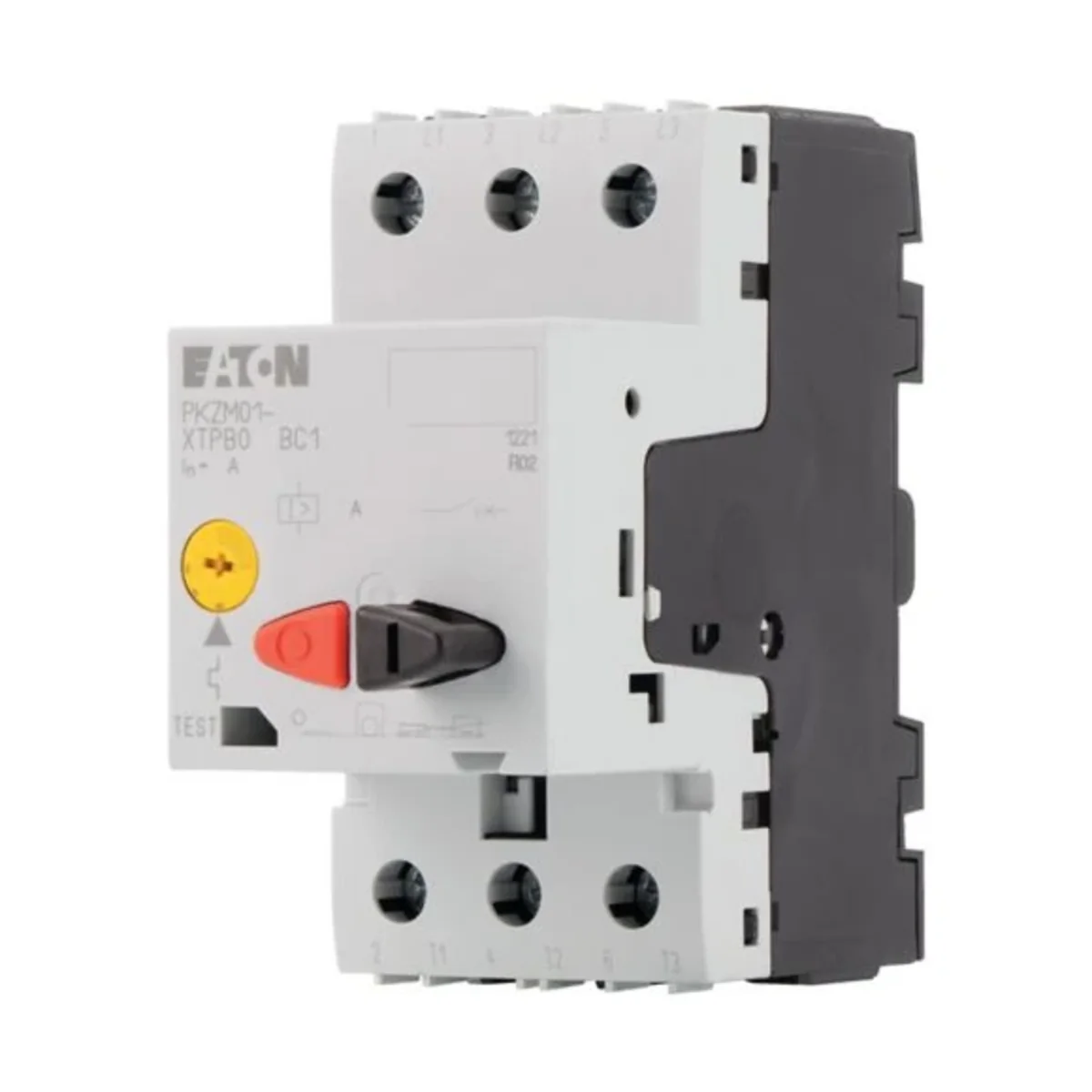

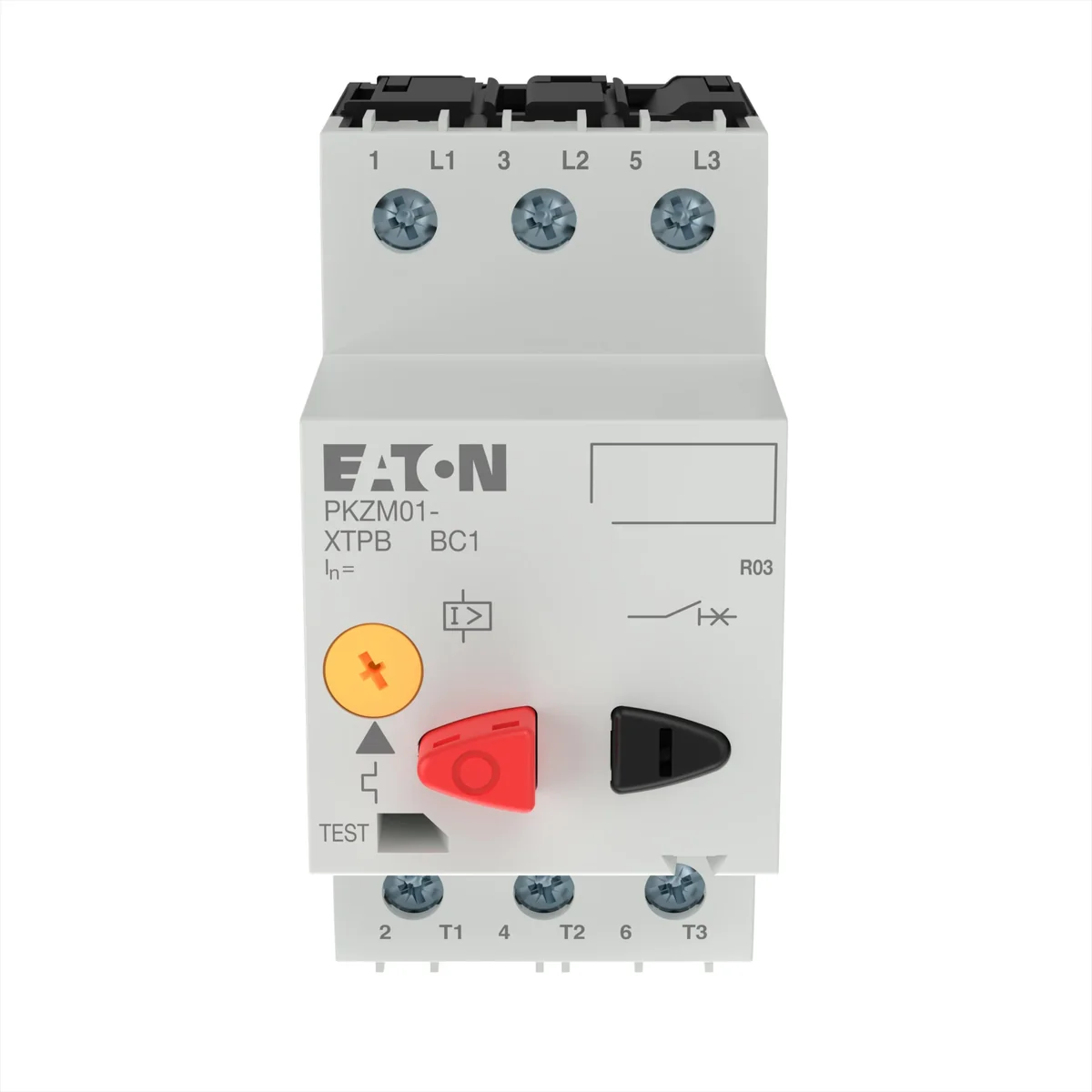

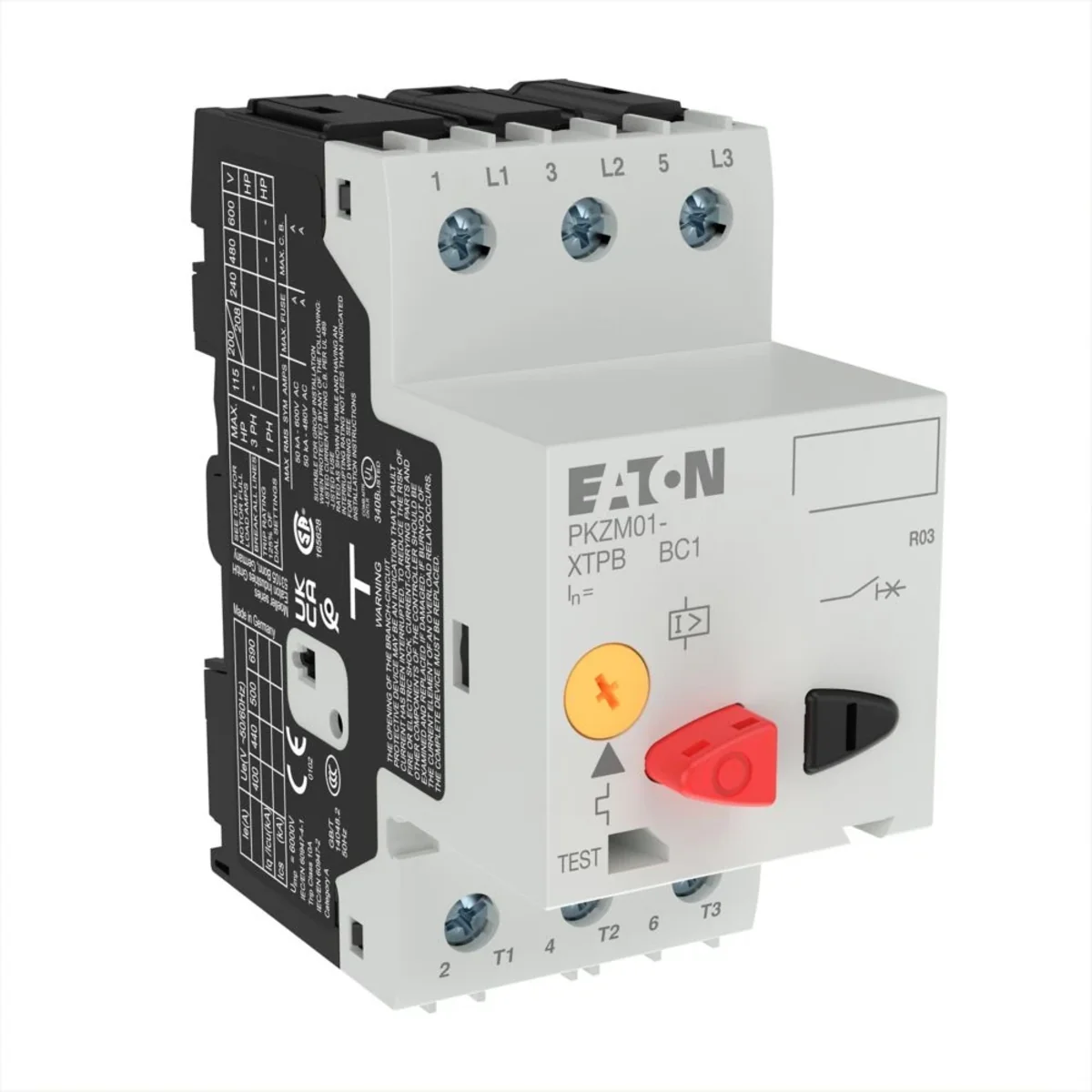

Motor switch with push button drive, PKZM01-4 278482
local index:
ASN215MOEL
Catalog No:
278482
EAN code:
4015082784829
Price:
63,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Automatic motor circuit breaker PKZM0.
Technical data
-
Maximum load capacity AC-3 [kW]1.5
-
Rated current [A]4
Other technical data
-
Overload release current setting2.5 ... 4 A
-
With thermal overload protectionNo
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu4 A
-
Rated operation power at AC-3, 400 V1.5 kW
-
Type of control elementPush button
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width45 mm
-
Adjustment range undelayed short-circuit release62 ... 62 A
-
Phase failure sensitiveYes
-
Rated operating voltage690 ... 690 V
-
Rated operation power at AC-3, 230 V0.75 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionBuilt-in device fixed built-in technique
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC50 kA
-
Height92.4 mm
-
Depth86 mm
Manufacturer details
-
ManufacturerEaton Electric Sp. z o.o.
-
Address80-299 Gdańsk Galaktyczna 30 Polska
-
E-mail
Bulk packaging
| A kind of package | Skrzynia | Skrzynia |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,312 | 0,312 |
| Volume (m3) | 0,000 | 0,000 |
| Width (m) | 0,049 | 0,049 |
| Length (m) | 0,095 | 0,095 |
| Depth (m) | 0,094 | 0,094 |
