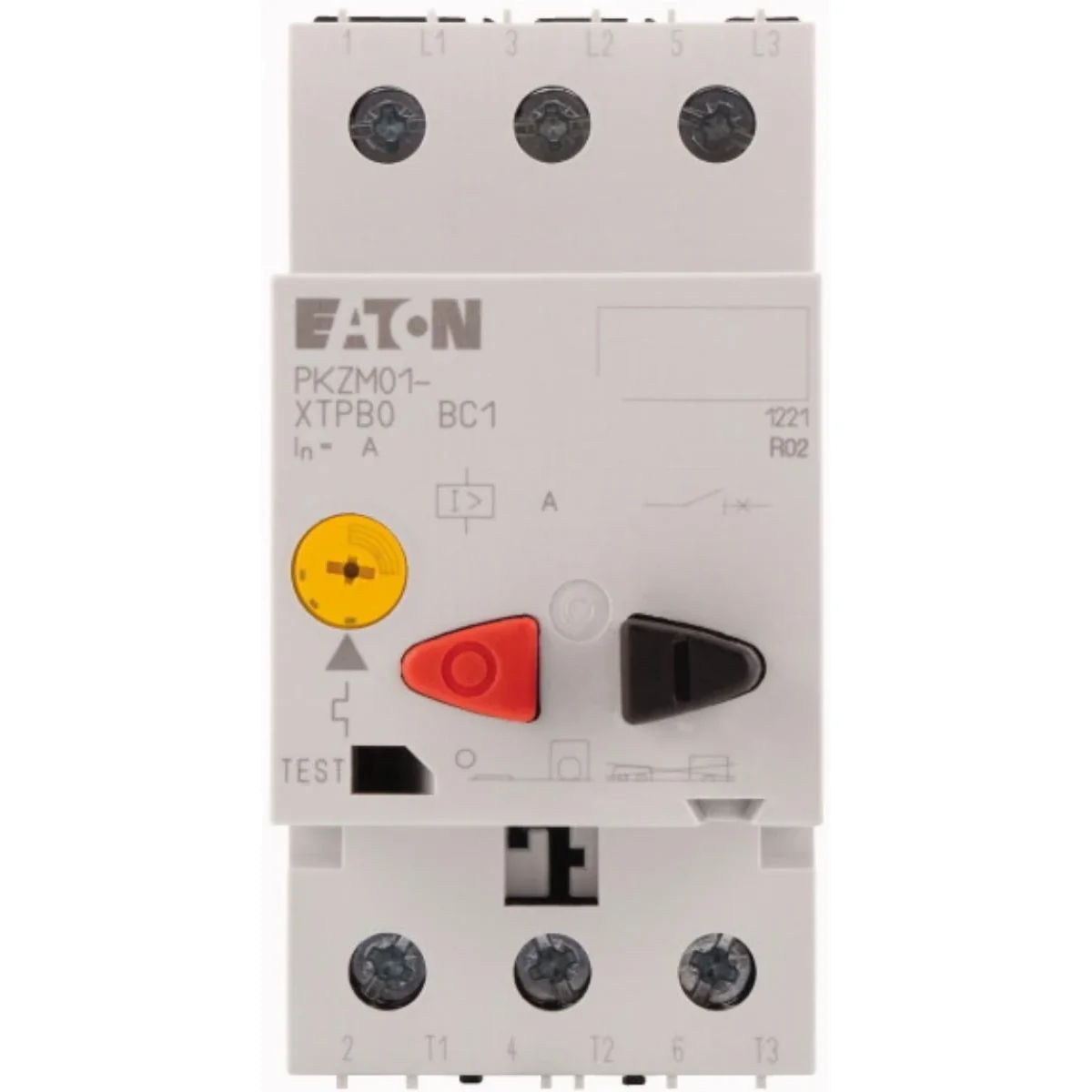

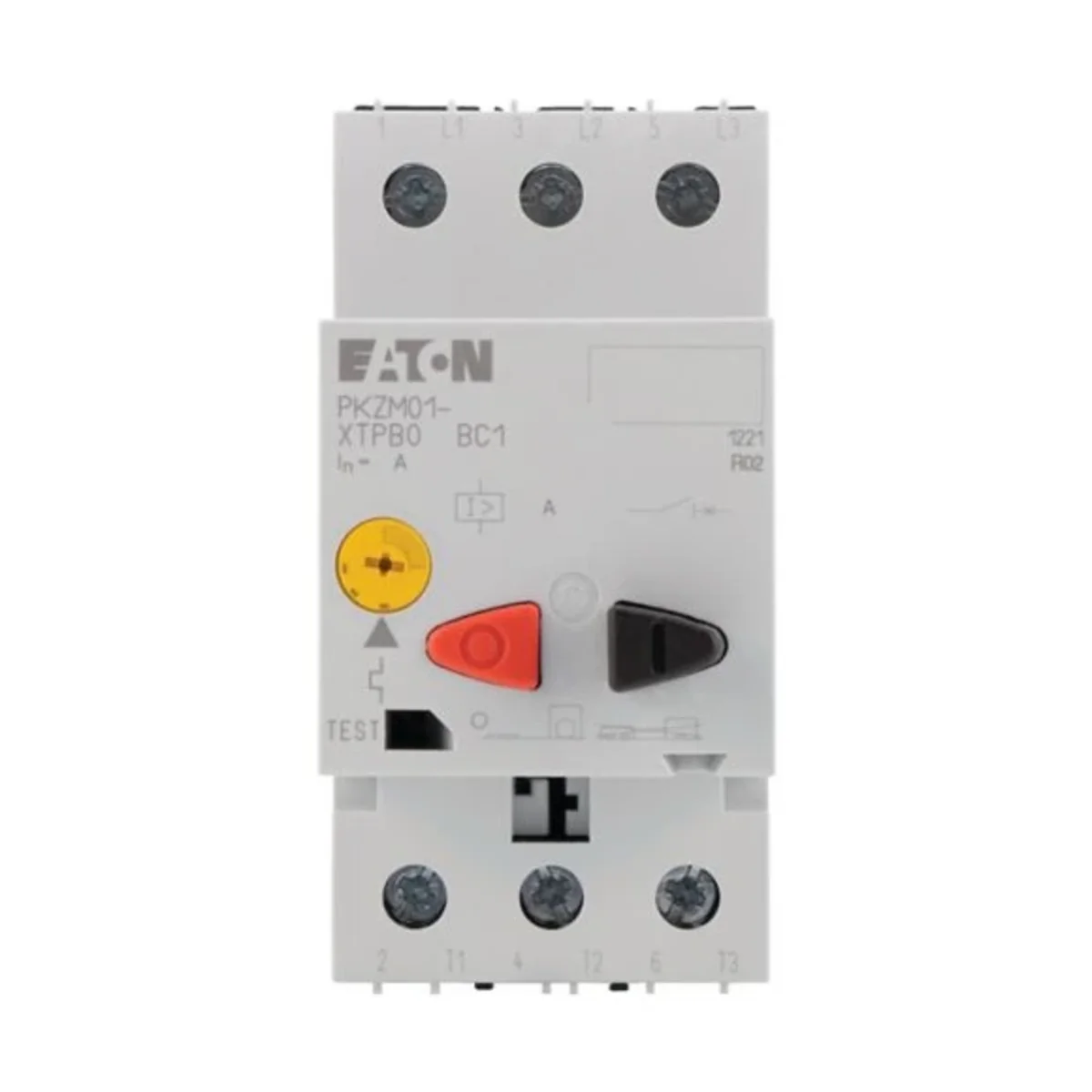

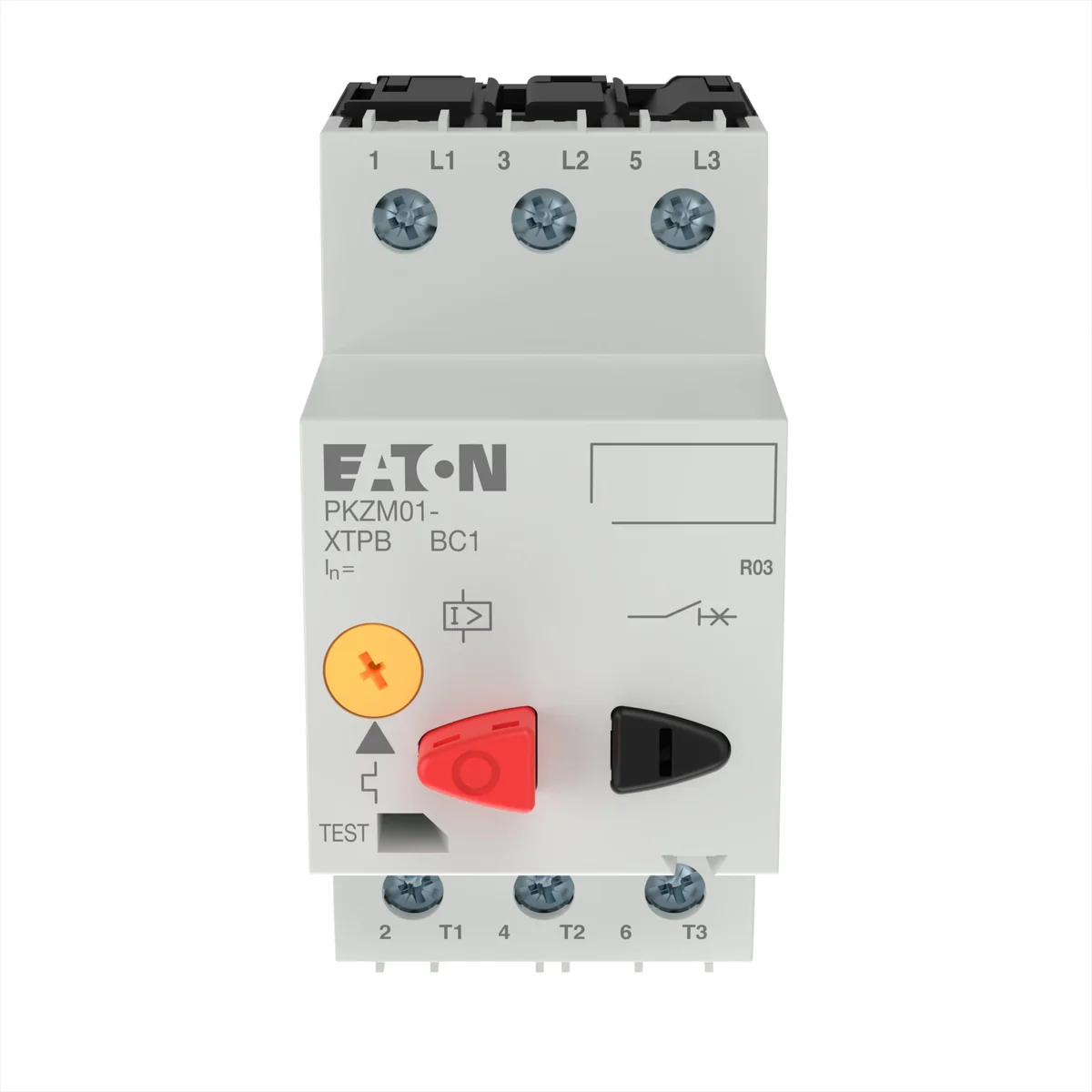

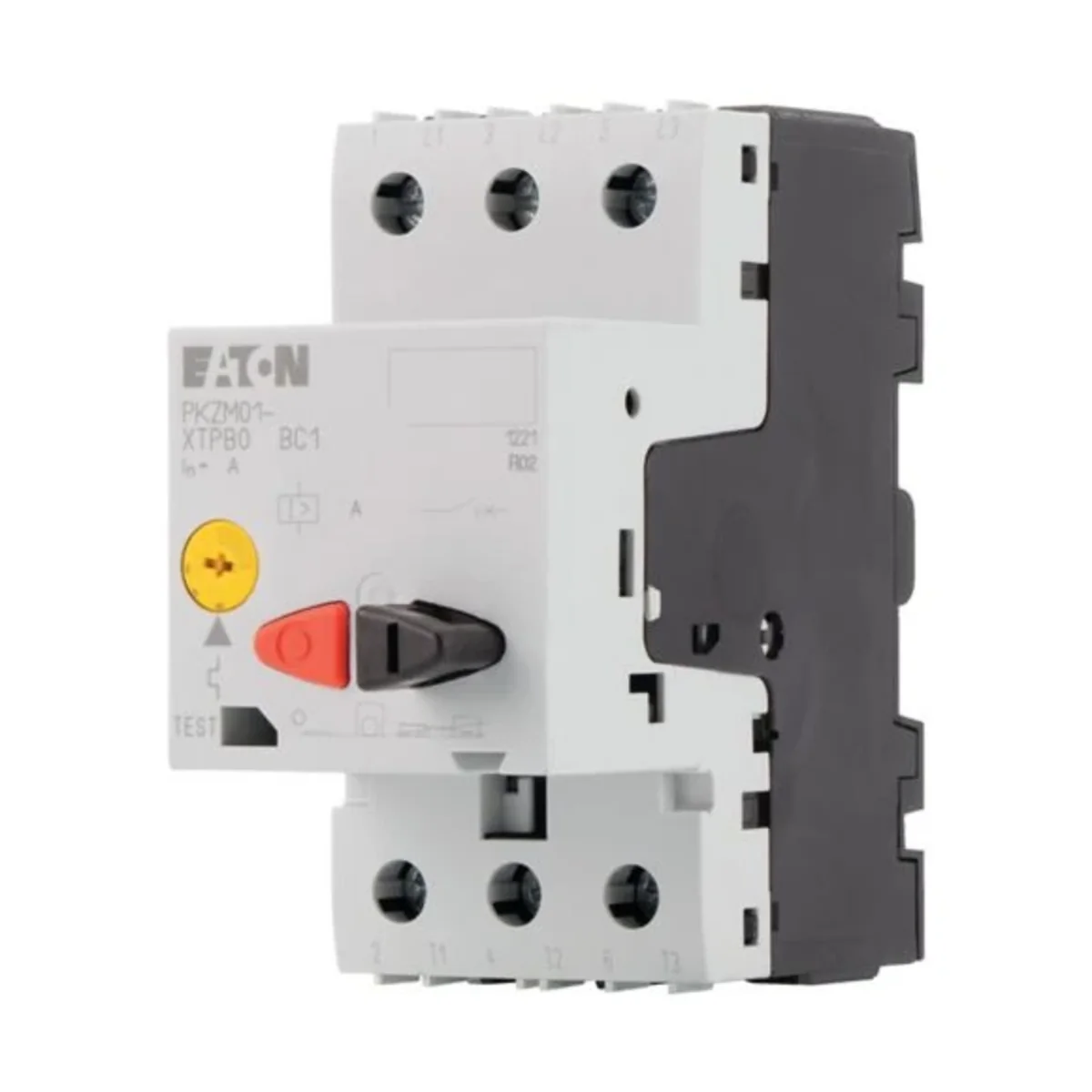

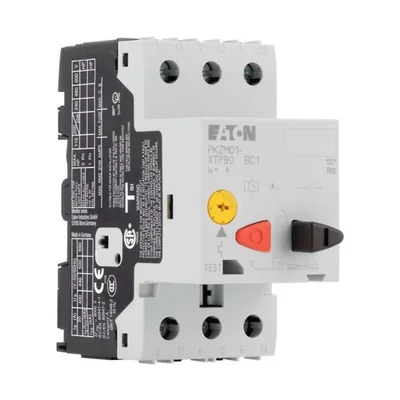

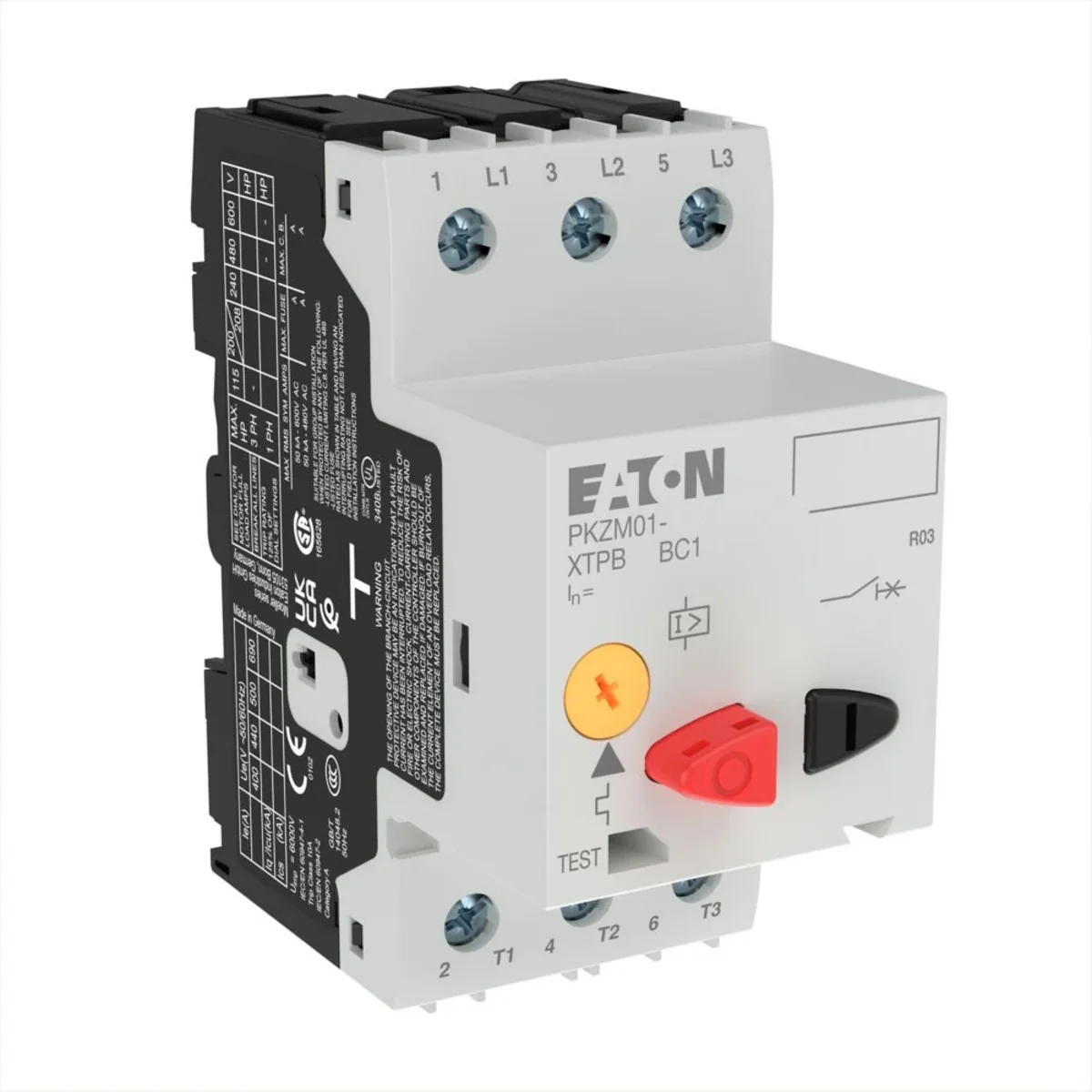

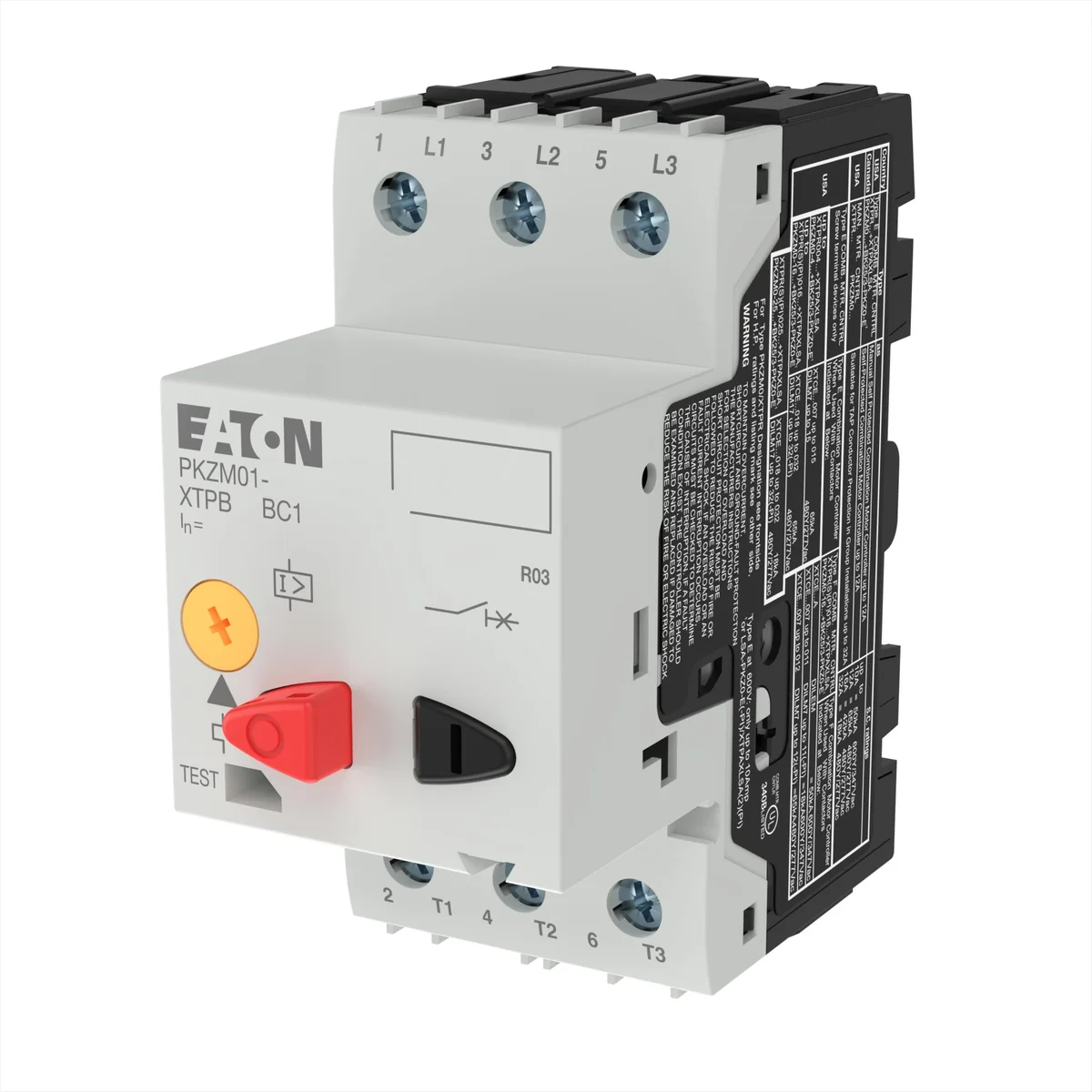

Motor switch with push button drive, PKZM01-1, 6 278480
local index:
ASN211MOEL
Catalog No:
278480
EAN code:
4015082784805
Price:
67,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Automatic motor circuit breaker PKZM0.
Technical data
-
Maximum load capacity AC-3 [kW]0.55
-
Rated current [A]1.6
Other technical data
-
Overload release current setting1 ... 1.6 A
-
With thermal overload protectionNo
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu1.6 A
-
Rated operation power at AC-3, 400 V0.55 kW
-
Type of control elementPush button
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width45 mm
-
Adjustment range undelayed short-circuit release25 ... 25 A
-
Phase failure sensitiveYes
-
Rated operating voltage690 ... 690 V
-
Rated operation power at AC-3, 230 V0.25 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionBuilt-in device fixed built-in technique
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC50 kA
-
Height92.4 mm
-
Depth86 mm
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,311 |
| Volume (m3) | 0,000 |
| Width (m) | 0,049 |
| Length (m) | 0,095 |
| Depth (m) | 0,094 |
