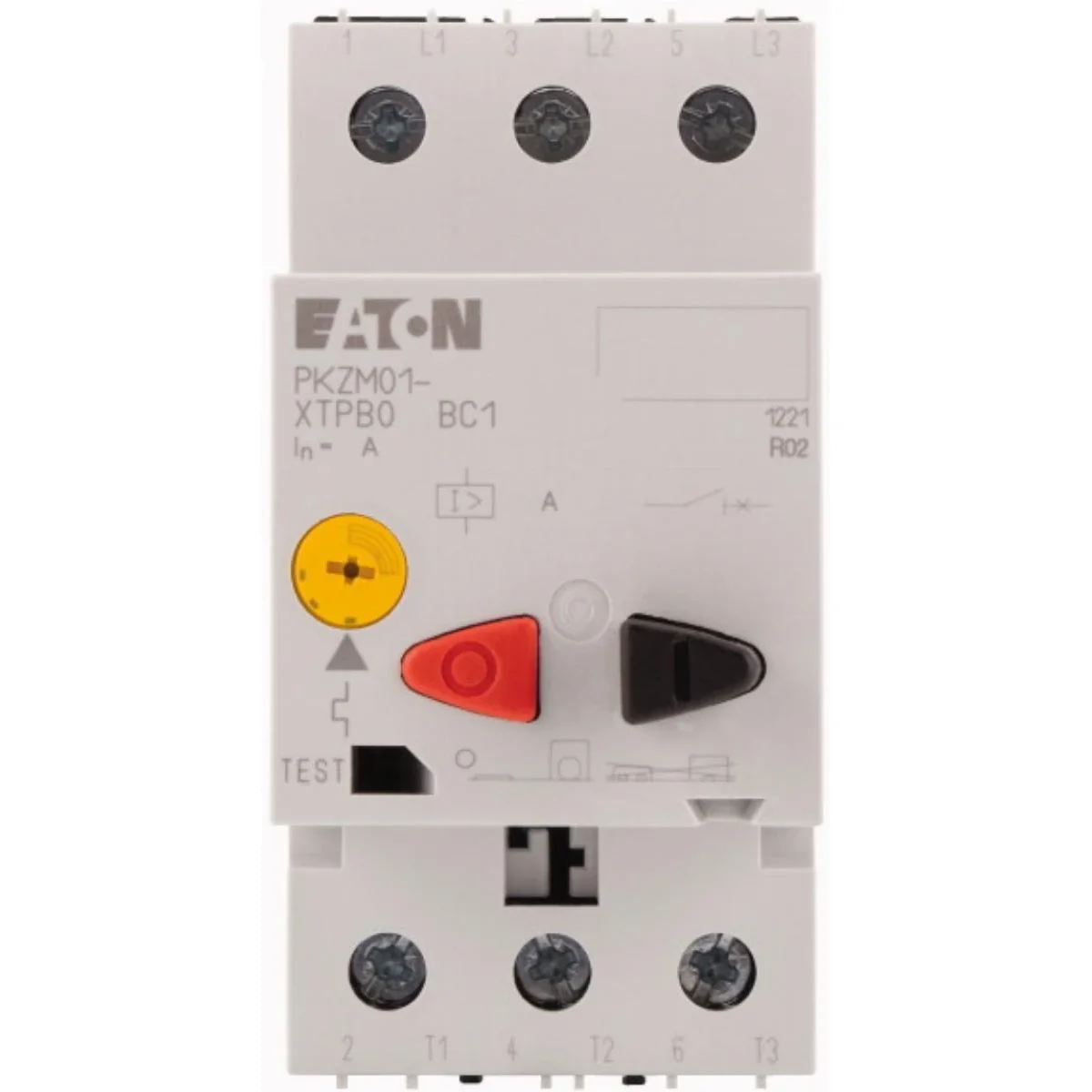

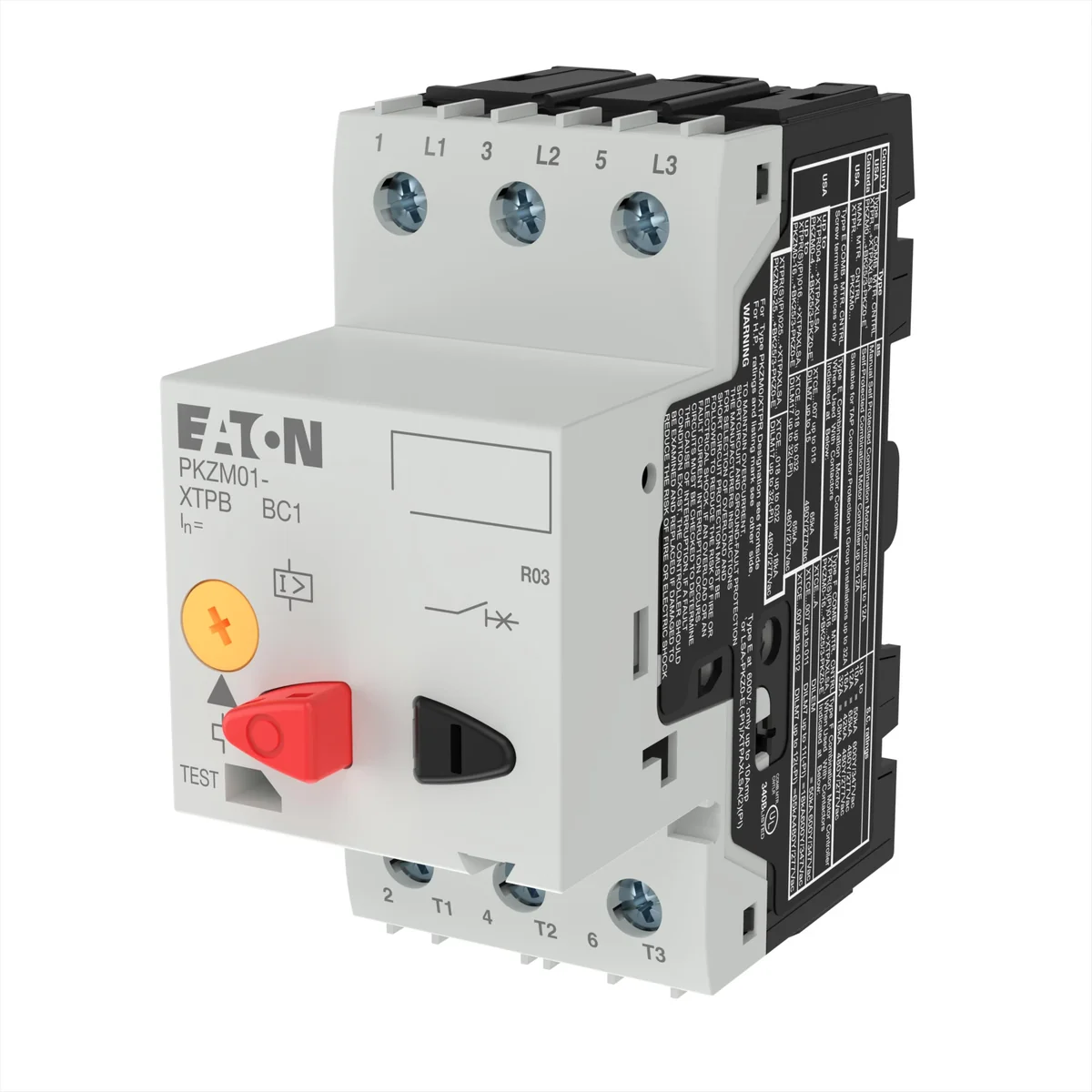

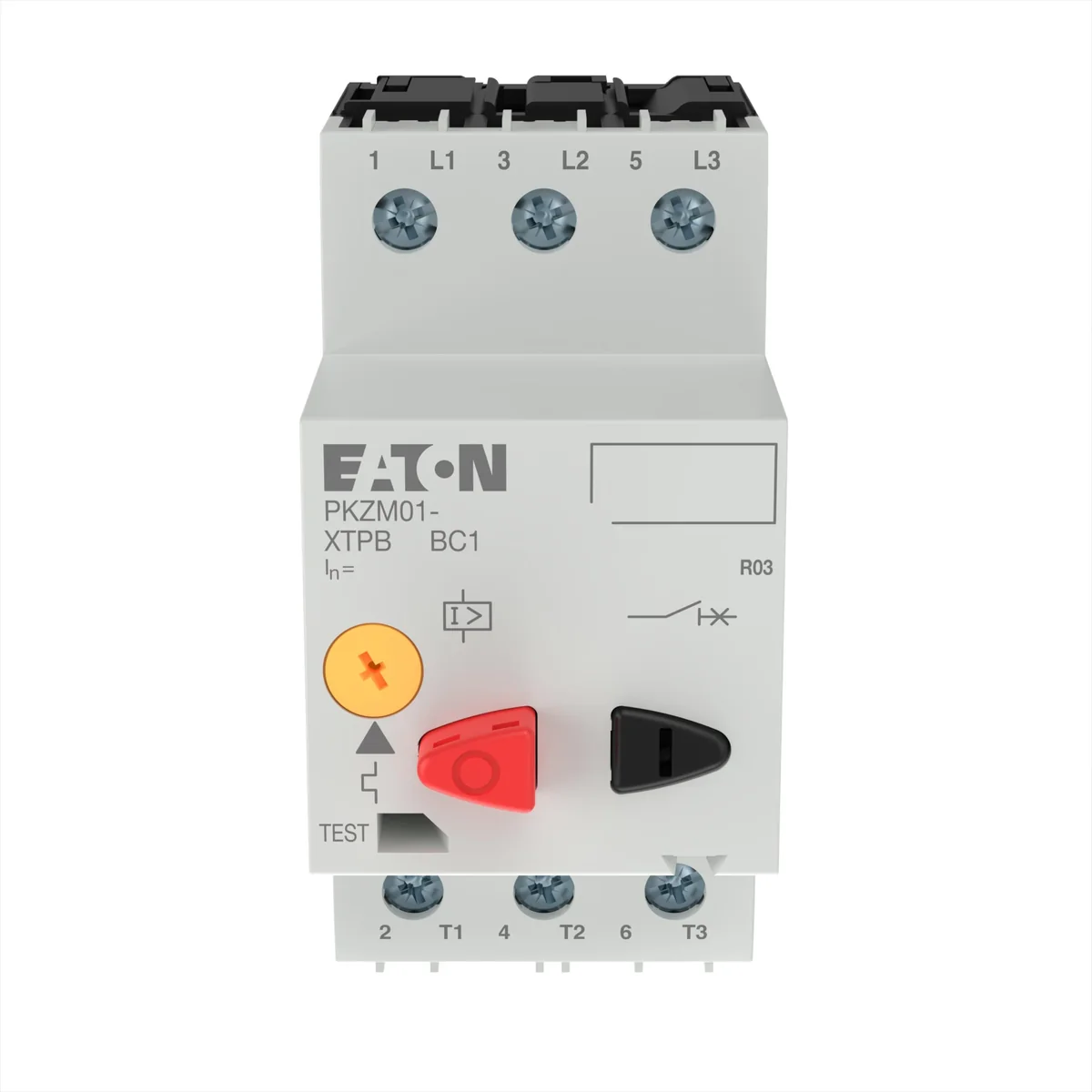

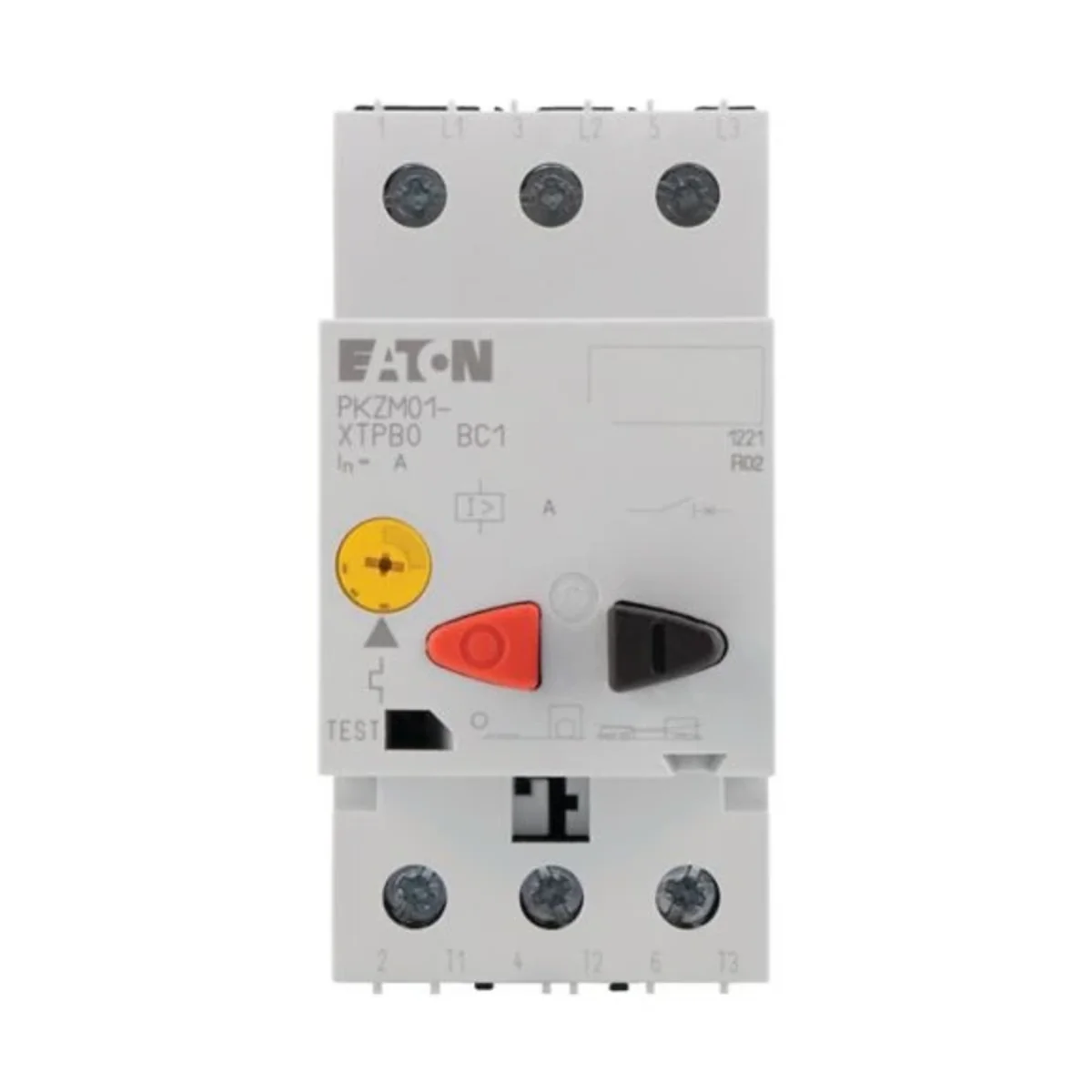

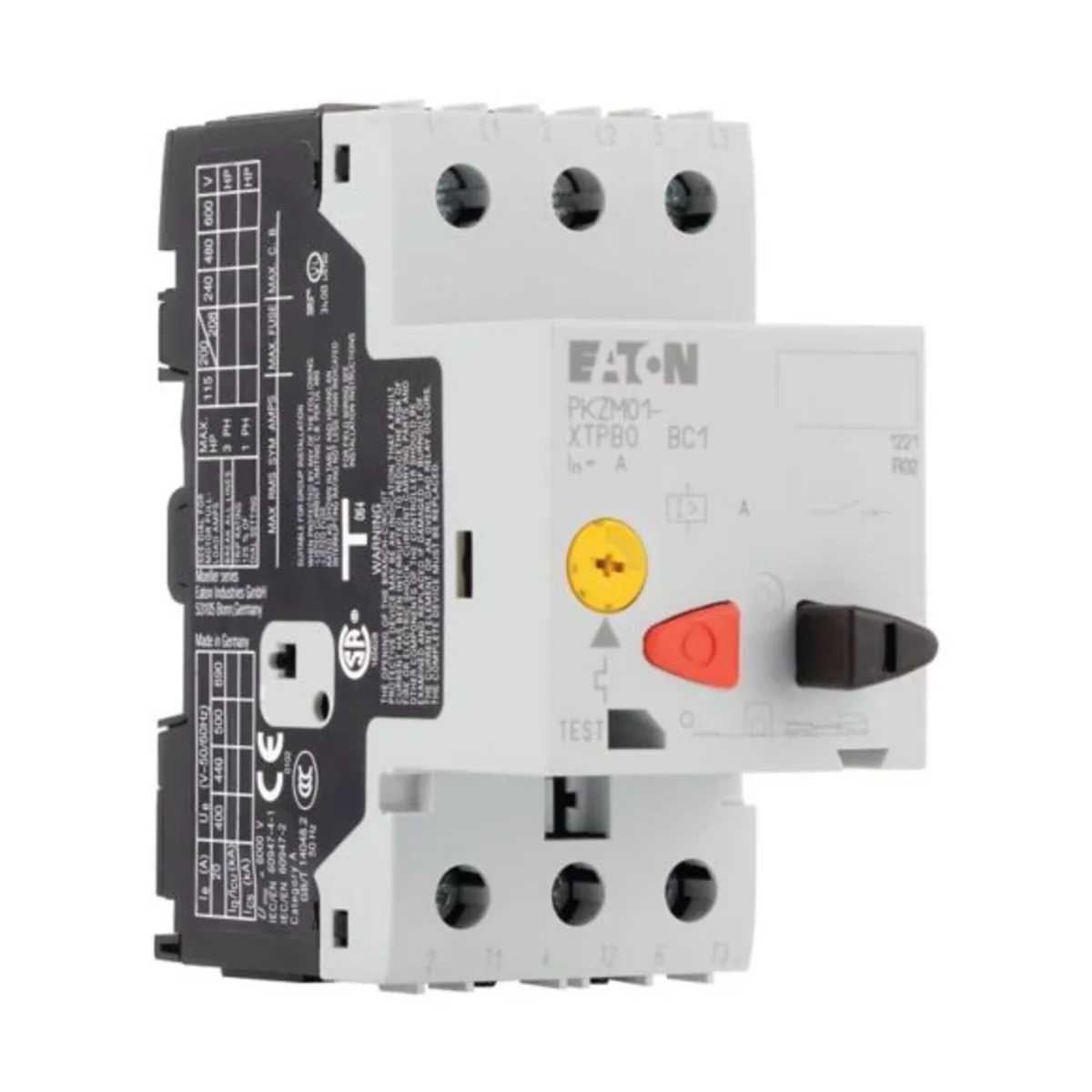

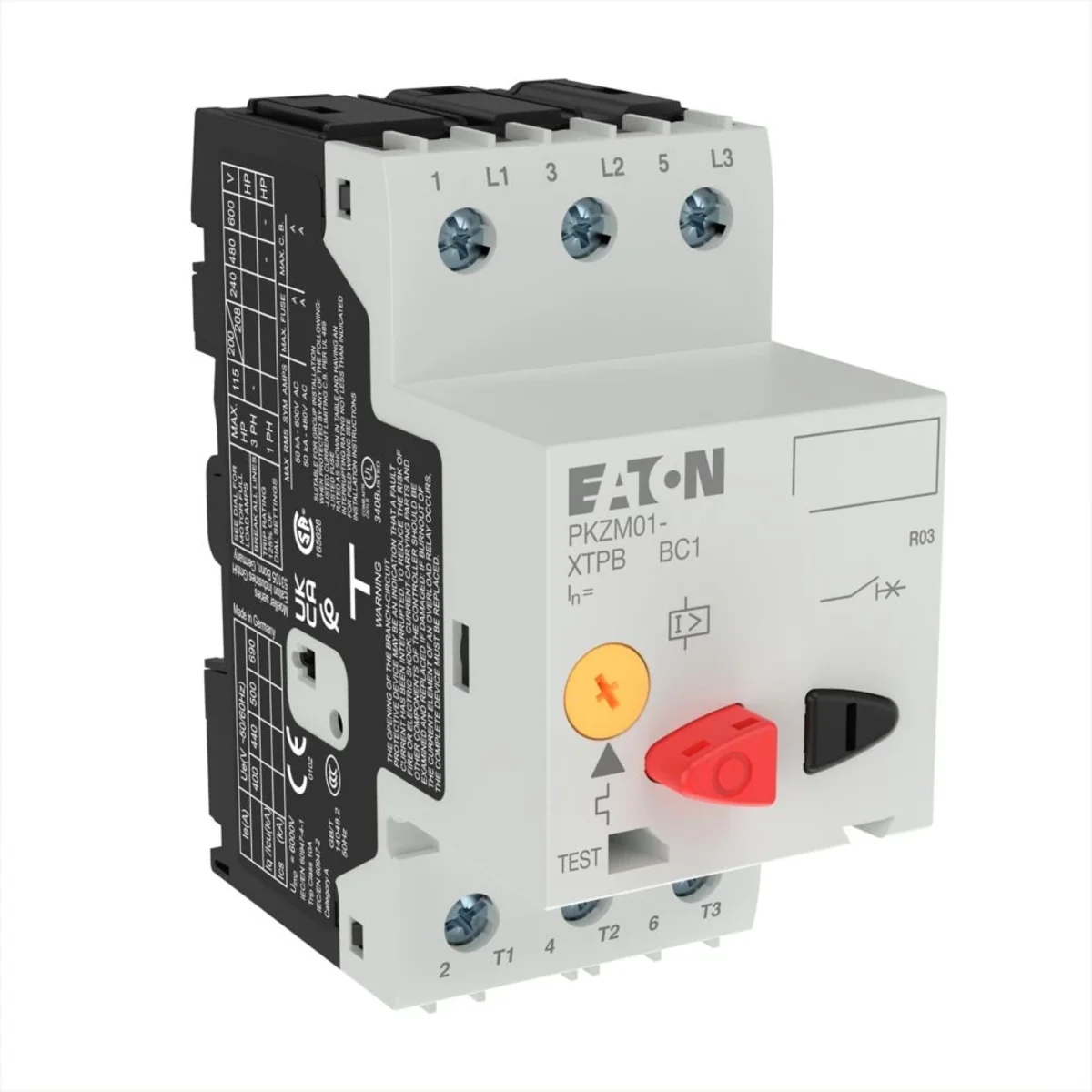

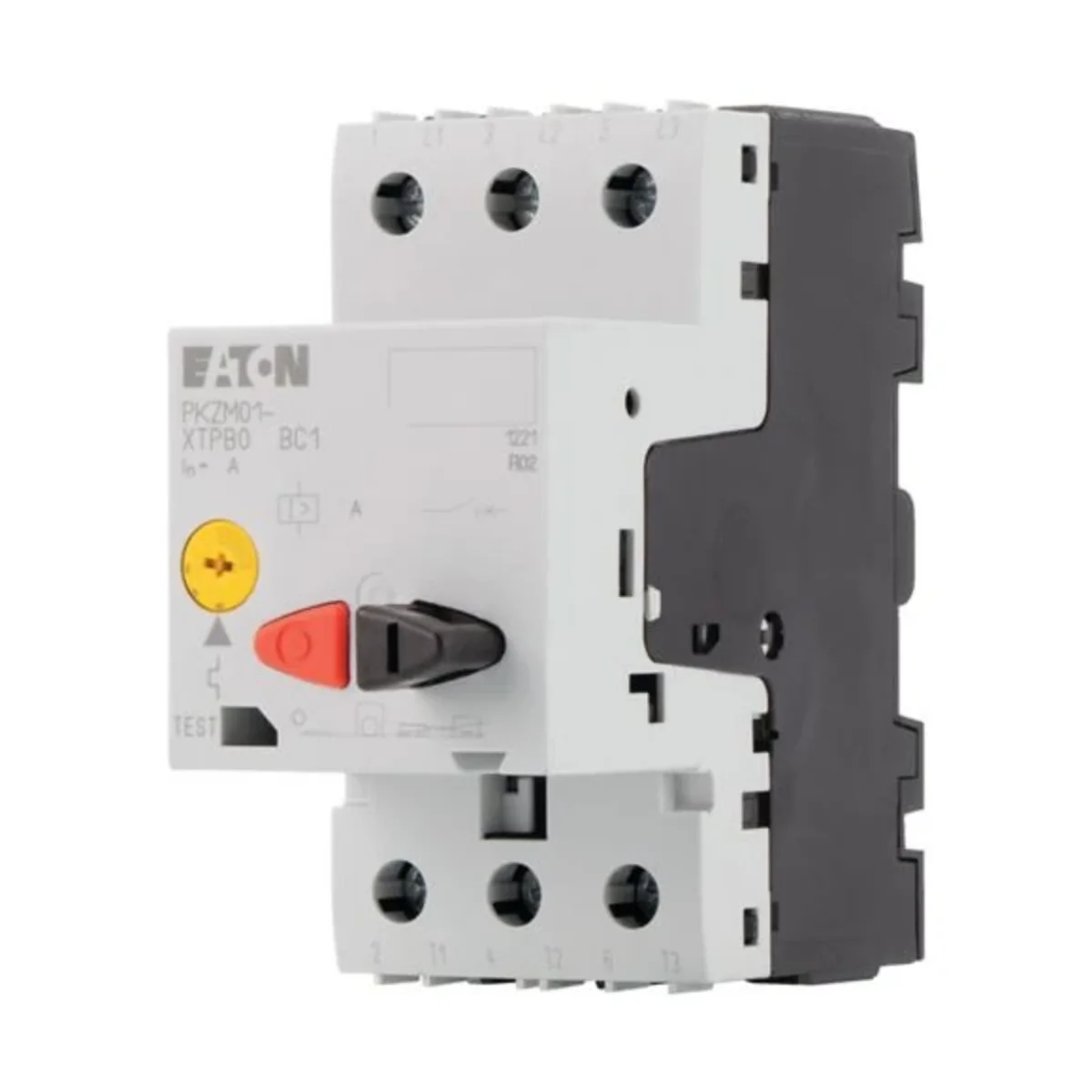

Motor switch with push button drive, PKZM01-0, 63 278478
local index:
ASN119MOEL
Catalog No:
278478
EAN code:
4015082784782
Price:
68,06 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Automatic motor circuit breaker PKZM0.
Technical data
-
Maximum load capacity AC-3 [kW]0.12
-
Rated current [A]0.63
Other technical data
-
Overload release current setting0.4 ... 0.63 A
-
With thermal overload protectionNo
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu0.63 A
-
Rated operation power at AC-3, 400 V0.12 kW
-
Type of control elementPush button
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
-
Width45 mm
-
Adjustment range undelayed short-circuit release9.8 ... 9.8 A
-
Phase failure sensitiveYes
-
Rated operating voltage690 ... 690 V
-
Rated operation power at AC-3, 230 V0.09 kW
-
Type of electrical connection of main circuitScrew connection
-
Device constructionBuilt-in device fixed built-in technique
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC50 kA
-
Height92.4 mm
-
Depth86 mm
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,263 | 0,282 |
| Volume (m3) | 0,000 | 0,000 |
| Width (m) | 0,045 | 0,049 |
| Length (m) | 0,093 | 0,095 |
| Depth (m) | 0,090 | 0,094 |
