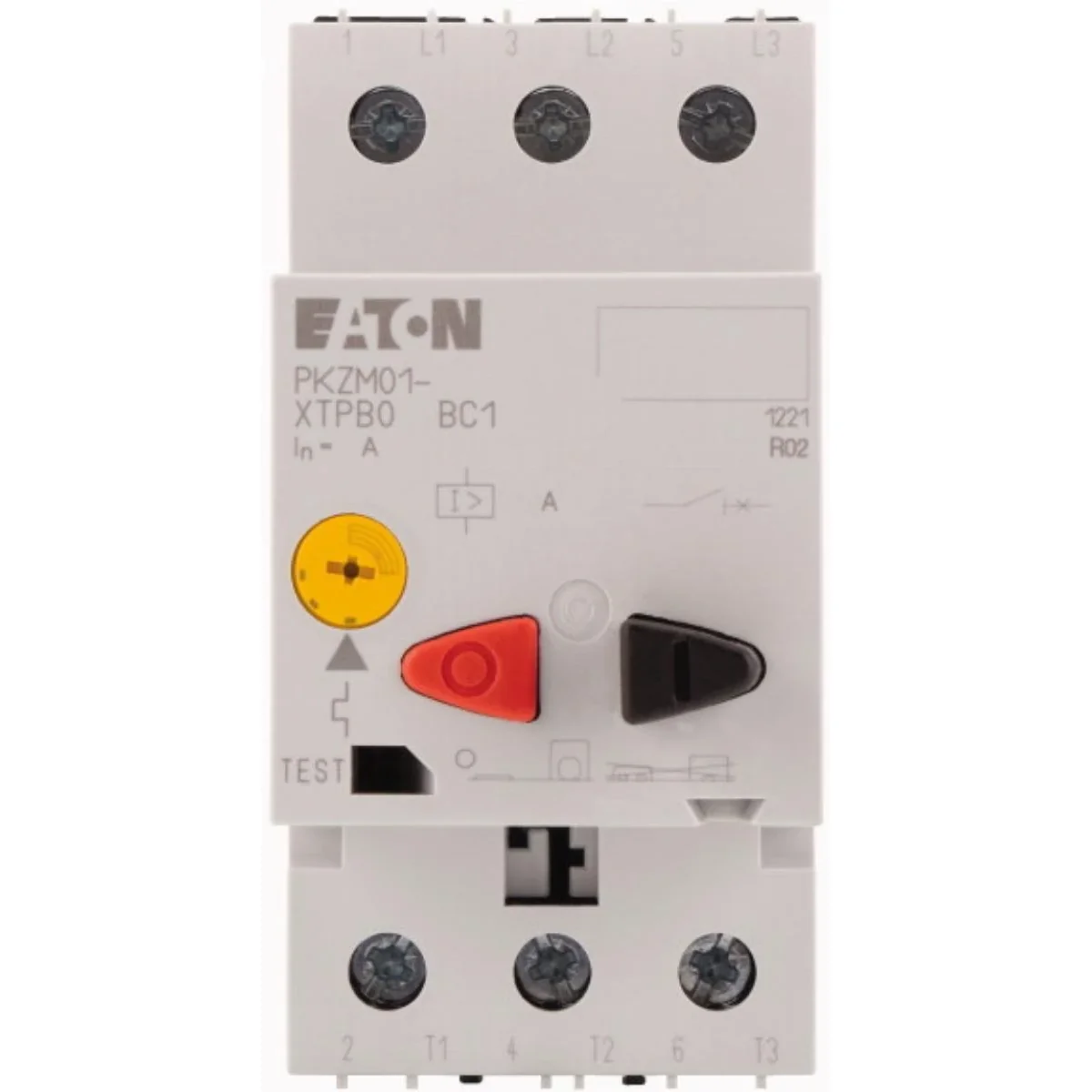

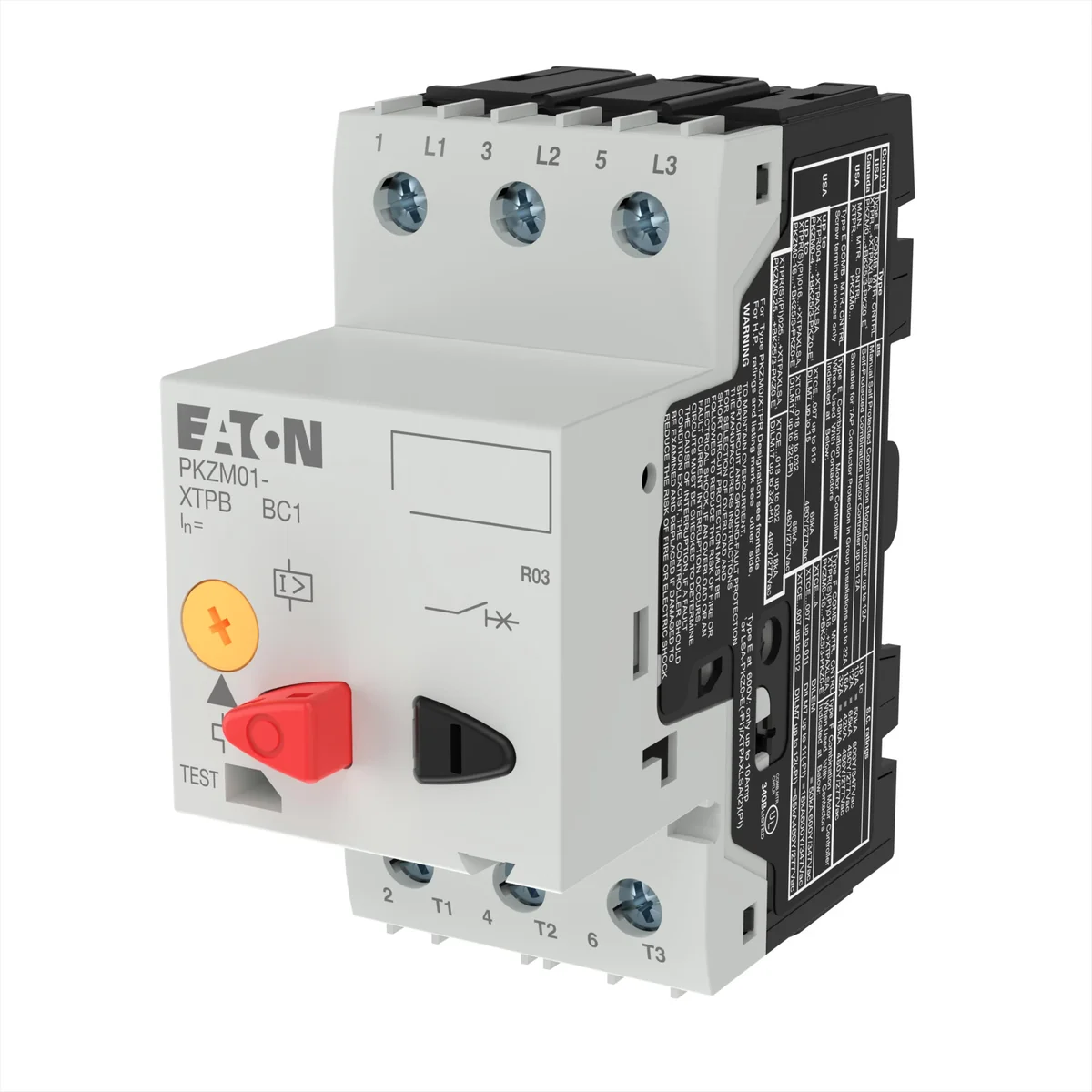

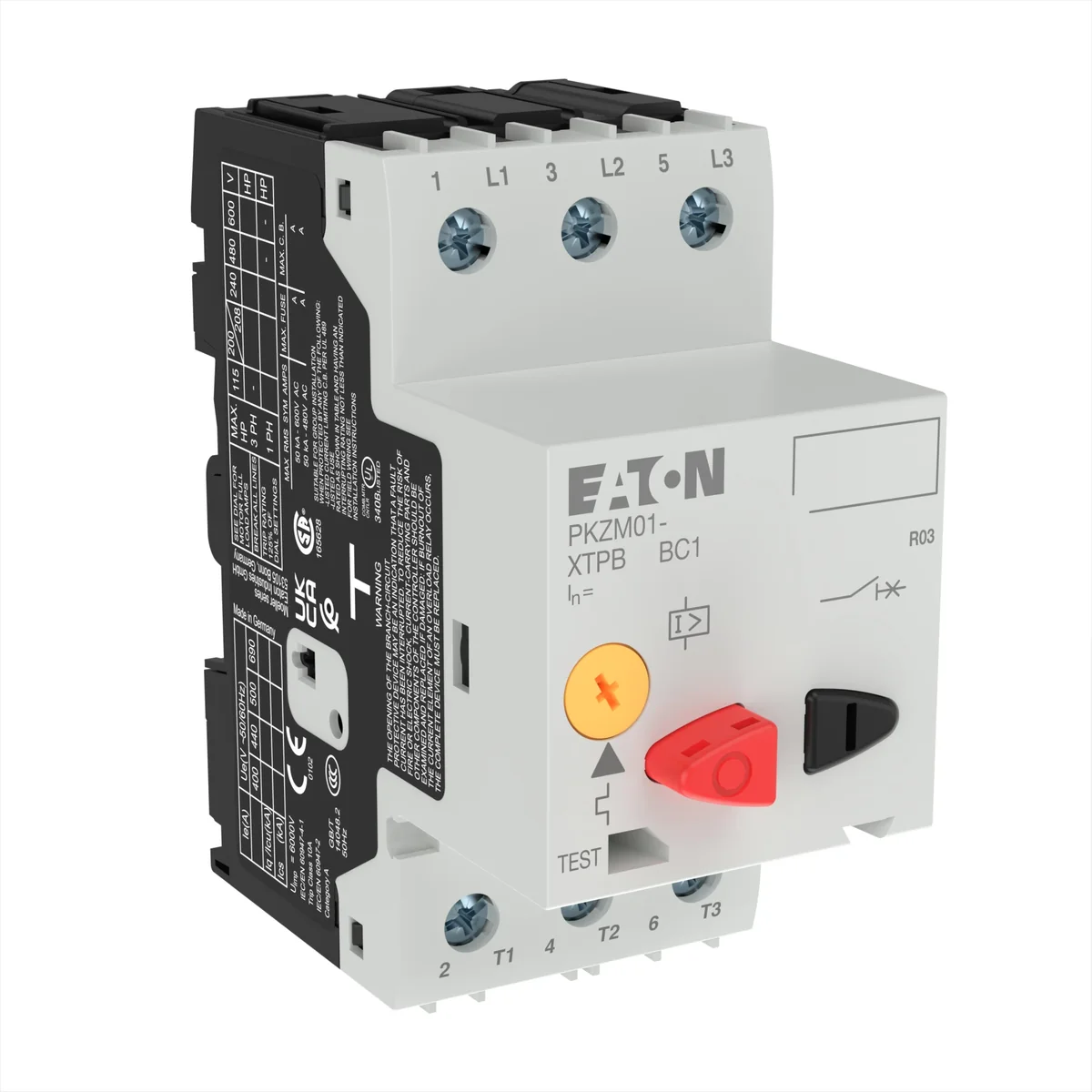

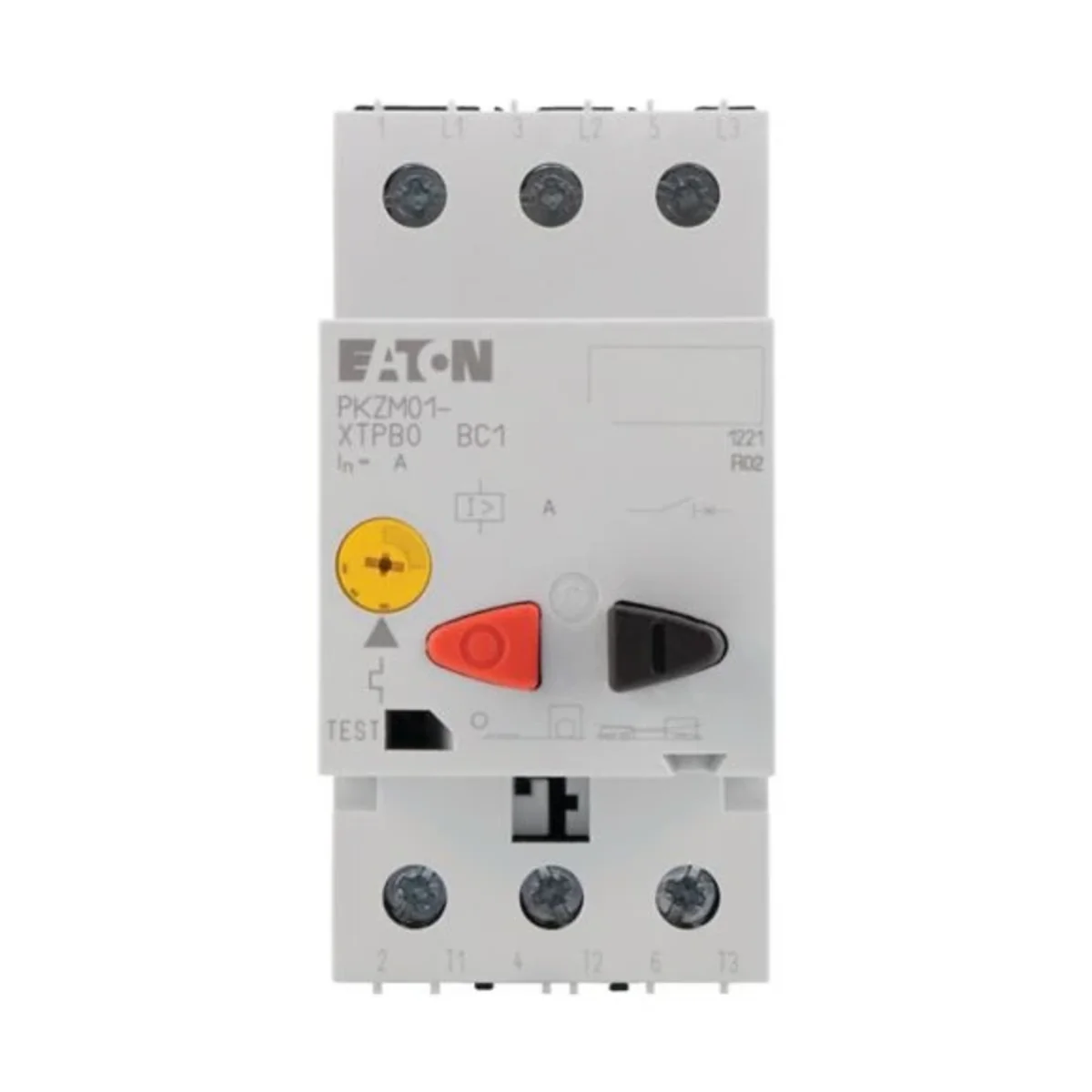

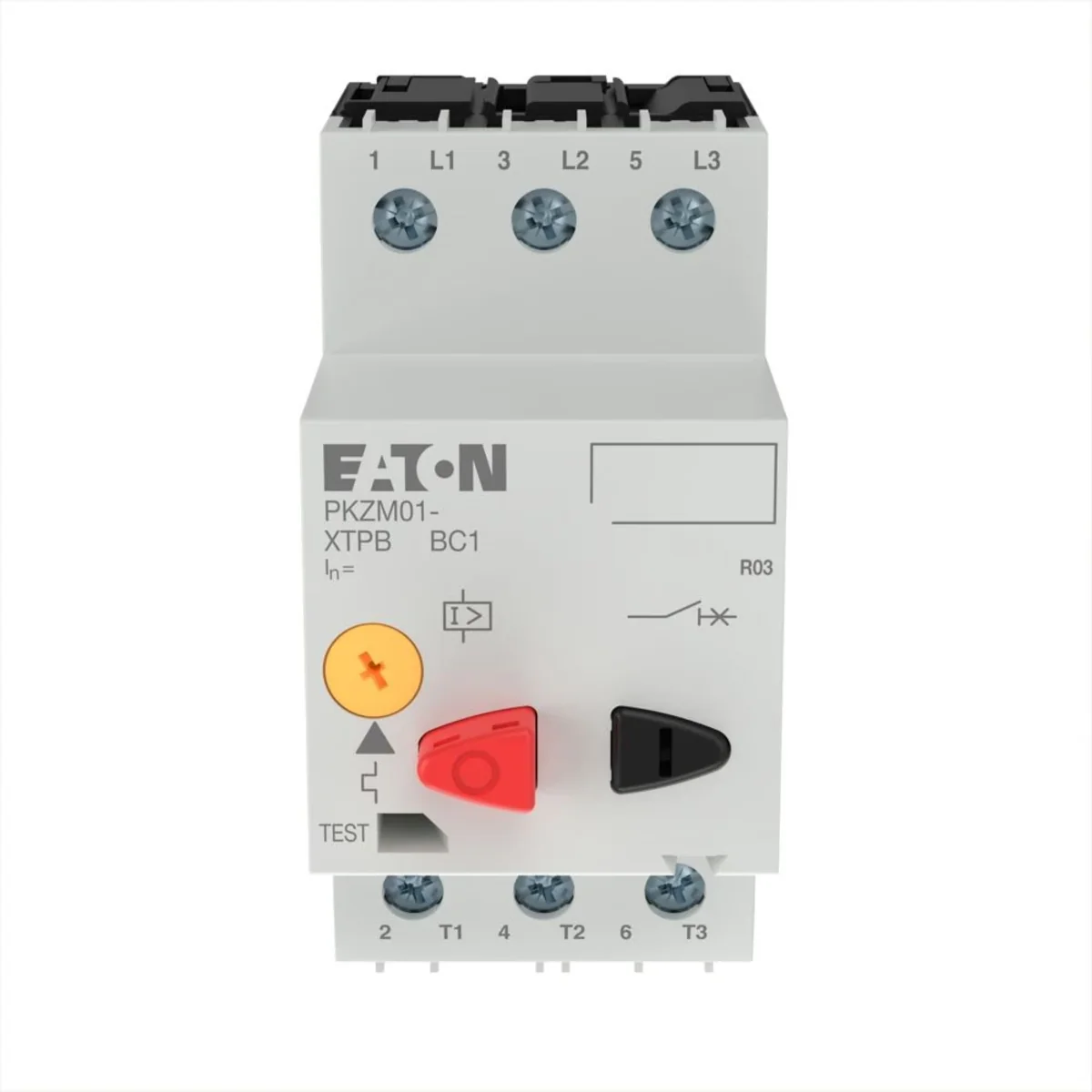

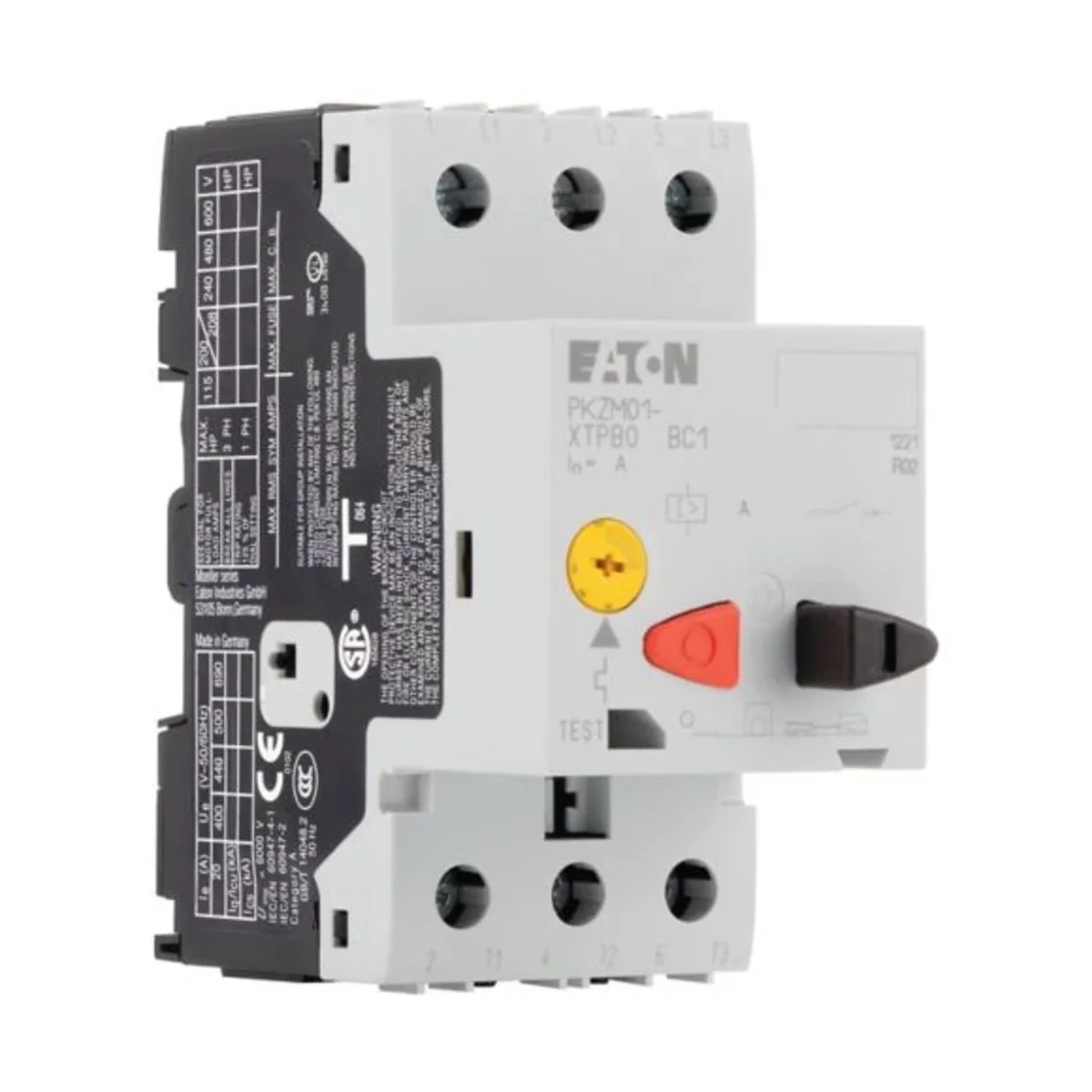

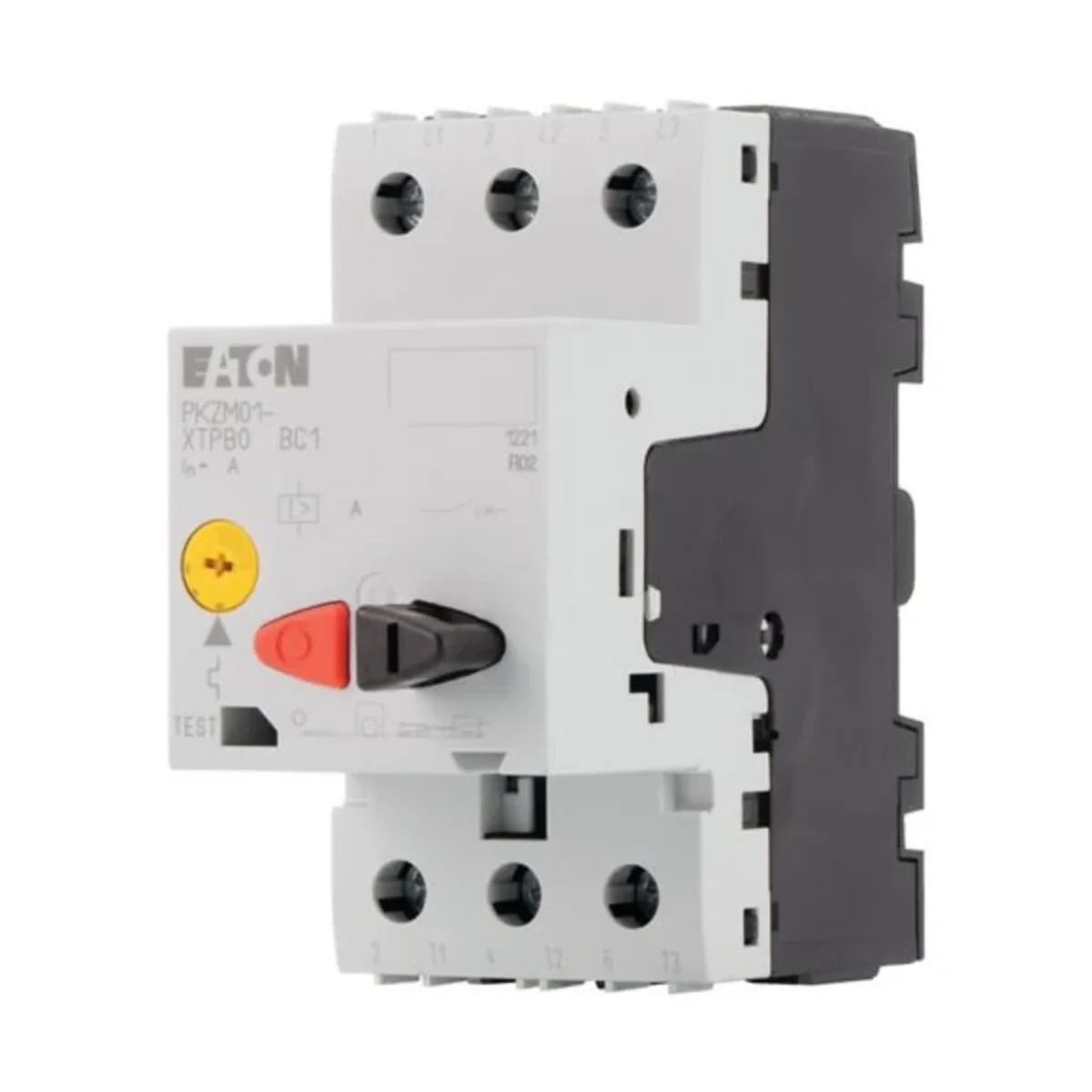

Motor switch, PKZM01-6, 3 278483

local index:
ASN012MOEL
Catalog No:
278483
EAN code:
4015082784836
Manufacturer: EATON
Maximum load capacity AC-3 [kW]: 2.2
Rated current [A]: 6.3
Price:
67,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Automatic motor circuit breaker PKZM0.

Technical data

  • Maximum load capacity AC-3 [kW]
    2.2
  • Rated current [A]
    6.3

Other technical data

  • Overload release current setting
    4 ... 6.3 A
  • With thermal overload protection
    No
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    6.3 A
  • Rated operation power at AC-3, 400 V
    2.2 kW
  • Type of control element
    Push button
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Width
    45 mm
  • Adjustment range undelayed short-circuit release
    98 ... 98 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    690 ... 690 V
  • Rated operation power at AC-3, 230 V
    1.1 kW
  • Type of electrical connection of main circuit
    Screw connection
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    50 kA
  • Height
    92.4 mm
  • Depth
    86 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,319
Volume (m3) 0,000
Width (m) 0,049
Length (m) 0,095
Depth (m) 0,094
